    VTX Pilotix R3000 (5.8G 3.0W)

Specifications:

48CH 5.8G frequency range: (A.B.E.F.R.L; 5362MHz-5045MHz)
Maximum power: 3W
Input voltage: DC 6V-28V
Antenna connector: MMCX
Heat dissipation method: aluminum alloy heatsink and fan
Hole pitch: 20mm*20mm
Dimensions: 40.8mm * 24.8mm * 13.3mm
Weight: 17.8g

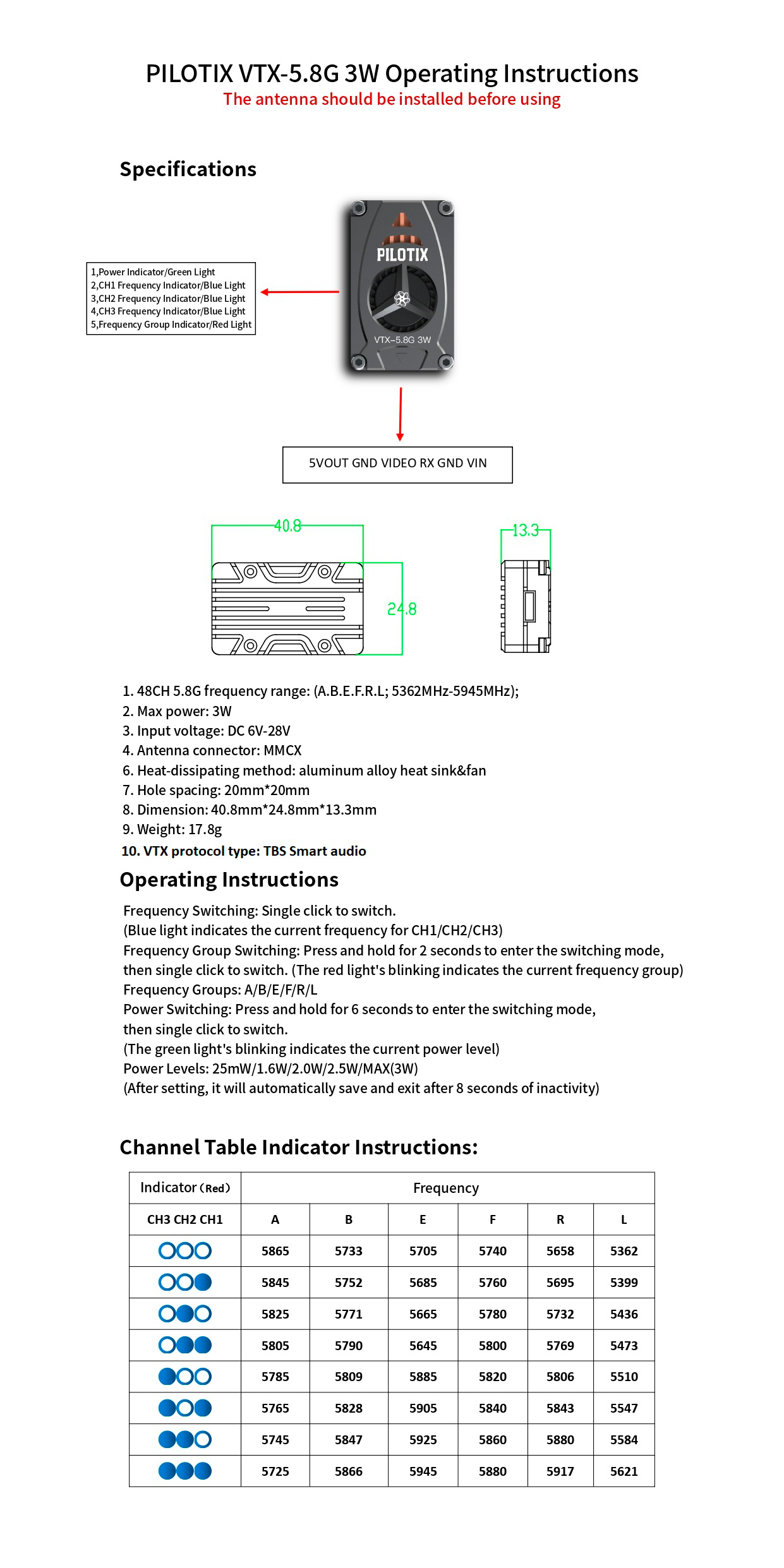

Operating instructions:
Frequency switching: One click to switch. (The blue light indicates the current frequency for CH1/CH2/CH3).
Frequency group switching: Press and hold for 2 seconds to enter switching mode, then one click to switch. (Flashing red light indicates the current frequency group).
Frequency groups: A/B/E/F/R/L
Power Switching: Press and hold for 6 seconds to enter switching mode, then one click to switch. (Blinking green light indicates current power level).
Power levels: 25mW/1.6W/2.0W/2.5W/MAX(3W) (Once set, it will automatically save and exit after 8 seconds of inactivity).

The package includes:
1x VTX Pilotix (5.8G 3.0W)
