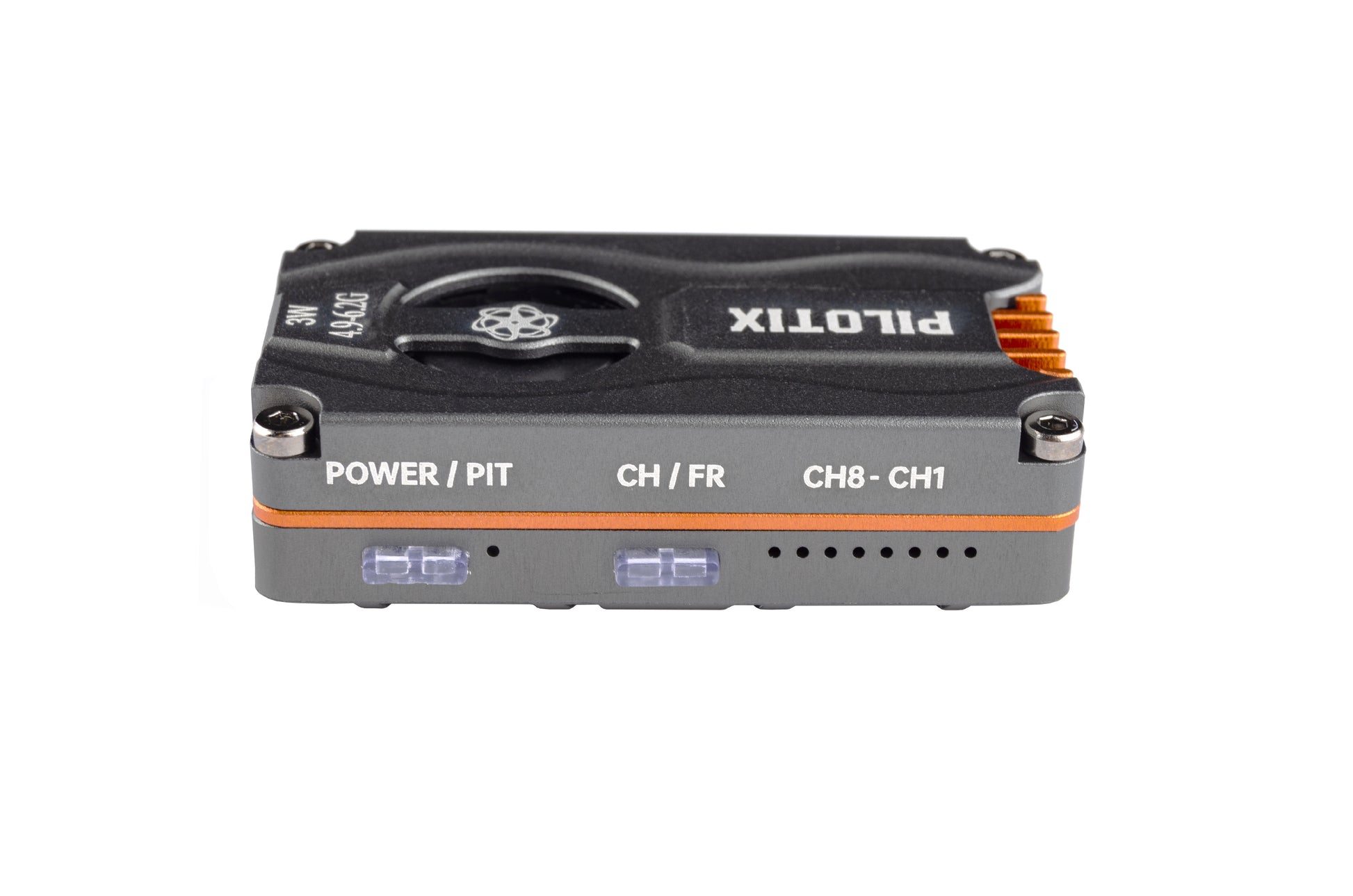

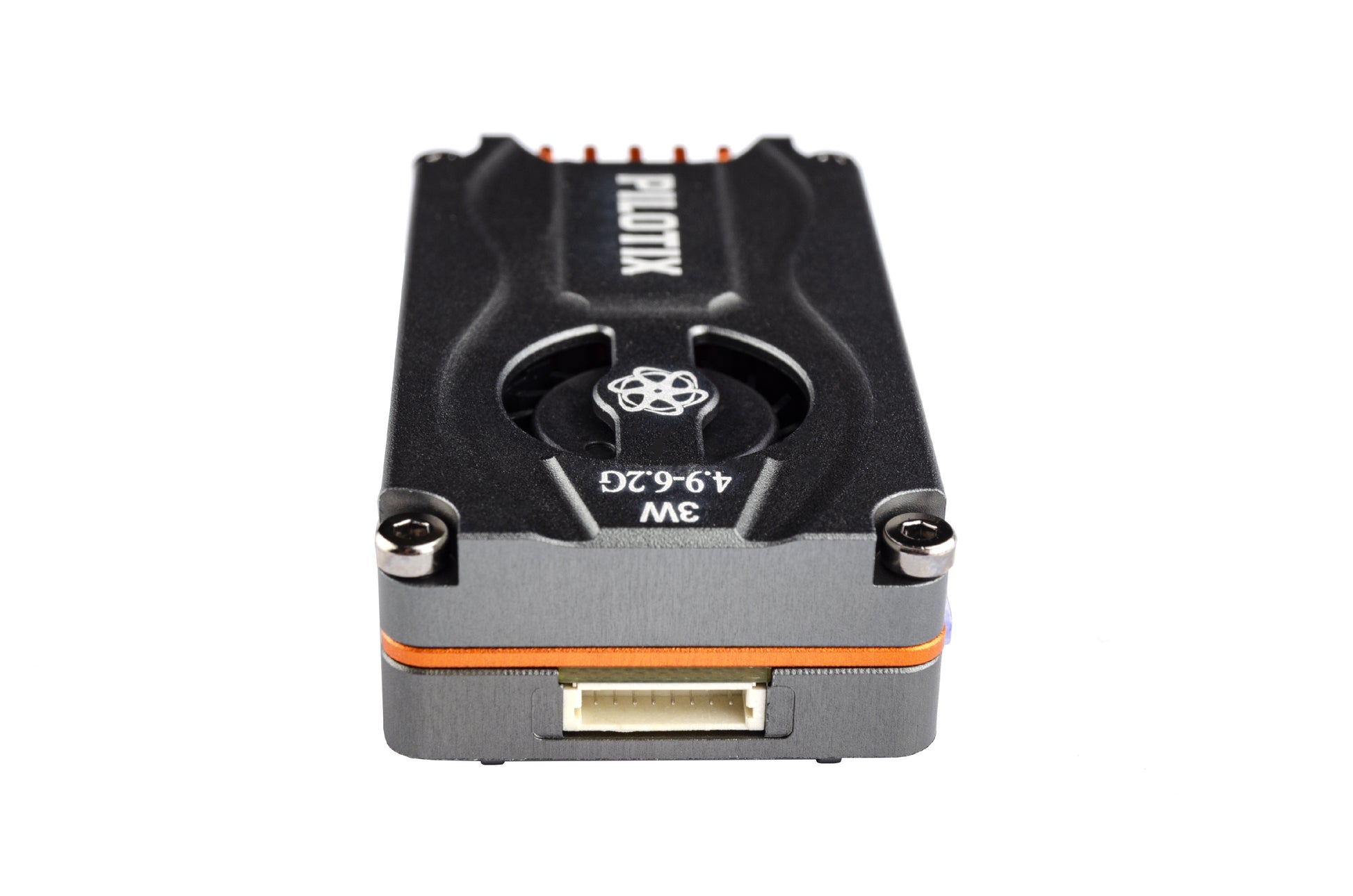

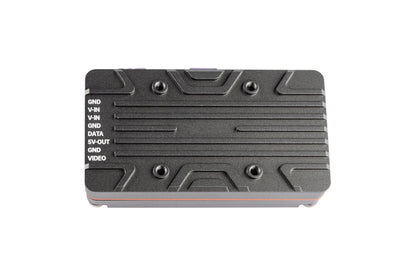

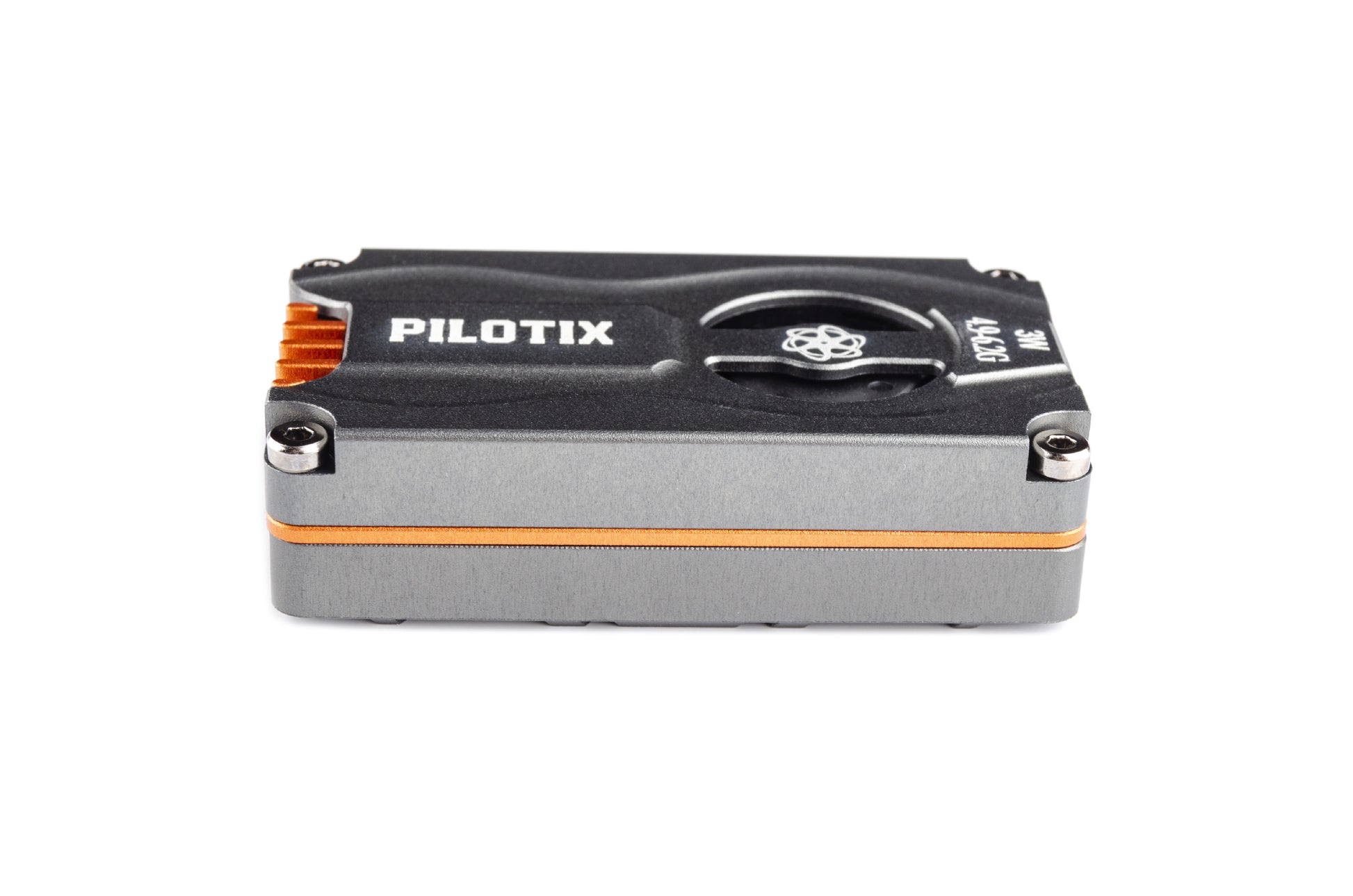

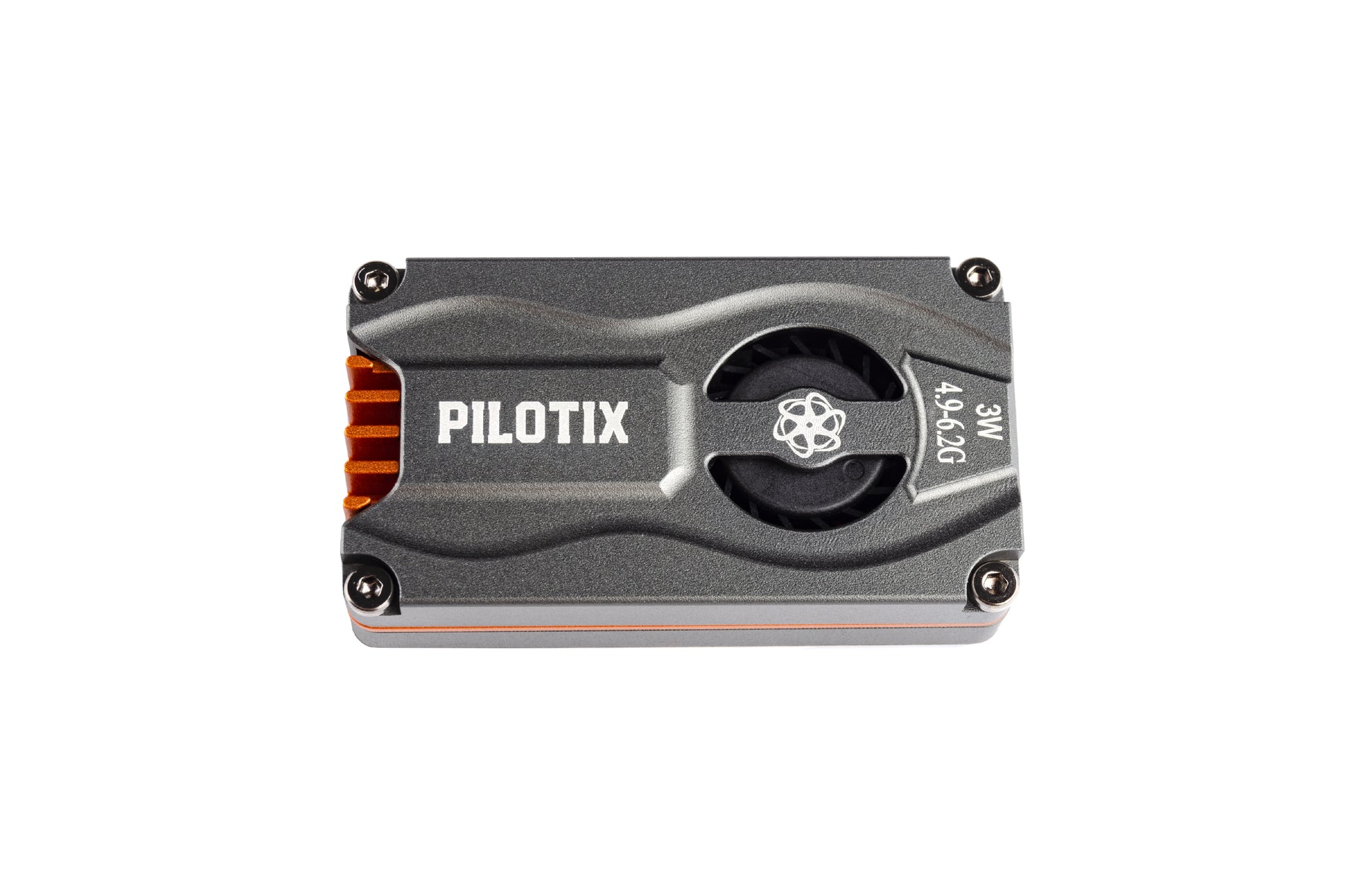

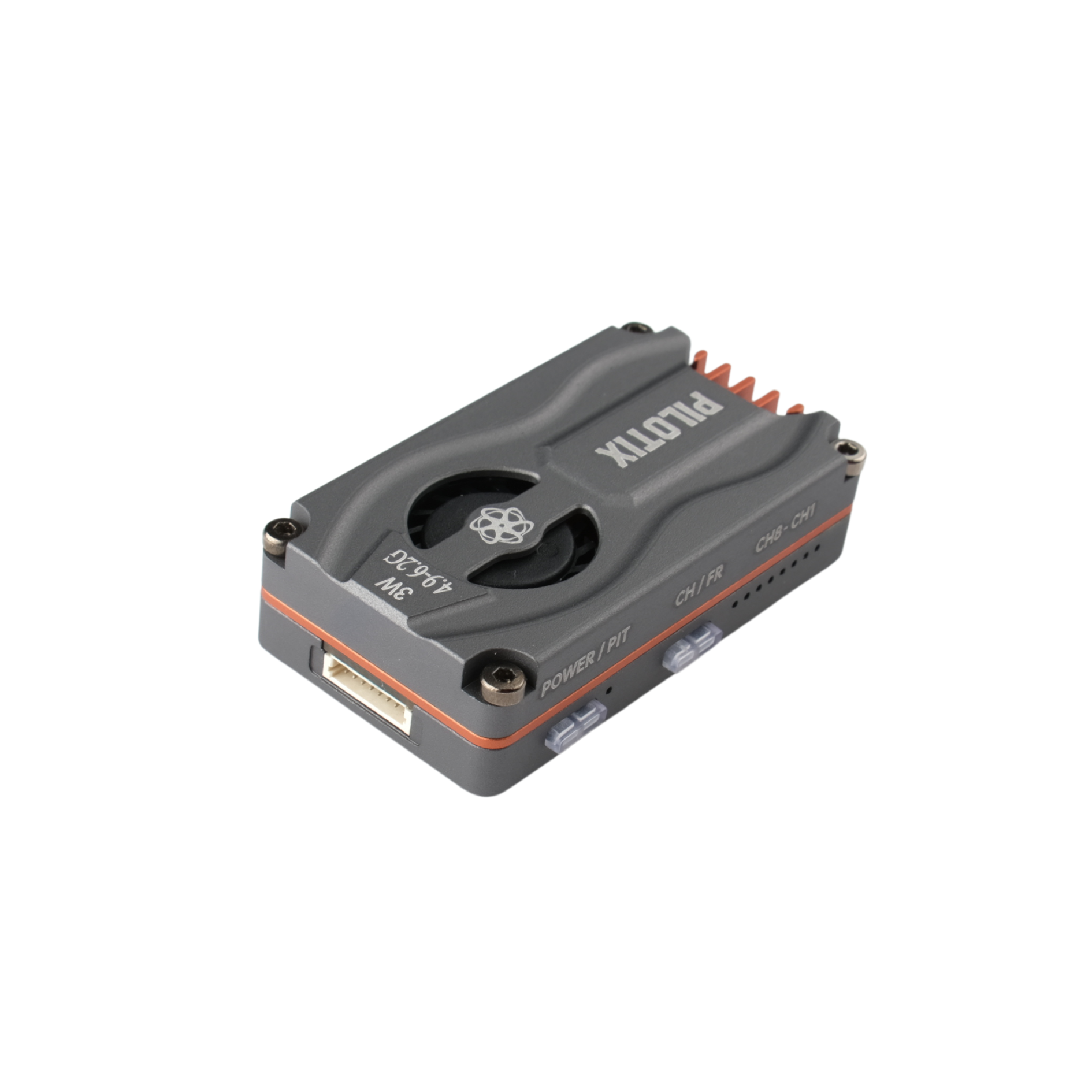

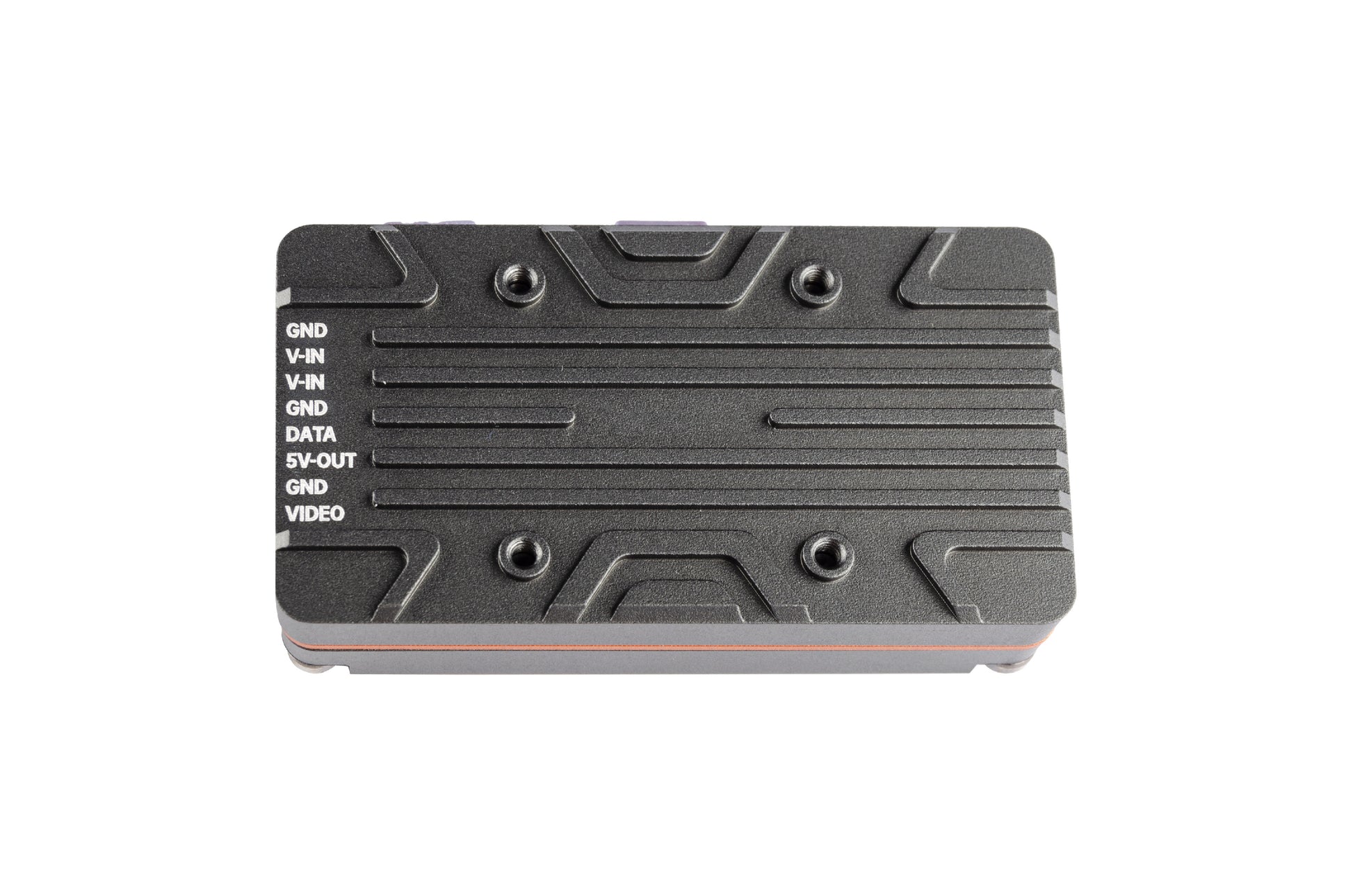

    VTX Pilotix R3000 (4.9-6.2G 3W)



    VTX Pilotix R3000 (4.9-6.2G 3W)

    Pilotix R3000 VTX (4.9-6.2G 3W) is a high-performance video transmitter designed for demanding applications with drones. It supports a wide range of input voltages and offers several power options from PIT mode up to 3 W for long distance transmission. The R3000 transmitter ensures reliable performance for both professional and hobby use.

    Specifications:

    Model: Pilotix 4.96.2G 3W VTX
    DC IN: 7-36V
    Working temperature: -10 ~ 60℃
    VF impedance: 50Ω
    Video input impedance: 75Ω

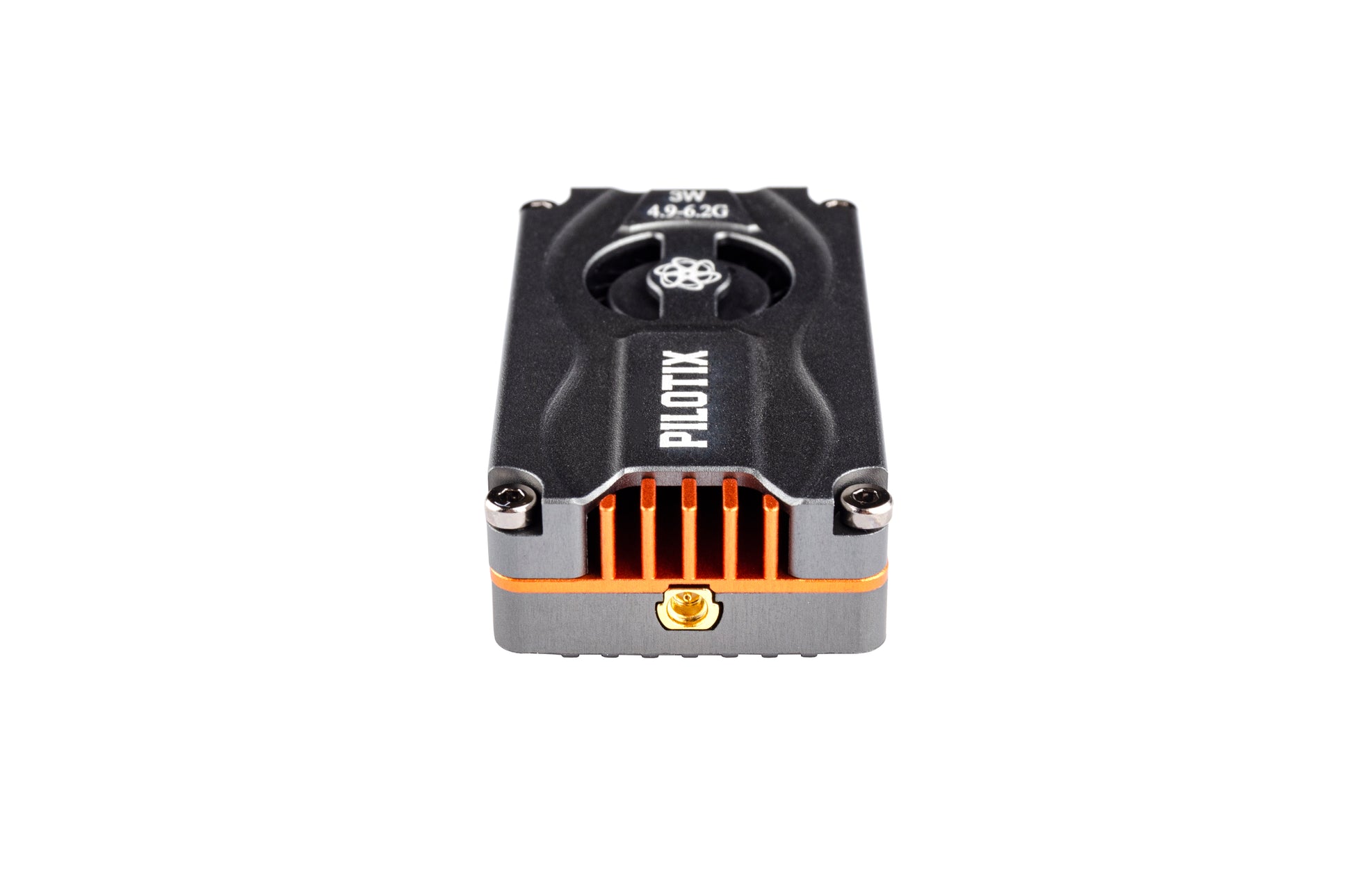

    Antenna interface: MMCX
    Video format: NTSC/PAL
    Protocol: TBS SmartAudio
    Channel: A-B-E-F-R-L-X-Y
    Power: PIT/25mW/1W/2W/3W
    Size: 53 × 29.5 × 14.7mm
    Mounting: 20 × 20mm / M2

    Package includes:
    1x VTX

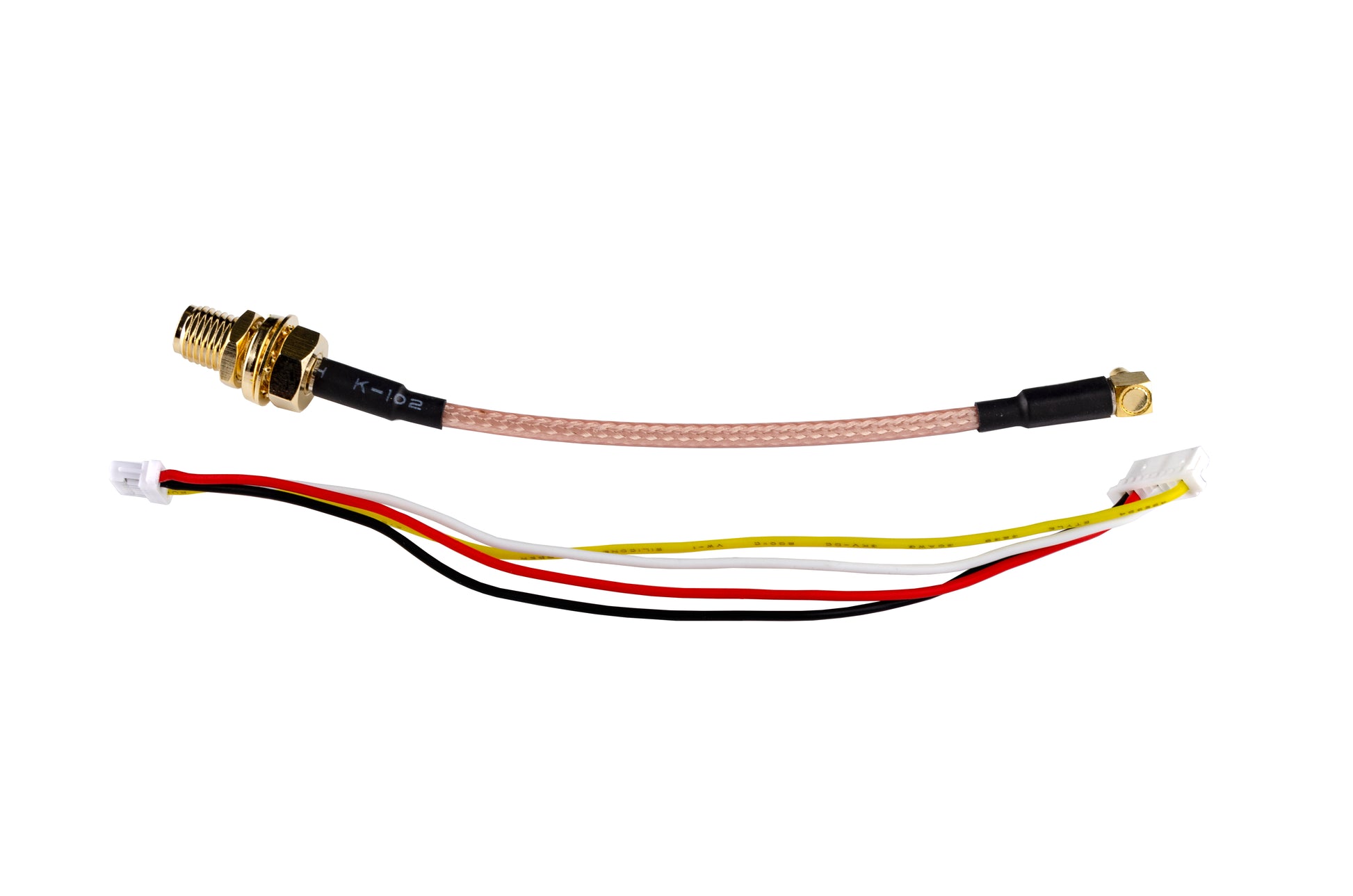

    2x cables
