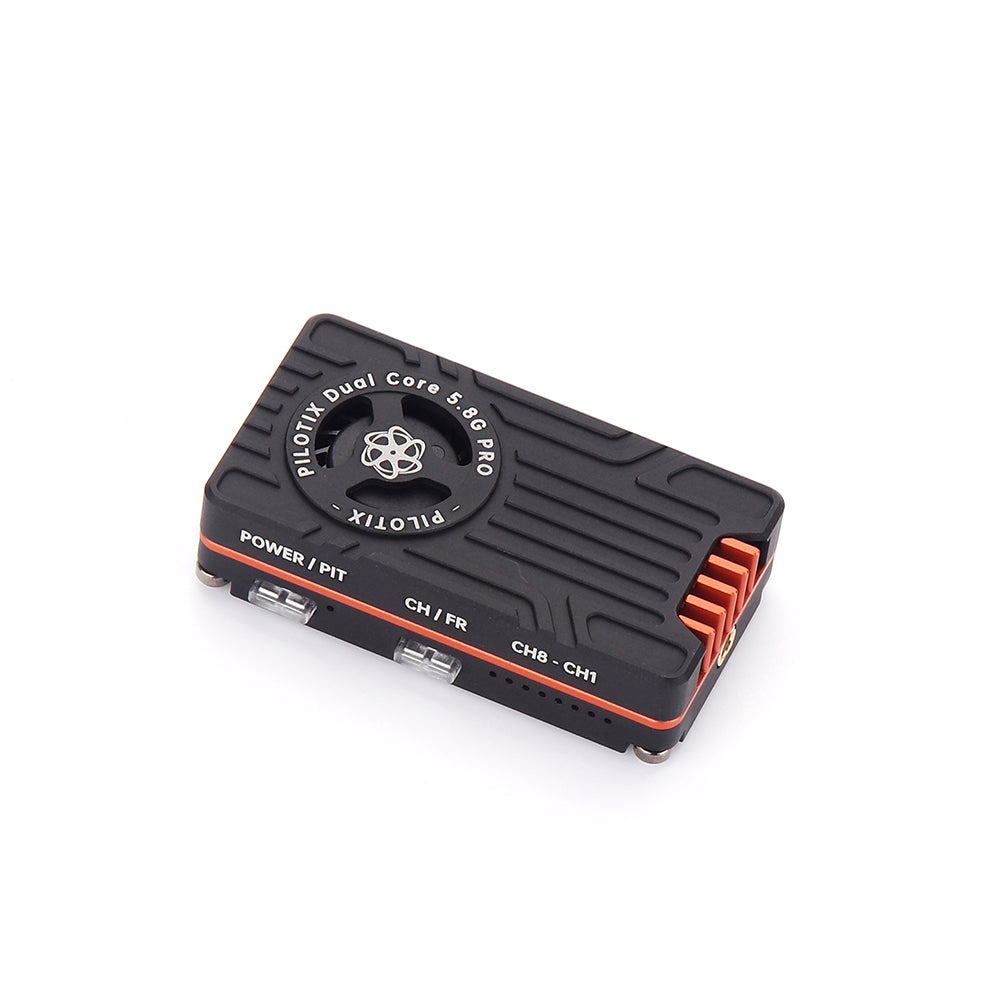

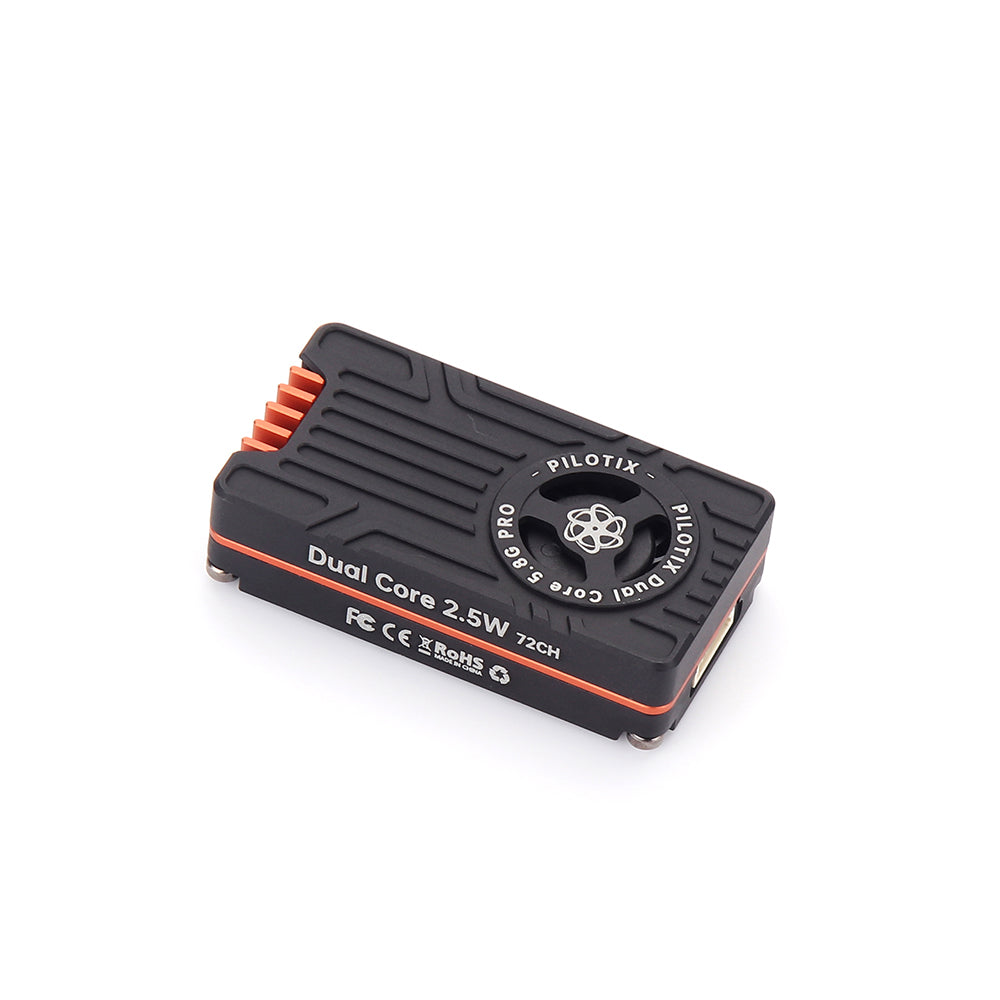

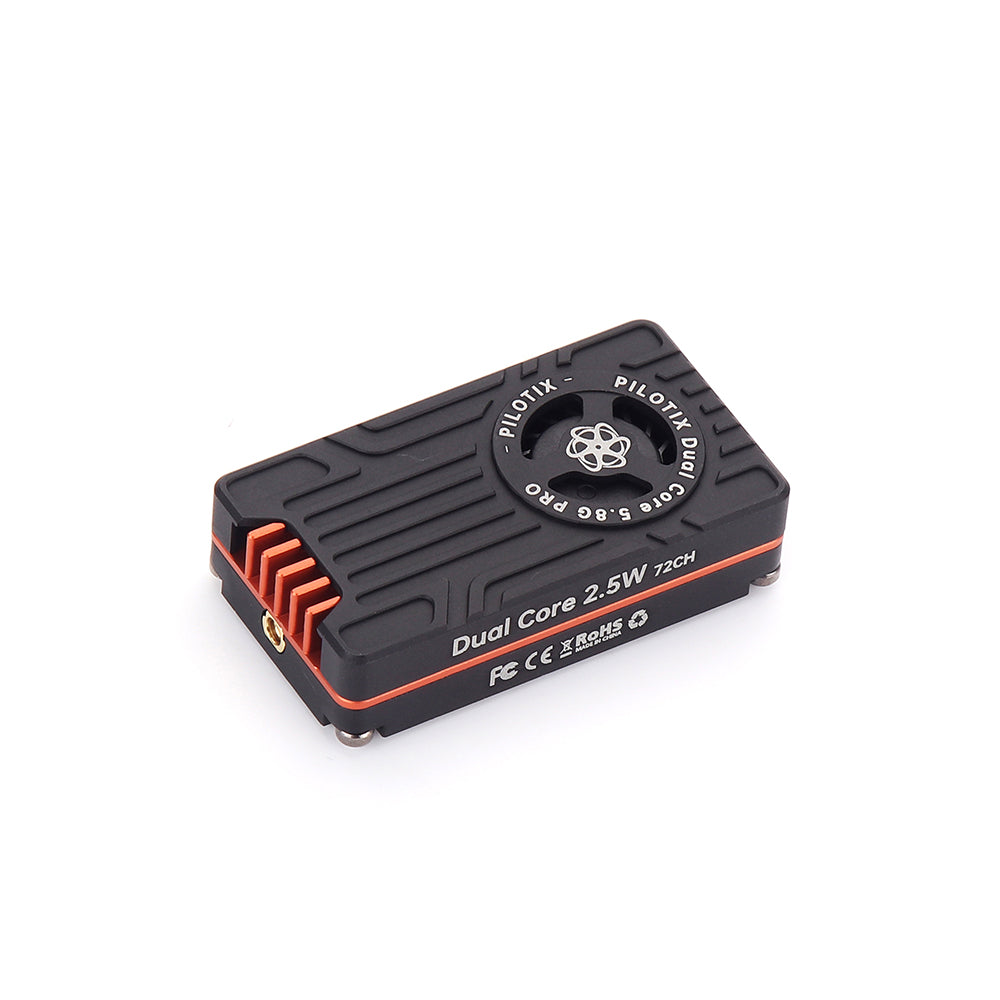

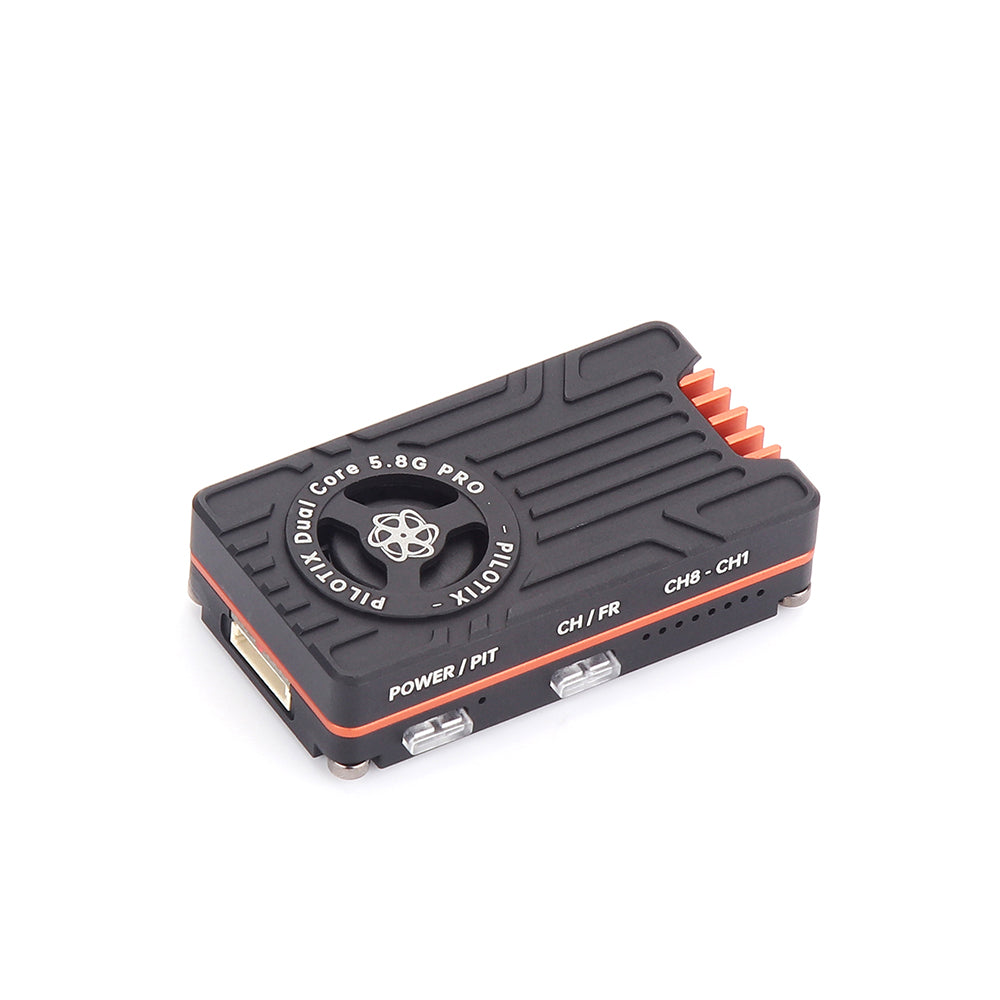

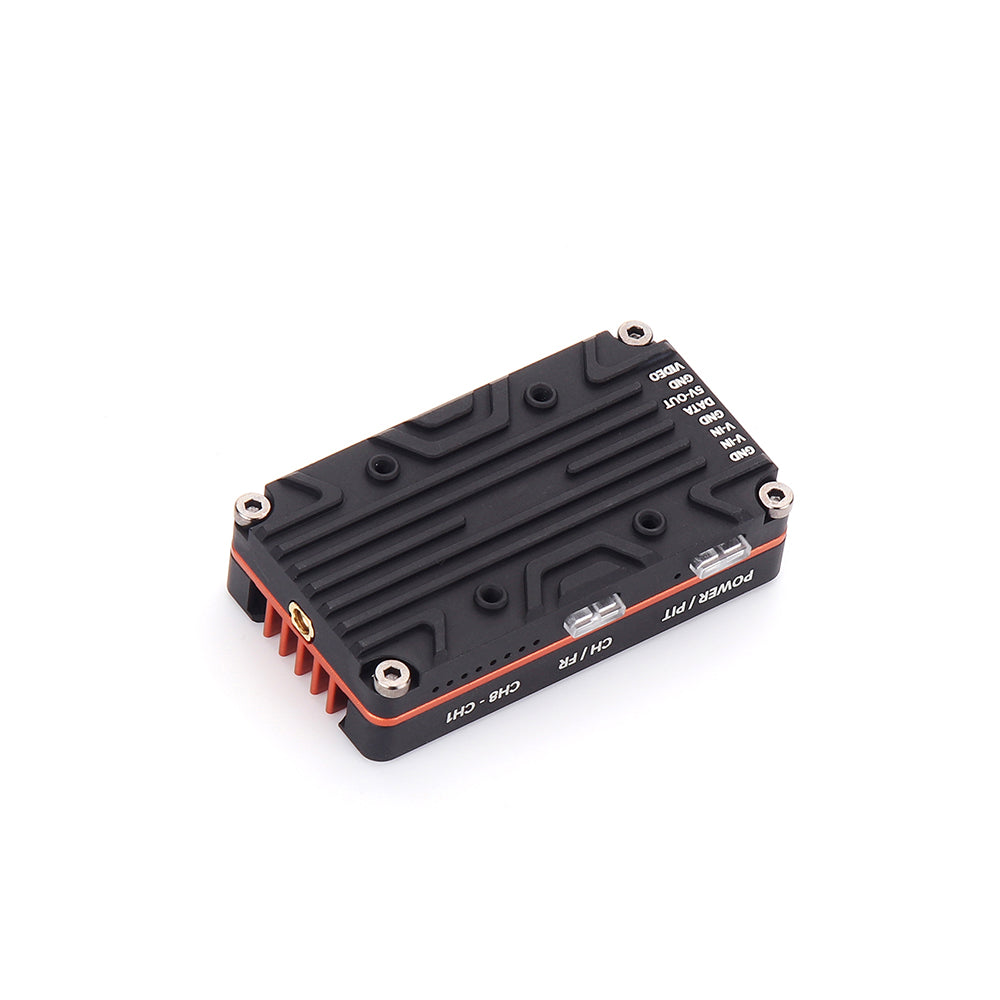

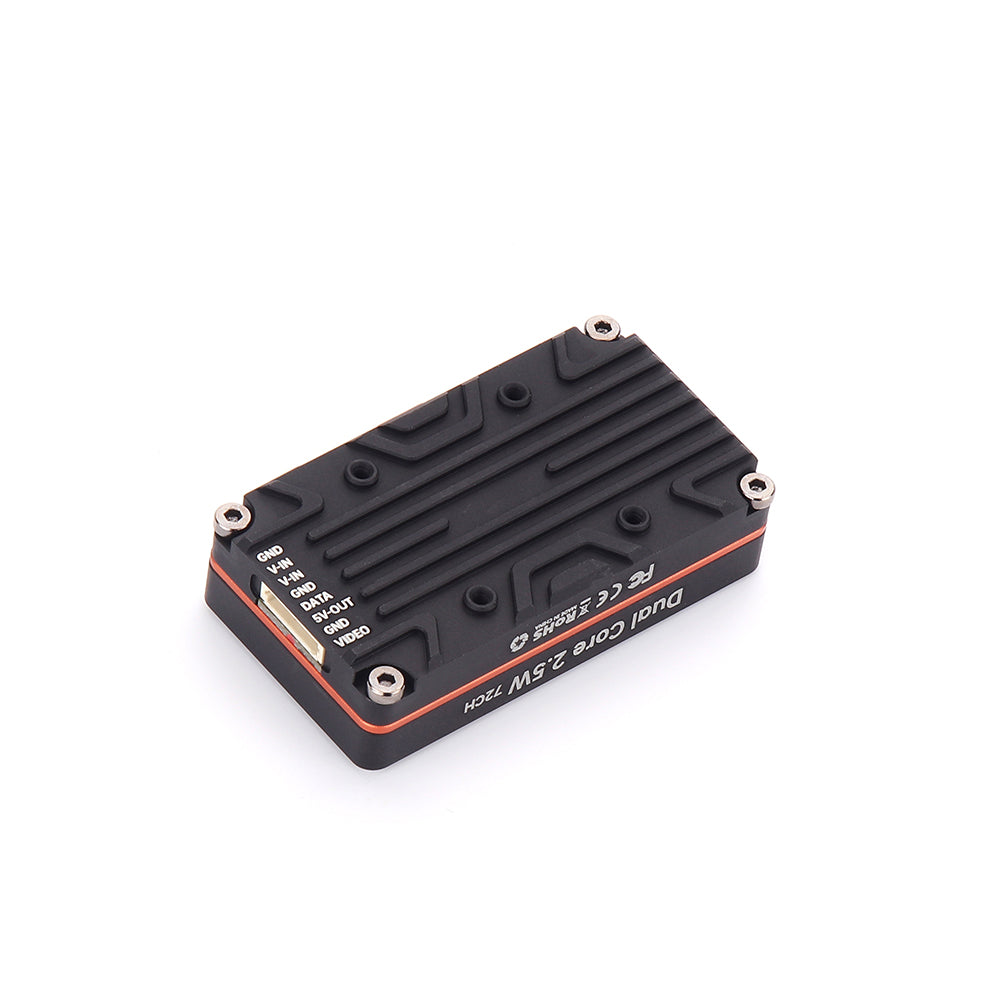

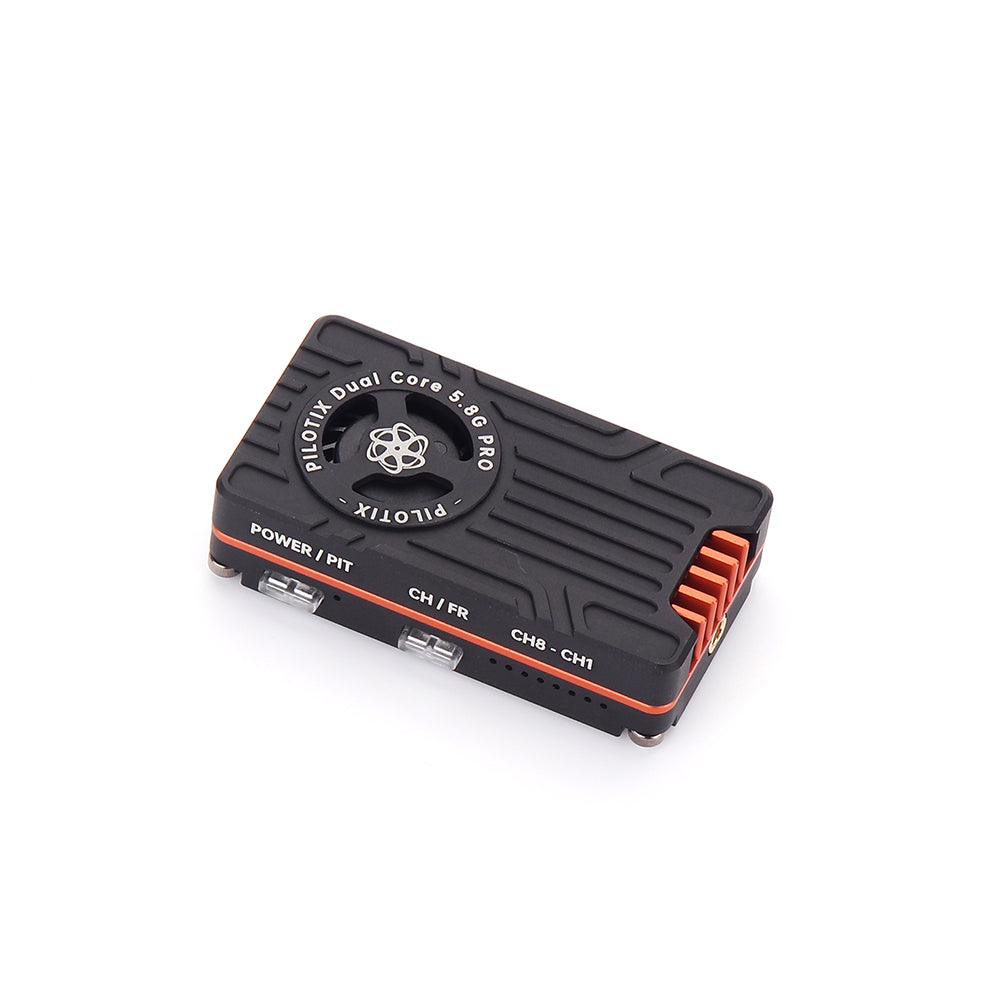

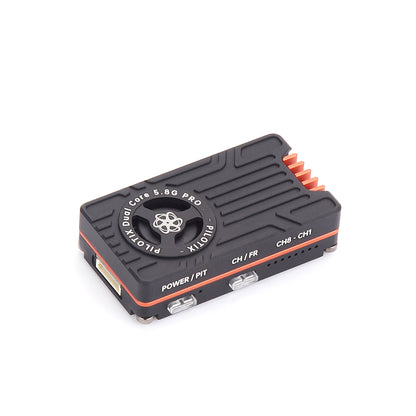

    VTX Pilotix R2500 V1.0 (5.8G 2.5W)

Pilotix R2500 V1.0 is a high performance video transmitter designed for FPV drones. It works on 4.9-5.8G with 2.5W output power and provides strong and stable video transmission, making it ideal for long-distance flights and demanding environments. Its compact and lightweight design ensures easy installation and compatibility with a wide range of drone setups, offering reliable performance for professional pilots.

Specifications:

Model: Pilotix R2500 V1.0 (5.8G 2.5W)
Working voltage: DC7-36V
Workflow:
- 680mA (12V/1000mW)
- 1400mA (12V/2500mW)
Operating temperature: -10~60°C
RF impedance: 50Ω
Input video impedance: 75Ω
Antenna interface: MMCX
Video Input Amplitude: CVBS 0.8-1.2VP-P
Video format: NTSC/PAL
Protocol: IRC
Number of channels: 72CH (A-B-E-F-R-L-O-U-H-X)
Output power: PIT-25mW-1000mW-2000mW-2500mW
Size: 53 x 29.4 x 14.4mm
Mounting hole: 20x20mm - M2
Weight: 30g

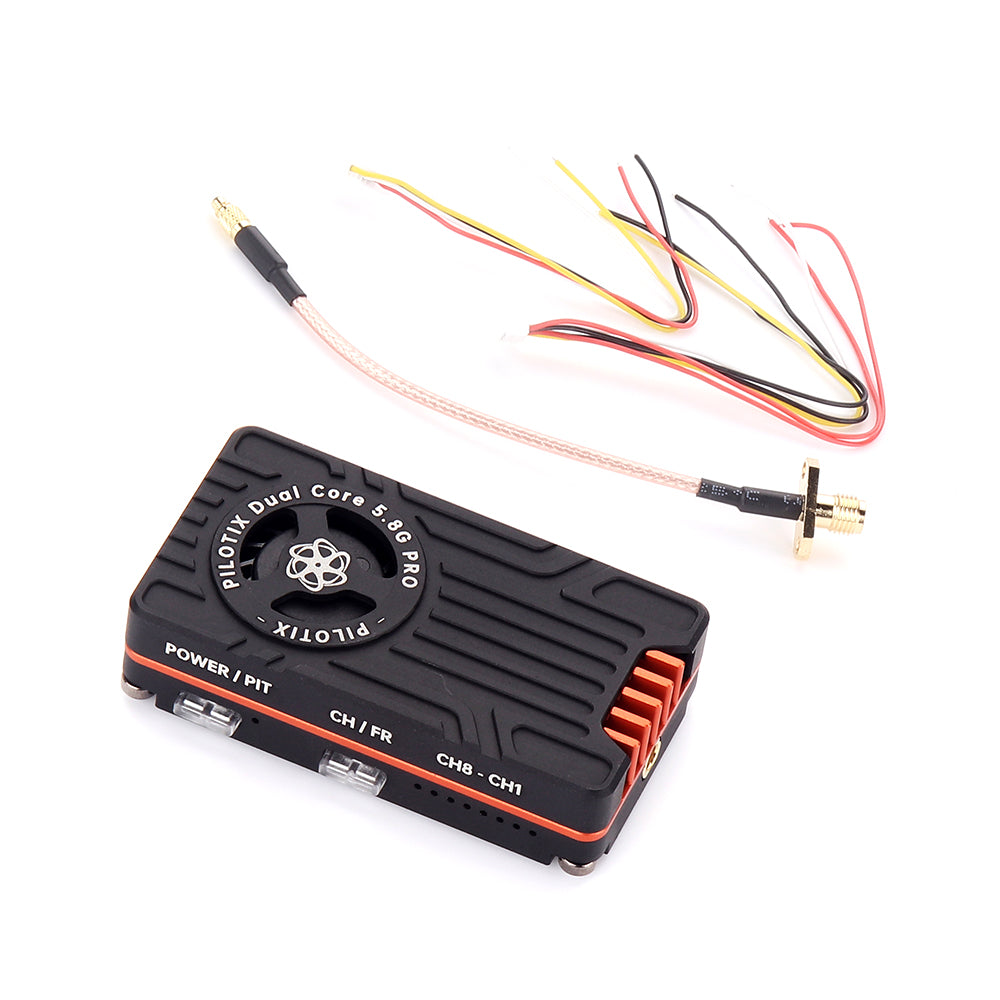

The package includes:
1x VTX Pilotix R2500 V1.0 (5.8G 2.5W)
