    Code: 4138

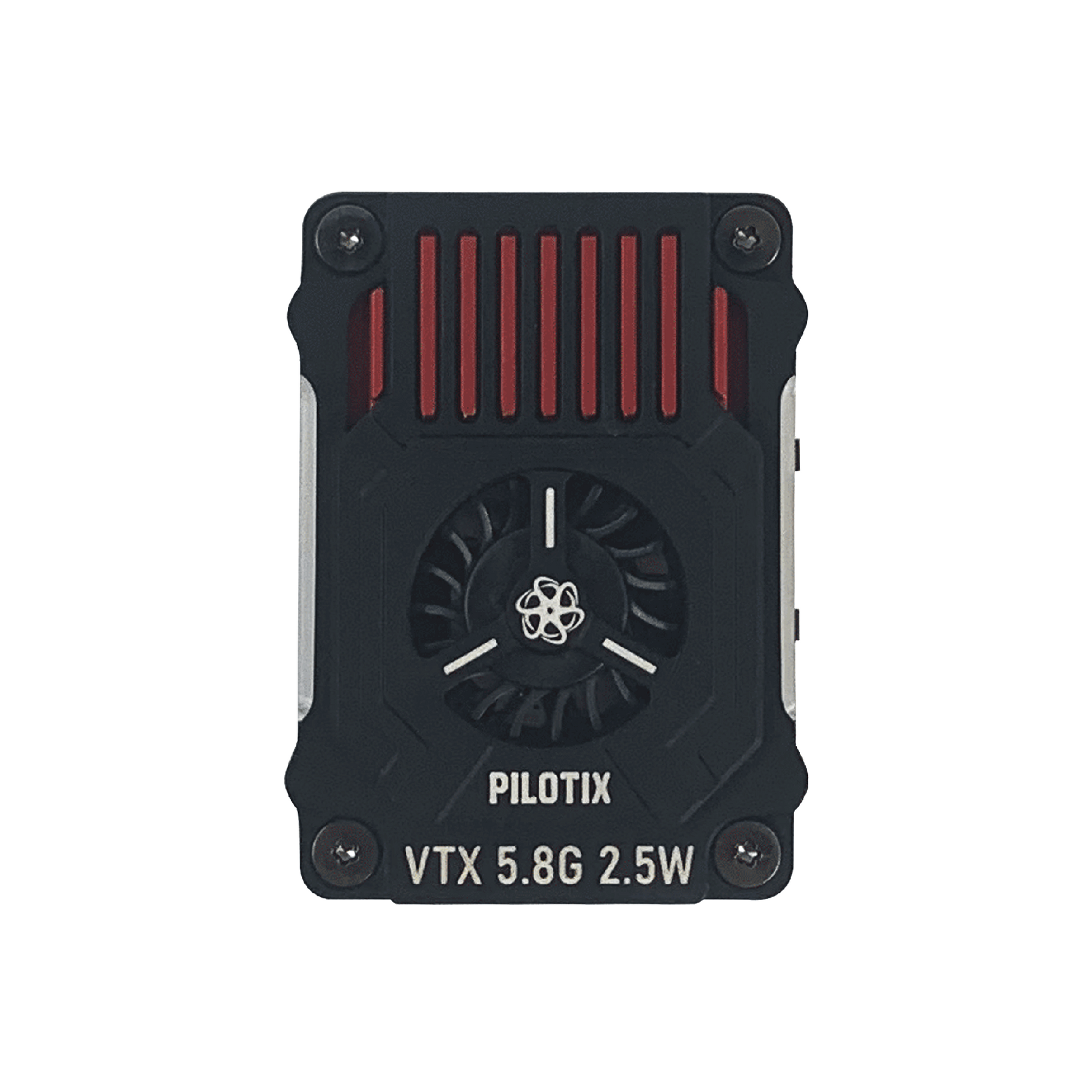

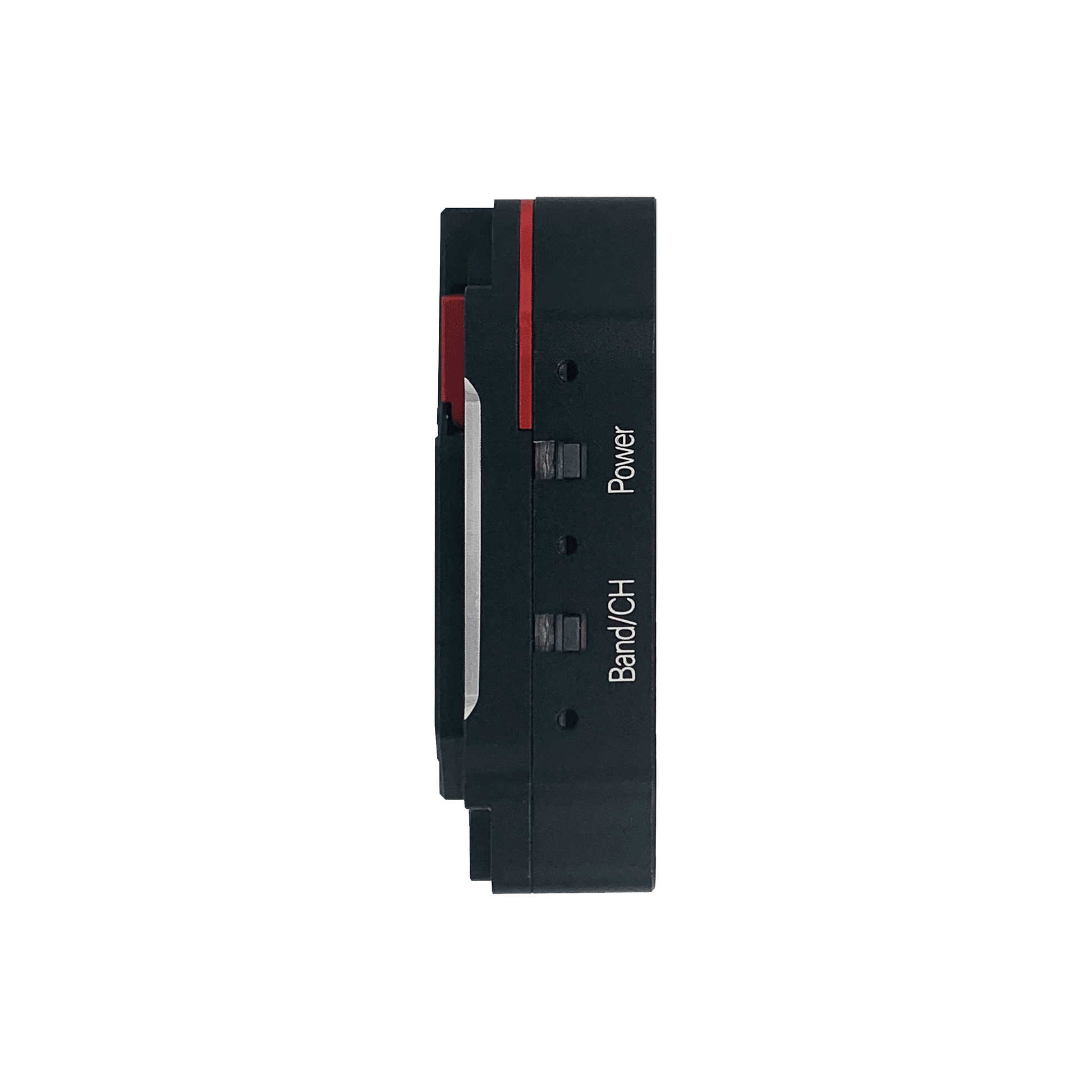

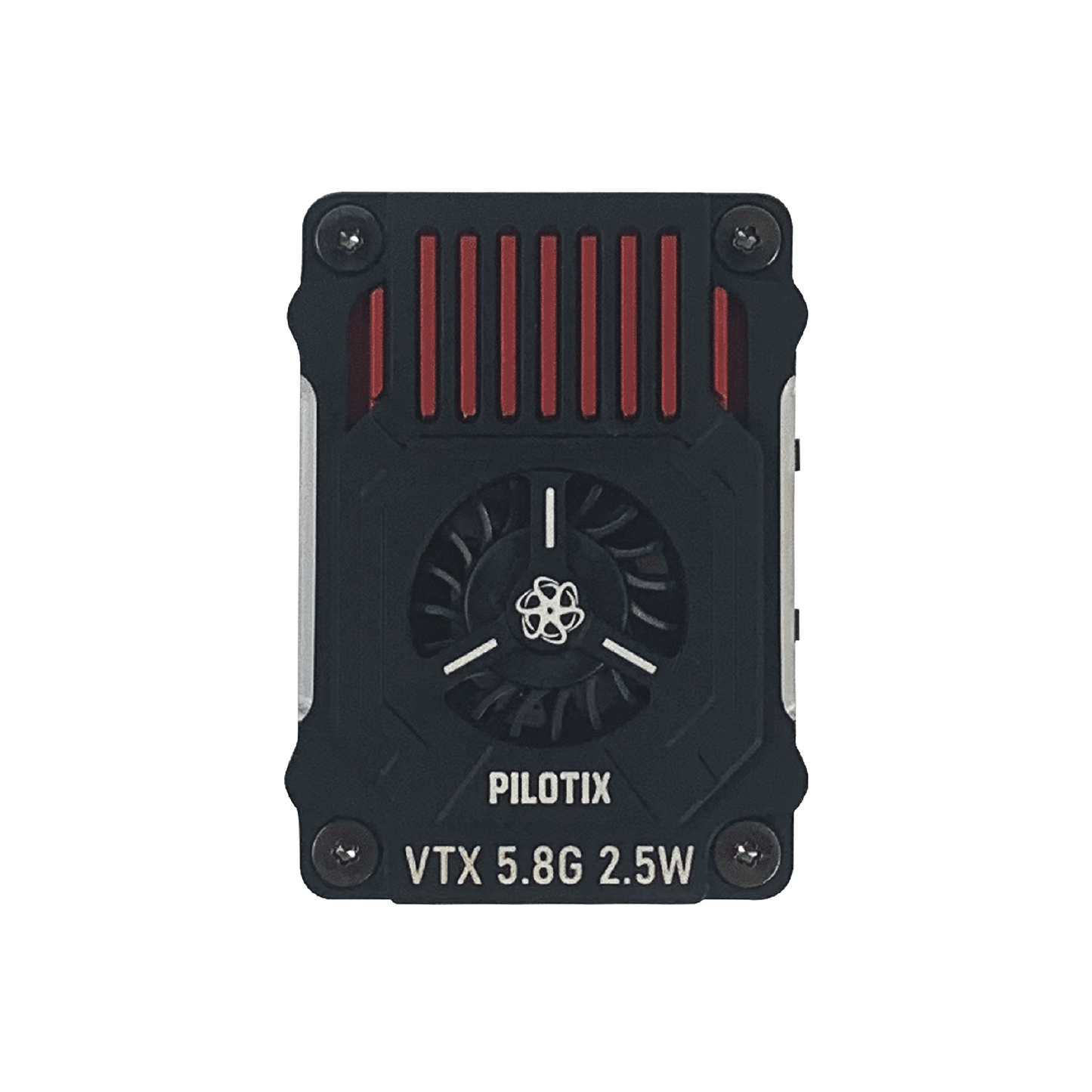

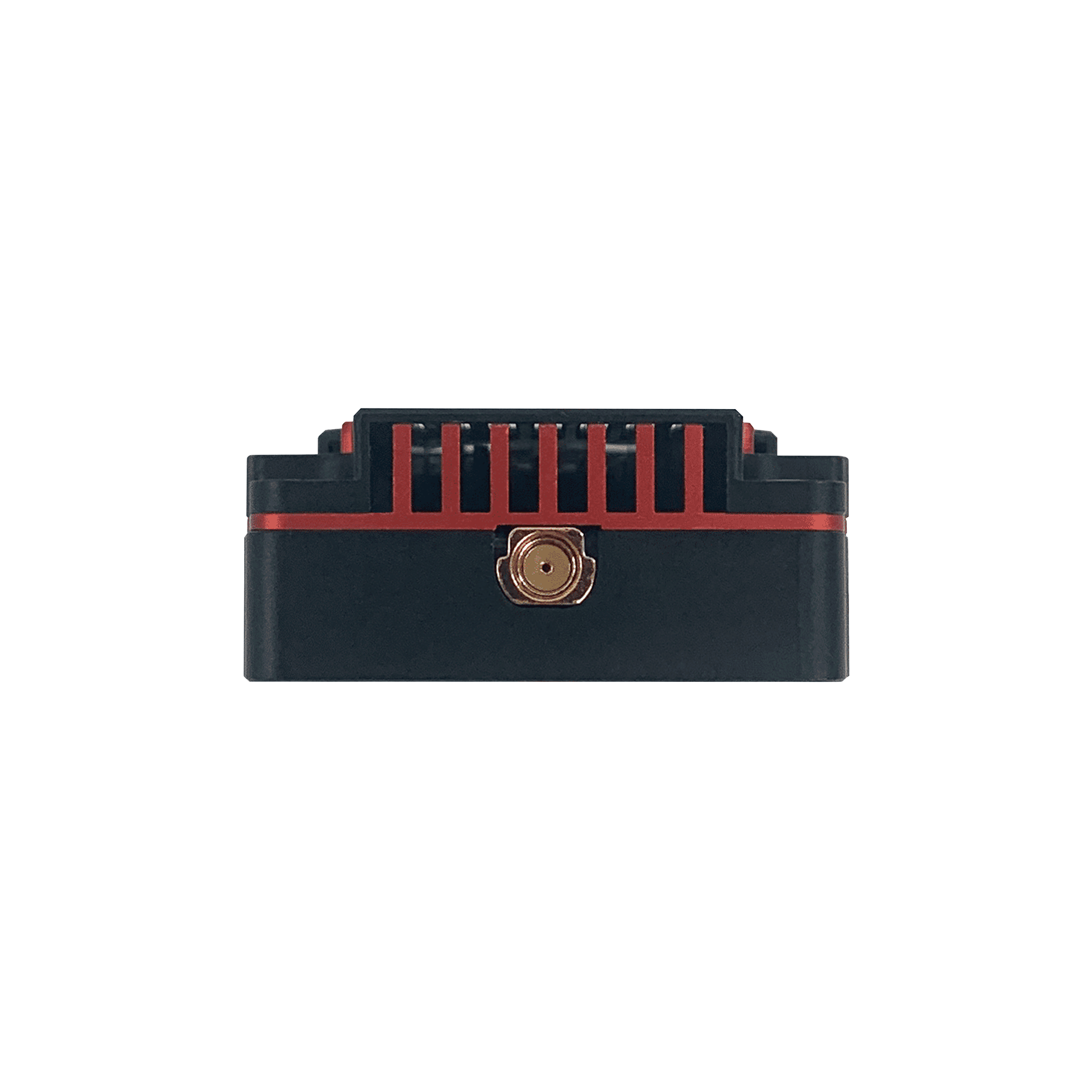

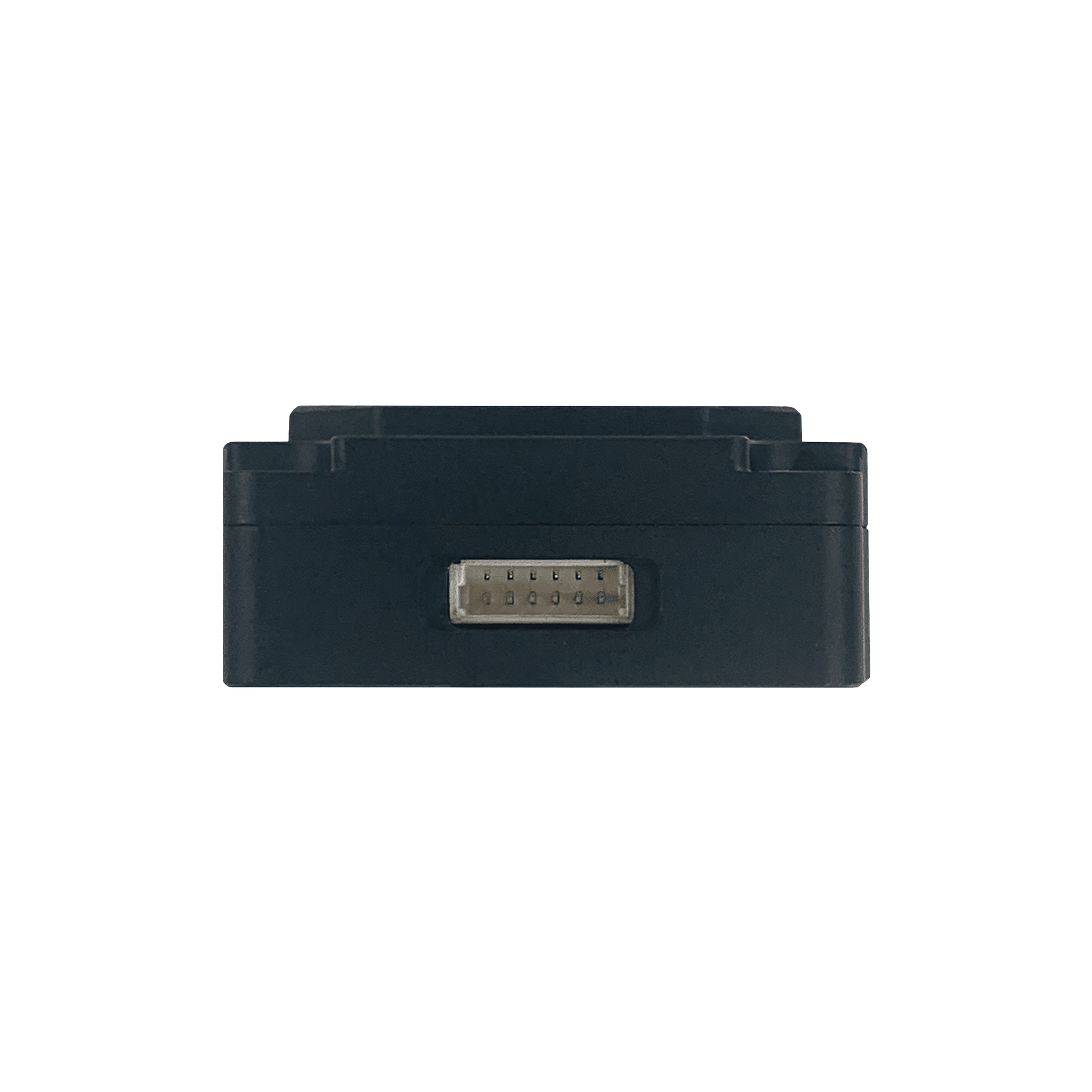

    VTX Pilotix R2500 5.8G 2.5W

    VTX Pilotix R2500 5.8G 2.5W

    Brand: Pilotix

    €85,18
    €85,18 €85,18
    -0% View Product
    Taxes included.
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    VTX Pilotix R2500 (5.8G 2.5W)

Specifications:

Input voltage: DC7-36V (2-8S)
Power consumption: 120-860mA (12V/25mw-2500mWw)
Operating temperature: -10~60°C
Impedance: 75Q
Dimensions: 39.2 x 29 x 12 mm
Connector: MMCX
Format: NTSC/PAL
Protocol: IRCTramp
Weight: 16.5g
Mounting: 25.5*25.5mm/@M2
Power: 25mW/400mWwW/800mWw/1600mw/2500mW/Sink
Built-in microphone

The package includes:
1x VTX Pilotix R2500 (5.8G 2.5W)
