    VTX PandaRC VT5804-BAT PRO 5.8GHz 2.8W

PandaRC VT5804-BAT PRO is a high performance video transmitter designed for FPV drones. It operates at a frequency of 5.8 GHz with a powerful output of 2.8 W and ensures a robust and clear video signal over long distances. The VT5804-BAT PRO offers multiple power levels and channels to provide flexibility and adaptability for various flight environments. Its compact and durable design combined with efficient heat dissipation make it a reliable choice for racing and freestyle drones.

Specifications:

Product name: VT5804-BAT PRO
Input voltage: 6-36V
Output power: 0-25-800-1600-2500-2800mW
Tuning parameters: Buttons/OSD
Operating current:
<650ma@12V,1600mW;
<900ma@12V,2800mW
Antenna interface: MMCX
Video format: NTSC/PAL auto detection
Output frequency: 64CH (A-B-E-F-R-X-L-S)
Mounting holes: 20*20mm
Weight: 20 g (without antenna and power cable)
Dimensions: 38 x 29 x 13 mm

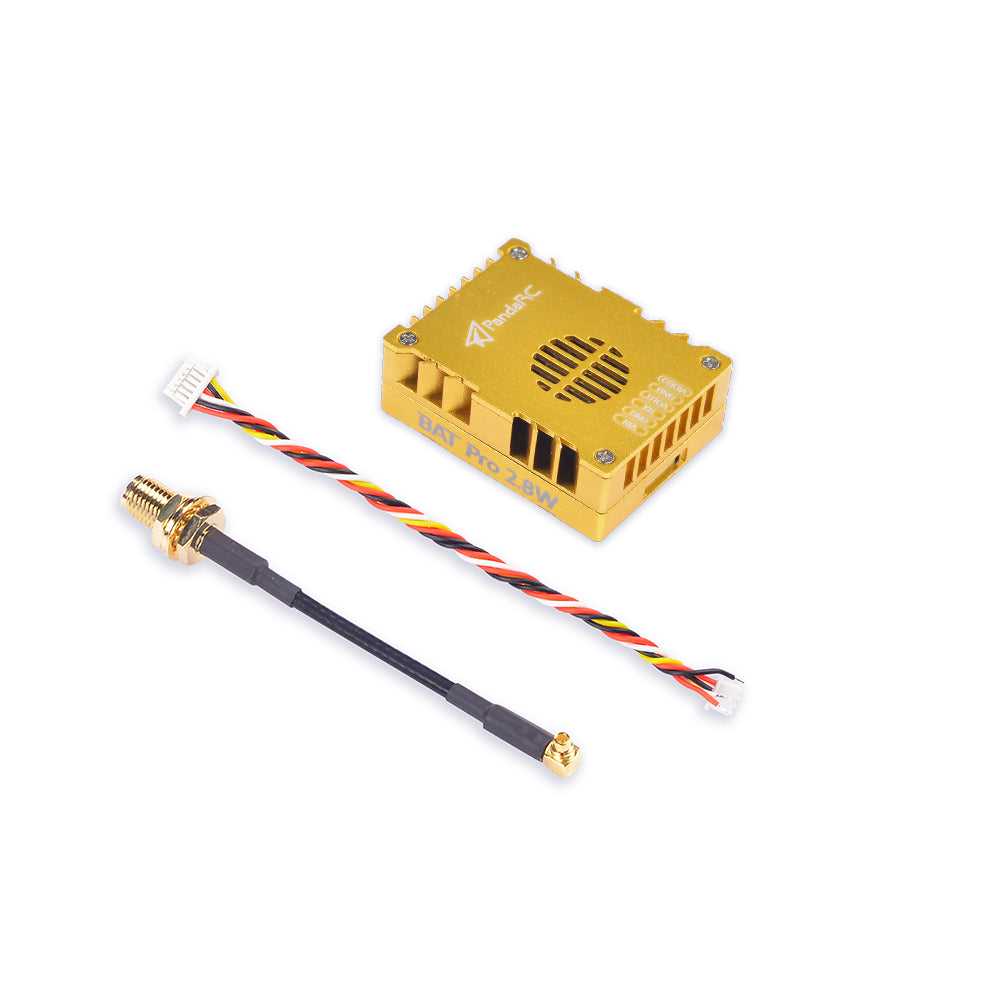

The package includes:
1x VT5804-BAT FOR VTX
1x MMCX antenna
1x Input cable
