Code: SKU:F48282

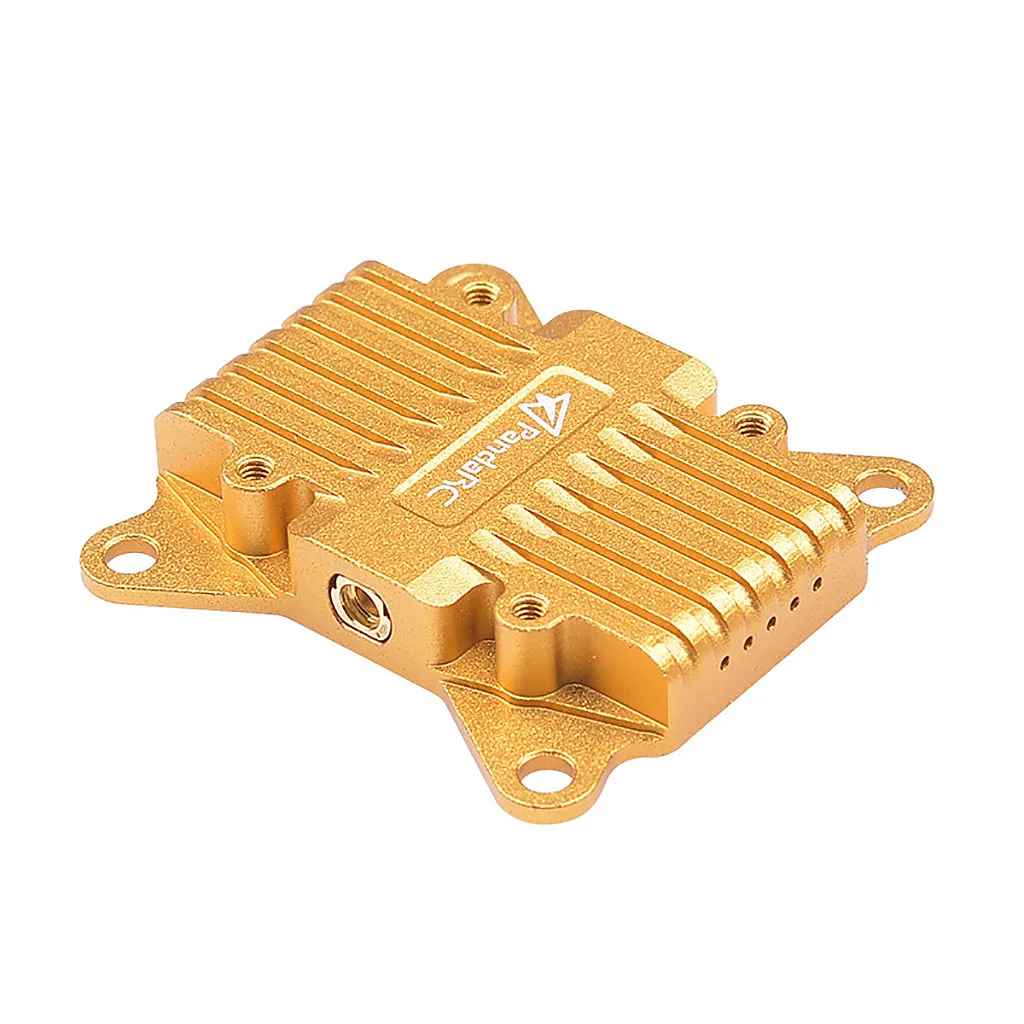

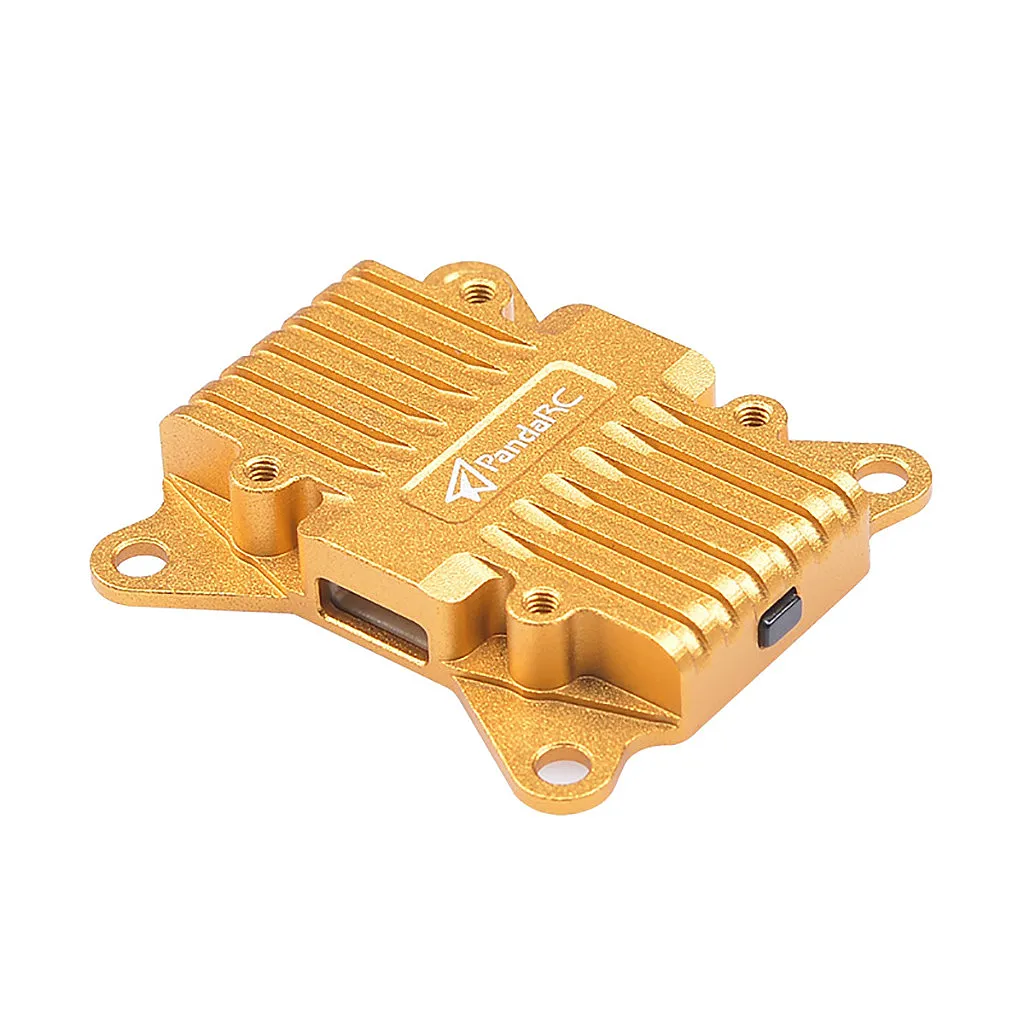

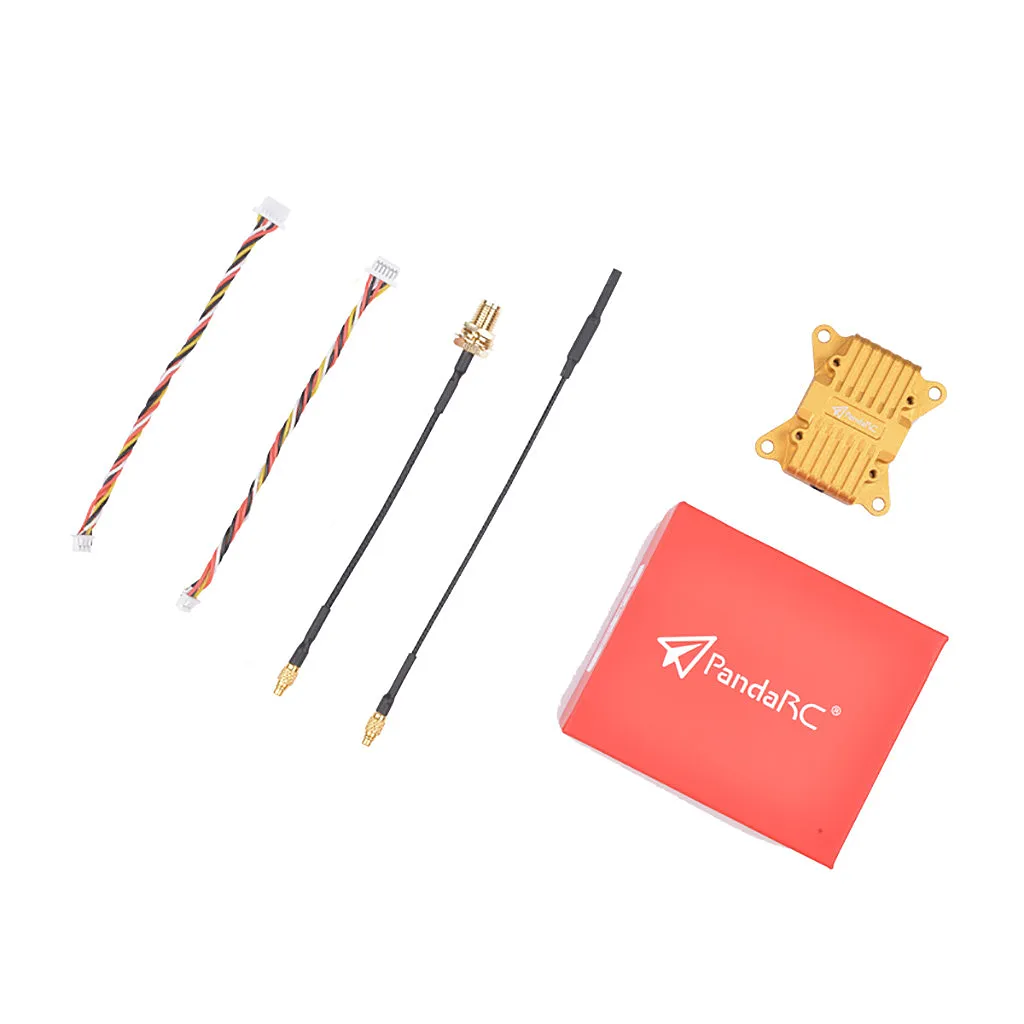

VTX PandaRC VT5804-BAT 40CH 5.8G 2.5W
VTX PandaRC VT5804-BAT 40CH 5.8G 2.5W
Brand: PandaRC
Regular price
€62,00
Regular price
€62,00
Sale price
€62,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
PandaRC VT5804-BAT 5.8G 40CH 2500mw Function: - With the automatic power test function, you can quickly check whether the image transmission is working normally. - Frequency lock function, no interference when power on. - Has 30.5x30.5 and 20x20 mounting holes at the same time to improve compatibility. - Adjustable power from 4.0-2.5W, which enables smooth switching in different environments. Specifications: Brand: PandaRC Model: VT5804-BAT Output power: 0-25-400-800-1500-2500mW Input voltage: 6-36V Parameter adjustment method: Button/OSD Workflow: - less than or equal to 450 mA @ 12 V, 800 mW - less than or equal to 850 mA @ 12 V, 2500 mW Number of channels: 40 CH (ABEFR) Antenna interface: MMCX Mounting hole: 30.5x30.5mm - 20x20mm Video format: NTSC/PAL auto Weight: 11 g (without antenna and power cable) Dimensions: 38 x 36.5 x 7.2 mm Comment: 1. Be sure to assemble the antenna before connecting the power supply in case internal components are damaged. 2. Make sure that the operating voltage range is correct and that the positive and negative DC poles are correctly aligned, otherwise internal components may be damaged. 3. Choose an antenna with better VSWR and gain to achieve longer transmission distance. 4. Do not touch the transmitter after long-term operation to avoid injury from high temperatures. 5. Pay attention to electrostatic discharge (ESD) during transfer and assembly. The package includes: 1x VT5804_BAT 2x power cable 1x MMCX ANT 1x SMA to MMCX
