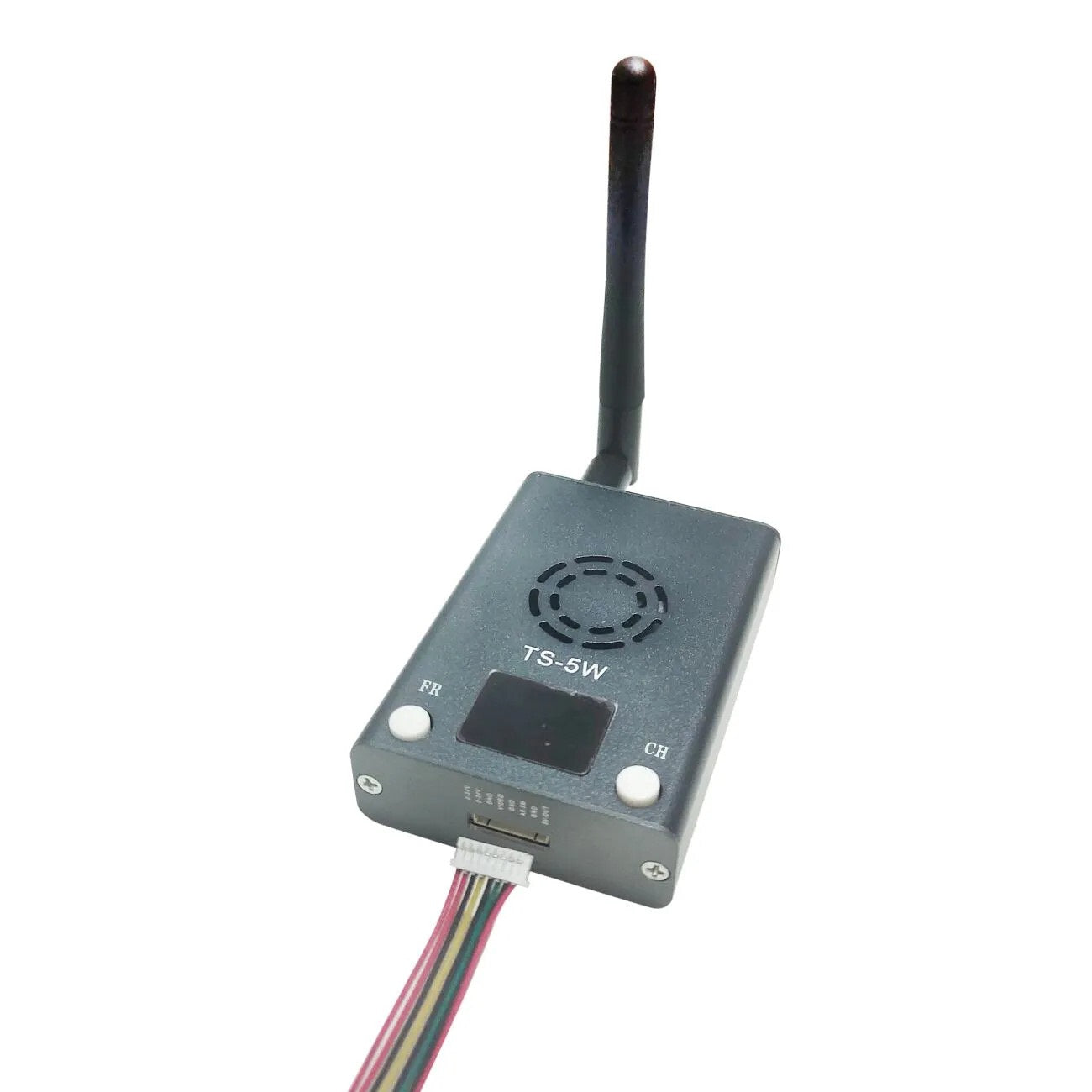

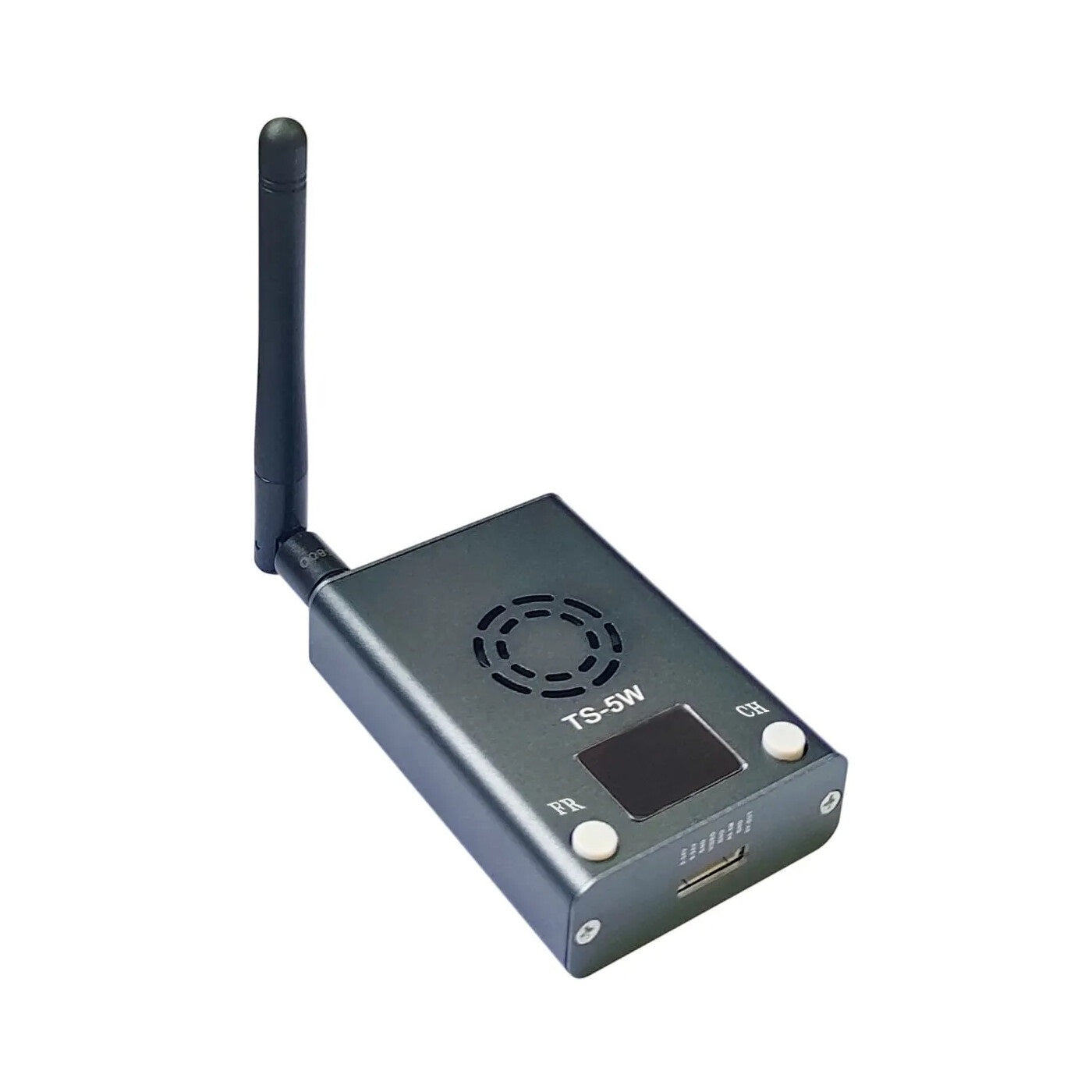

VTX Jhemcu TS-5W 4.9-5.8G 5W

Video transmitter TS-5W with high power of 5000mW. It works in the frequency range of 4990 MHz to 5945 MHz over 56 channels.

Specifications

Transmission power: 5W (5000mW)
Operating frequency range: 4990 - 5945 MHz
Output power: 33-39 dBm
Operating voltage: 9-36V
Current: 1300mA
Output impedance: 50 Ohm
Input voltage: 12V
Video format: NTSC/PAL
Connector: SMA
Dimensions: 72.5 x 50 x 18.5 mm
Weight: 77g

Connection and setup instructions

Turn on:

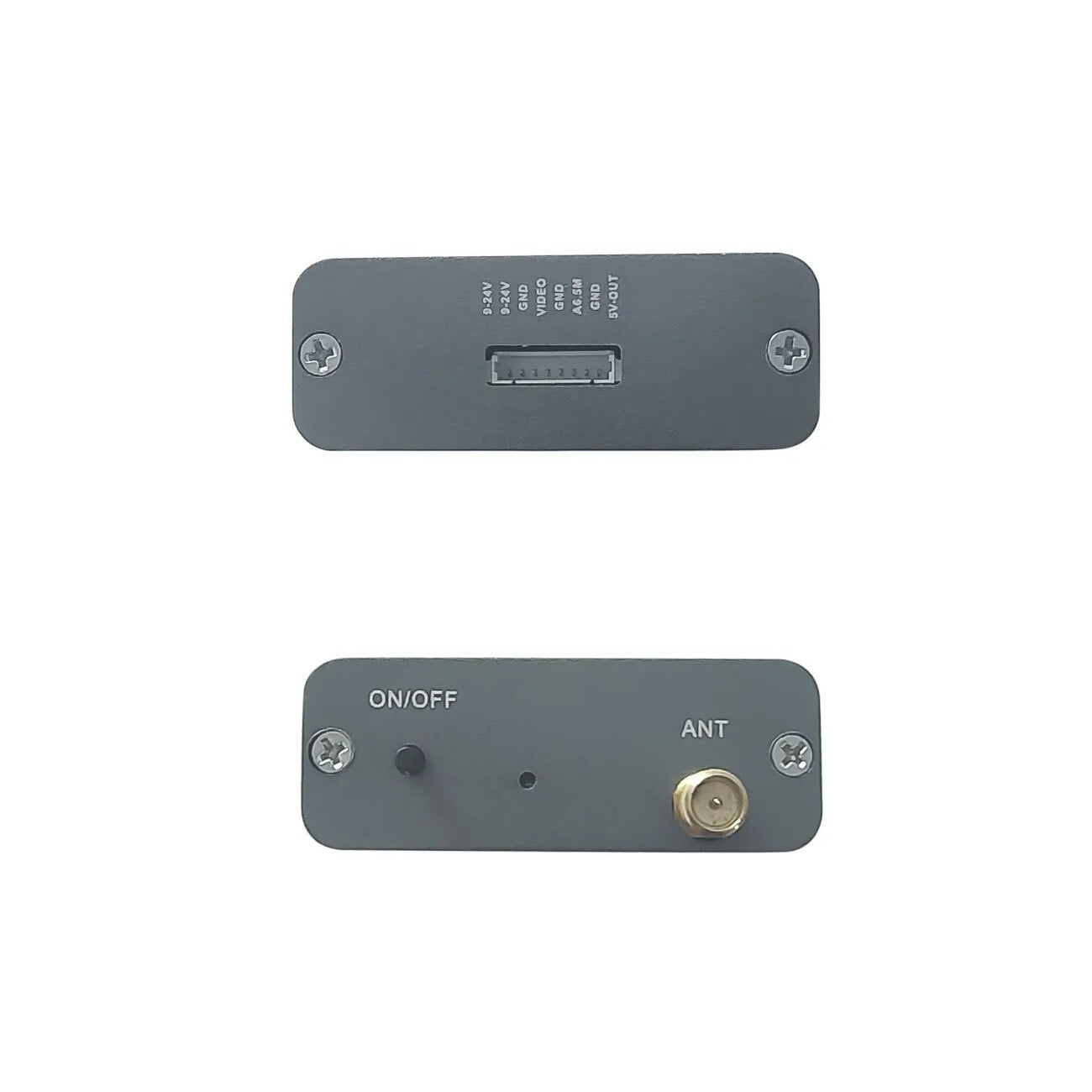

- Make sure the antenna is properly installed before. Press the power button and the transmitter will start working. The display shows the last saved frequency band and channel.
- Be careful not to block the cooling vents during operation.

Establish:

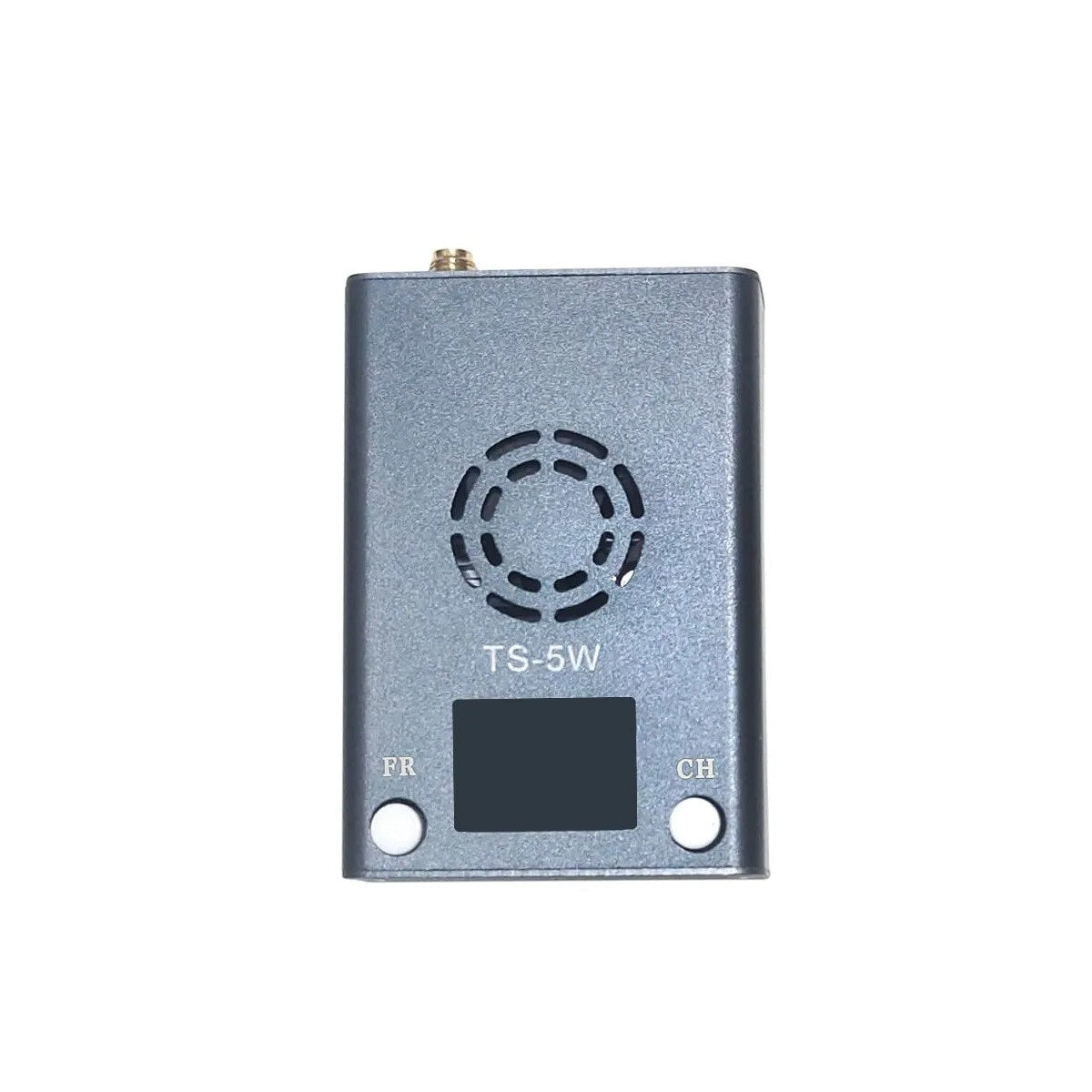

Adjust the _CH channel and _FR frequency band of the module using the two buttons and the power button (note: after installing the antenna, it should be turned on, otherwise the power gain will be burned).

Adjusting the frequency band:
Press the FR button to adjust the current frequency band. A short press of the FR button (about 0.5 seconds) will switch between frequency band 1 and 2, and the indicator will show the value from 1 to 2;
Press the FR button again (about 0.5 seconds) and the frequency band will change from 2 to 3 and display the value 2 to 3…

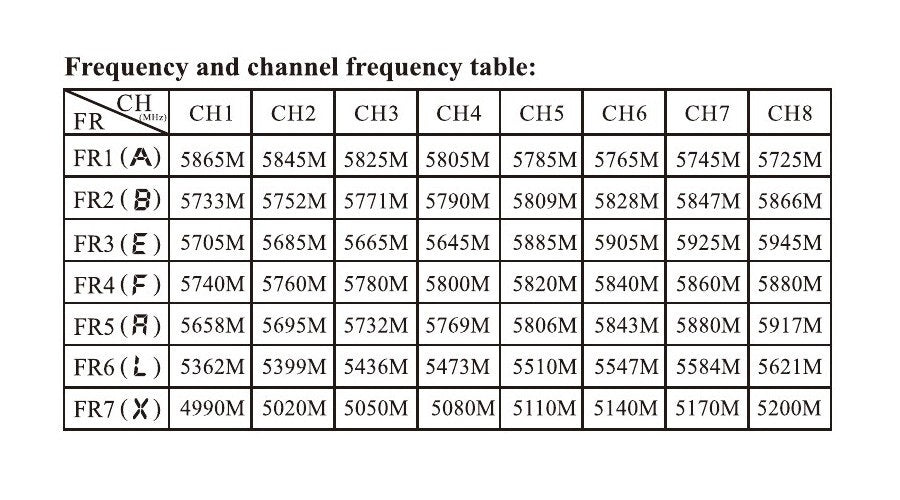

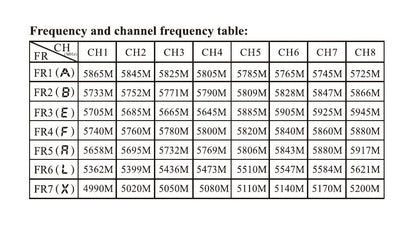

The frequency bands are cyclic A.B.E.F.R.L.X and the digital indicator shows them as 1,2 3.4.5.6.7.

To edit a channel:
Press the CH button to adjust the channel you are on. Short press the CH button (about 0.5 seconds), when switching the frequency band from 1 to 2, the value will change from 1 to 2 on the indicator; further adjustments are similar to the selection of frequency bands.

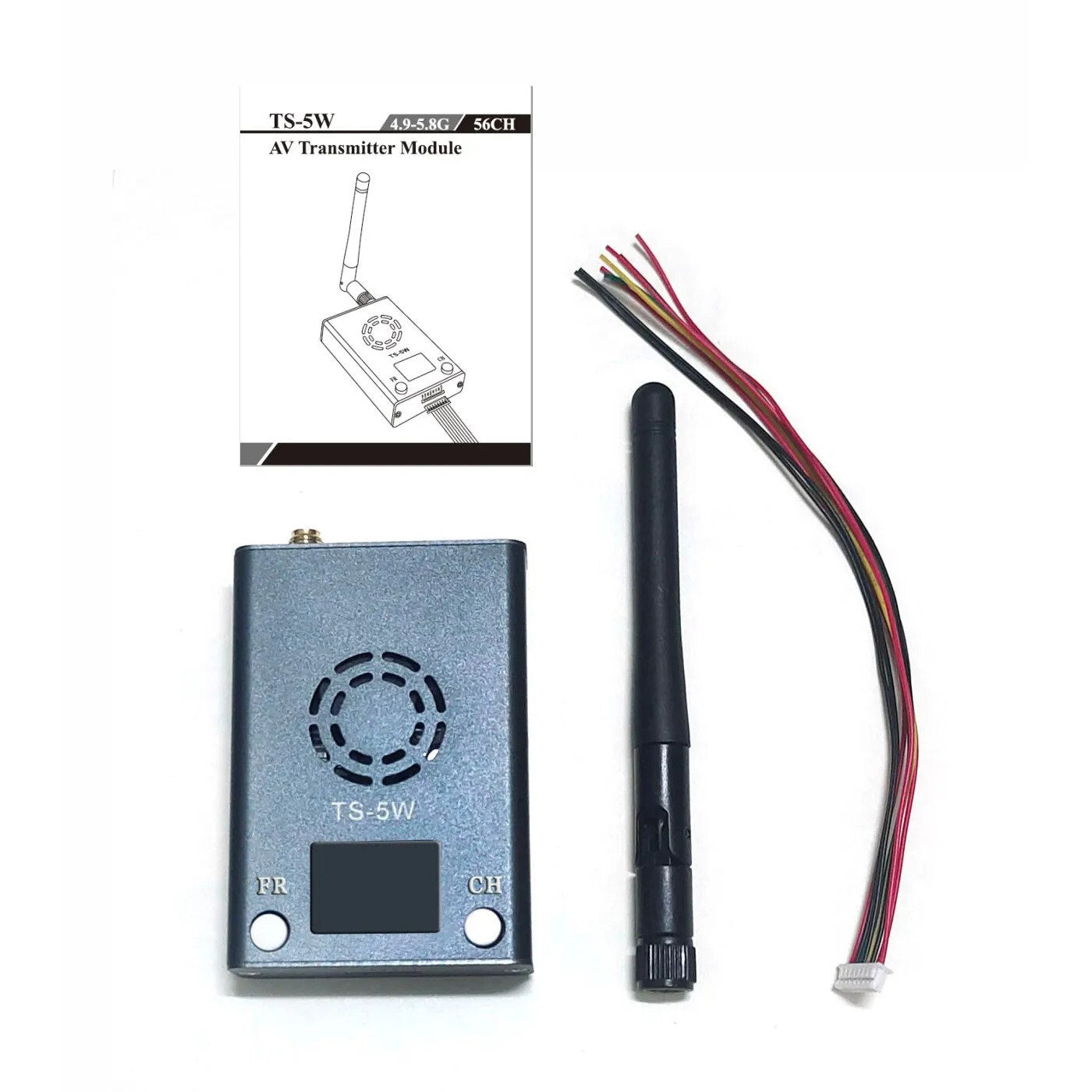

The package includes:
1 x video transmitter module
1x Antenna
1 x 8-pin JST cable
1 x User Manual
