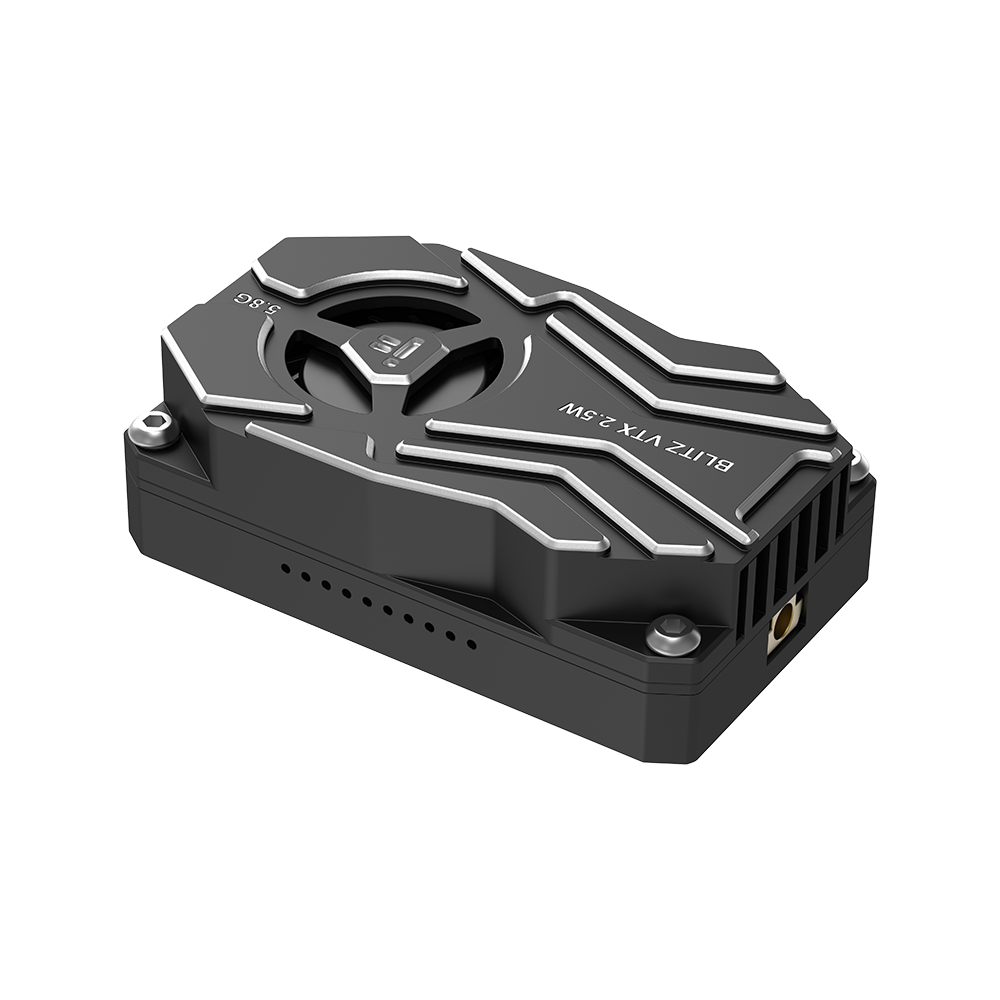

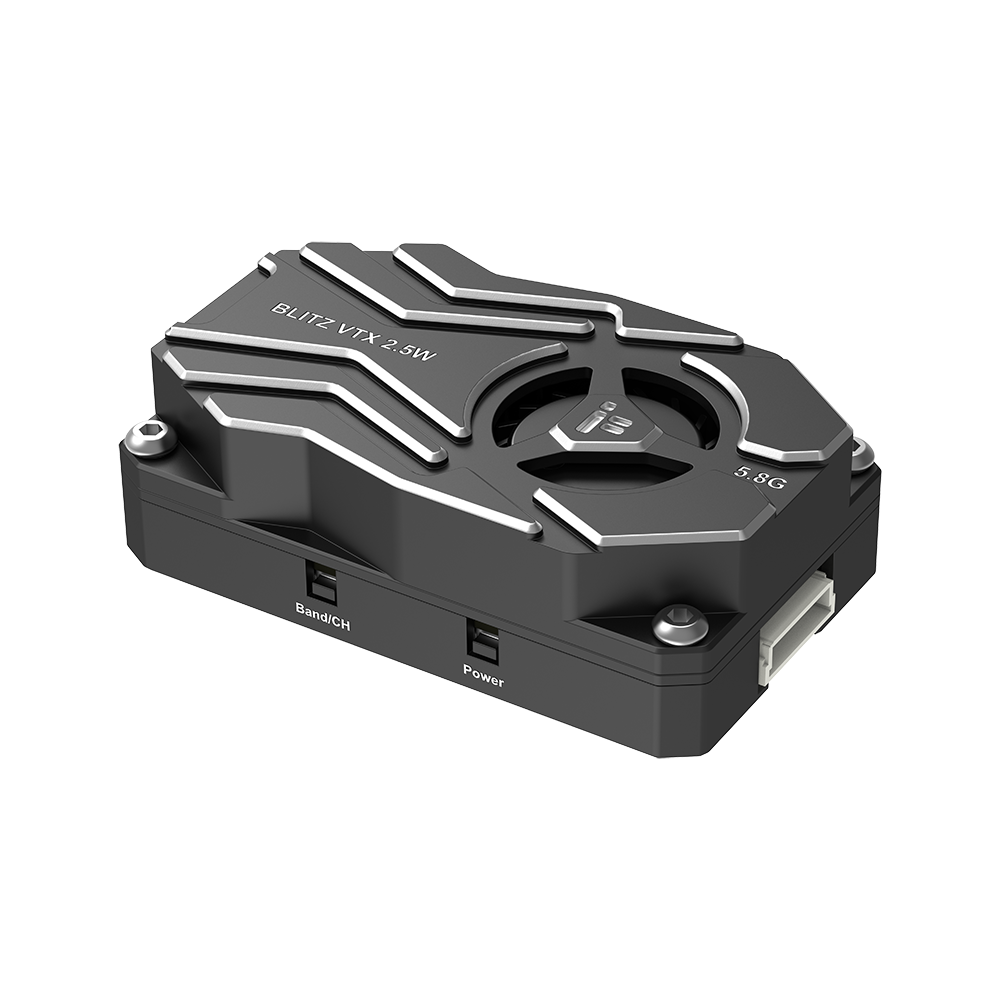

BLITZ Whoop 5.8G 2.5W VTX
Function:
- Built-in microphone;
- 4 power levels up to 2500 mW;
- 40 channels (including Raceband);
- Fast frequency lock, no interference when starting with other pilots;
- Built-in output power self-check function;
- The CNC cooling jacket together with the integrated cooling fan offers a double heat dissipation effect.
Tips:
VTX is set to 25mW by default! Power levels above 25 mW require a HAM license or must be approved by local authorities! Please make sure you are flying on legal frequencies and use our prepared Betaflight VTX charts for your region.
Specifications:
Input voltage: 7V - 34V
Interface: MMCX
Power levels: PIT/25mW/400mW/1000mW/2500mW
Channels: 40 (including Raceband)

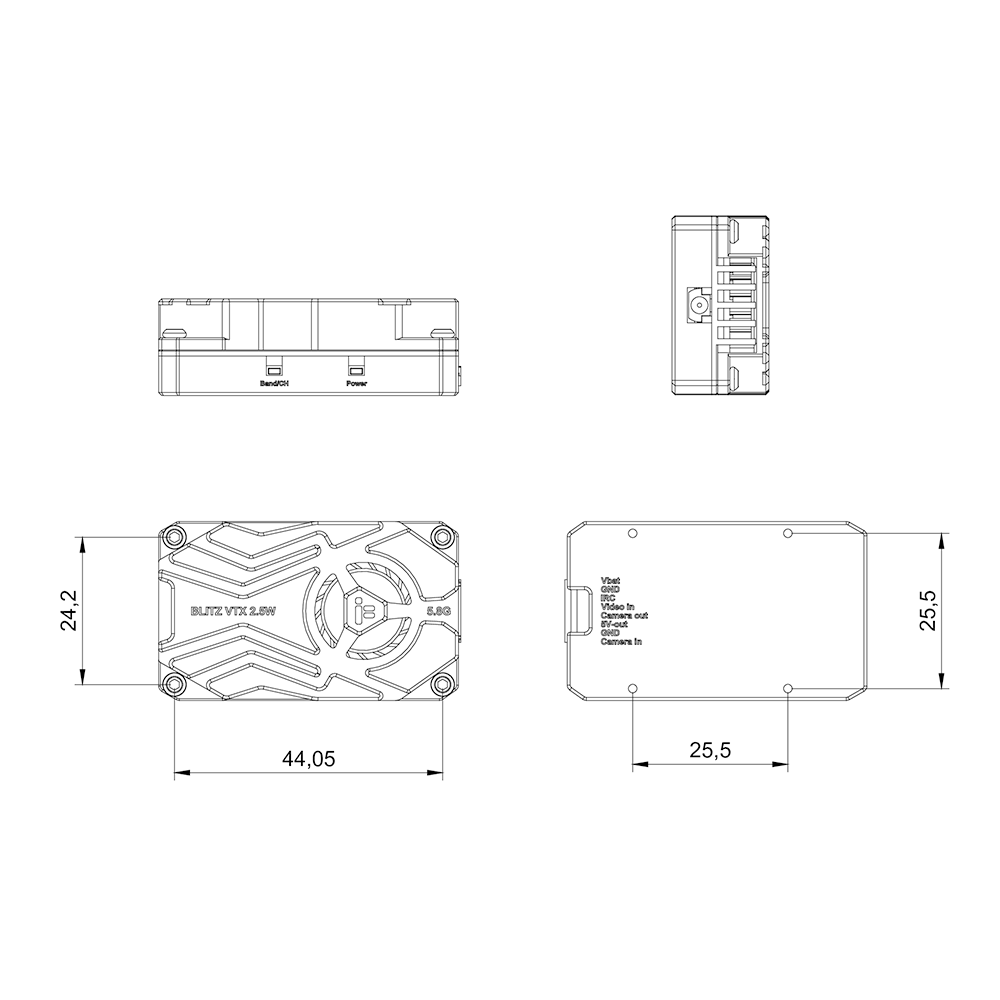

Mounting pattern: 25.5x25.5mm/Φ1.6
Light weight: 32 g (without antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
Table values RC Tramp VTX: 25mW/400mW/1000mW/2500mW

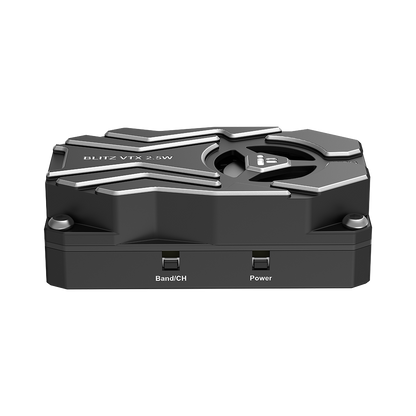

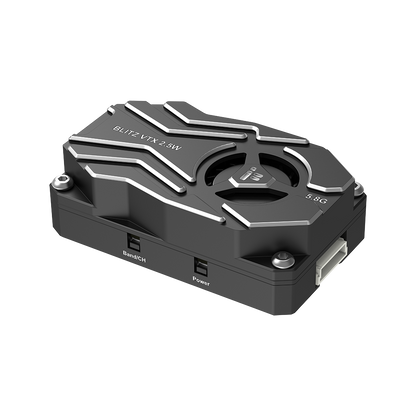

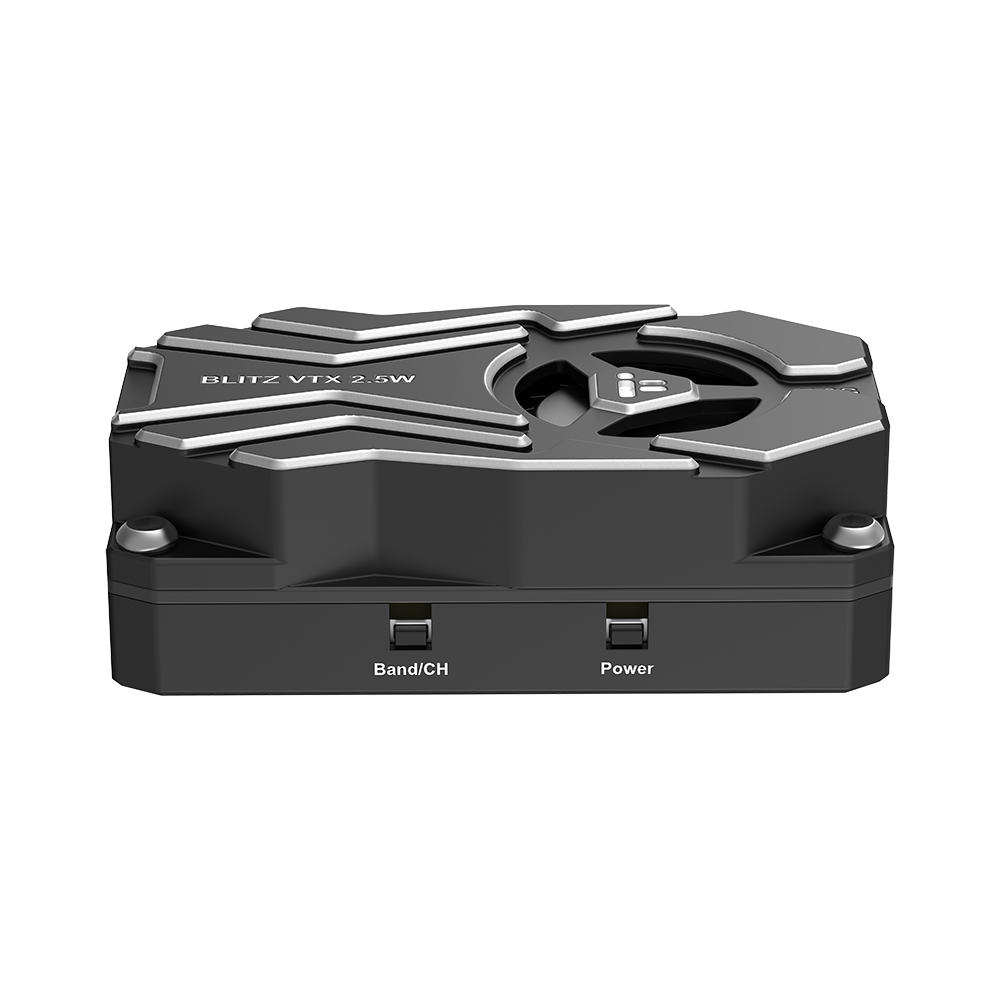

LED indicator and function button
Power button:
- Press and punch for 2s: Enter or exit PIT mode, continuous green light indicates entering PIT mode.
- Short press: Green light (output power): The number of LED flashes indicates the VTX output power. 1 flash = 25 mW, 2 flashes = 400 mW, 3 flashes = 1000 mW, 4 flashes = 2500 mW. Short press to change output power.
Band and channel button:
- Press and open for 2s: Red (BAND): Number of LED flashes indicates BAND A-R. Press and hold for 2 seconds to switch band.
- Short press: Blue (CH): Number of LED flashes indicates channel 1 to 8. Short press to switch channel.

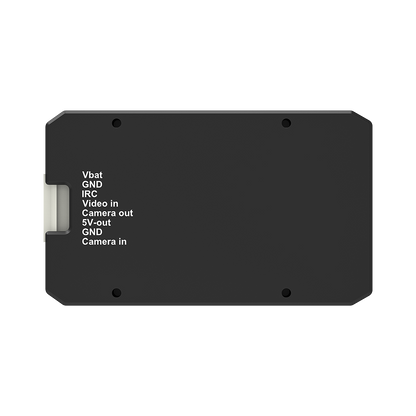

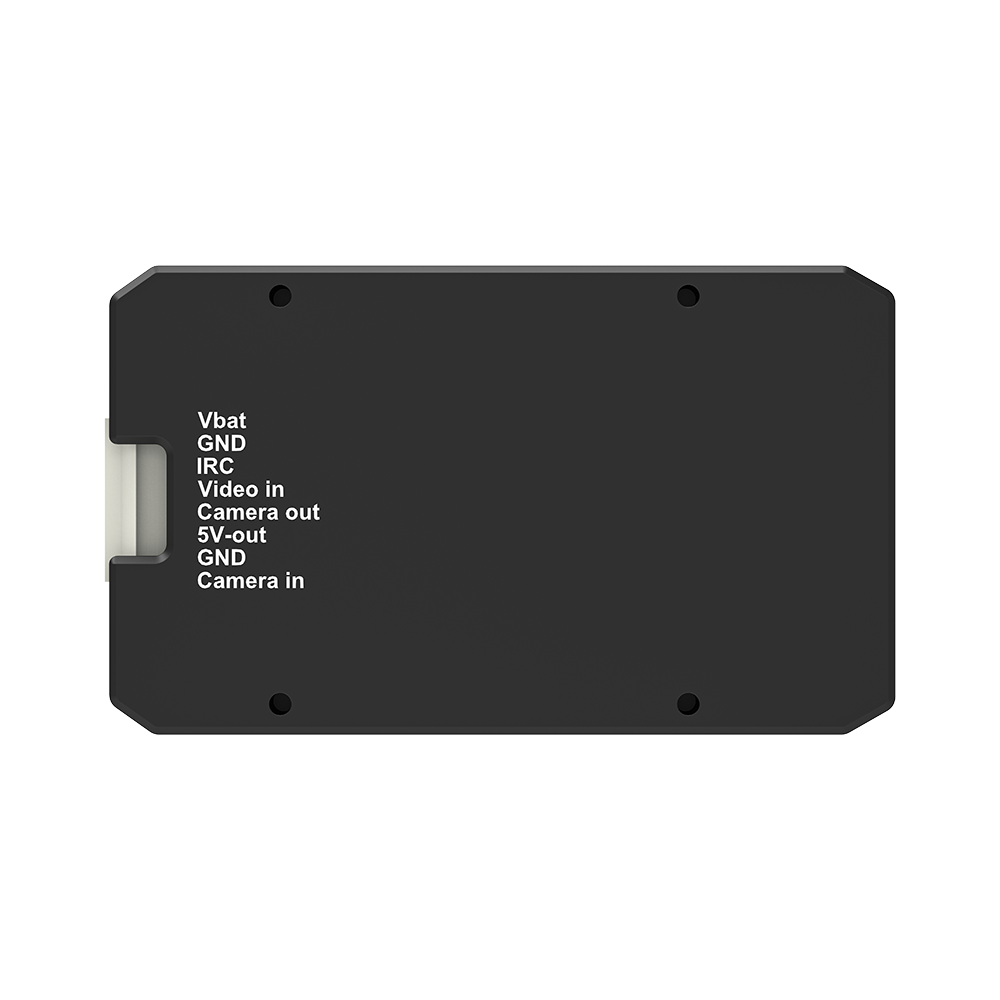

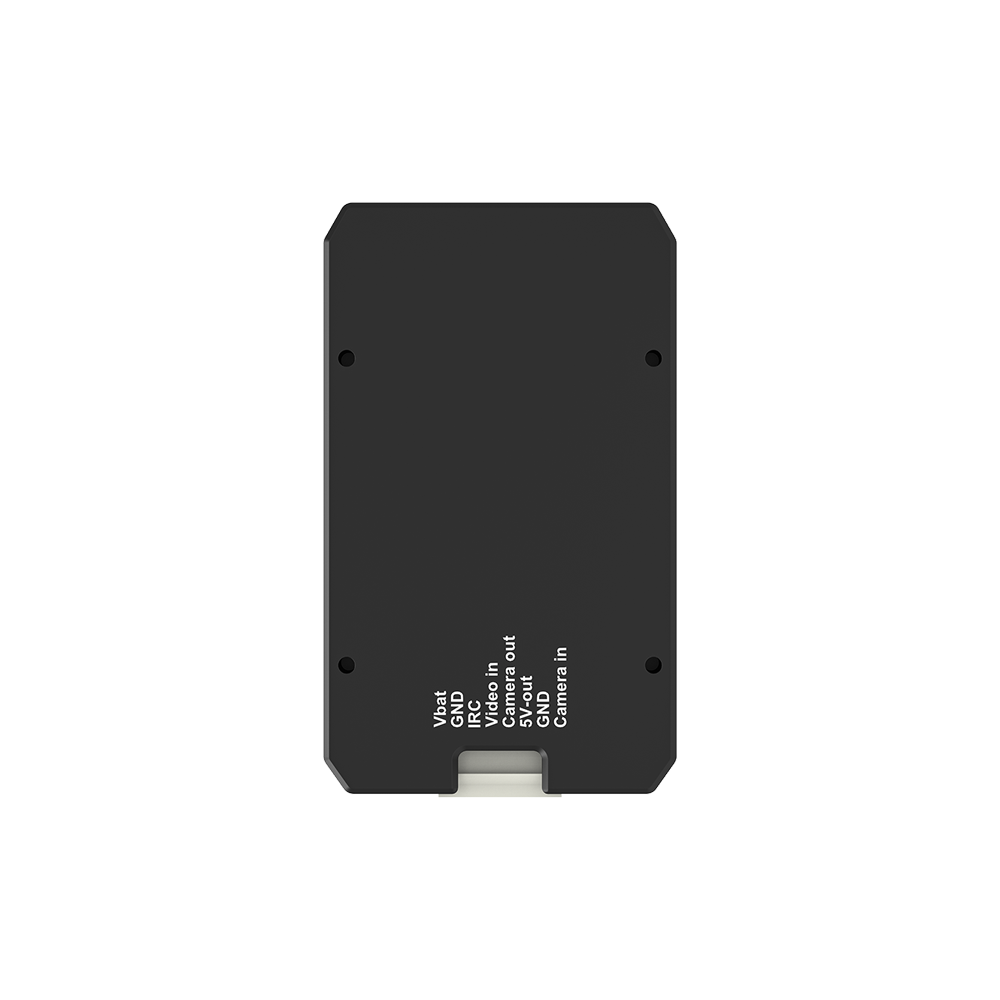

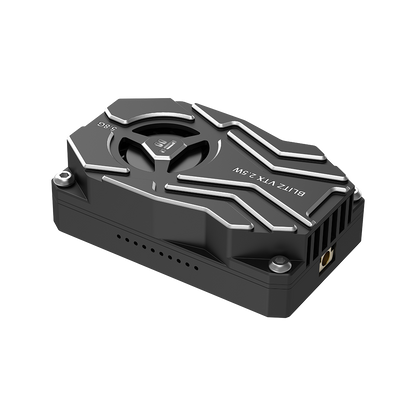

Ports
VBAT: 2-8S, 7-34V DC positive input
GND: Negative
5V output: 5V voltage output
IRC: IRC Tramp signal input
GND: Negative
Video Input: Video signal input
Camera input: Video input of the camera
Camera out: Video output of the camera

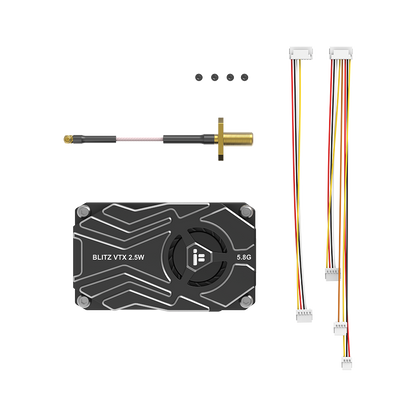

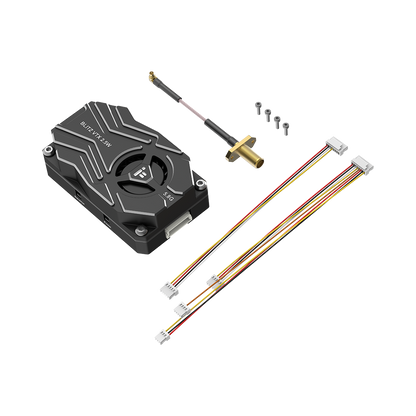

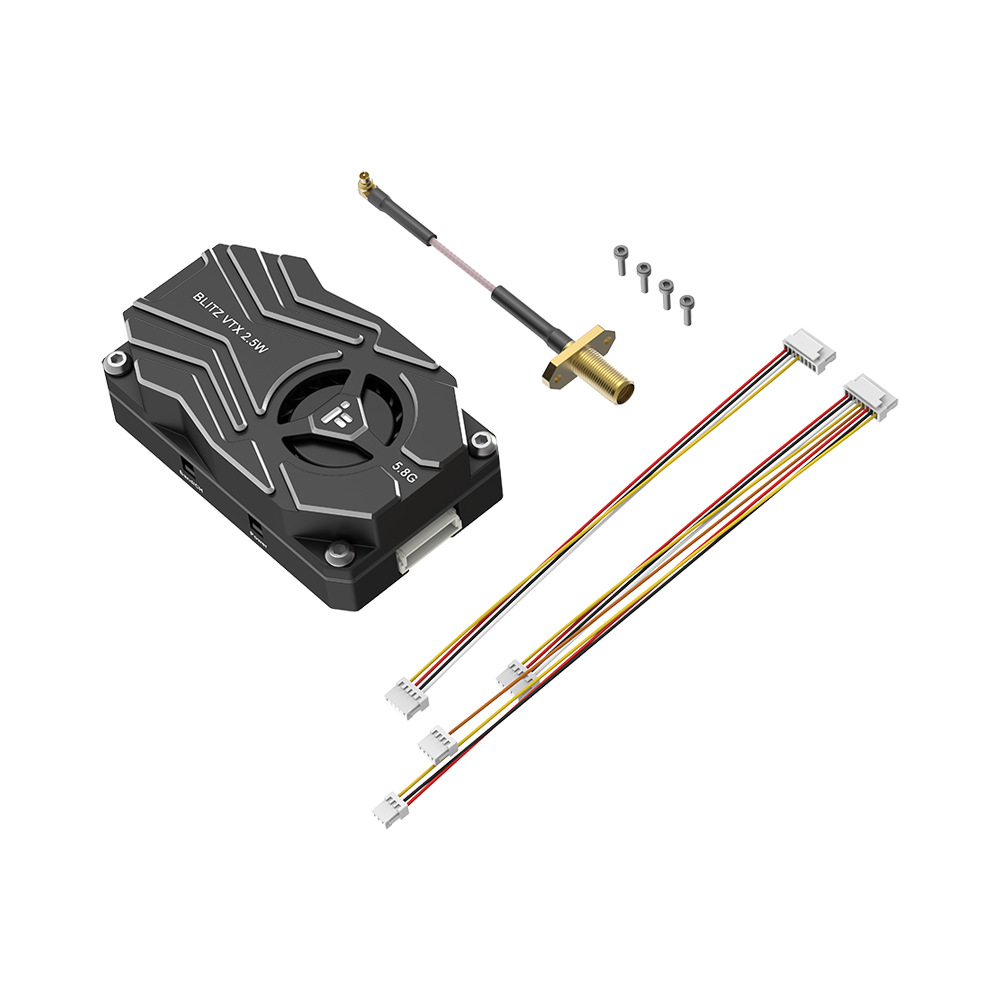

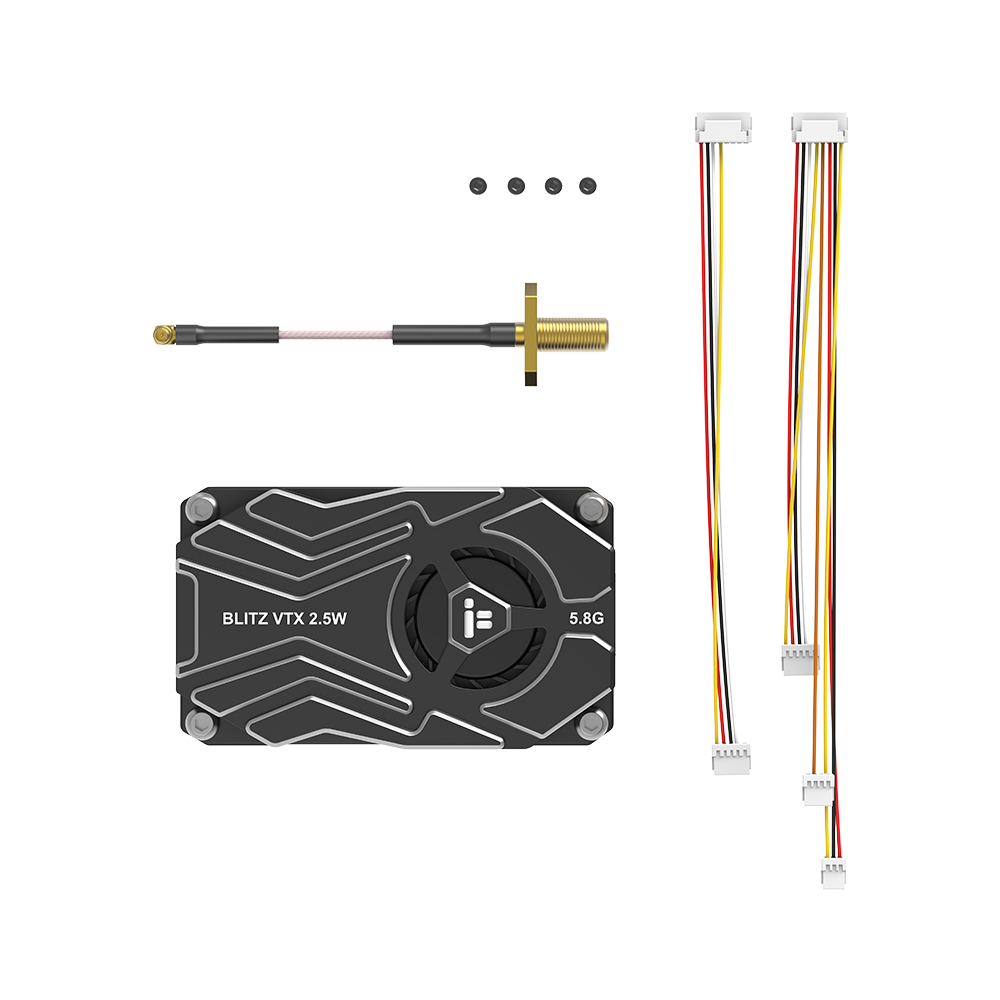

The package includes:
1 x BLITZ Whoop 5.8G 2.5W VTX
Attention:
1. Please read the instructions for proper wiring before use.
2. Before turning on the power, it is recommended to check whether the antenna has been installed, it can extend the life of the module.
3. Before turning on the power, it is recommended to ensure the correct voltage range and correct positive and negative polarity to avoid burning components.
4. When installing the VTX, leave enough space to allow airflow around the heat sink module. Otherwise, the module will activate the overheating protection and the power transfer will be reduced or even shut down.
