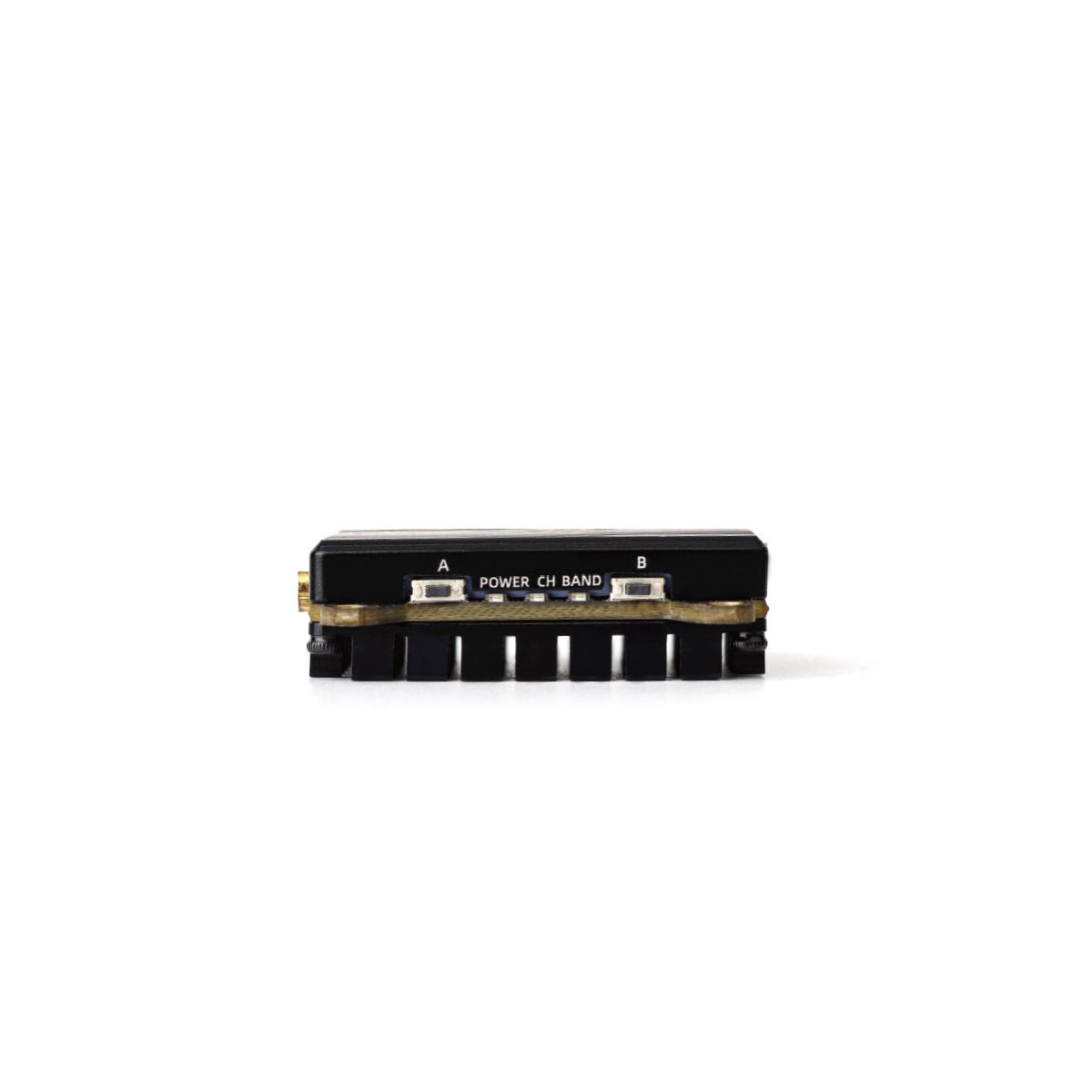

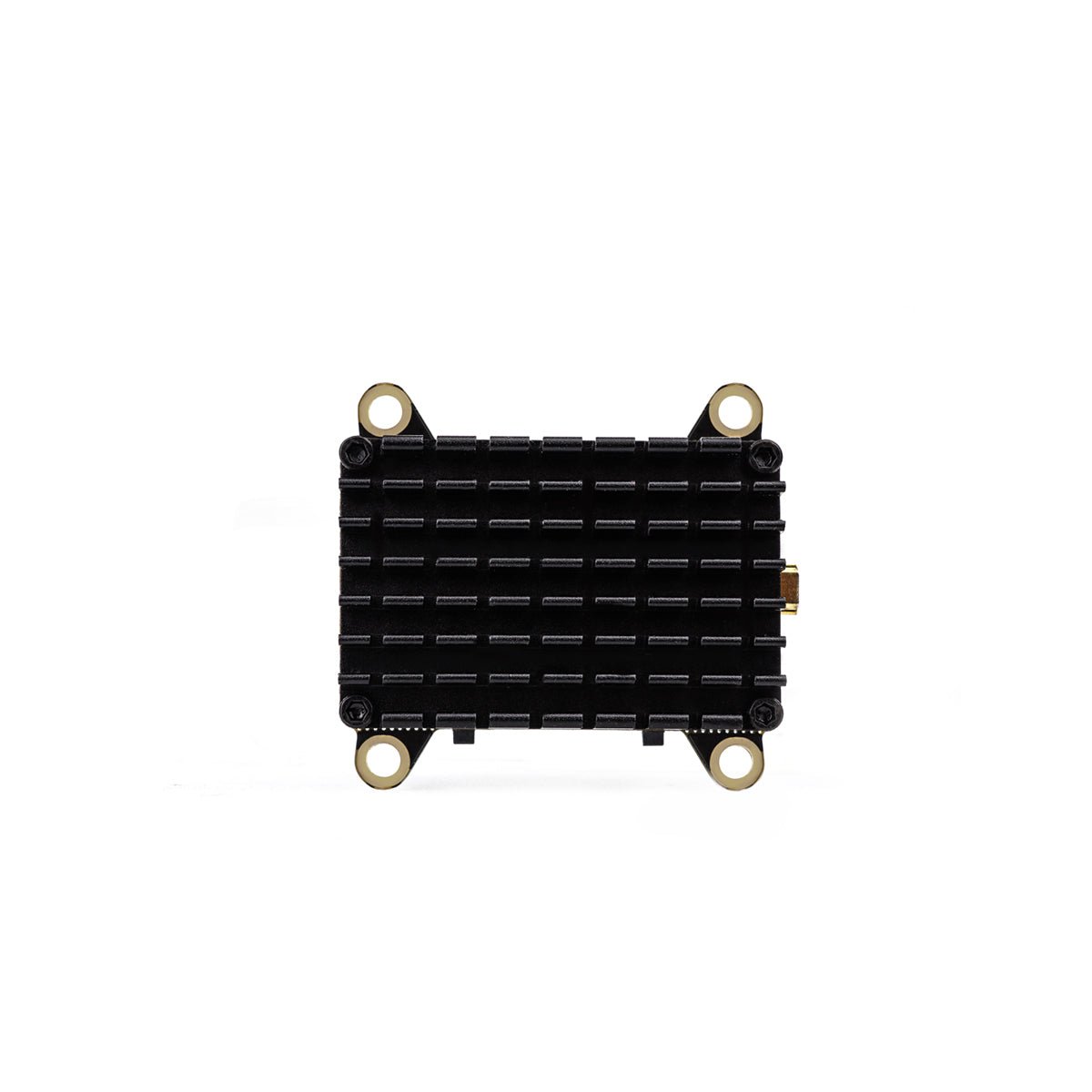

ZEUS 2.5W Function: - The actual measured distance is 9 kilometers with interference in an urban environment and more than 10 kilometers in a suburban/mountainous environment. - 2500mW high power, maintain enough power, suitable for long distance and ultra long distance flight. - 6 adjustable PIT power levels/25mW/200mW/800mW/1600mW/2500mW. - CNC integrated upper and lower cover structure, strong heat dissipation effect, maintain stable performance. - Dual function buttons make parameter setting easy and 3 sets of LED indicators show power/frequency group/frequency points at a glance. - Supports setting OSD parameters of IRC Tramp protocol. - Supports 2-6s (7-26V) wide voltage input. - Supports 30.5x30.5 M3 hole installation. Specifications: Product name: Zeus VTX 2.5W Support voltage: DC 7-26V (2-6S) BEC: 5V/800mA Antenna interface: MMCX Cable interface: GH1.25 6P Video format: PAL/NTSC Standard 40 channels: A/B/E/F/R frequency group Protocol: IRC Tramp Output power: PIT/25/200/800/1600mW/2500mW PitMode/0dbm 25mW/13.95dBm 200mW/23.01dBm 800mW/29.03dBm 1.6W/32.04dBm 2.5W/33.98dBm Installation hole location: 30.5*30.5*M3 Dimensions (L*W*H): 40mm x 35mm x 11.8mm Weight: 19.6g The package includes: 1x Zeus VTX 2.5W 1 x MMCX 80mm copper tube antenna 1 x MMCX to SMA 100 mm adapter 1 x GH1.25 6Pin 100mm Single Sided Cable 1 x SH1.0 4Pin-GH1.25 6Pin 60mm Double End Cable
