    Code: HDZ3100

    VTX HDZero Whoop Lite

    VTX HDZero Whoop Lite

    Brand: HDZero

    €54,99
    €54,99 €54,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

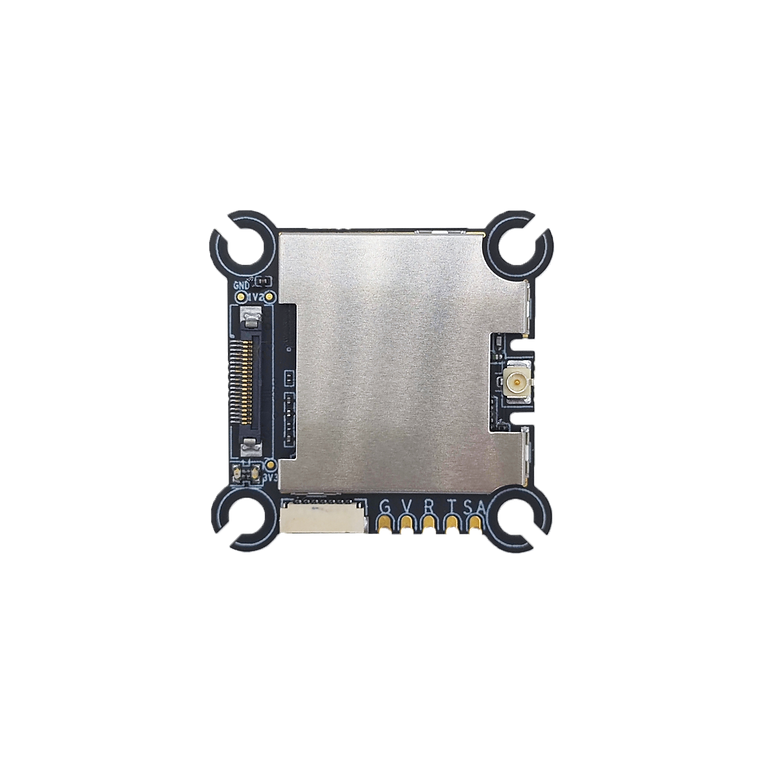

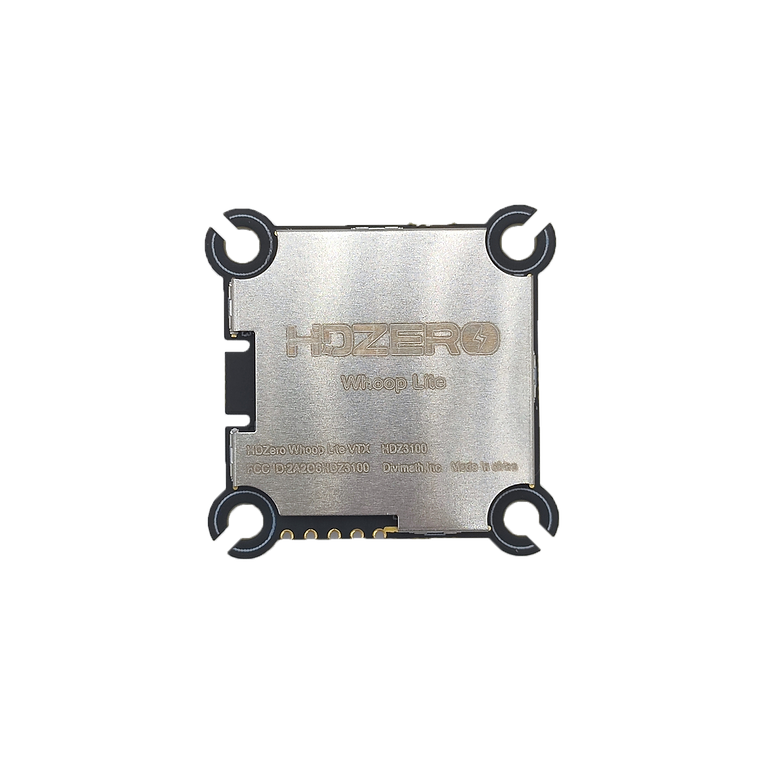

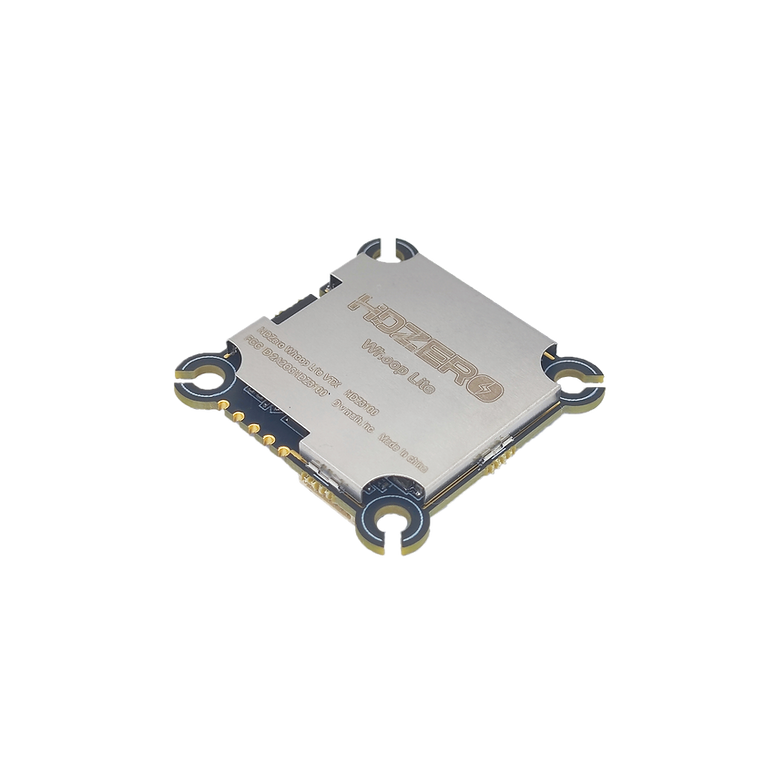

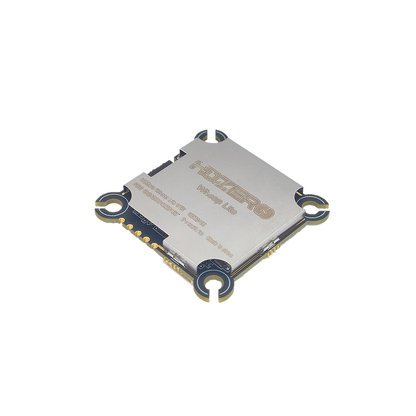

    VTX HDZero Whoop Lite

The HDZero Whoop Lite VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw at 5.8GHz. It is intended for racing and works with the Shark Byte RX5.1 module for glasses to receive video. With a default resolution of 1280×720 @ 60fps, it ensures a sharp and smooth image for an immersive FPV experience. It supports RF power levels of 25mW and 200mW, so it provides flexible transmission power for different flight conditions.

Specifications:

Model: HDZero Whoop Lite VTX
Frequency: 5.8G
Resolution (default): 1280×720 @ 60 frames per second
RF power: 25 mW / 200 mW
RF connector: U.FL
Interface: 4-band MIPI CSI YUV422 interface
Video connector: 20 positions with a pitch of 0.30 mm
Size: 32.4 x 32.5mm (29 x 29mm inner)
Weight: 4.5g / thickness 4mm (without shield)
Power supply: 1000mA @ 5V
Power input: 1S-3S
Mounting: 25.5 x 25.2mm M2 soft mount

The package contains:

1 x HDZero Whoop Lite VTX
5 x Power/Uart cable
2 x drawstrings
4 x rubber grommet (M3 to M2)
