Code: SKU:HDZ3143
VTX HDZero Race V3 5.8G 25-200mW
VTX HDZero Race V3 5.8G 25-200mW
Brand: HDZero
Couldn't load pickup availability
- Description
- Related Files
- Discussion
VTX HDZero Race V3 5.8G 25-200mW

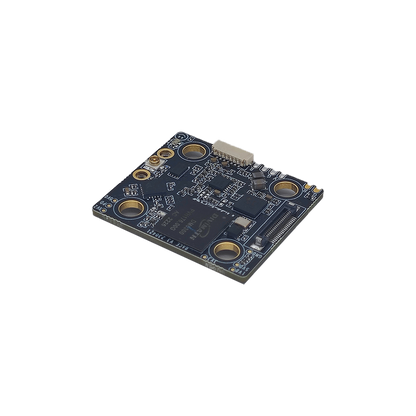

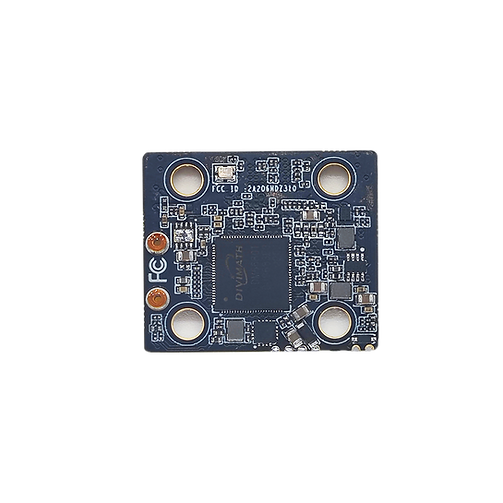

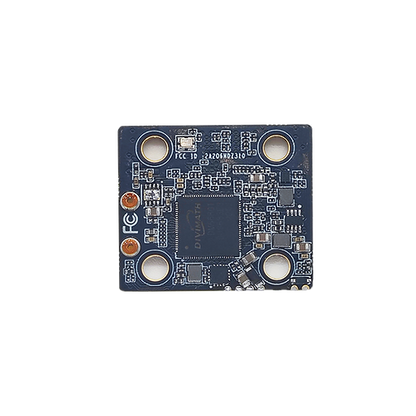

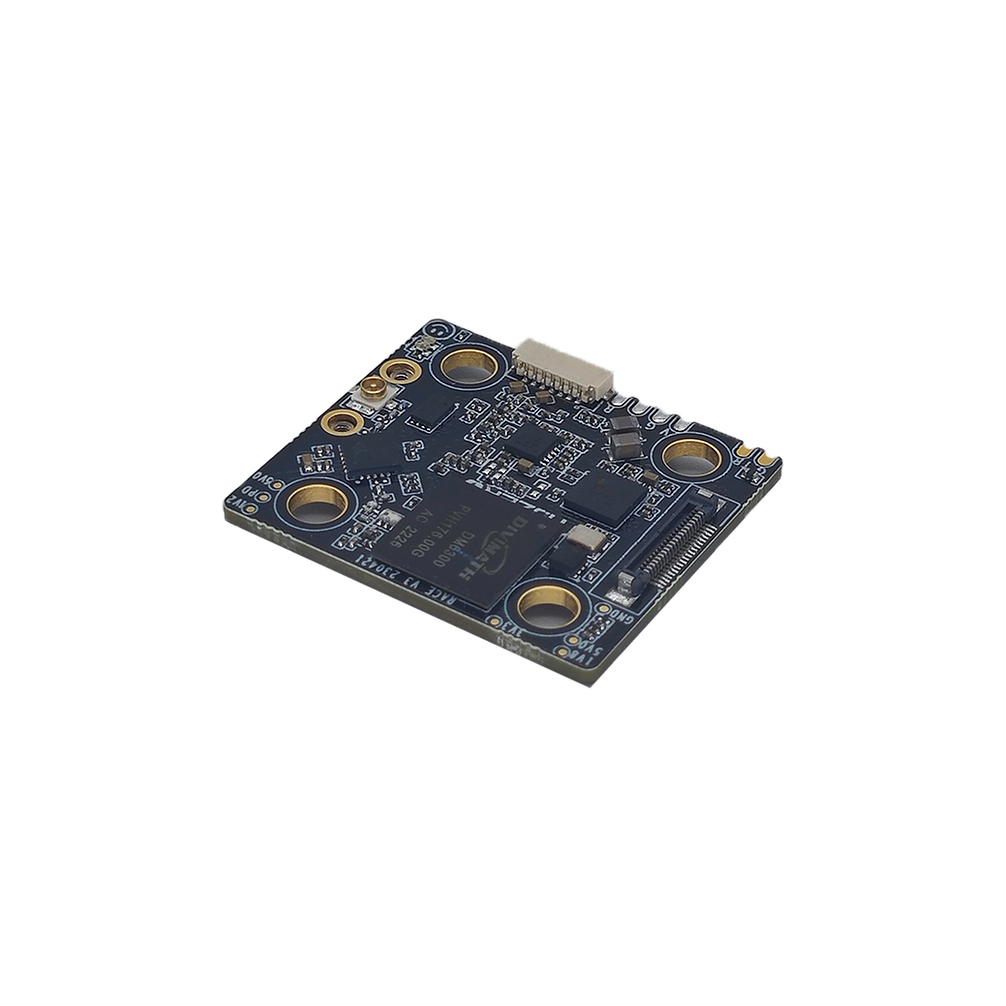

Designed for FPV racing, the HDZero Race V3 VTX is a third generation digital video transmitter. With a voltage range starting at 4V, it can be powered from the 5V 1.5A regulator of most FCs or up to 12V for FCs that include an HD VTX connector. It is small (28x32x5mm) and light (5.5 grams). At only 28mm wide, the VTX is now similar to many FCs, improving durability and reducing weight. The antenna is firmly attached with a metal rod and screws. No soldering required - just plug the harness into a compatible HD-ready FC. The HDZero Race V3 VTX is designed with durability in mind, not weight. It is made from a 1.6mm thick PCB, as opposed to the 1.0mm PCB used in the Whoop lite VTX. In addition, it uses more components with large housings to increase stability. For smaller components, an additional layer of adhesive is applied to increase impact protection. HDZero Race V3 VTX offers high-quality video in 540p90, 720p60 and 1080p30 resolutions with switchable power of 25/200mW at 5.8GHz.
Specifications:
Power input: BEC 4-12V Dimensions: 32x28x5mm Weight: 5.5 grams Cable length: 40mm Operating frequency: 5.725-5.850GHz Transmitter power: 25mW, 200mW Mounting pattern: 20x20mm with M4 on M3 rubber dampers Antenna interface: Secured u.FL Consumption power: 25mW: 5.0W – 200mW: 5.8W

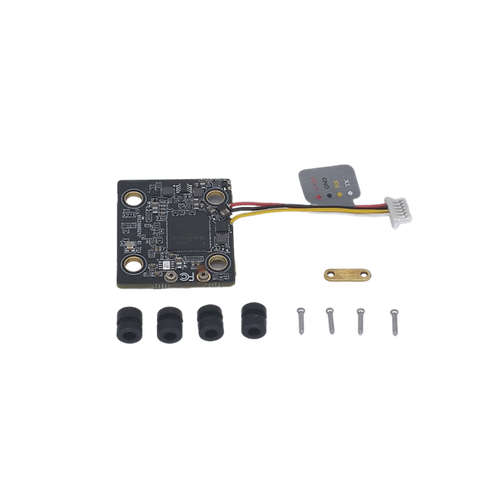

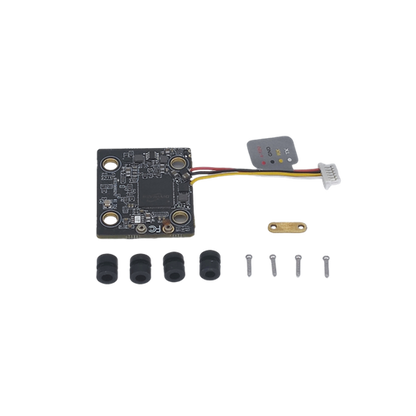

Package includes: 1x VTX-R3 board with pre-soldered bundle 4x M4 to M3 rubber dampers 4x screws 1x metal rod
