FPV Parts

Video Transmission

VTX GEPRC RAD MINI 5.8G 1W

1 6

Code: SKU:GP105524

VTX GEPRC RAD MINI 5.8G 1W

Name: VTX GEPRC RAD MINI 5.8G 1W
Brand: My Store
SKU: GP105524
Price: 55.35 EUR
Availability: InStock

Brand: GEPRC

€55,35

~~€55,35~~ €55,35

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

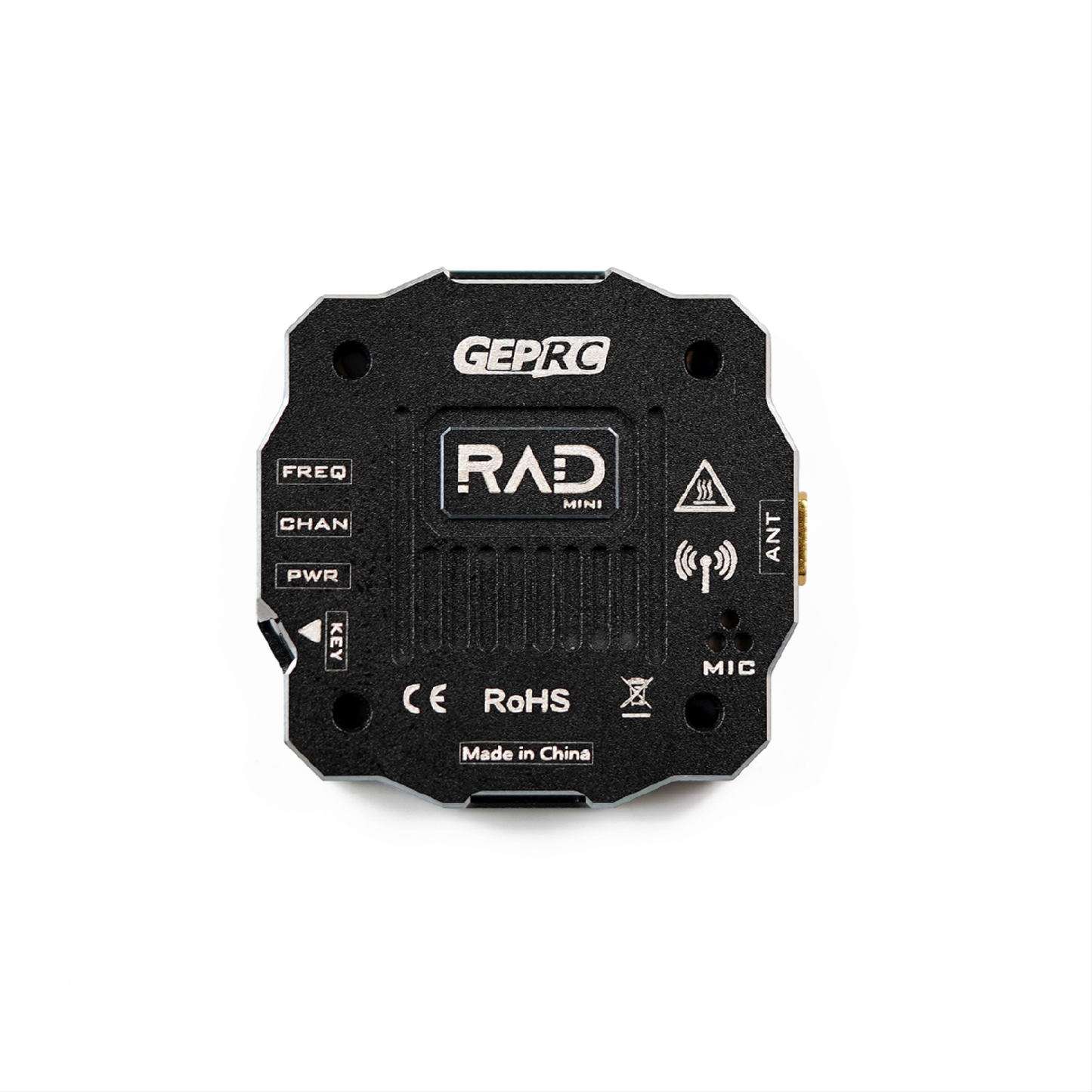

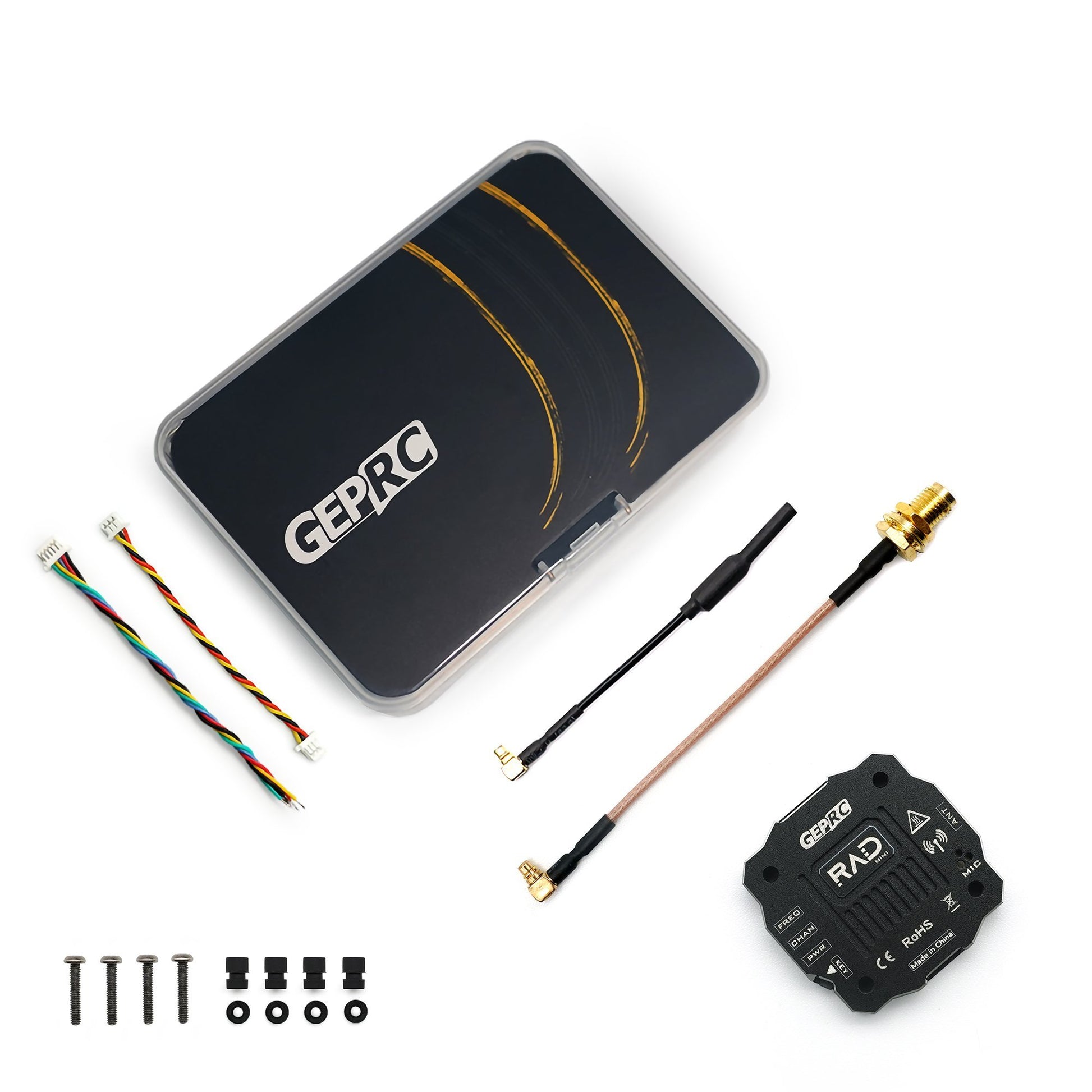

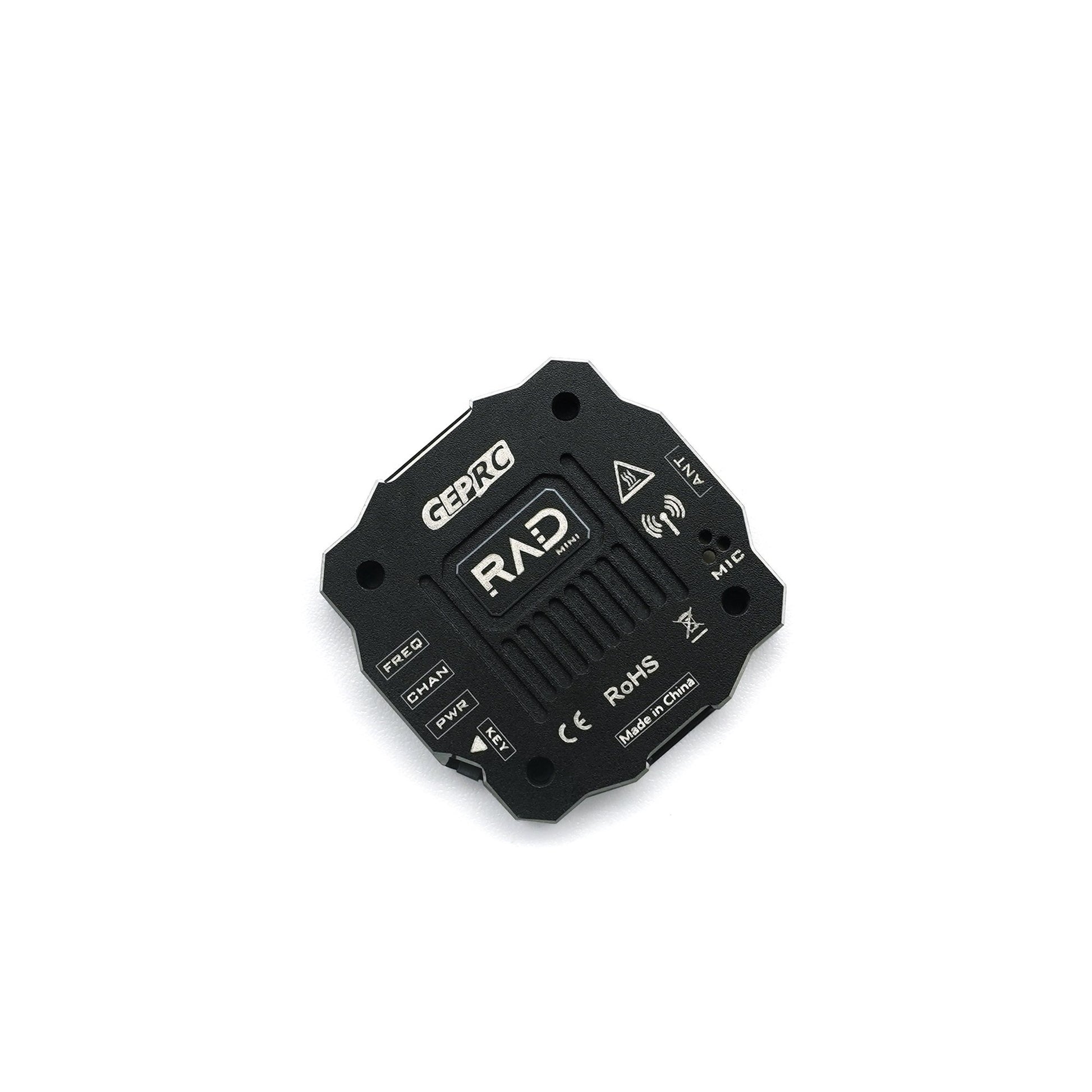

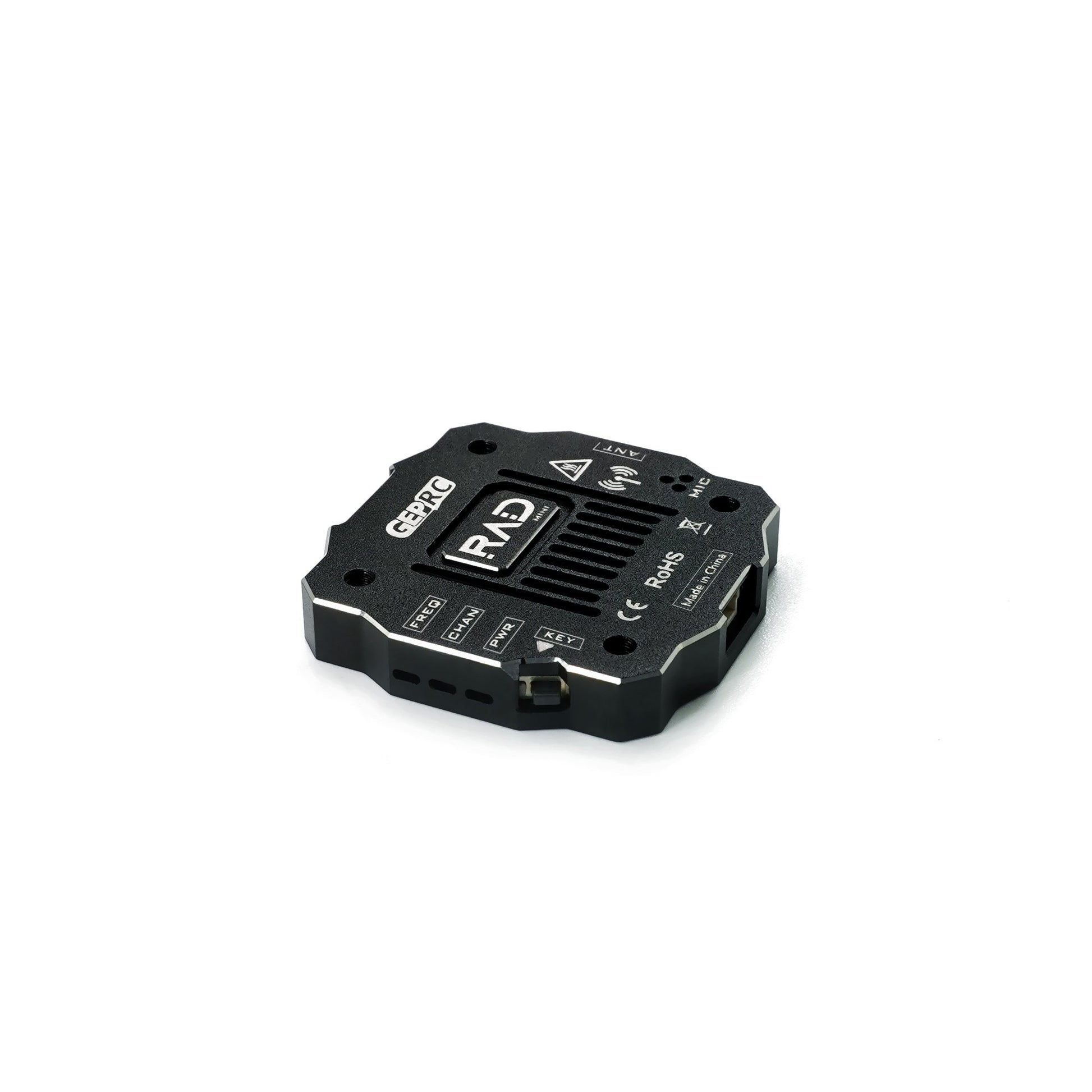

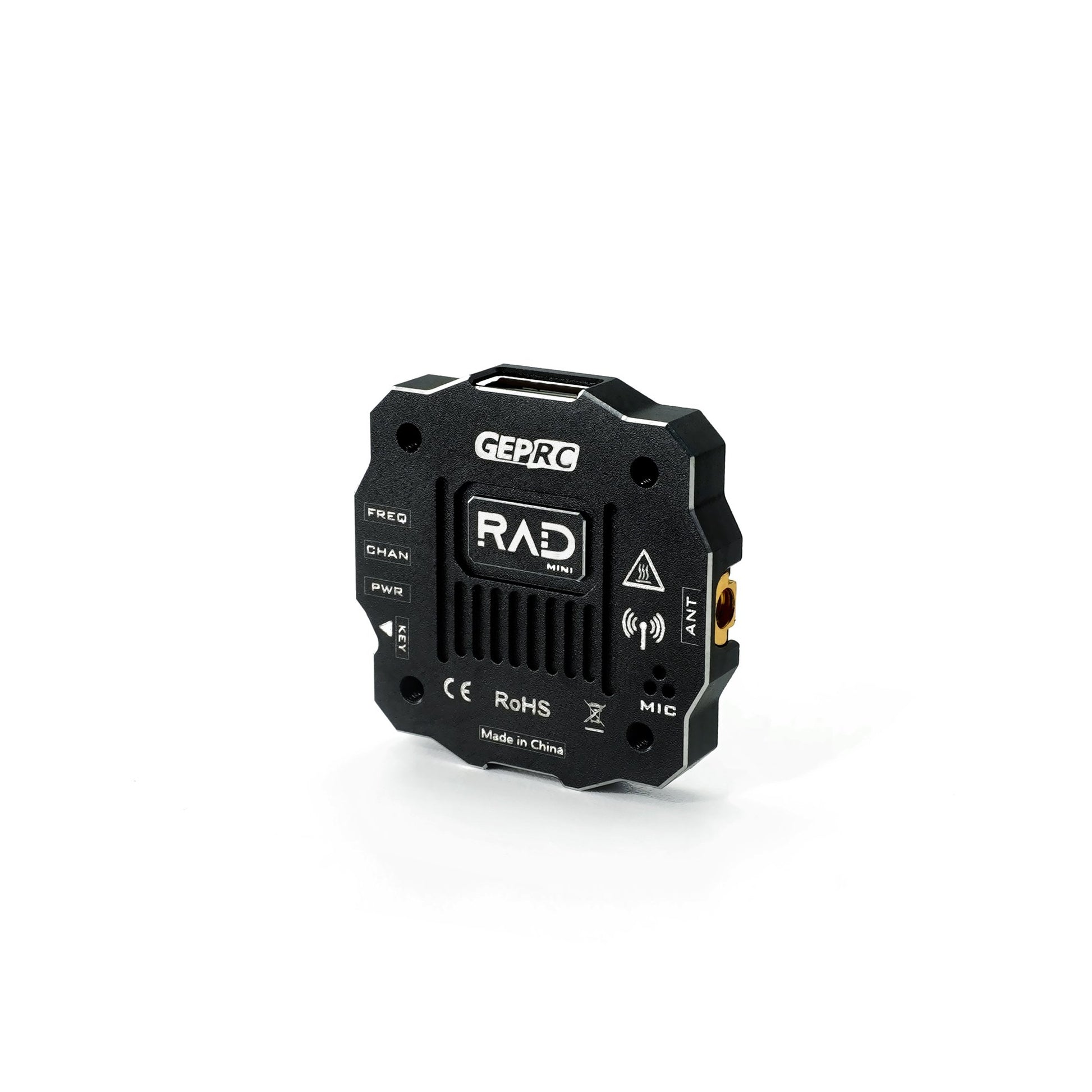

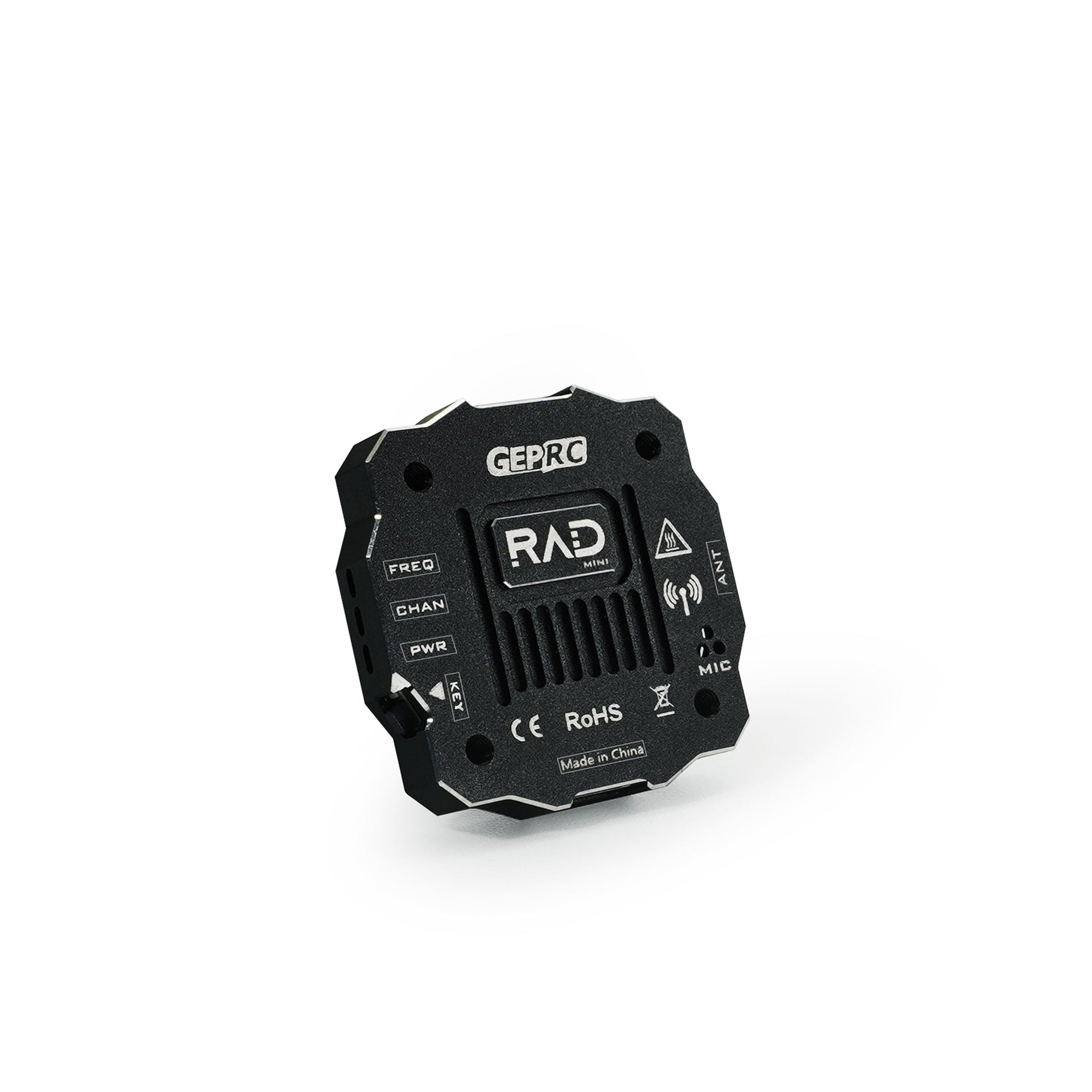

GEPRC RAD MINI 5.8G 1W VTX

Compact and ultra-light RAD Mini video transmitter in an aluminum case with a maximum power of up to 1W.

Specifications:

Operating frequency: 5.8 GHz
Operating voltage: 7-28V (2-6S Li-Po)
Number of channels: 40
Power: PIT/ 25mW/ 200mW/ 500mW/ 1000mW (switchable)
Frequency band: General regional frequency group (40CH), US FCC frequency group (37CH), EU European frequency group (26CH)
Sound: built-in microphone
Current consumption (at 5V): 600mA
Control protocol: IRC Tramp
Antenna connector: MMCX
Distance between mounting holes: 20 x 20 mm (M2)
Case material: aluminum
Dimensions: 30.8 x 30.8 mm
Weight: 8.4g.
