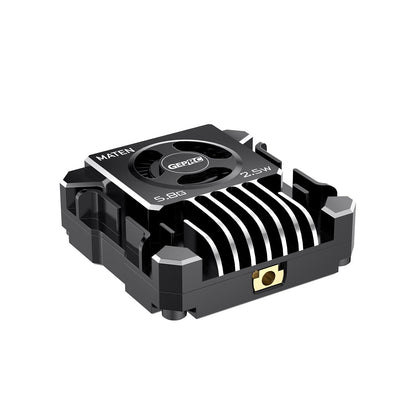

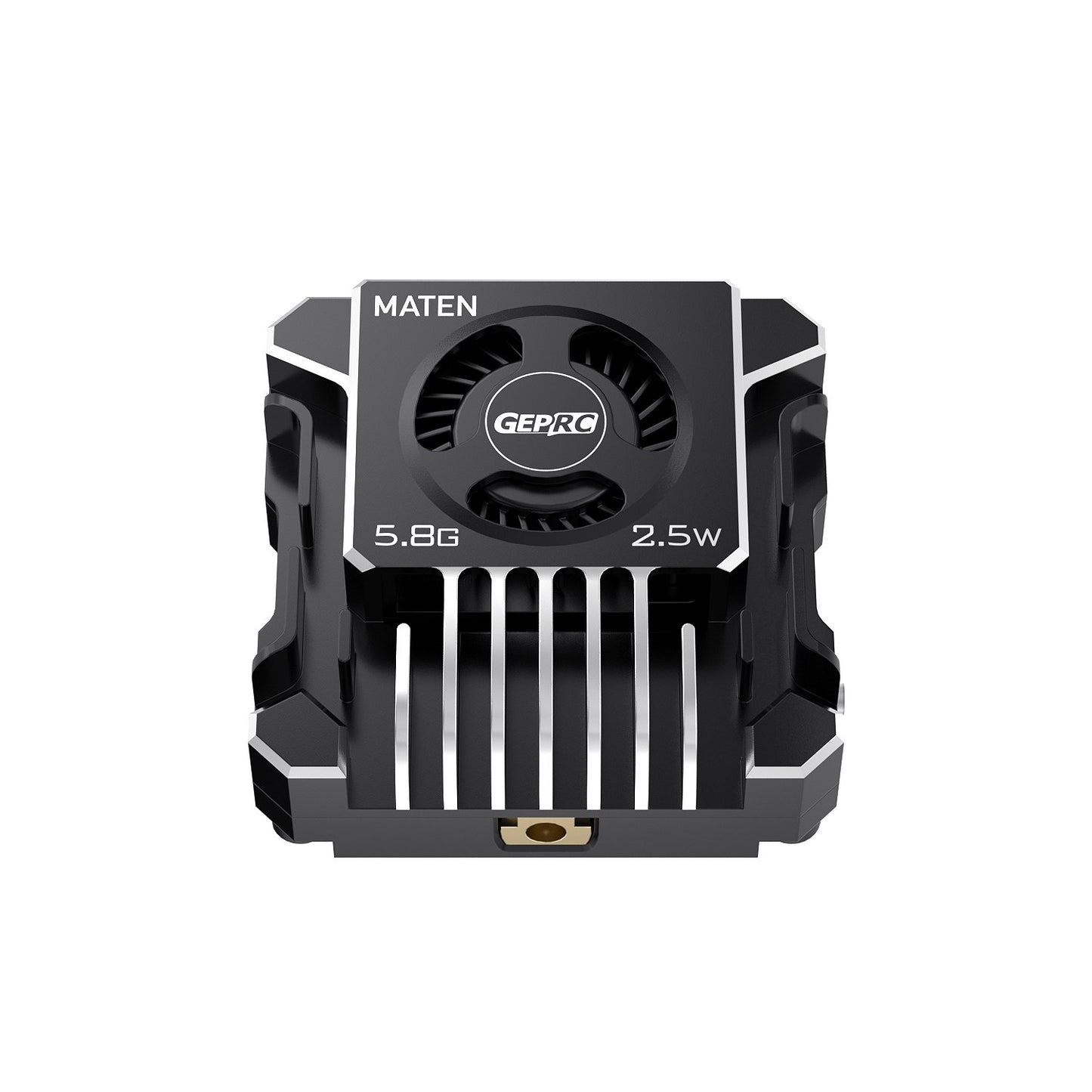

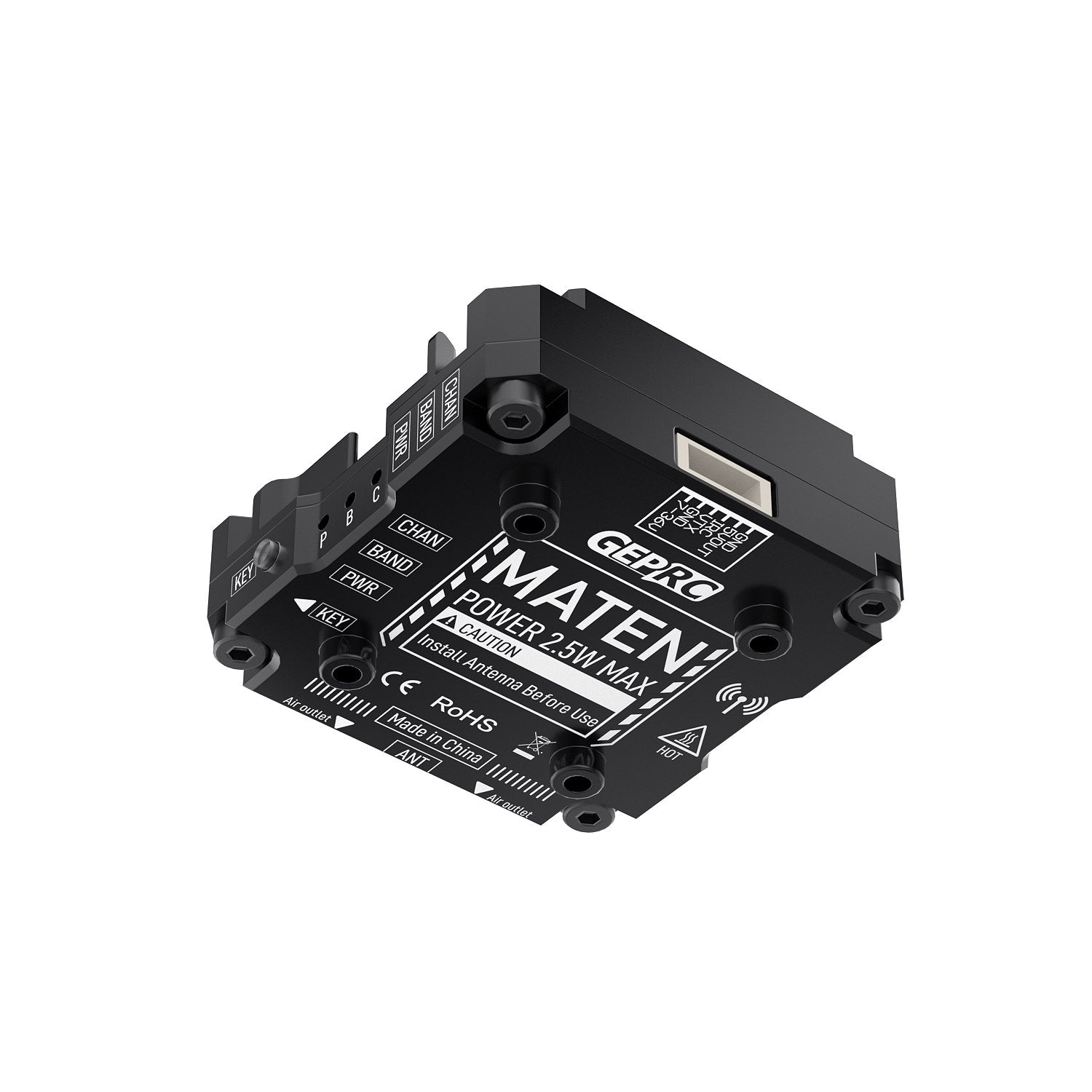

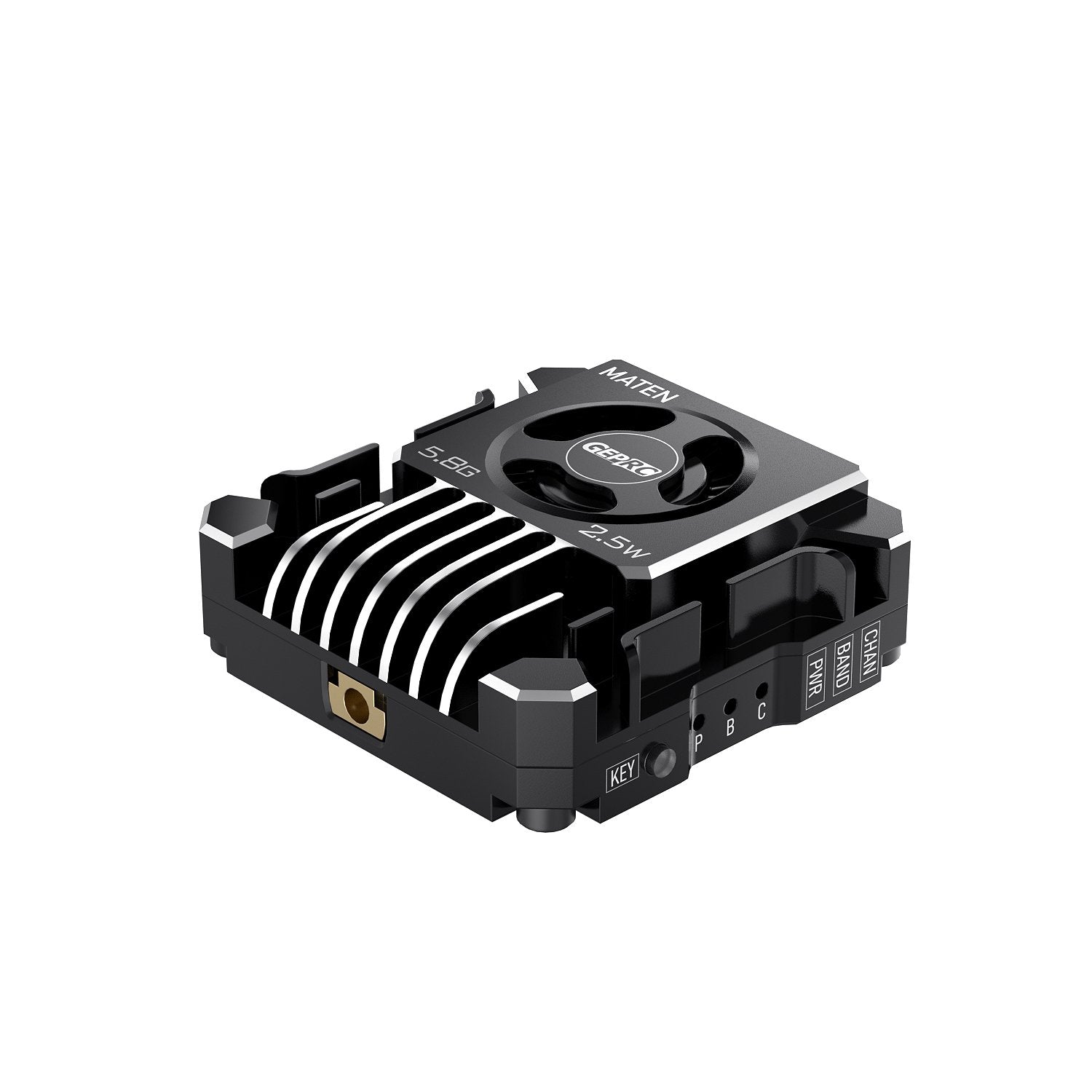

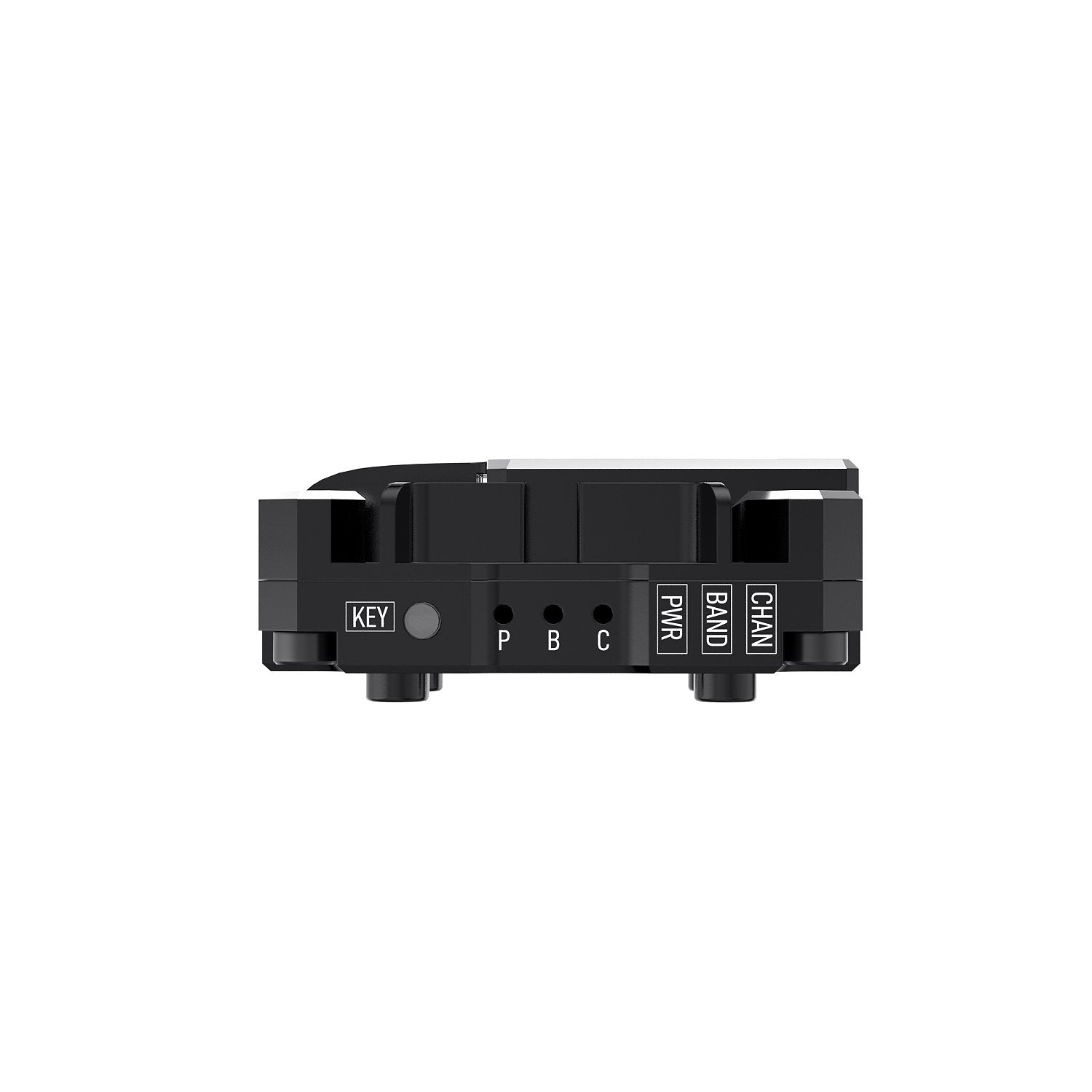

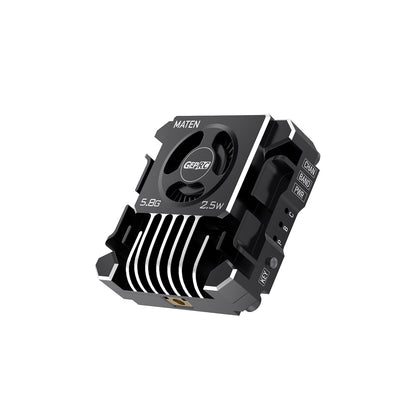

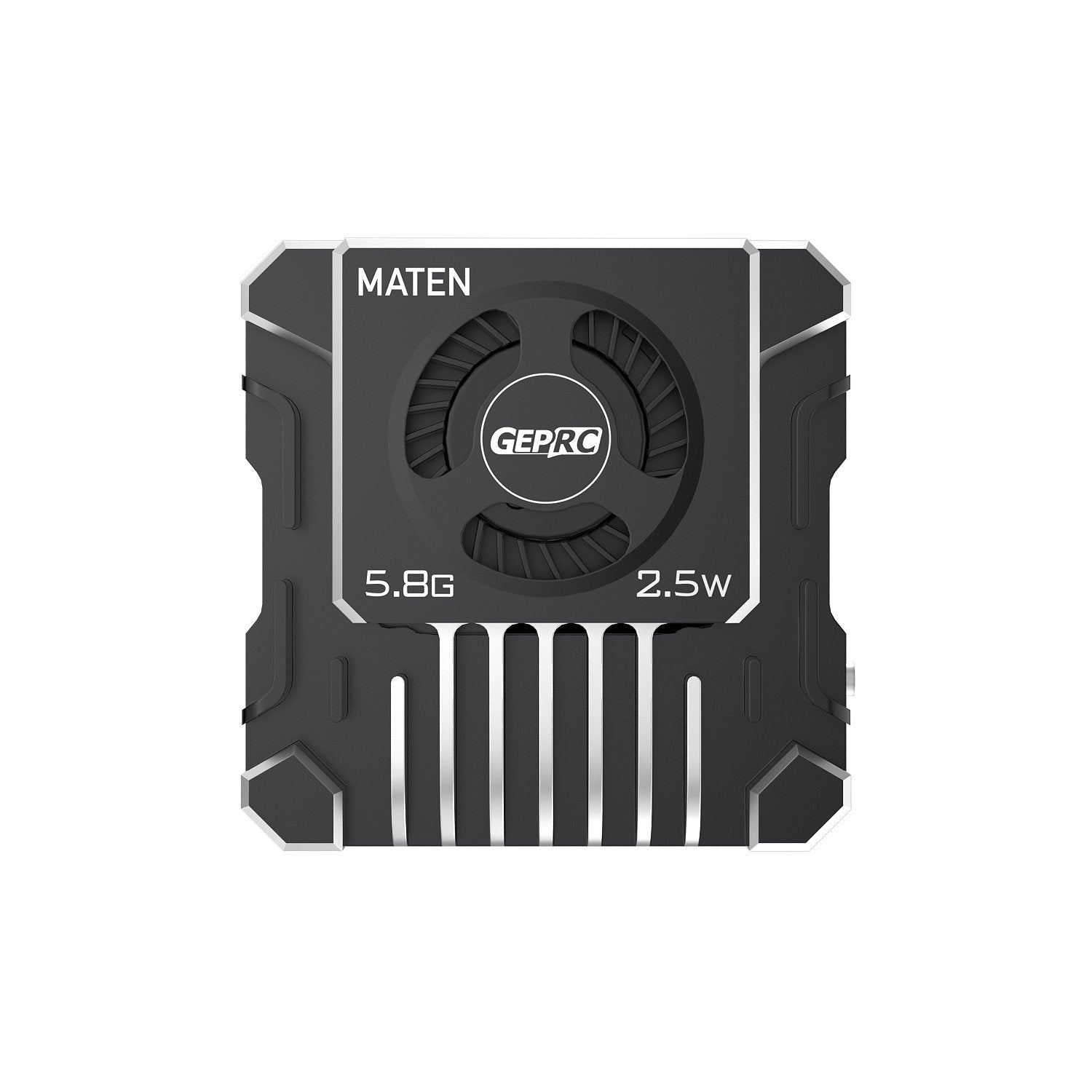

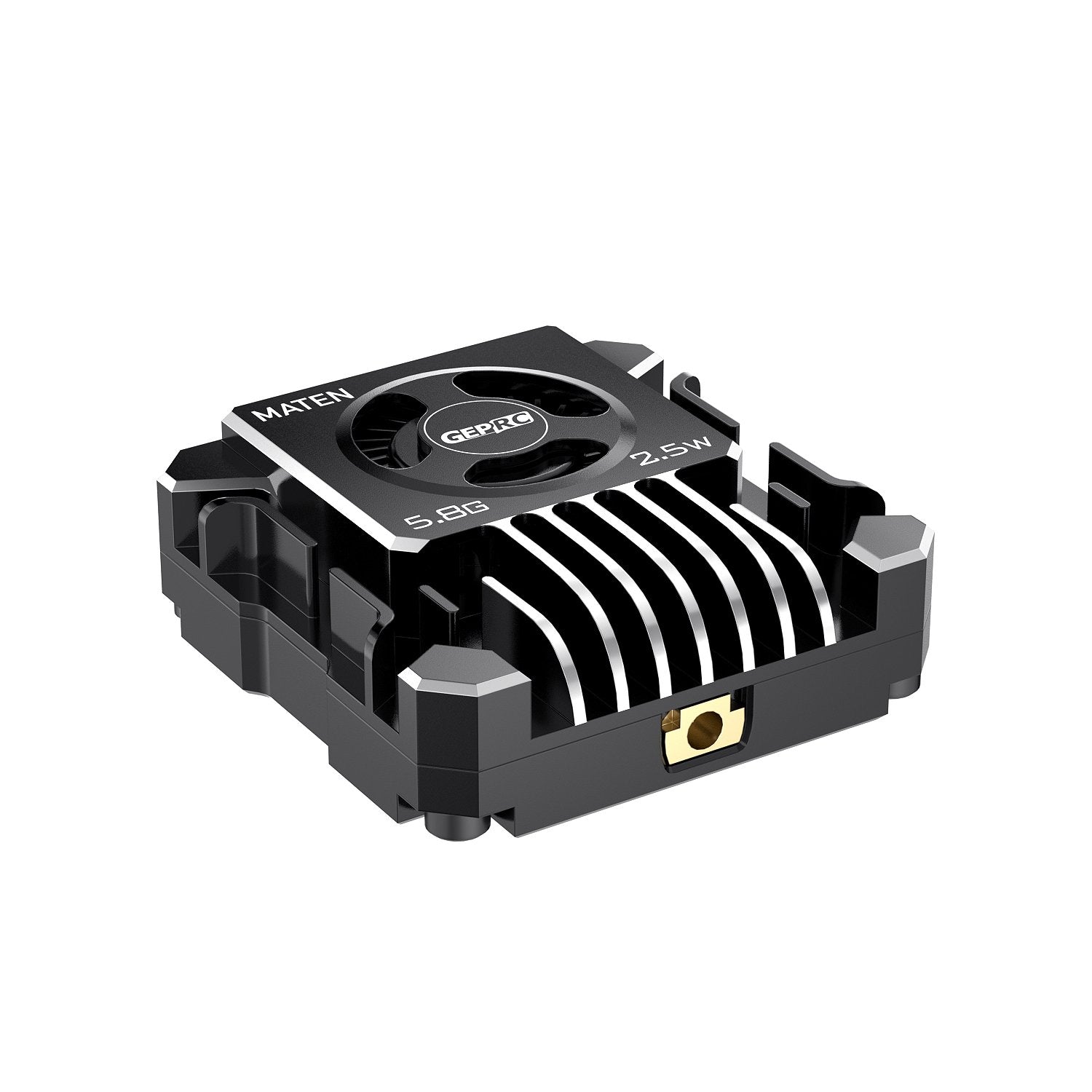

GEPRC VTX MATEN PRO 5.8G 2.5W
MATEN 5.8G 2.5W VTX PRO is a high performance video transmitter with optimized heat dissipation system for better performance.
Function:
- Offers 5 adjustable power levels with a maximum power of 2500 mW.
- Ensures stable signal transmission with excellent penetration.

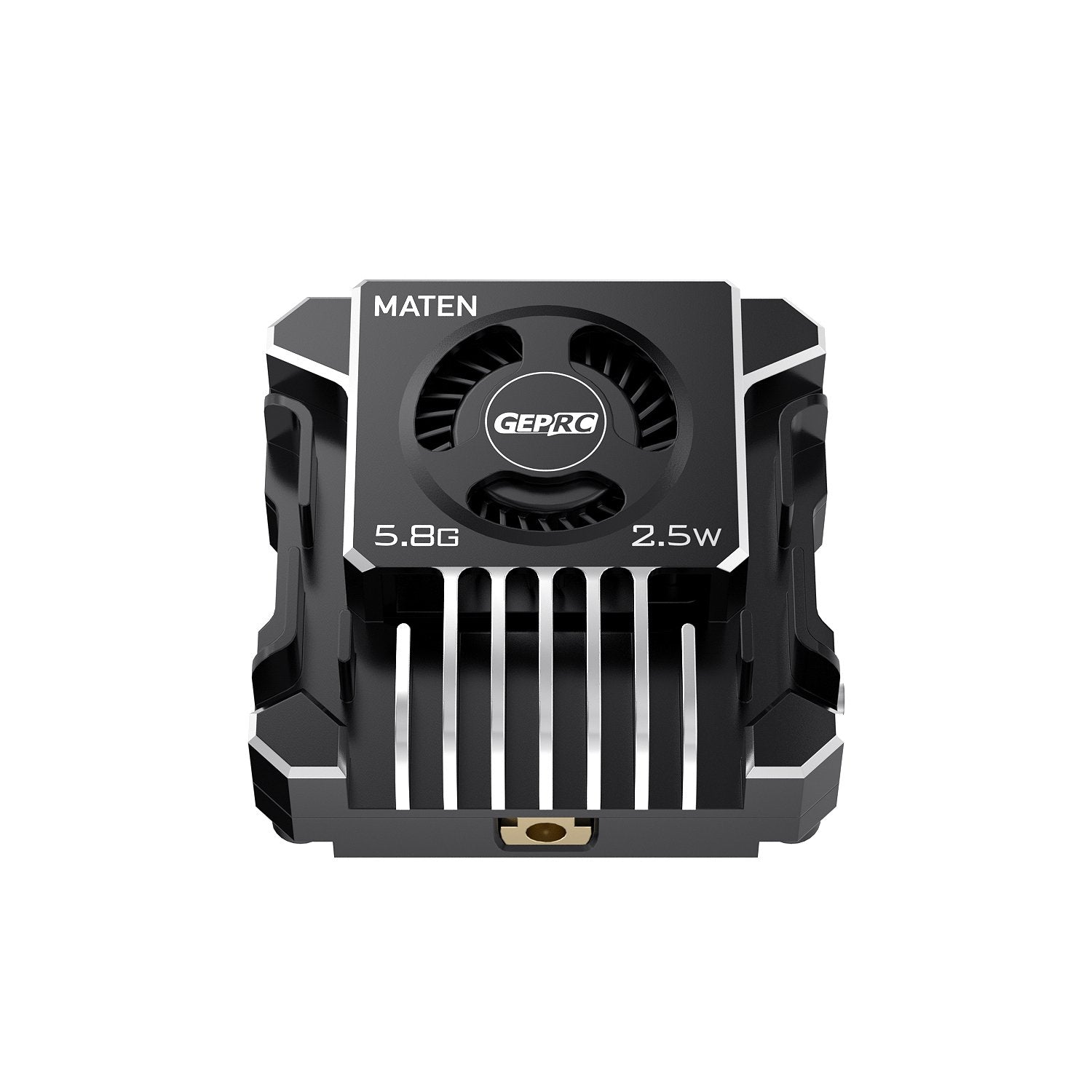

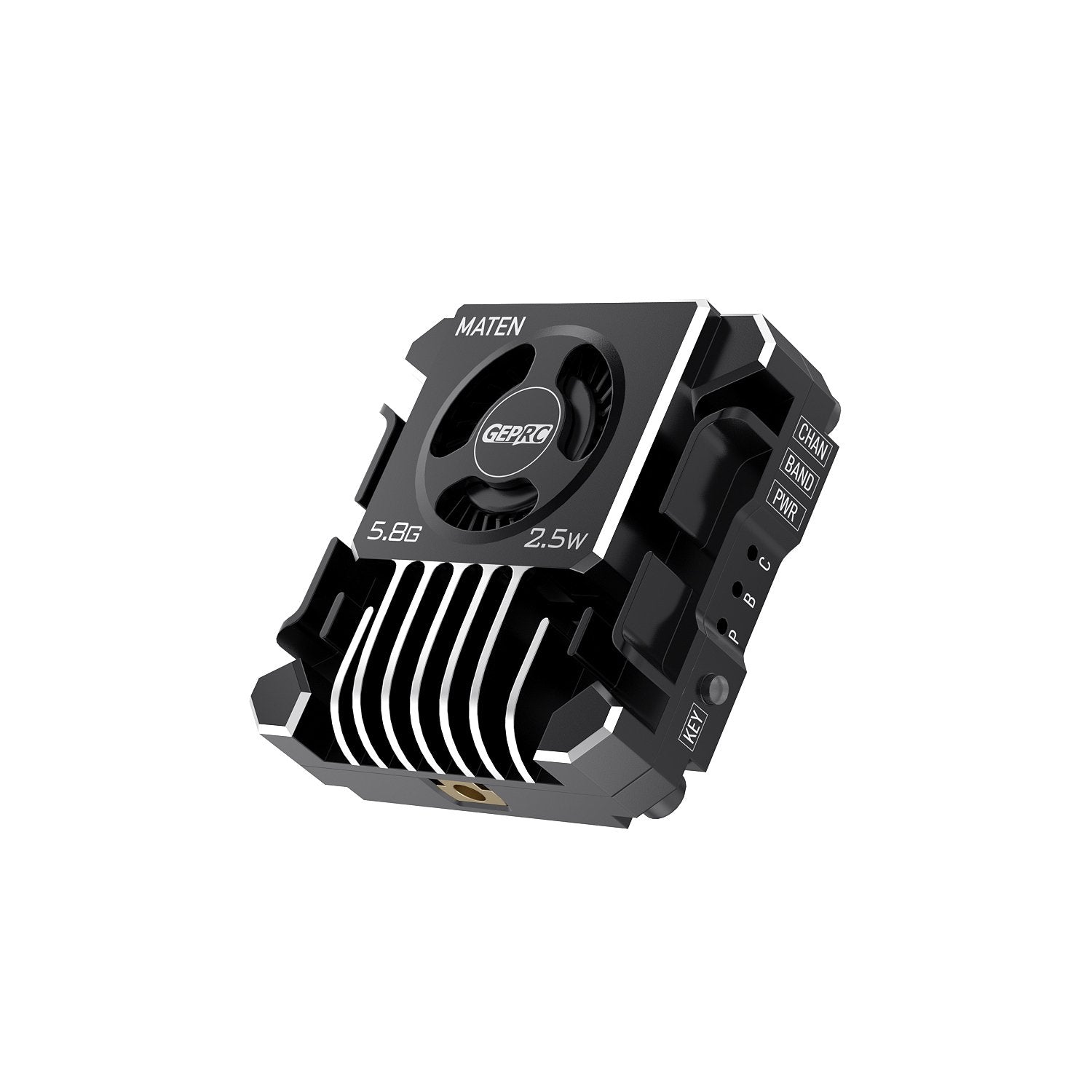

- Features CNC high-strength aluminum alloy shell and active fan cooling for better heat dissipation and impact resistance.
- Supports the IRC Tramp protocol and allows quick parameter setting via OSD. It includes a built-in microphone for real-time audio transmission.
- Accepts a wide voltage range (7-36V) and has overheating protection.
- Supports 72 transmission channels and can be installed using 20x20mm or 30.5x30.5mm holes.
Specifications:
Model: GEPRC MATEN 5.8G 2.5W VTX PRO
Size: 36.3×36.3×15.1mm
Mounting hole: 20 x 20 mm (M2), 30.5 x 30.5 mm (M2)
Output power: 25mW/200mW/600mW/1600mW/2500mW/Pit mode
Frequency: 5.8G
Channel: 72CH
Input voltage: DC7-36V (2-8S battery)
Output voltage: 5V@600mA
Protocol: IRC Tramp
Antenna interface: MMCX
Cable interface: SH1.0 6pin
Video format: PAL/NTSC
Microphone: Built-in microphone
Weight: 20g
Comment:

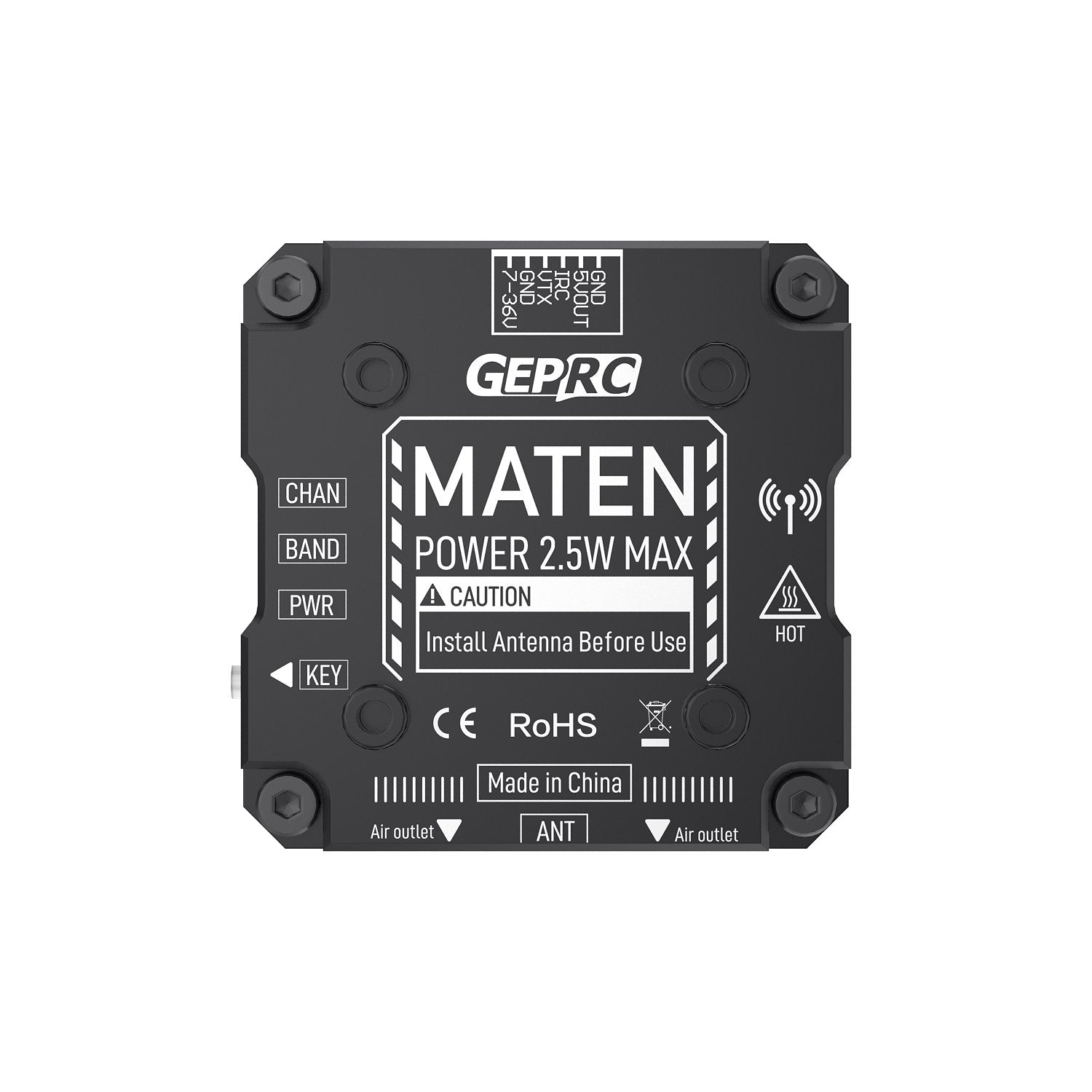

- Install the antenna before use.
- To prevent overheating, ensure constant air flow and a well-ventilated environment. Install a cooling fan when operating in restricted conditions.
- 5V output is for camera/cooling fan use only! Do not connect the power input/battery to the 5V output.
The package includes:
1 x MATEN 5.8G 2.5W VTX PRO
1 x MMCX copper tube antenna
1 x MMCX to RP-SMA connector (inner pin).
1 x sh1.0 6P Connection cable
6x M2*5 screw
4 x M2*12 screw
