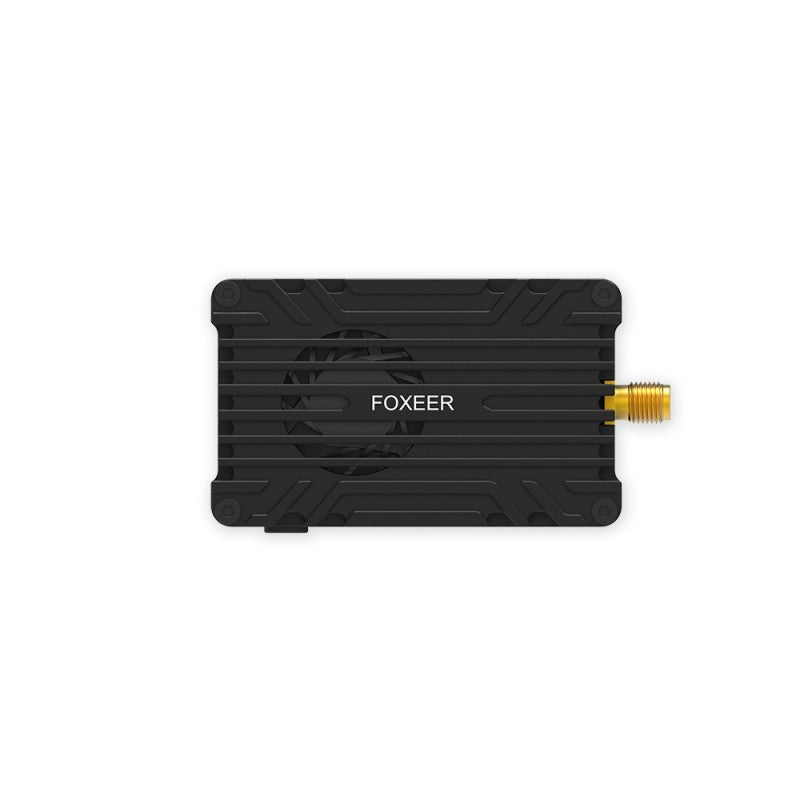

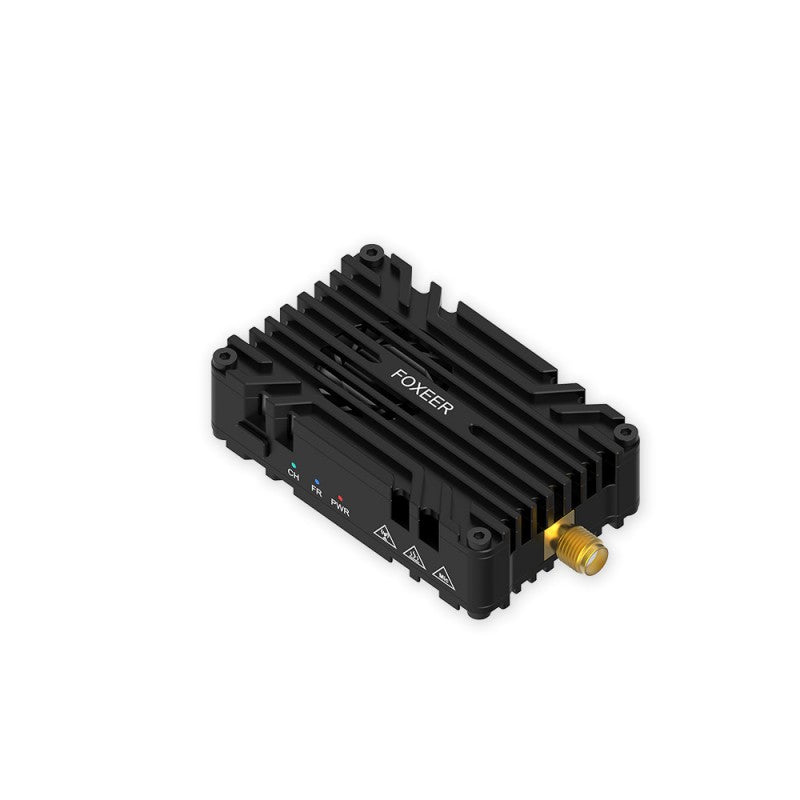

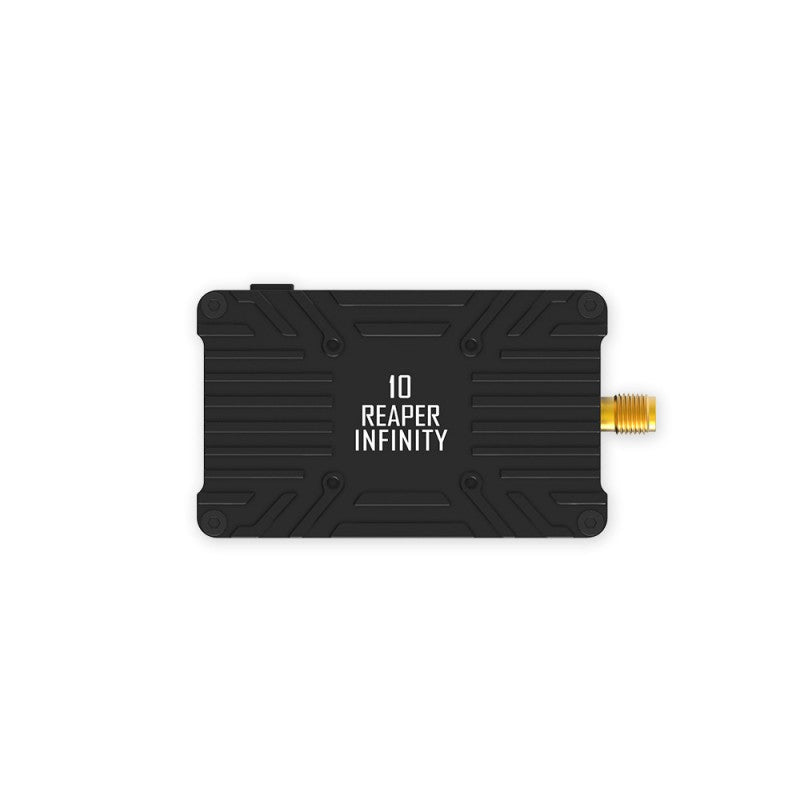

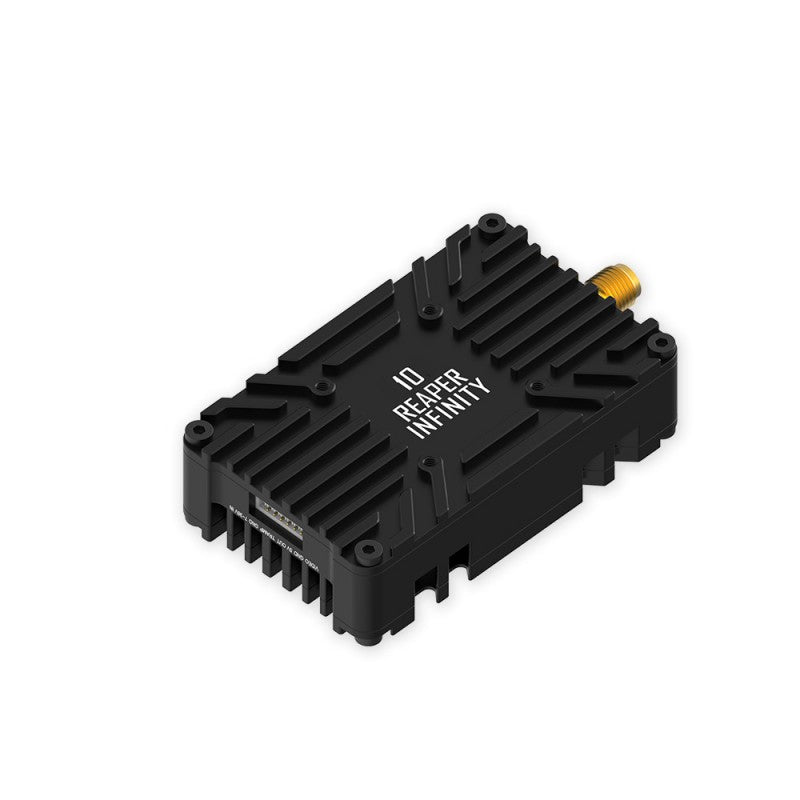

VTX Foxeer Reaper Infinity 4.9G~6G 10W 80CH
-
The Reaper Infinity 10W VTx is a high-performance video transmitter designed for long-range FPV enthusiasts. Adjustable power levels, robust compatibility with various power sources and compact design make it the ideal choice for pilots looking for reliable and versatile video transmission.
Key features:
- Input voltage range: 9-36V, compatible with a wide range of power systems.
- Output voltage: Stable output 5 V.
Adjustable transmission power:
- Power levels: 1W, 2.5W, 5W, 7.5W and 10W for optimal range and transmission quality.
- Frequency Channels: Support 80 channels to minimize interference and maximize flexibility.
- Pit Mode: Double-click activation for safe testing and setup.
Construction and design:
-
Compact and lightweight:

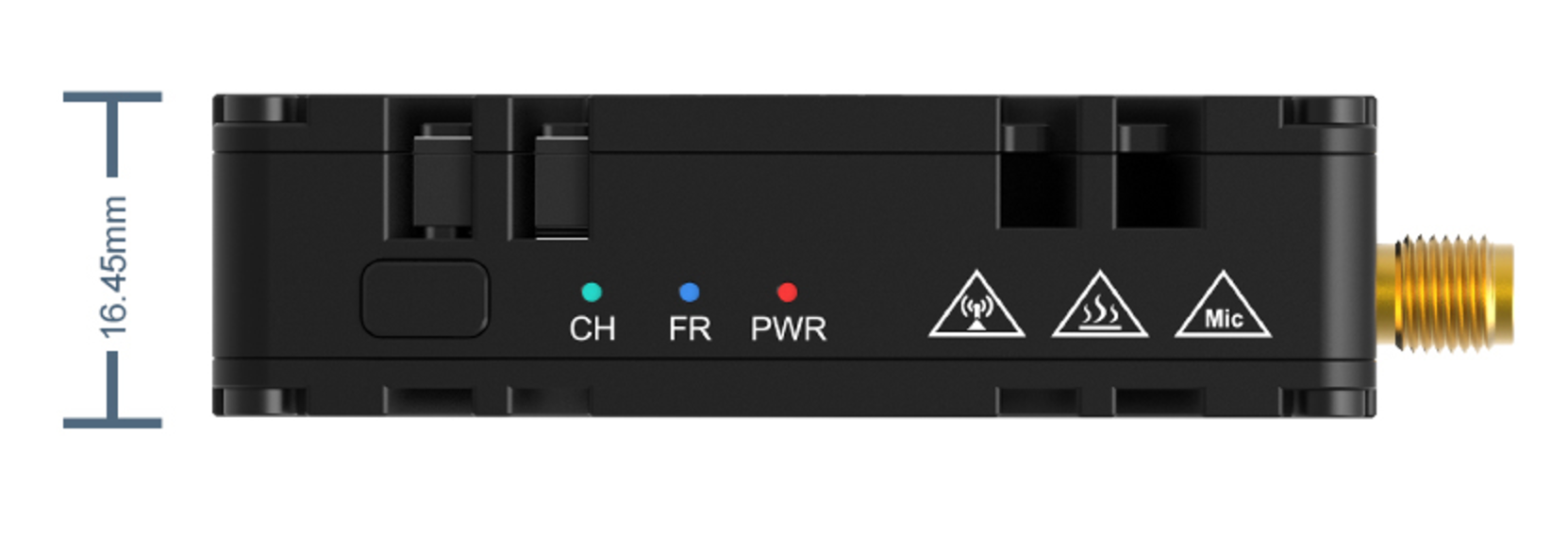

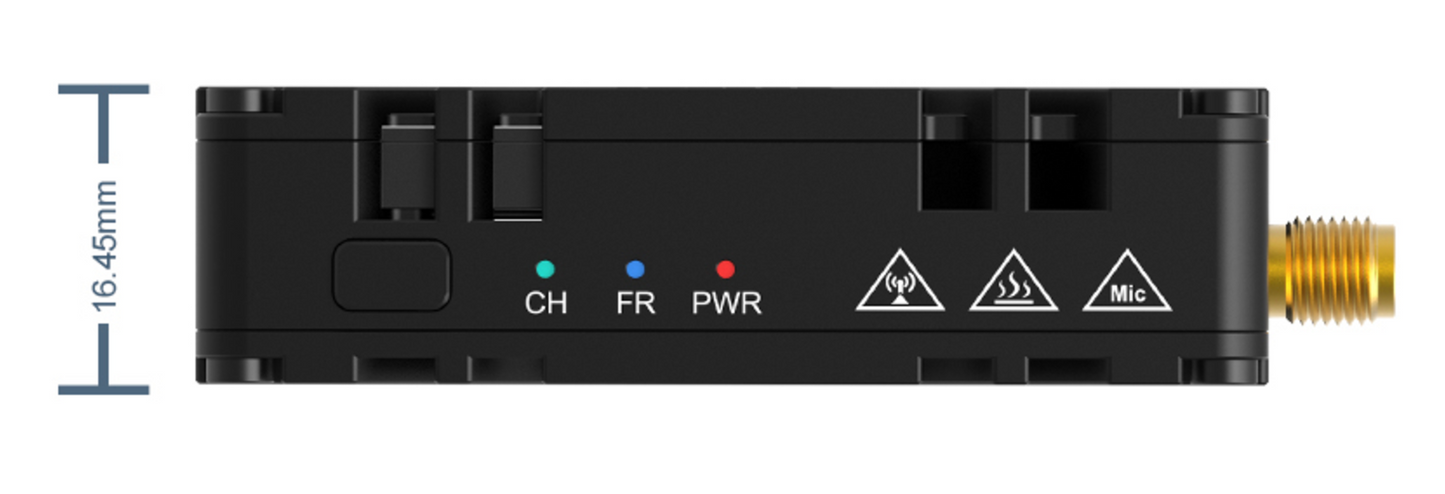

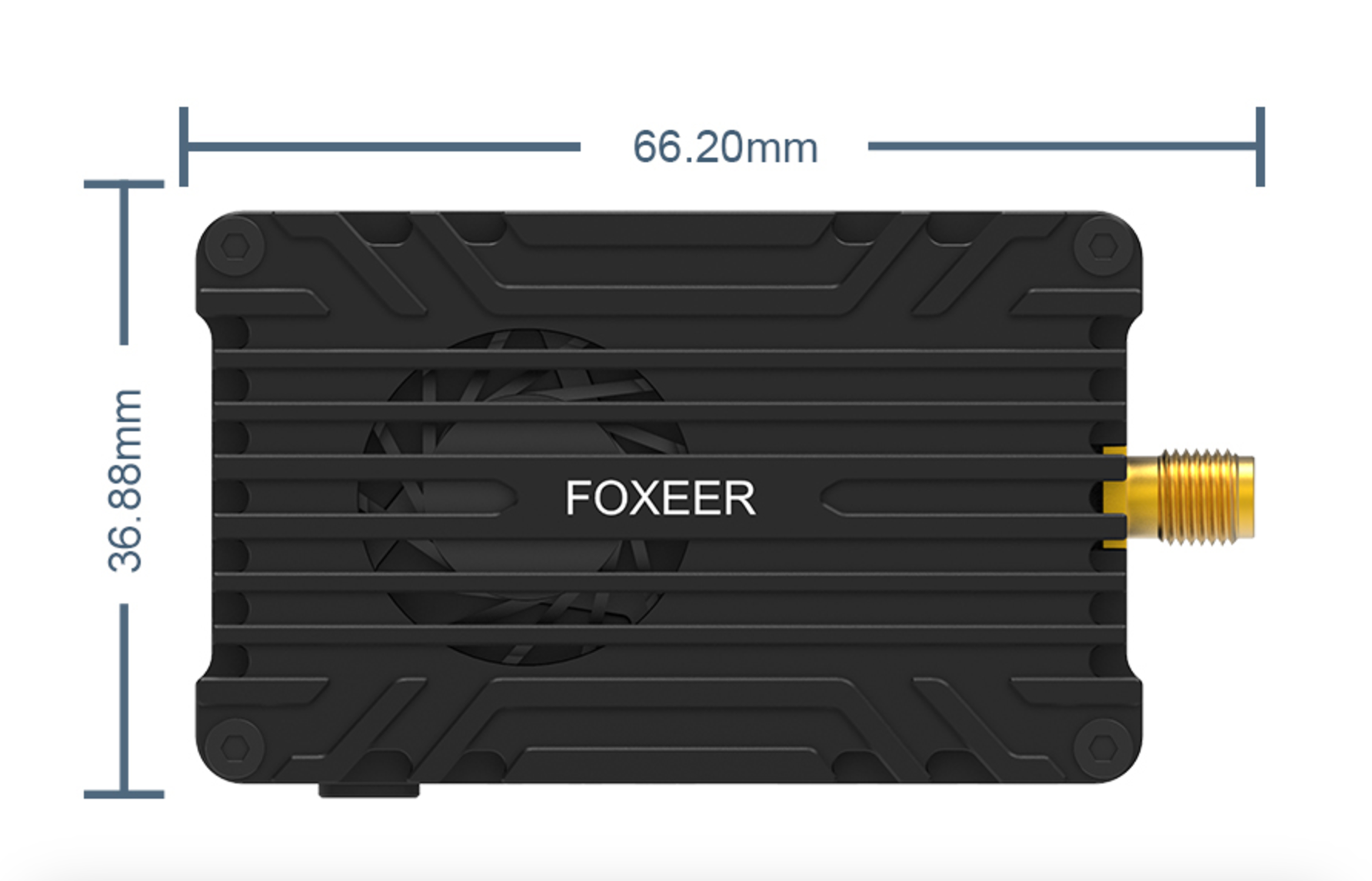

- Dimensions: 66 × 37 × 16 mm.
- Weight: 48 g.
- Mounting compatibility: 20 x 20mm holes, 2.5mm depth, M2 screws.
Connectors:
- Antenna: SMA connector.

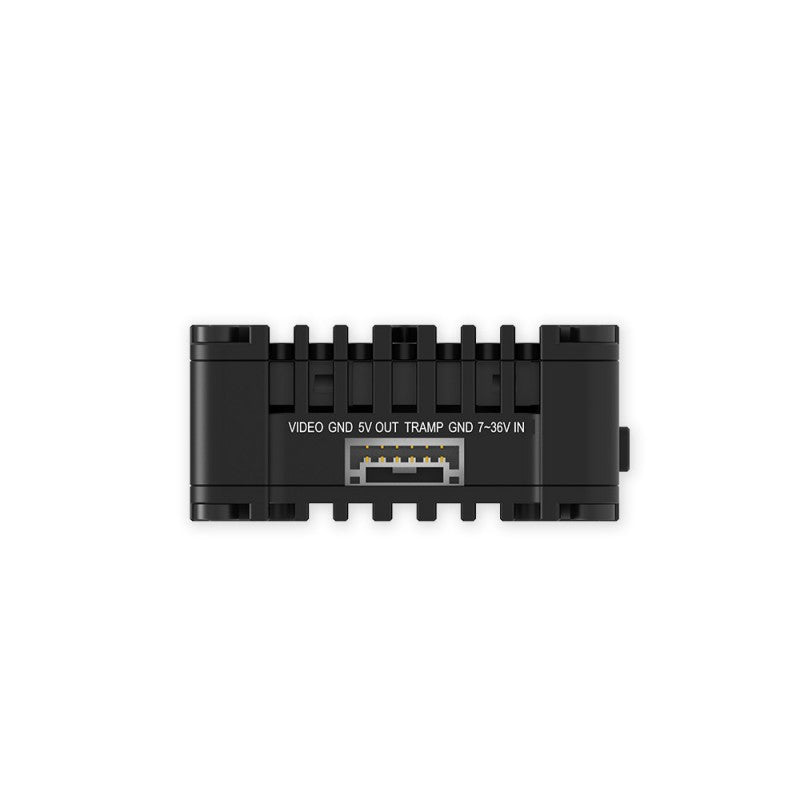

- Cable: GH1.25 6-pin for secure connection.
Energy efficiency:
-
Power consumption:
- 10V @ 3.3A.
- 20V @ 1.5A.
- Maximum power consumption: 10 W.
Package contents:
- 1 × Reaper Infinity 10W VTx.
- 1 × Silicone cable.
