    VTX BETAFPV M03 5.8G 25mW-350mW

    VTX BETAFPV M03 5.8G 25mW-350mW

    Brand: BETAFPV

    €19,99
    €19,99 €19,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

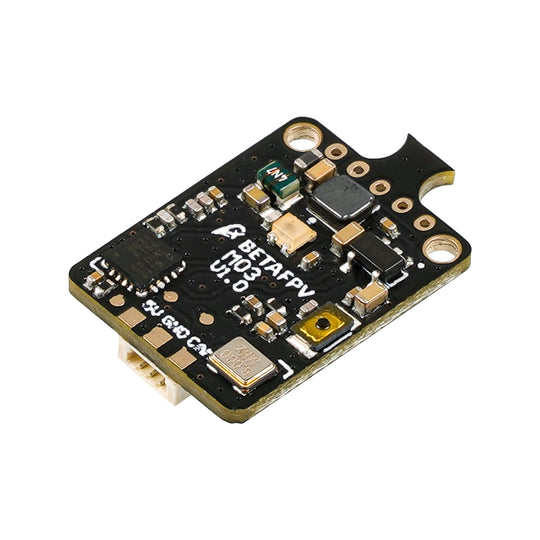

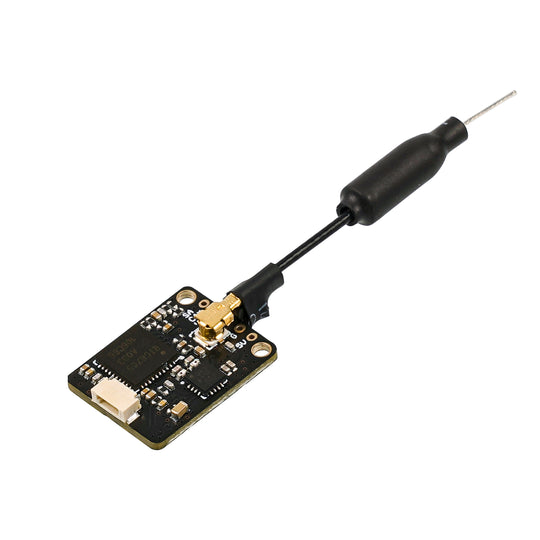

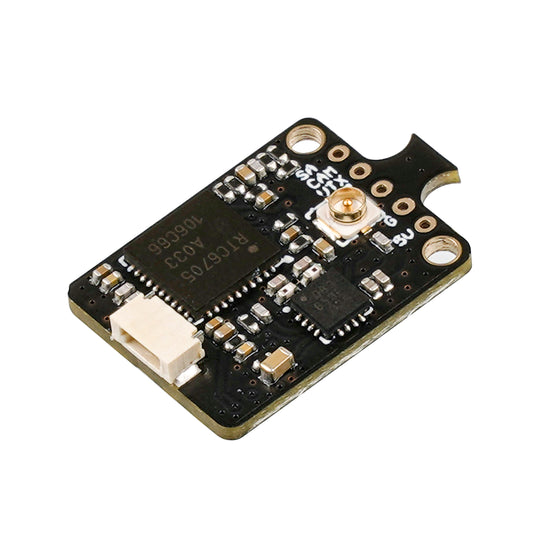

    M03 25mW-350mW 5.8G VTX

The M03 VTX is an ultra-light 5.8GHz analog VTX with high output power, designed for 65-85mm long-range drone drones. By combining this VTX with the excellent ExpressLRS 2.4G radio link, pilots can fly the drone longer to explore more possibilities and have more fun.

Specifications:
Item: M03 5.8G VTX
Output power: PIT/25/100/200/400mW (V1.1, adjustable)
Supply voltage range: 4.5-5.5V
Weight: 1.1g (antenna not included)
Inner dimension of VTX: 18X14mm
Frequency: 5.8 GHz 48 channels, with racing band: 5658-5917 MHz
Channel SELECT: SmartAudio
Modulation type: FM
Frequency control: PLL
All harmonics: Max -50dBm
Frequency stability: ±100 kHz (typ.)
Frequency accuracy: ±200 kHz (typ.)
Carrier channel error: ±1.5dB
Antenna port: 50
Operating temperature: -10℃ -+80℃
Camera connector: JST-0.8, compatible with camera like BETAFPV C01, BETAFPV C02 and NewBeeDrone BeeEye.
