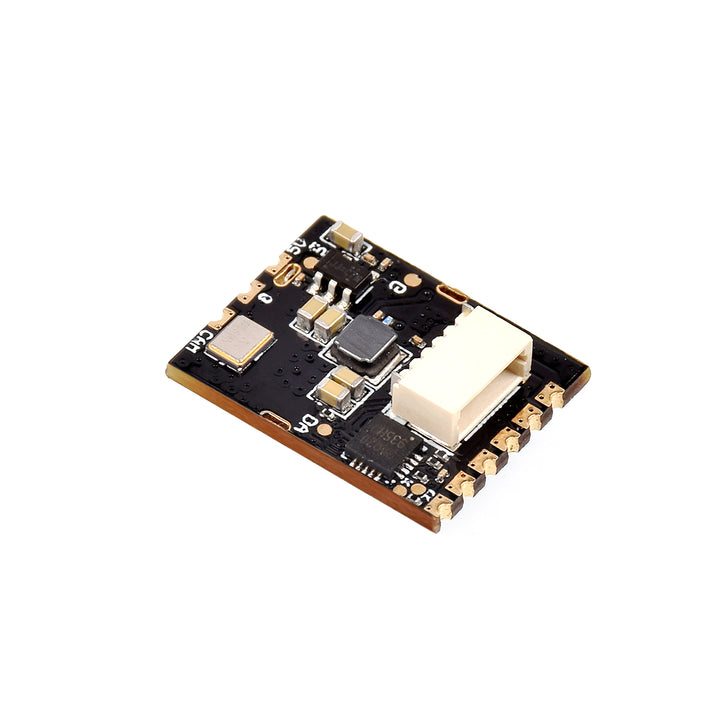

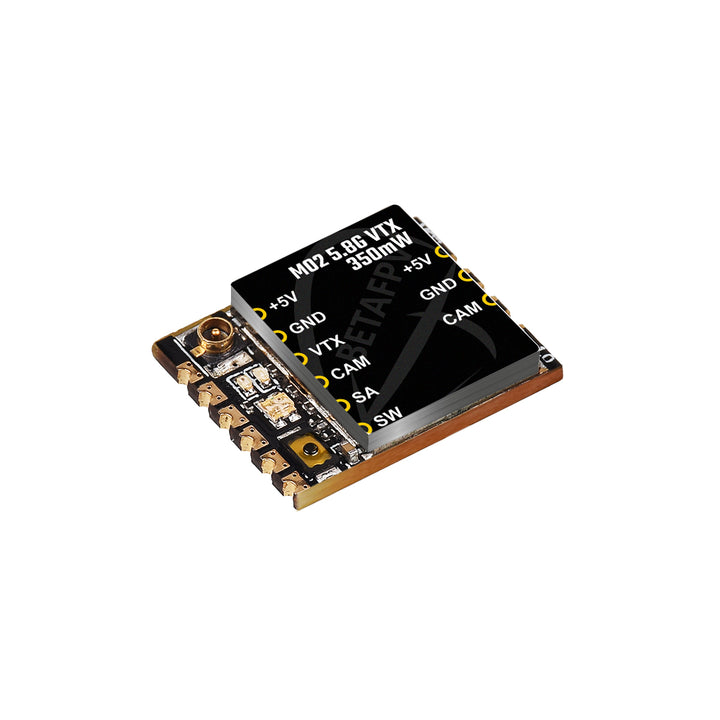

VTX BETAFPV M02 25mW-350mW 5.8GHz BETAFPV M02 VTX is a lightweight and versatile 5.8GHz video transmitter designed for FPV enthusiasts. With four adjustable power levels from 25mW to 350mW, it provides strong and stable video transmission and allows pilots to fly up to 600 meters away. Weighing only 1.7g, the M02 VTX is an ideal choice for 3-5 inch drones and offers flexibility and ease of installation for a variety of designs. Features: - Adjustable output power: Provides 25mW, 100mW, 200mW and 350mW options to meet different flying needs and ensure stable image and strong transmission over long distances (up to 600 meters). - Flexible mounting: Including a separate 26.5 x 26.5mm mounting hole (optional, requires soldering) for compatibility with various drone designs. - Lightweight construction: The VTX alone weighs only 1.7g and the mounting hole only adds 0.7g, making it ideal for weight-sensitive drones. - Easy Installation: Comes with an IPX antenna and 5-pin connector for plug-and-play installation, eliminating the need for additional soldering. - Wide compatibility: Optimized for 3-5 inch drones like TWIG ET5, X-Knight 4'' FPV and HX115 HD toothpick quad. Specifications: - Model: M02 5.8G VTX - Output power: 25 mW / 100 mW / 200 mW / 350 mW (adjustable) - Supply voltage range: 4.5-5.5V - Weight: 1.7g (with mounting hole: 2.4g) - Internal size of VTX: 18 × 14 mm - Frequency: 5.8 GHz, 48 channels with Raceband (5658~5917MHz) - Channel control: SmartAudio - Modulation type: FM - Channel Indicators: 3 LEDs - Frequency stability: ±100KHz (typ.) - Carrier channel error: ±1.5 dB - Antenna port: 50 Ω - Operating temperature: -10℃ to +60℃ The package contains: - 1 x VTX BETAFPV M02 25mW-350mW 5.8GHz
