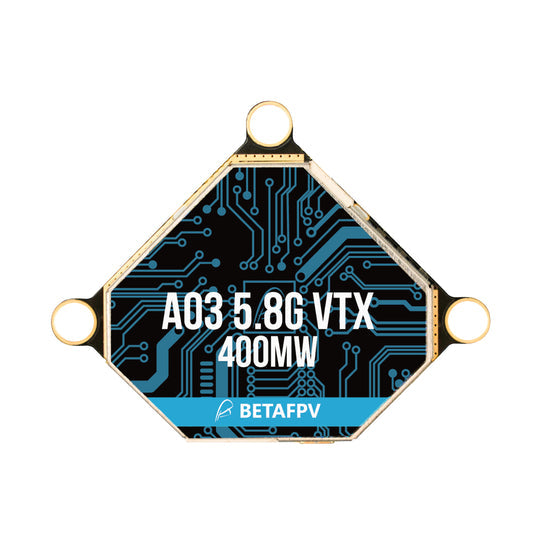

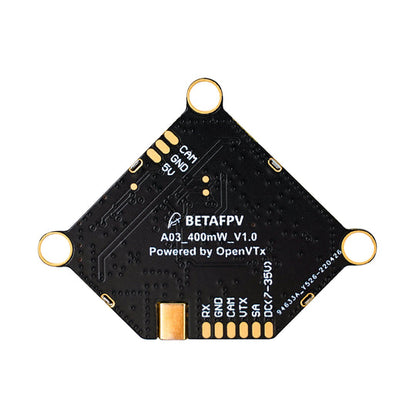

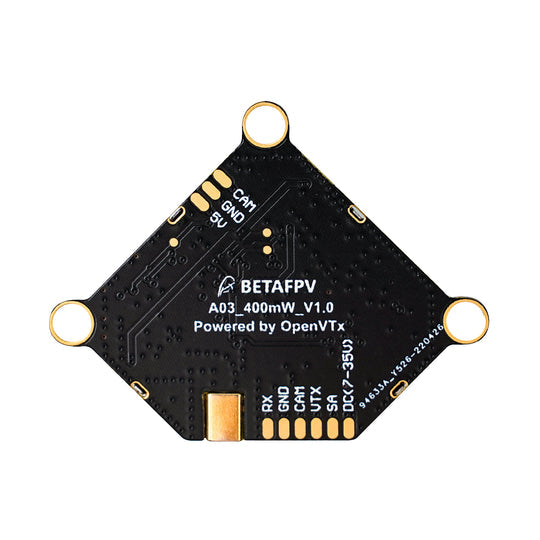

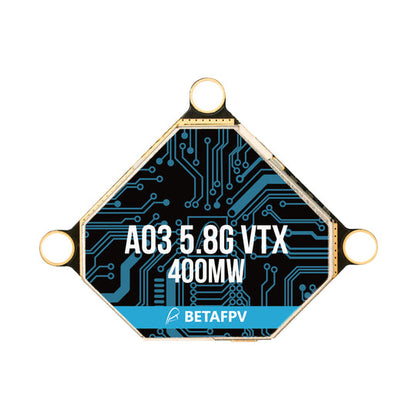

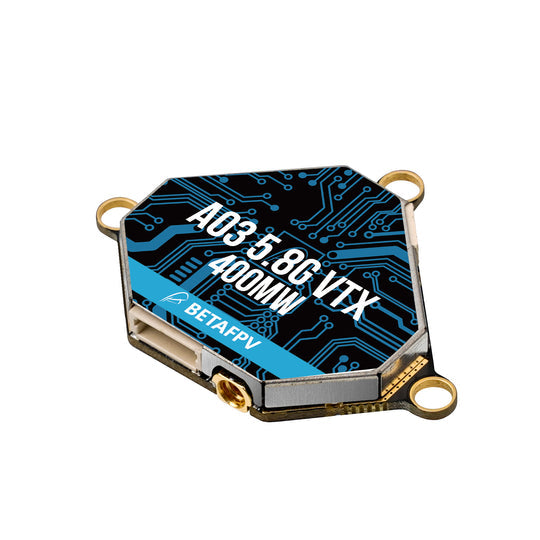

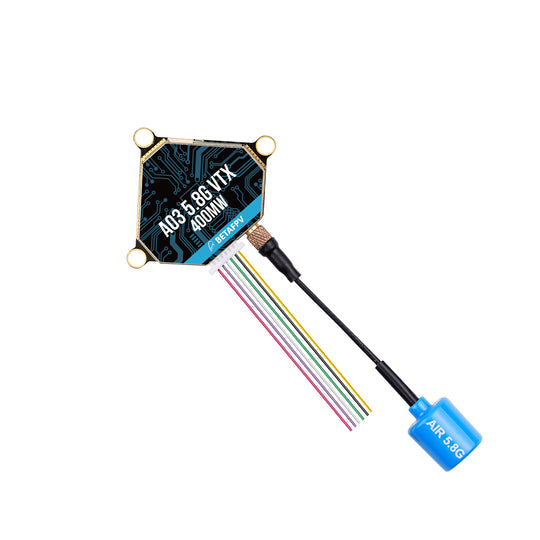

A03 25-400mW 5.8G VTX A03 400mW 5.8G VTX video transmitter with OpenVTx firmware supports both SmartAudio and Tramp protocols. It is equipped with PIT/RCE/25mW/100mW/400mW adjustable output power for different use. With a mounting hole size of 26x26mm, it is suitable for wop or toothpick drones such as X-Knight series, Beta85X/95X series, TWIG series and Pavo series. Specifications: Item: A03 5.8G VTX Output power: PIT/RCE/25mW/100mW/400mW (10-26dBm) Supply voltage range: 7-35V Current (8V): <300mA (400mW) Weight: 4.9 g (without antenna) VTX Size: 30.34 x 30.34 x 4.6mm Mounting hole size: 26 x 26 mm Antenna: Aerial Antenna (MMCX Straight) Frequency: 5.8 GHz 48 channels Racing band: 5658-5917 MHz Channel SELECT: SmartAudioV2.0 & Tramp Modulation type: FM Antenna port: 50 Operating temperature: -10℃ - +60℃ Recommended drones: 26x26mm mounting hole, Pavo series, X-Knight series, Beta85X/95X series and TWIG series
