Code: SKU:4738

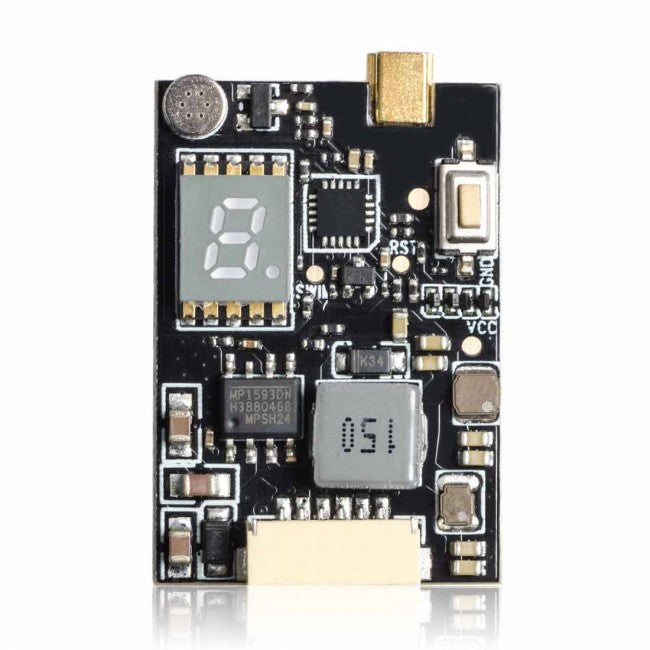

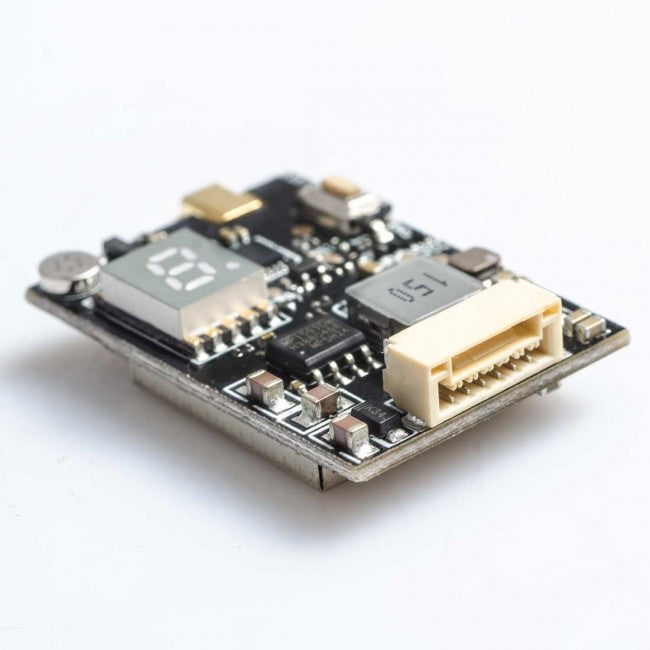

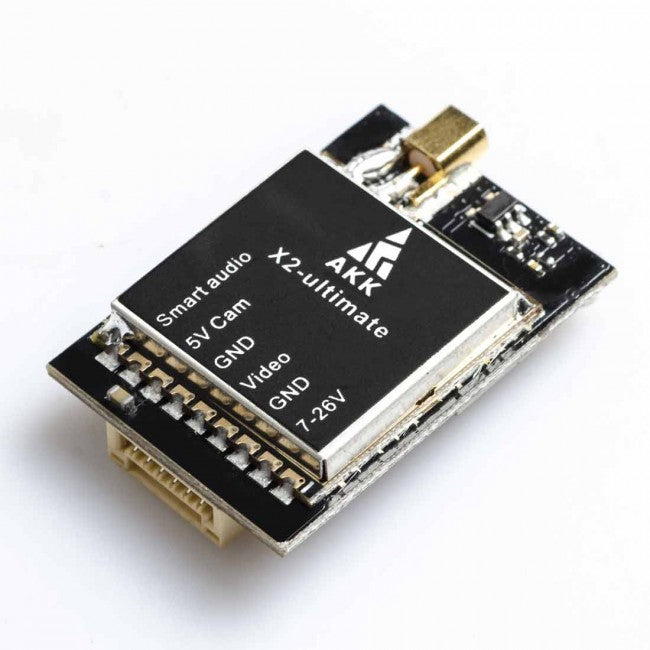

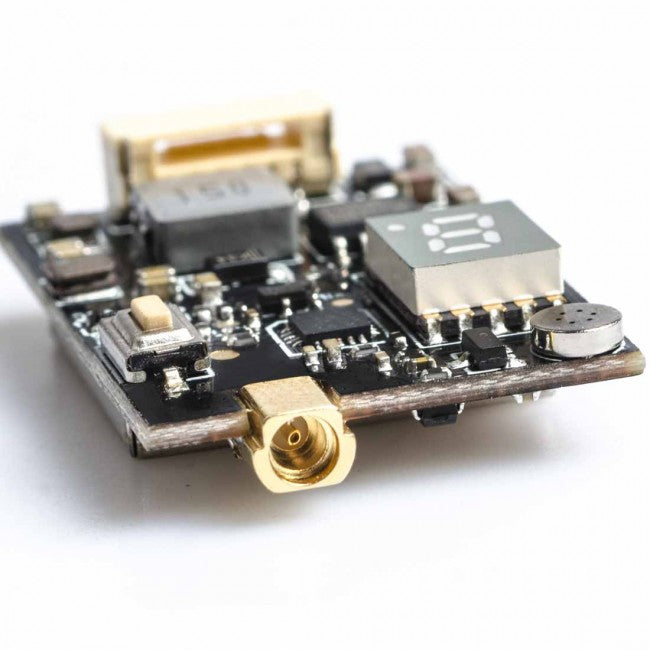

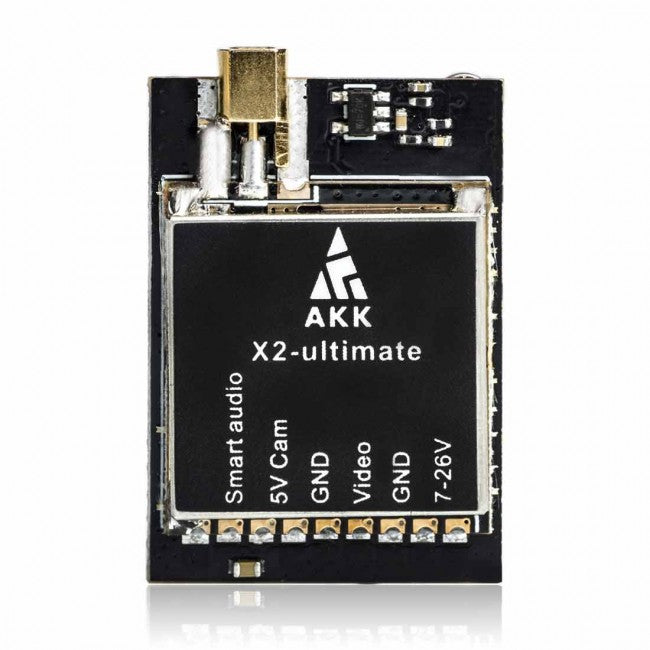

VTX AKK X2-Ultimate 5.8G 1.2W
VTX AKK X2-Ultimate 5.8G 1.2W
Brand: AKK
Regular price
€22,30
Regular price
€22,30
Sale price
€22,30
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

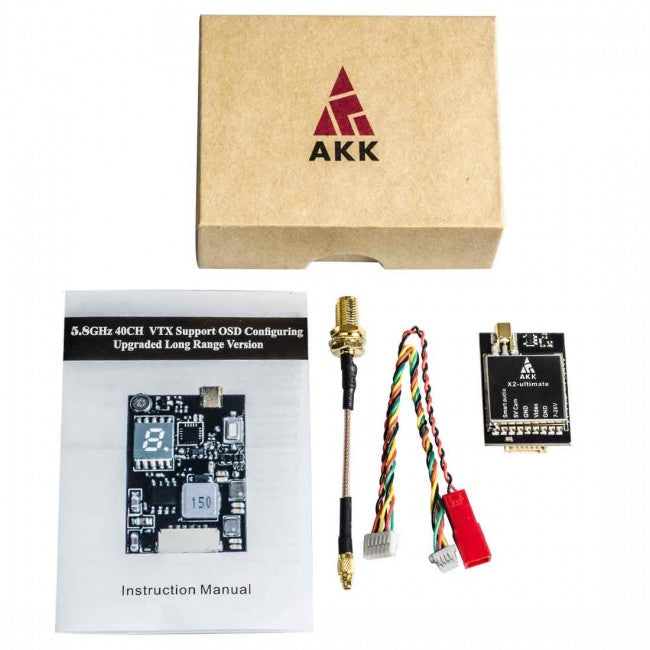

VTX AKK X2-Ultimate The AKK X2-ultimate version of the video transmitter now supports up to 1200 mW power. Like the previous version, there is 0.01mW clean switching with zero interference, an additional 5V BEC for powering low-current systems such as an analog FPV camera, and support for OSD configuration via the Betaflight flight control panel. Function: - Unprecedented power range from 0.01 mW (pure switching) to 1200 mW over long distances. - Digital display and button on the body to switch power or frequency - Integrated microphone - Large input power range from 7 to 26V, BEC 5V is available for analog camera connection - Smart Audio function. Transmitter parameters can be changed using radio remote control via OSD when connected to the controller via UART Specifications: Output power: 25/200/600/1200mW Input voltage: 7-26V Frequency: 5.8 GHz BEC: 5V for FPV camera (0.5A max) Cable connector: 6-pin JST Antenna connector: MMCX Dimensions: 32 x 22 mm Weight: 6.8g (without antenna) The package includes: 1 x AKK X2-ultimate VTX 1 x 6-pin JST cable
