Code: SKU:4737
VTX AKK X2-MMCX 5.8G 800mW
VTX AKK X2-MMCX 5.8G 800mW
Brand: AKK
Regular price
€15,60
Regular price
€15,60
Sale price
€15,60
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Warning! This model has been discontinued and will no longer be available. Please see the available alternatives:
https://www.hobbydrone.cz/en/vtx-akk-x2-ultimate-5-8g-1-2w/

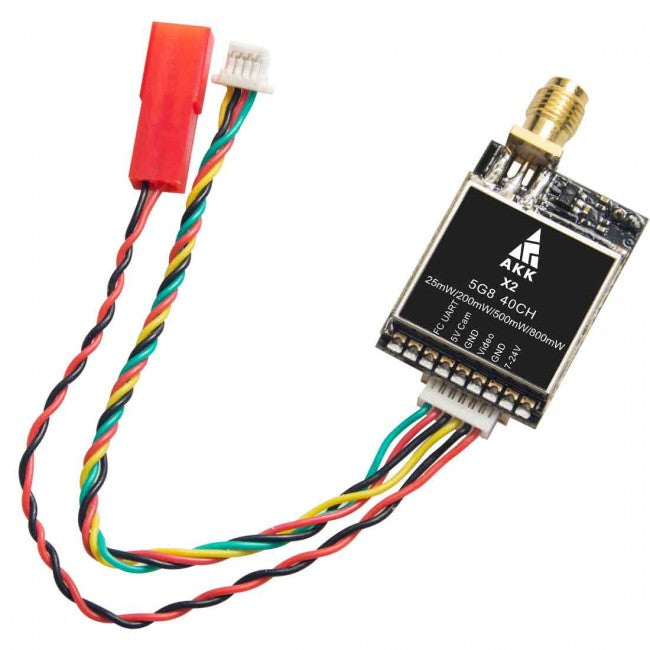

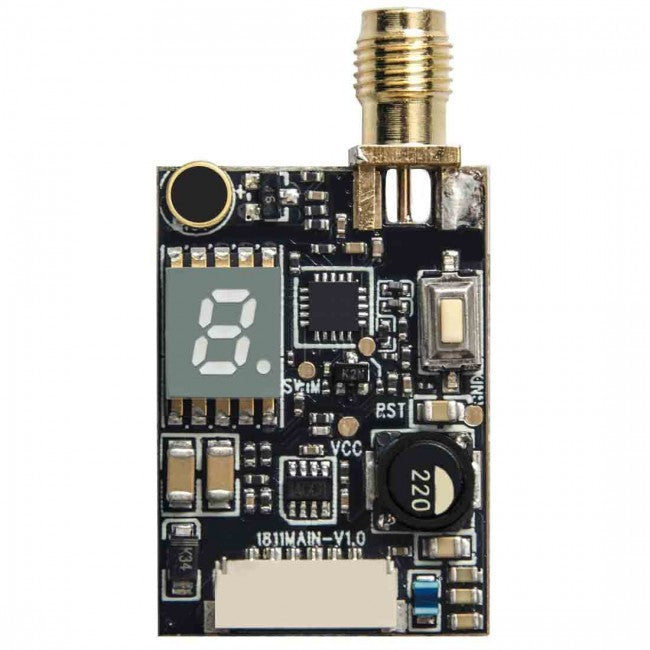

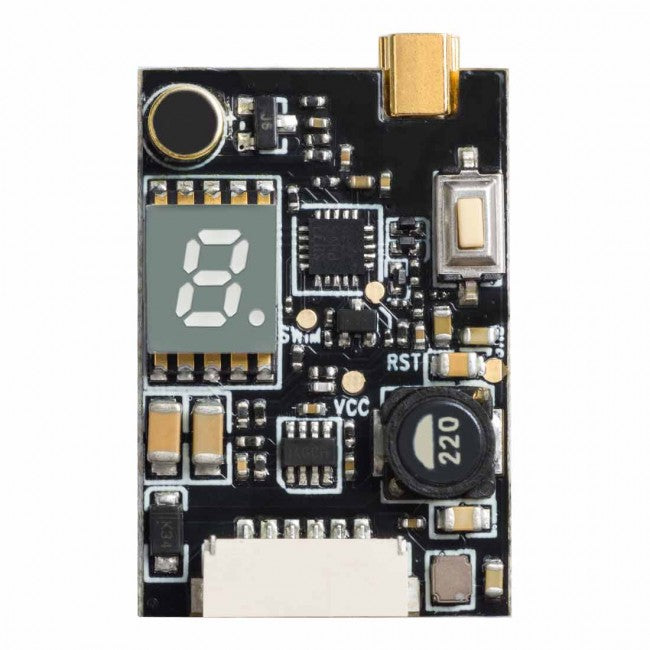

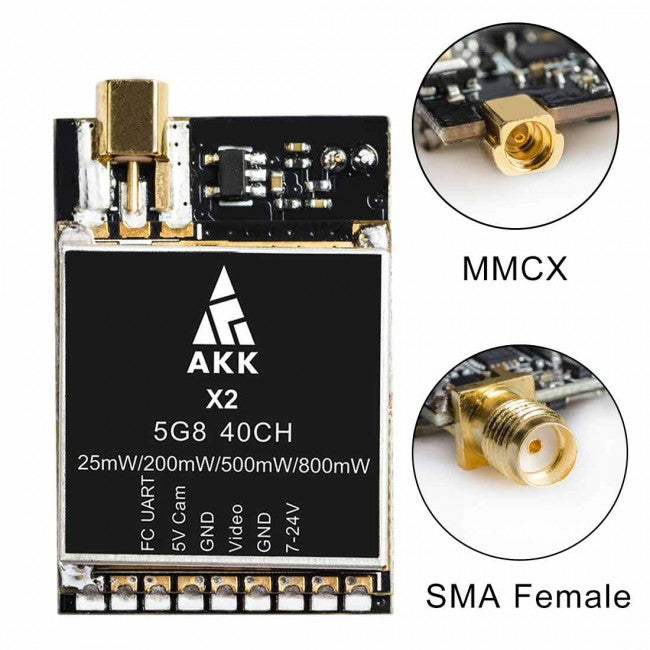

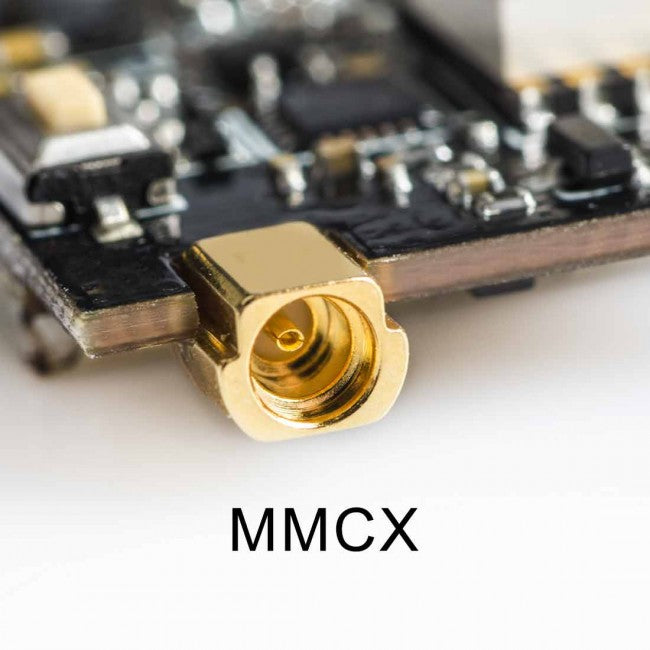

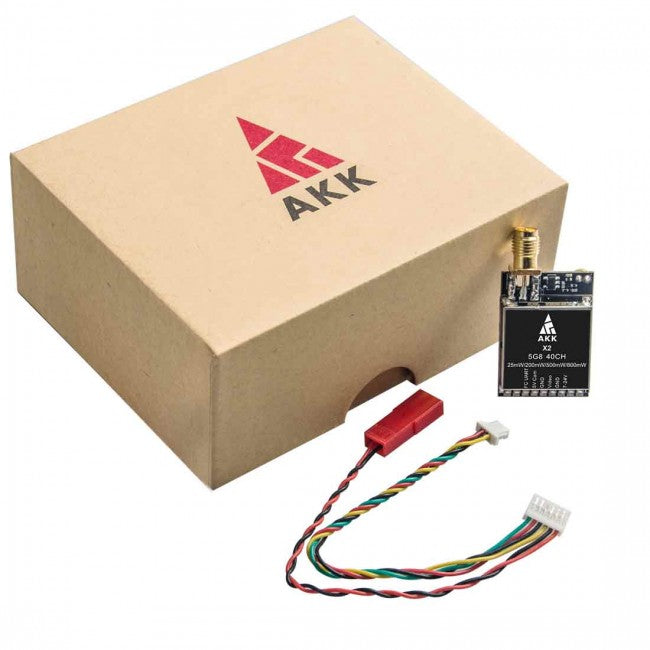

VTX AKK X2-MMCX 5.8G 800mW AKK X2 and X2P are high quality video transmitters for FPV systems. Option to set transmit power to 0.01 mW for "clean" channel switching. An additional 5V BEC to power low current systems such as an analog FPV camera, as well as the ability to change transmitter parameters directly via the OSD. Function: - Wide power range for long distance flights - Digital display and button on the body to switch power or frequency - Large input power range from 7 to 24V can provide 5V power for analog camera - Possibility of "clean" switching with a large number of pilots nearby - Smart Audio function. The parameters of the transmitter can be changed using the radio remote control via the OSD when connected to the controller via - UART - When using the RHCP omnidirectional antenna with maximum transmitter power, signal reception is possible at a distance of up to 4 km Specifications: Input voltage: 7 - 24V Extra features: Smart audio, PitMode Frequency: 5.8 GHz Number of channels: 40 BEC: 5V for FPV camera (0.3A max) Output power: 25/200/500/800mW Port connector for connection to FC: 6-pin JST Antenna connector: MMCX Size: 29.8 x 20 mm Weight: 7g The package includes: 1x VTX 1x Sable 1x MMCX Pigtail
