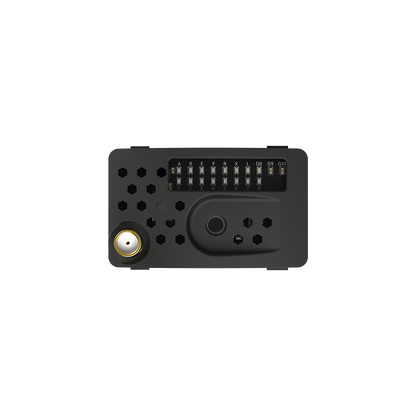

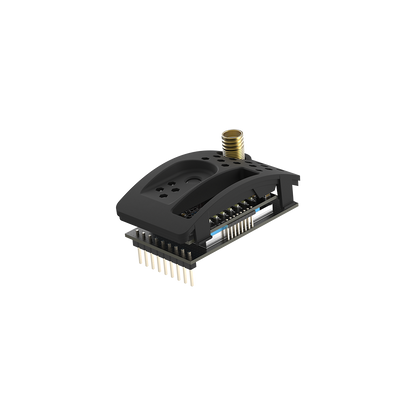

    VRX iFlight 4.9G/5.8G Goggle Receiver Module Set (For Skyzone)

    VRX iFlight 4.9G/5.8G Goggle Receiver Module Set (For Skyzone)

    Brand: iFlight

    €58,19
    €58,19 €58,19
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    4.9G/5.8G Glasses Receiver Module Kit (for Skyzone)

The high-end 4.9-5.8G VRX Goggle Receiver Module is specially designed for SKYZONE FPV Goggles.

Specifications:
Receiving frequency: 56CH (4990 MHz to 5945 MHz)
RX sensitivity: -95dBm
Input: 5V/2.54 9 PIN socket, compatible with SKYZONE FPV goggles
Current consumption: 0.3A @ 5V
LED channel: 8LED
LED strip: 7LED
Video format: NTSC/PLA
Video output impedance: 75Ω, Typ.
Audio auxiliary frequency: 6.5 MHz and 6.0 MHz
ANT. Input Impedance: 50Ω, Typ.
RF connector: SMA

Button control: Short press to change the frequency, long press for 2 seconds to change the frequency band

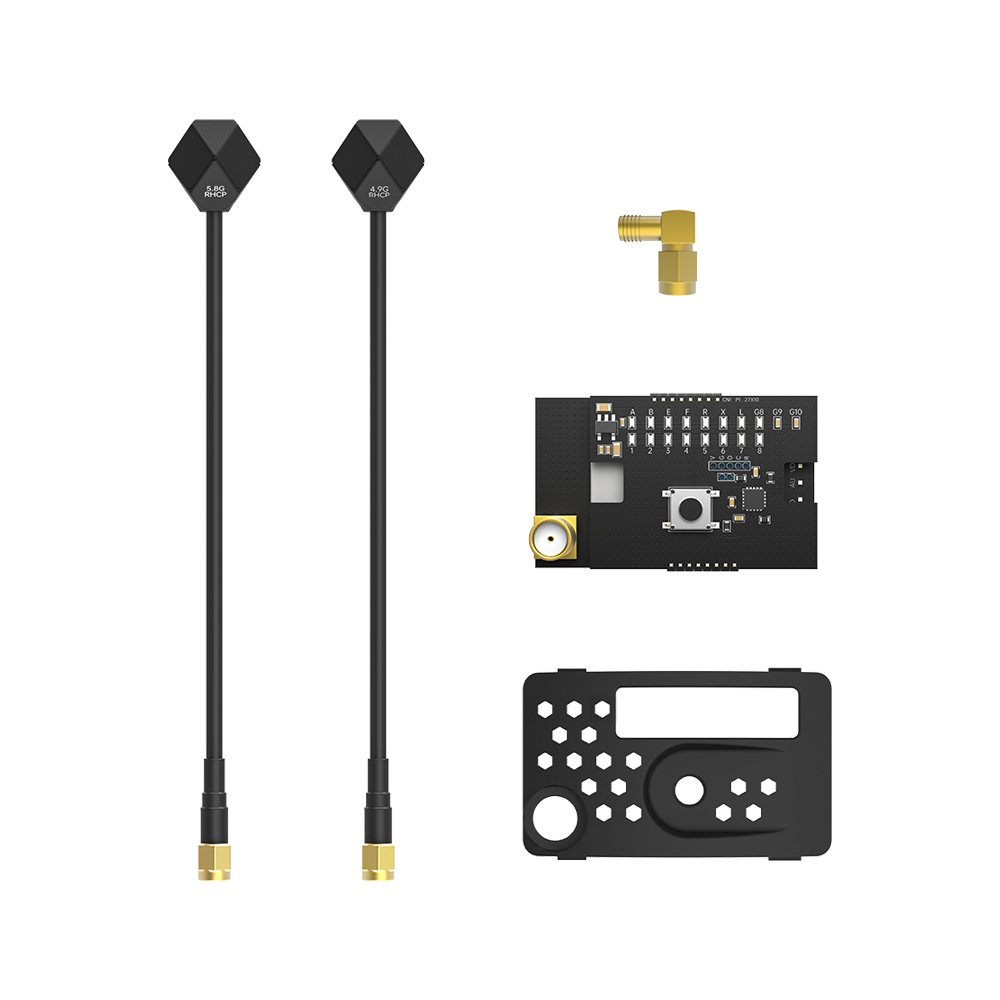

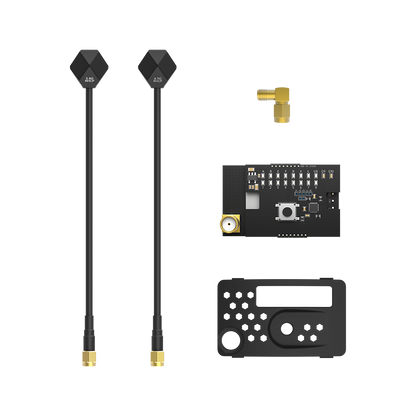

The package includes:
1 x iFlight 4.9-5.8G VRX
1 x iFlight 4.9-5.8G VRX shell
2 x 4.9G / 5.8G Albatros SMA antennas
1 x SMA Male to SMA Female adapter
