VRX HDZero 4

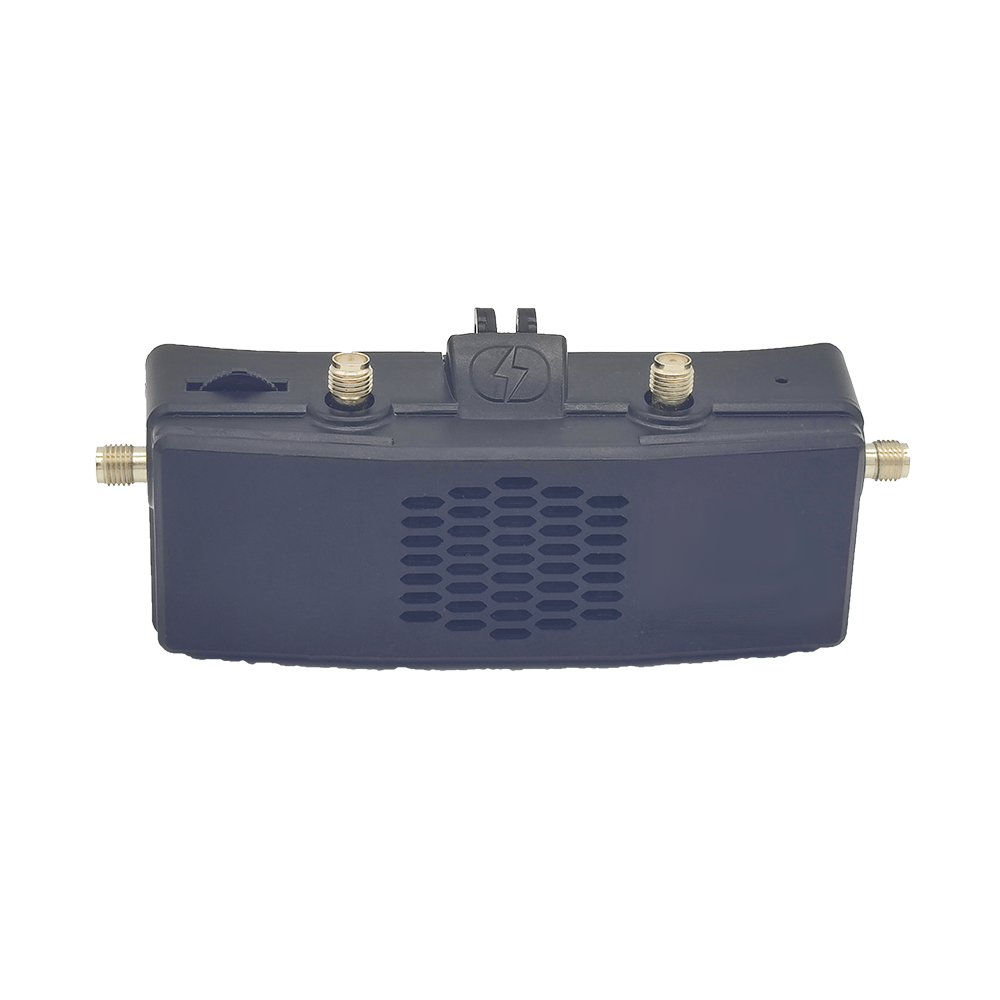

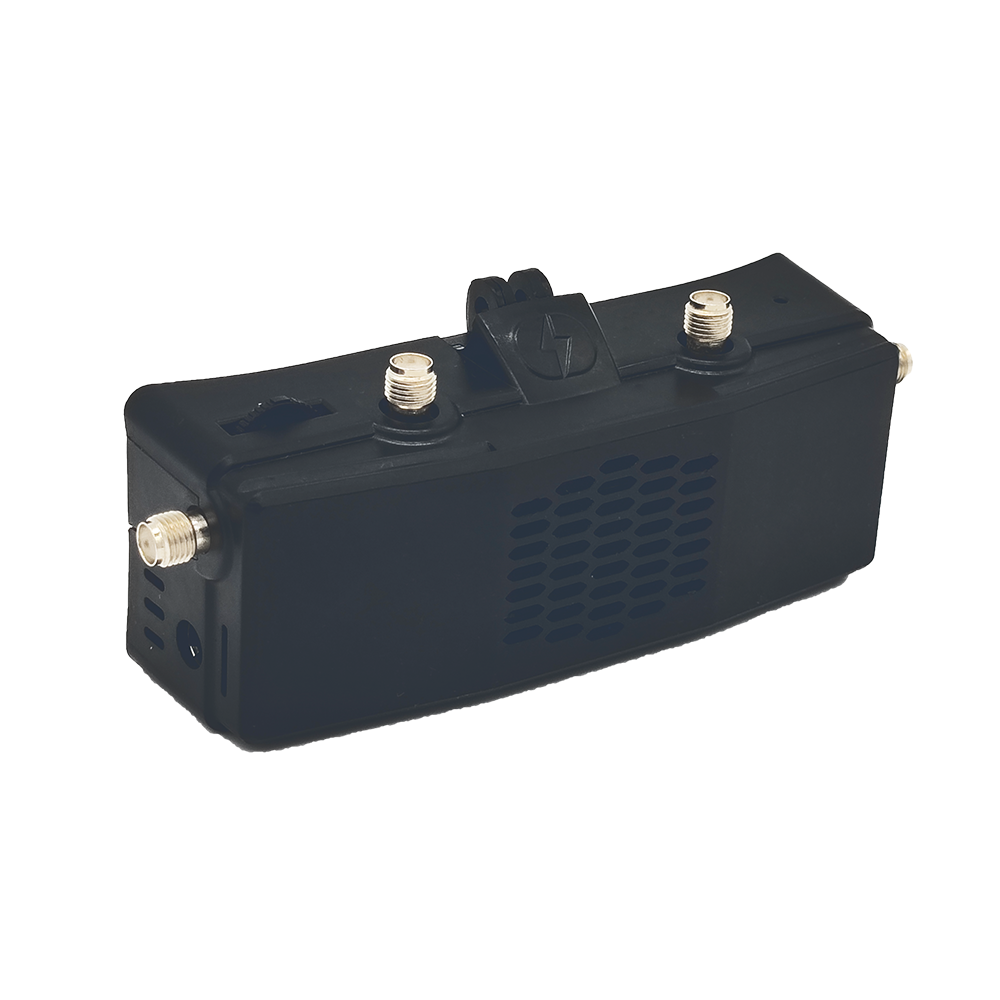

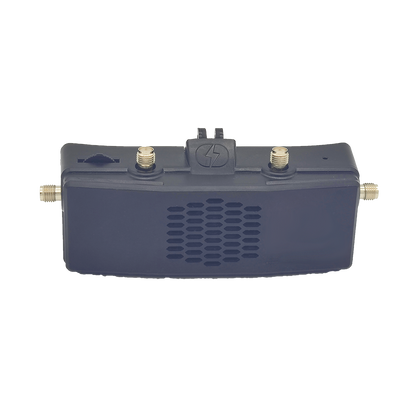

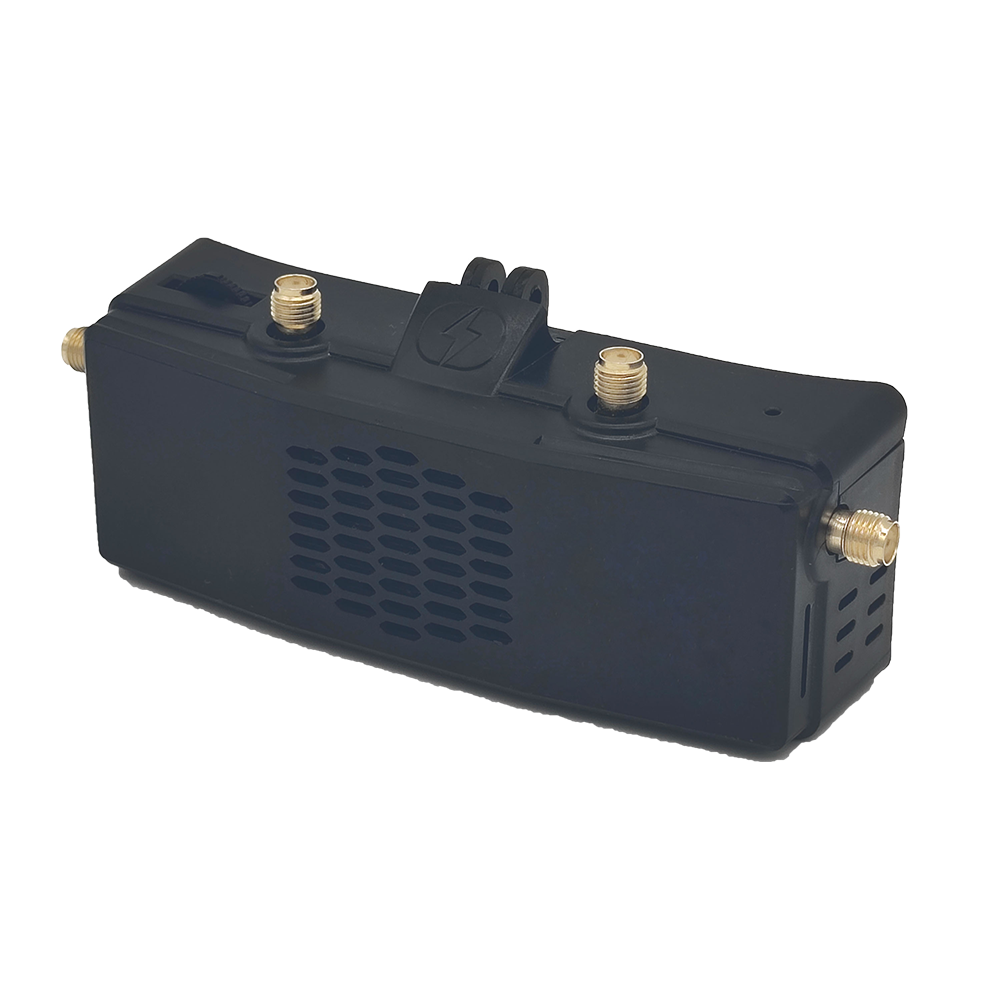

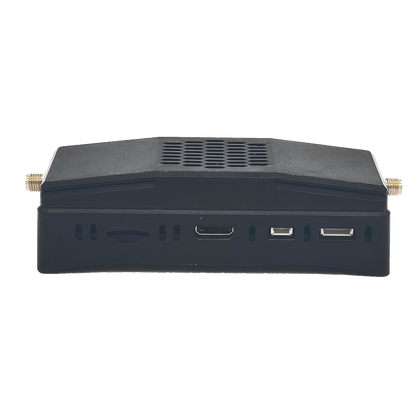

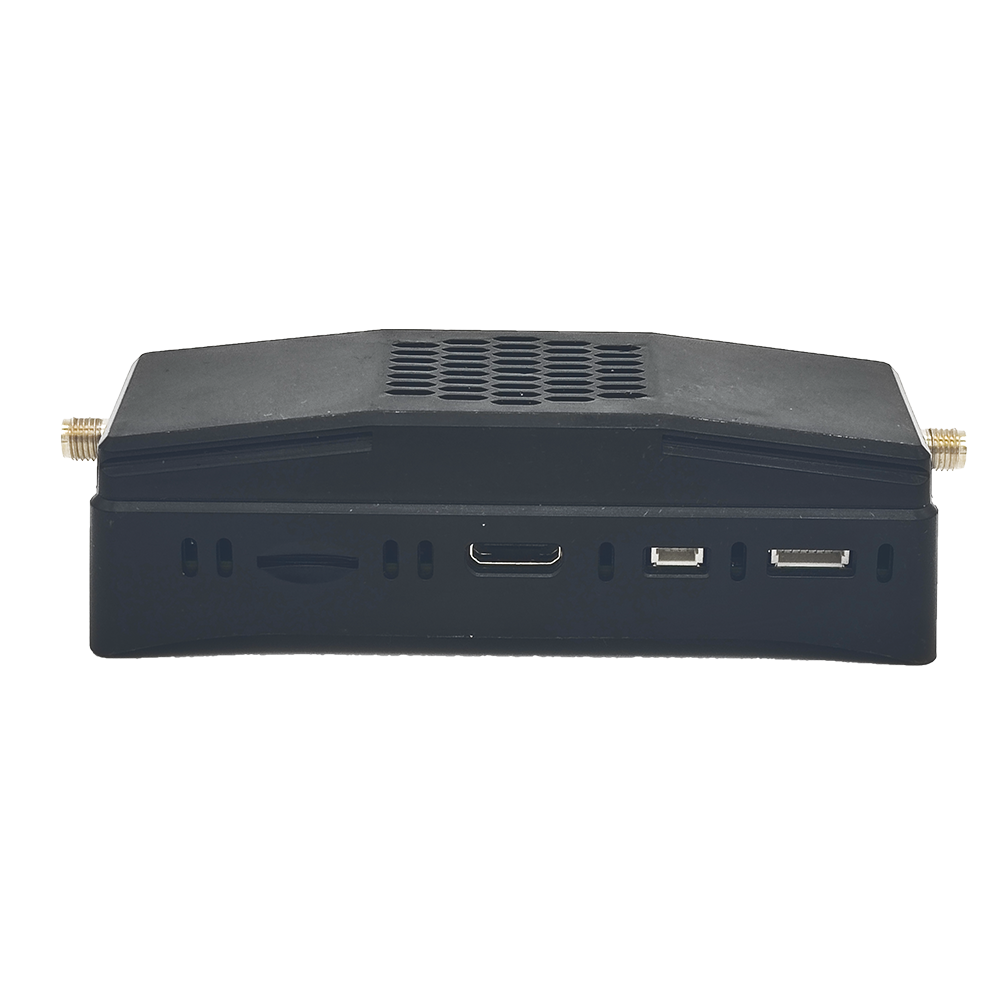

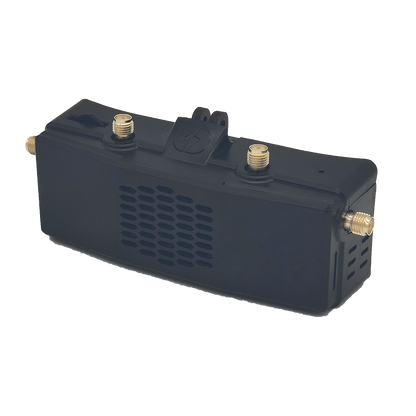

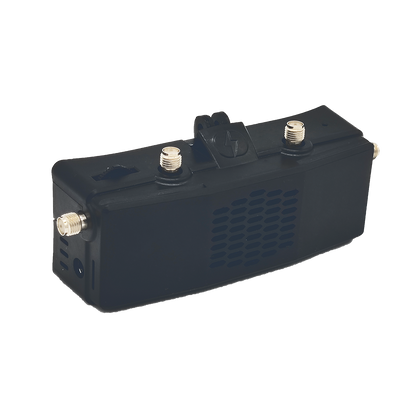

HDZero VRX 4 is a digital HD 720p 60fps video receiver at a frequency of 5.8GHz. Works with HDZero/Shark Byte VTX module for video transmission.
The HDZero VRX 4 attaches to the front of your glasses in the same way as before, using the included fan mount. VRX is compatible with any glasses that support HDMI input. • Four SMA connectors allow you to choose the right antennas according to the situation. Racing or flying around the house? All omnidirectional antennas work well. For outdoor applications, TrueRC patch antennas that can be attached to the front rails are suitable, or design your own antenna mounting solution. • Real Time (RTC) automatically timestamps your DVR recordings, making viewing recordings easier. • The ELRS Backpack expansion connector allows you to easily add automatic channel switching and other features from the Express LRS. • Ambient sound recording captures the sounds around you so you can hear lap time announcements and pilot commentary.
Specifications:
Model: HDZero VRX 4 SKU: HDZ3500 Frequency: 5.725-5.850GHz Default Resolution: 1280x720 60fps RF Sensitivity: 105dBm RF Connector: 4 x SMA Video Connector: HDMI Other Functions: Real Time, ELRS Backpack Expansion Connector, Sound Recording Dimensions: 105mm x 47mm x 30mm Weight: 85g Power: 12W Power supply: 7V-26V (2S-6S) Assembly: Removing the glasses fan cover
Package includes: 1x HDZero VRX4 1x HDMI Cable 1x DC Cable (direct pass) 1x 15cm Programming Cable 1x ELRS Backpack expansion connector Cable 1x Keyboard
Important notes: Straight-through cable, no regulator inside Please check the input voltage range of the glasses first to avoid damage to the glasses: HDZero VRX supports 2S-6S
