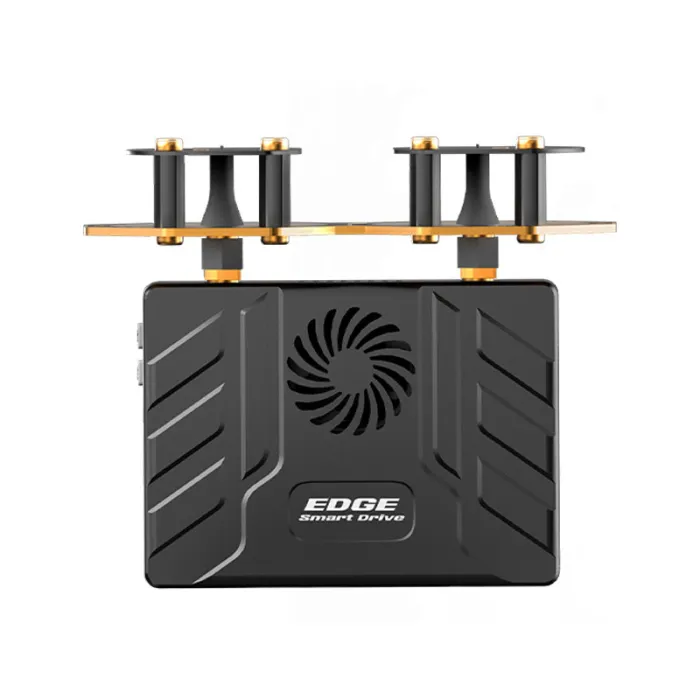

    VRX EDGE T3 HD digital ground unit

The EDGE T3 VRX HD Digital Ground Unit is a high-performance video receiver designed for drones, unmanned ground vehicles (UGVs) and unmanned water systems. It provides stable real-time HD video transmission, ideal for aerial photography, surveillance and remote control applications.

Features:

- Image processing with artificial intelligence: Improves colors, dynamic range and details
- Long-distance transmission: Up to 35 km under optimal conditions
- Low latency: ~60ms
- High bit rate video: Up to 120 Mbps
- Night vision support: AI algorithms optimize video in low light
- 3 in 1 signal integration: Combines video, telemetry and control in one stream
- Customizable OSD (On Screen Display)
- Wi-Fi support: View HD transmission on smartphones/laptops without cables

Specifications:

Video Transfer Module (VRX)
Model: T3 VRX
Product Name: T3 Digital HD Video Transmission (VRX)
Communication frequency: 5.18-5.24 GHz, 5.745-5.825 GHz
Transmit power (EIRP): FCC ≤ 30 dBm, CE < 14 dBm; SRRC < 20 dBm
Available frequency points: 9
Interface: SH1.0-4P, SH1.0-6P
Type C: Video output 1080P/60FPS
Fixed hole spacing: 15mm (M2×2)
Dimensions: 82×26×68 mm
Built-in battery: 5000mAh, 3.7V Lion
Weight: 142 g (without antenna)
Operating temperature: 0 °C to +50 °C
Maximum charging power: 20 W
Maximum discharge power: 20 W

Antenna
Name: Directional antenna
Polarization direction: Left-handed circular polarization (LHCP)
Operating Bandwidth: 5000-6000 MHz
Input impedance: 50 Ω
Standing wave ratio: ≤1.5
Interface type: RPSMA
Dimensions: 102 x 53 x 27 mm
Weight: 30.5 g

The package contains:
1x VRX EDGE T3 HD digital terrestrial unit
