Video & Data Transmission Module CUAV LTE LINK SE 4G

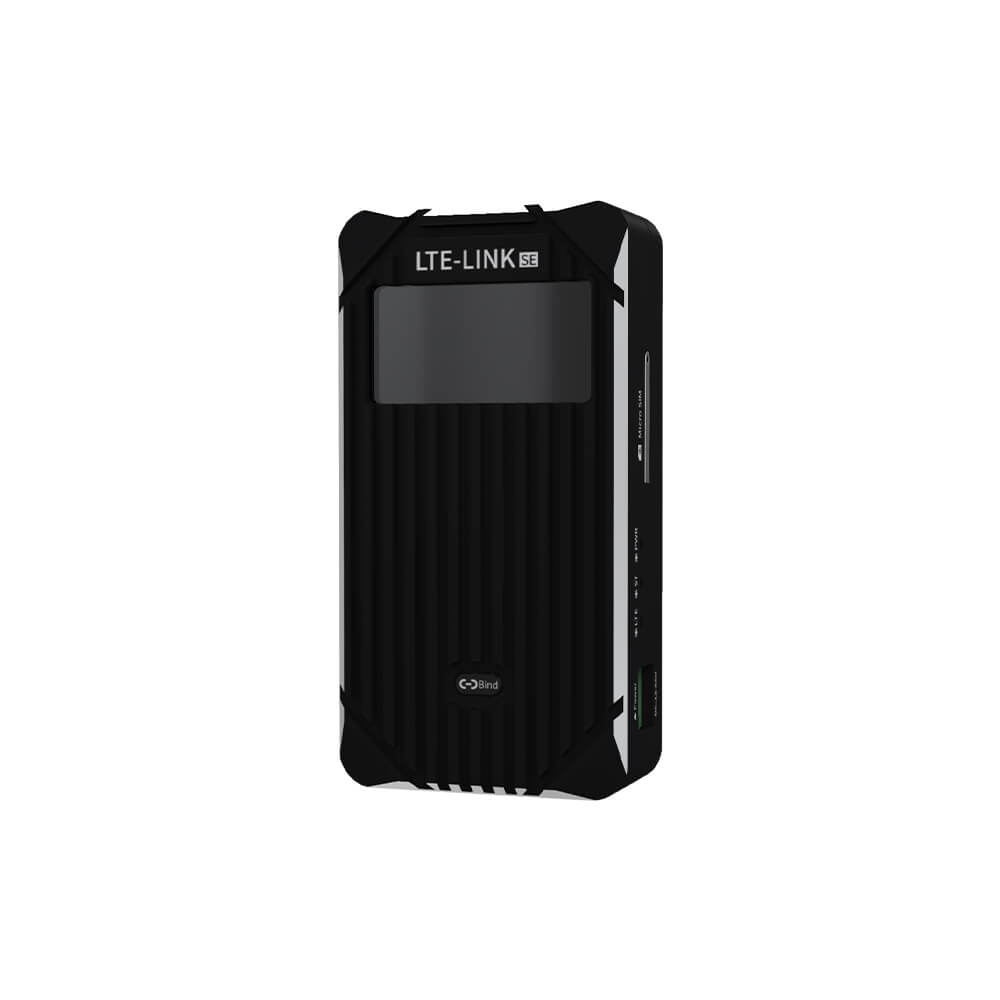

The CUAV LTE-Link SE is an all-in-one 4G video and data transmission module designed for professional UAV applications. It streams up to 1080P video with H.265 encoding and simultaneously carries MAVLink telemetry over global LTE, HSPA+, and GSM networks—delivering up to 150 Mbps downlink and 50 Mbps uplink with just 40 ms latency on data. An onboard 128×64 OLED displays signal and system status, while auto-recording to microSD ensures mission logs are preserved. Compatible with ArduPilot and PX4 on CUAV or Pixhawk controllers, it supports Windows and Android GCS apps for seamless remote piloting and monitoring without range limits.

Network Bands:

LTE FDD: B1, B3, B8
LTE TDD: B38, B39, B40, B41
DC-HSPA+/HSPA+/HSPA/UMTS: B1, B5, B8, B9
TD-SCDMA: B34, B39
GSM/EDGE/GPRS: 900/1800 MHz

Network Speeds:

LTE FDD: 150 Mbps down / 50 Mbps up
LTE TDD: 112 Mbps down / 10 Mbps up
DC-HSPA+: 42 Mbps down / 5.76 Mbps up

Video:

Resolution: 1080P or 720P
Encoding: H.265
Storage: Auto-record to microSD (default)

Interfaces:

Micro HDMI × 1
UART × 1
Micro-SIM slot × 1

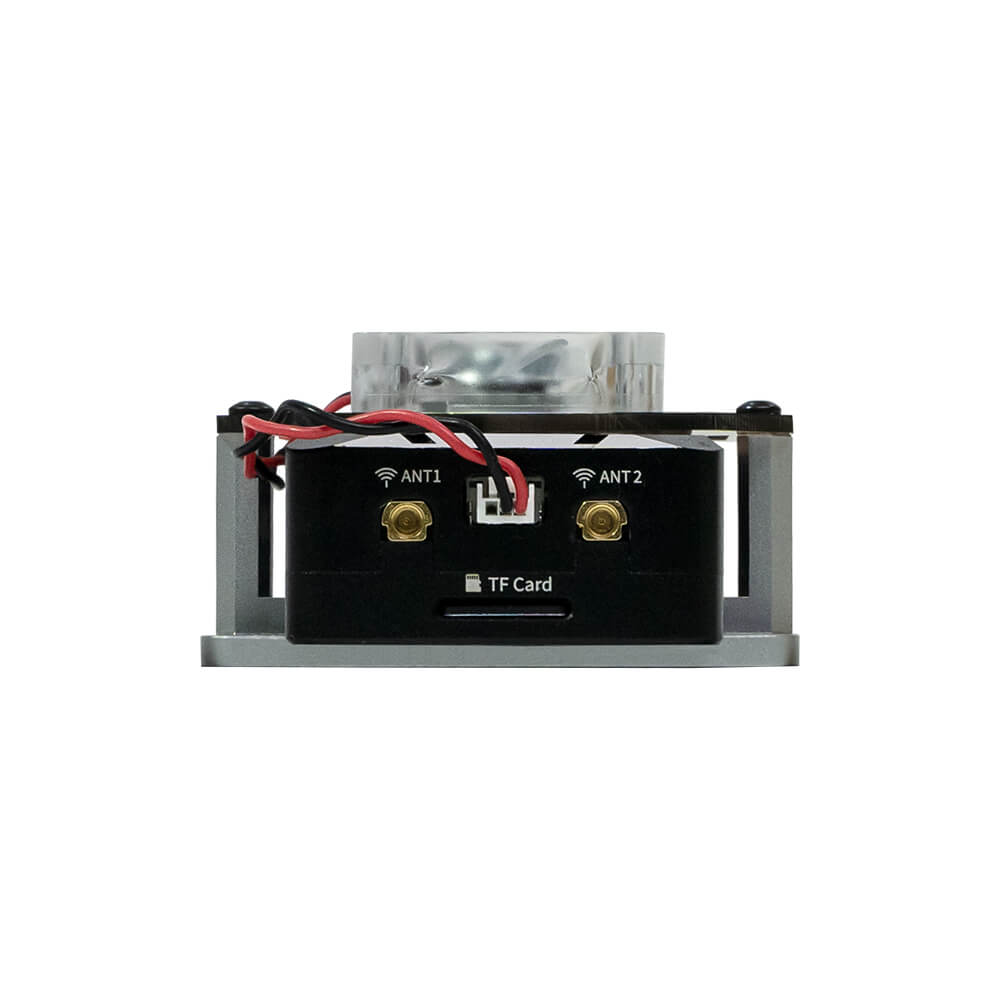

MMCX antenna ports × 2

Other specifications:

Display: 128×64 OLED
Data Protocol: MAVLink 1/2 (ArduPilot, PX4)
Latency: ~40 ms data (typical)
Operating Voltage: 12 V–55 V
Temperature Range: –10 °C to +60 °C
Dimensions: 75.3 × 39.2 × 19 mm
Weight: 78 g

Package Includes:

1 × CUAV LTE-Link SE 4G Video & Telemetry Module
2 × MMCX Antennas
1 × Micro HDMI to HDMI Cable
1 × UART Data Cable
1 × Quick-Start Guide

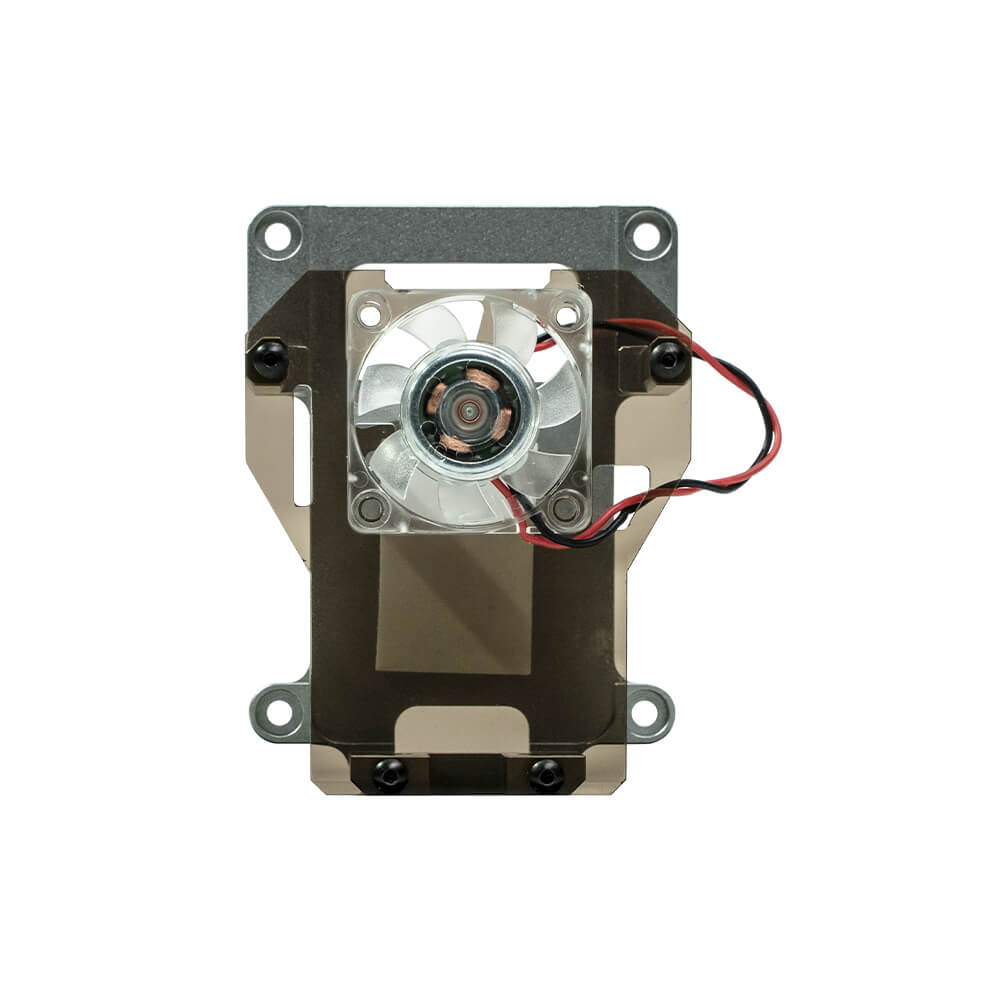

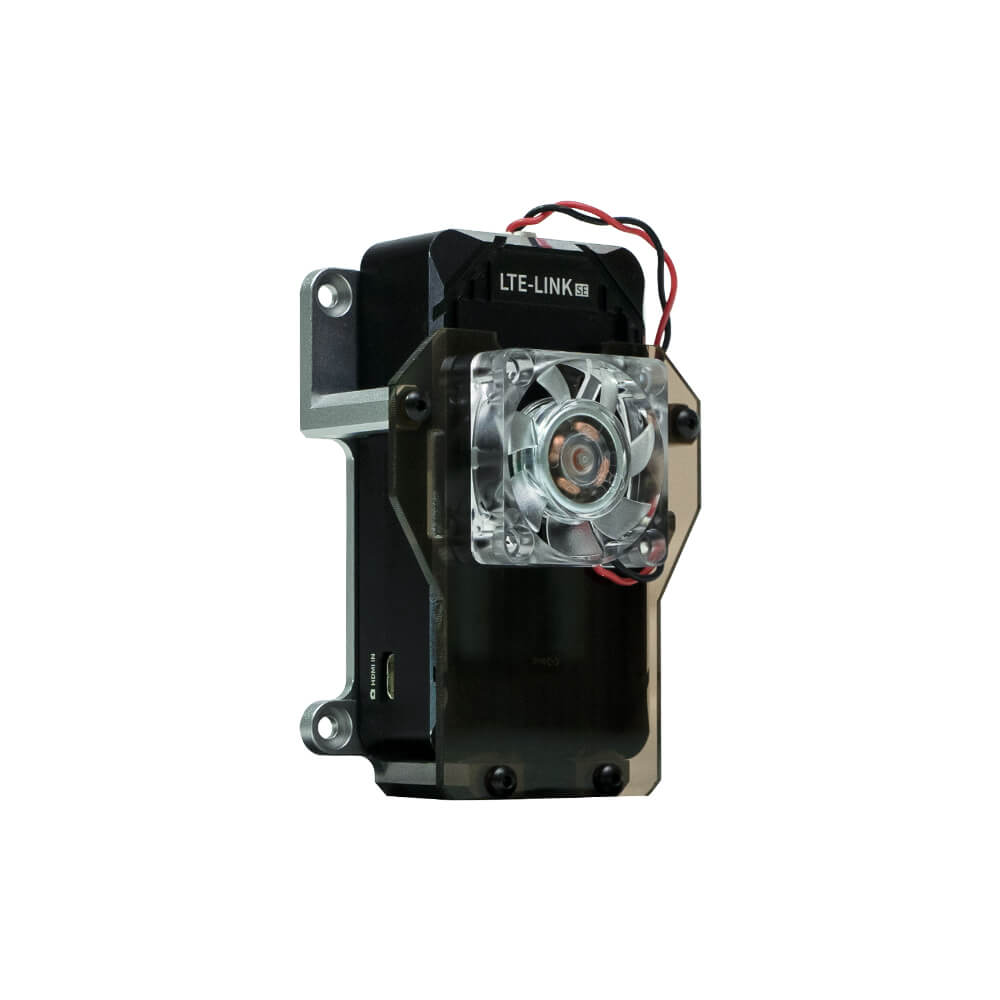

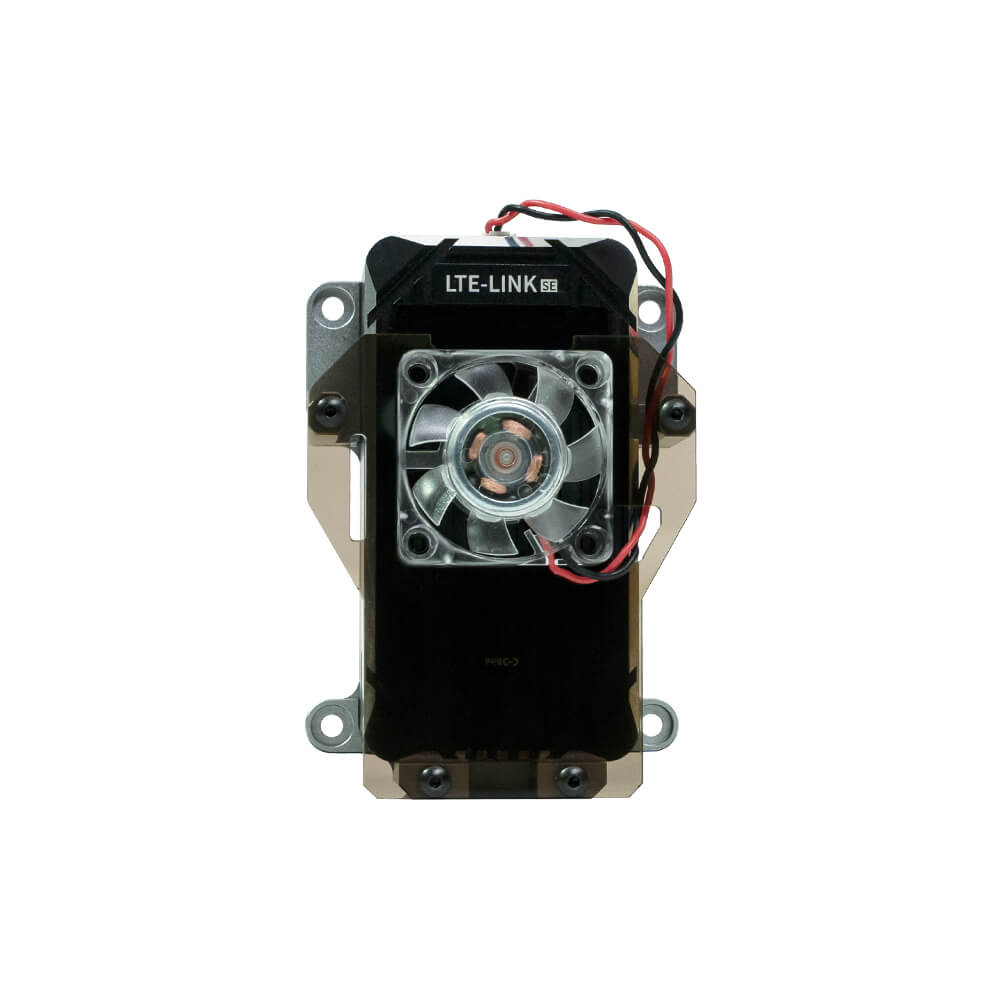

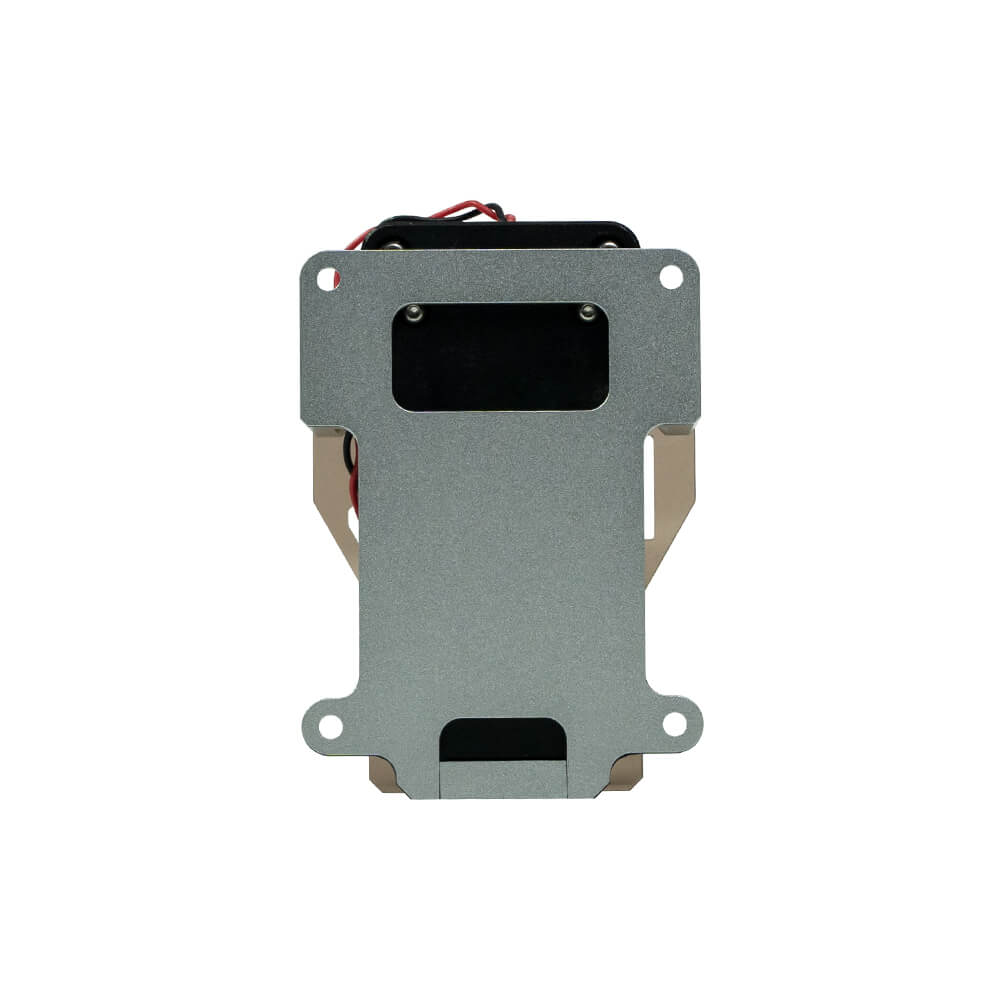

1 × Mounting Kit (brackets & screws)
