TX Module RadioMaster Ranger Nano 2.4GHZ ExpressLRS Combo LBT

Name: TX Module RadioMaster Ranger Nano 2.4GHZ ExpressLRS Combo LBT
Brand: My Store
SKU: HP0157.0035-COMB-LBT
Price: 73.92 EUR
Availability: OutOfStock

Brand: RadioMaster

€73,92

~~€73,92~~ €73,92

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

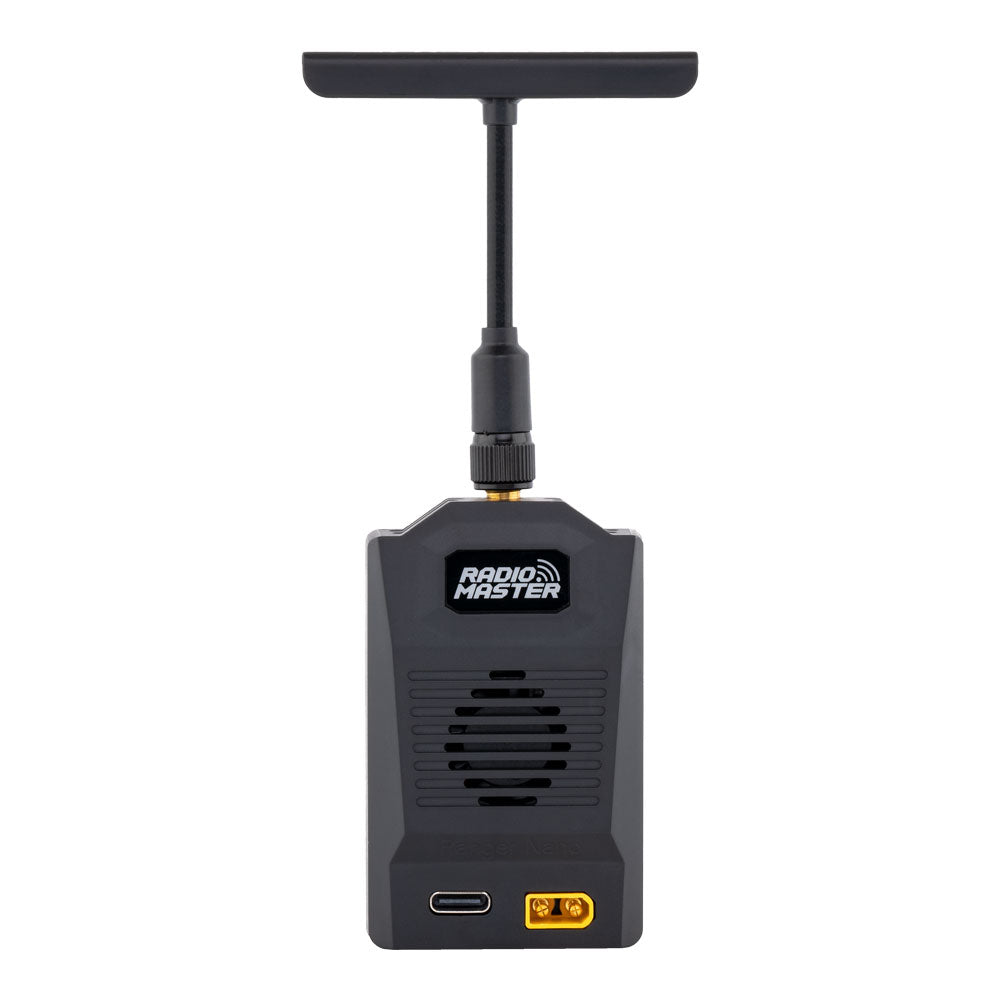

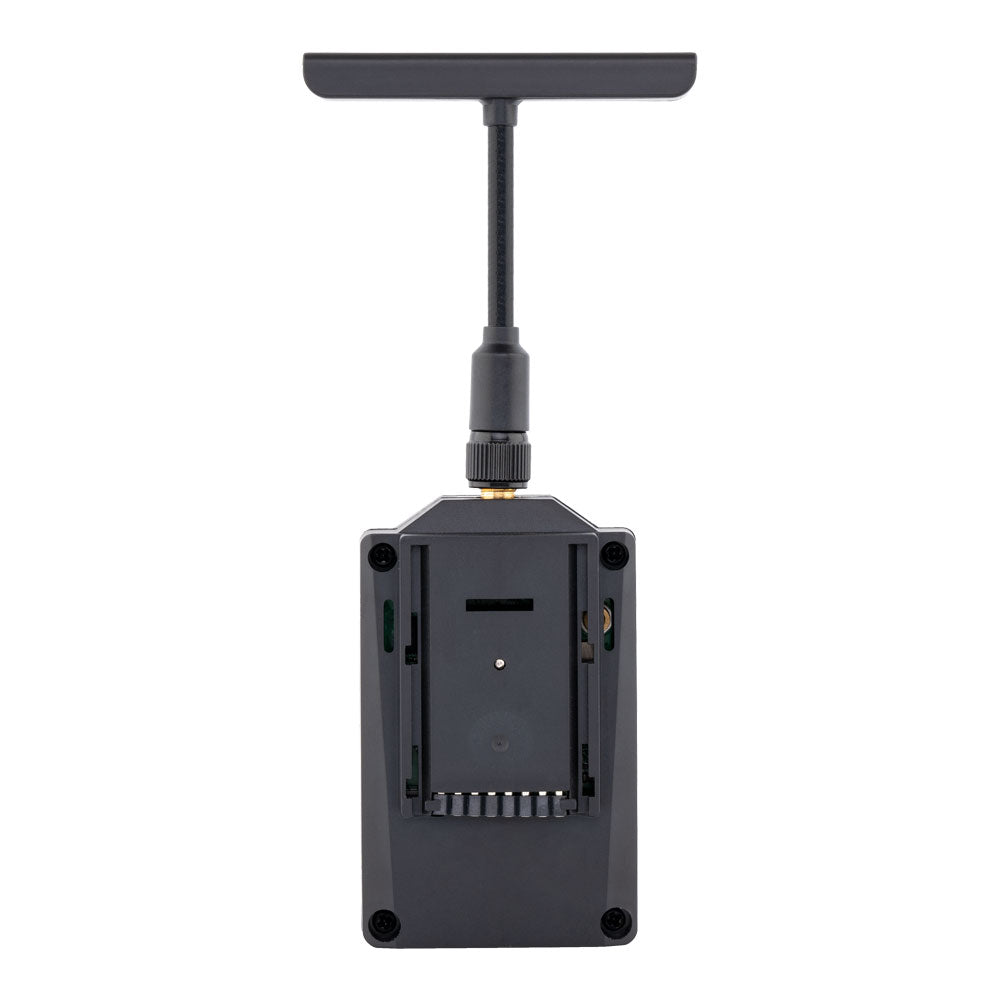

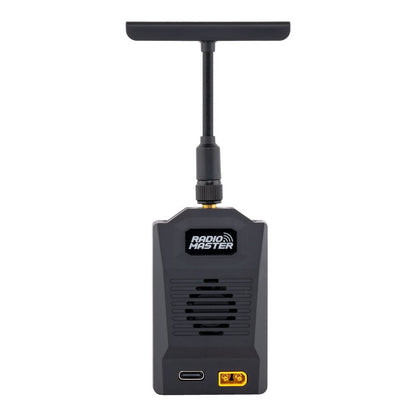

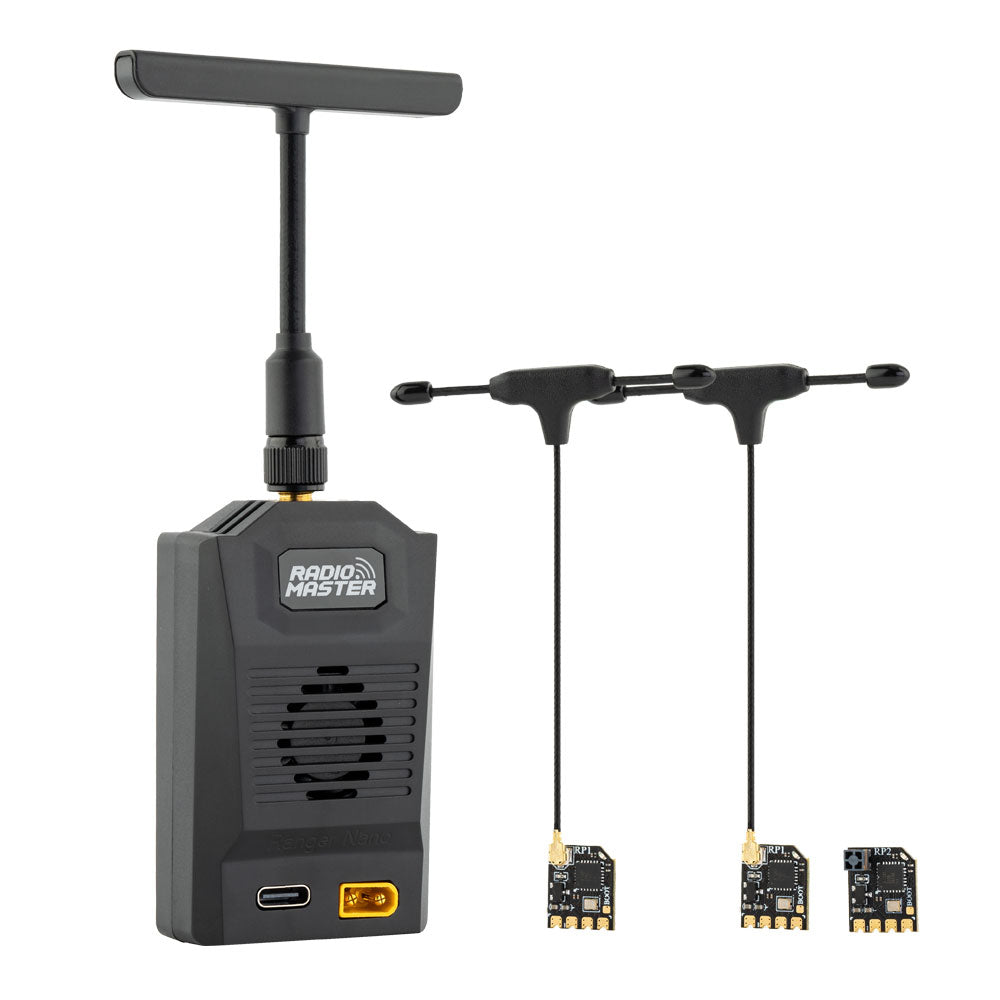

Ranger Nano 2.4GHz ExpressLRS RF Module Combo (LBT)

The Ranger Micro 2.4GHz ELRS module with up to 1W power, F-1000Hz refresh rate and highly efficient cooling system represents the pinnacle of ELRS technology. Compatible with RadioMaster Zorro and others.

The included T-shaped antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Comment:
- The Ranger Nano 2.4 GHz ELRS module fits into the Nano module slots
- ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100mw output power)

Function:
- Highly efficient cooling system
- Wi-Fi and Bluetooth support
- Packet speed up to F-1000Hz
- Output power up to 1W
- T-antenna included
- Supports Zorro radio with Nano connector

Specifications:
Item: Ranger Nano Module Combo (LBT)
Regulatory domain: ISM2400
MCU: ESP32 (main), ESP8285 (auxiliary, like ESP backpack)
RF chip: SX1281IMLTRT
Frequency range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25 Hz
RF output power: 30dBm for FCC, 20dBm for CE (adjustable via LUA)
Wifi support: Yes
Bluetooth support: Yes

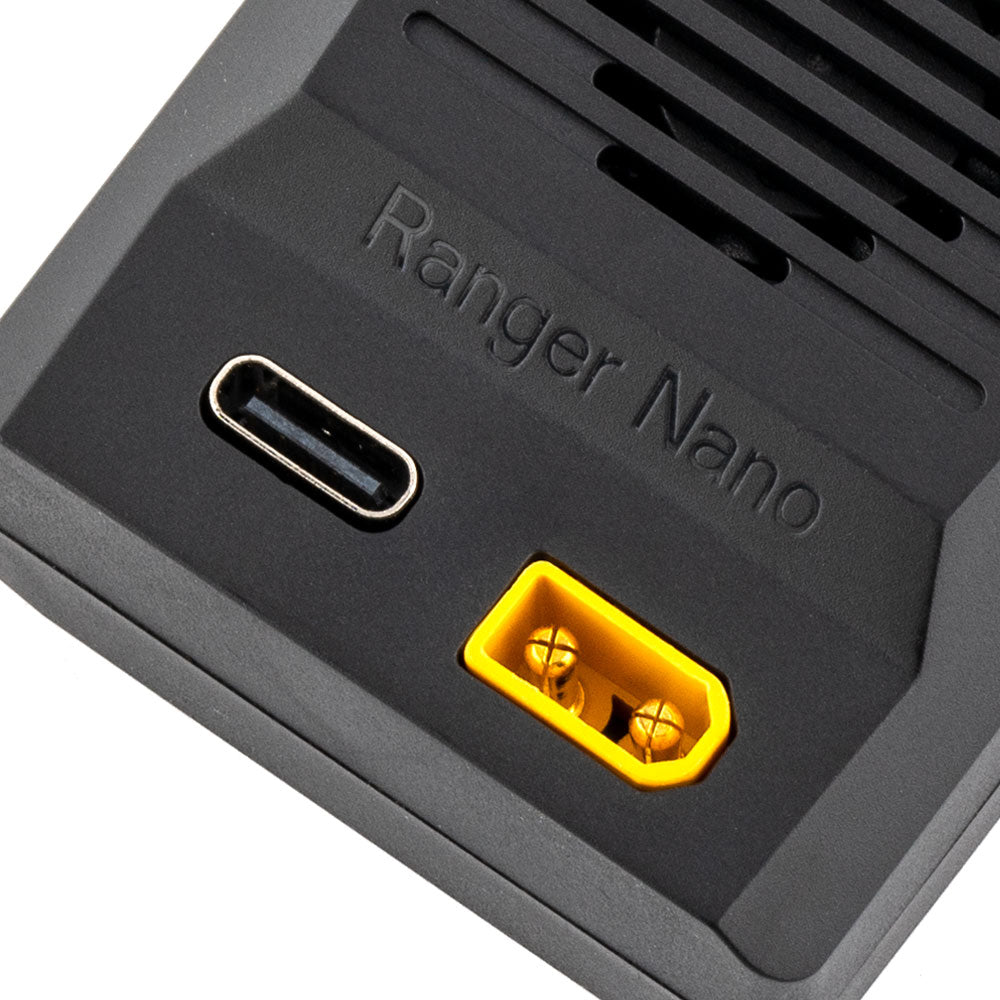

XT30 Supply voltage: DC 6V - 16.8V
Weight: 48g (with antenna) / 39g (without antenna)
Dimensions: 136x42x26mm (with T antenna) / 74x42x26mm (without antenna)
