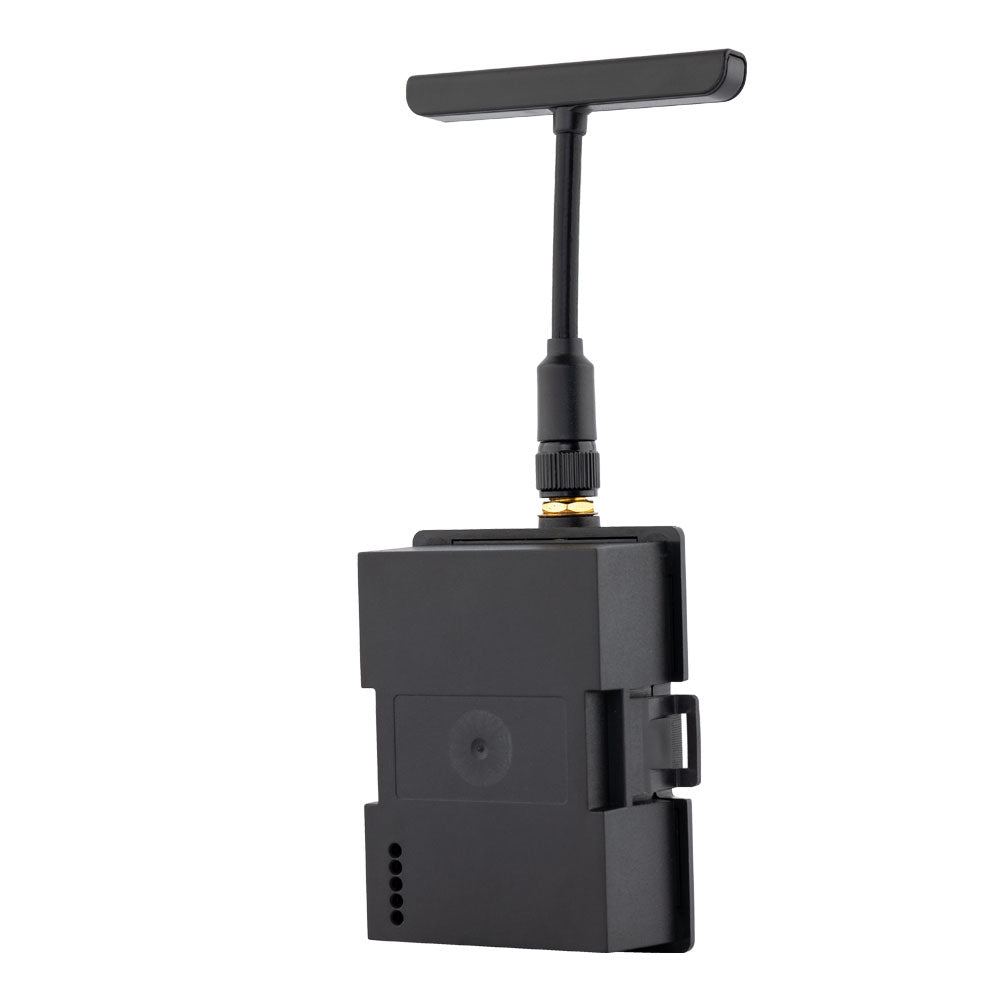

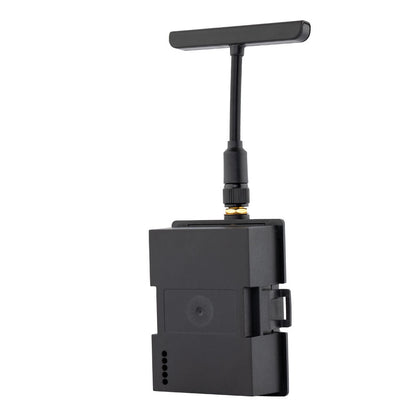

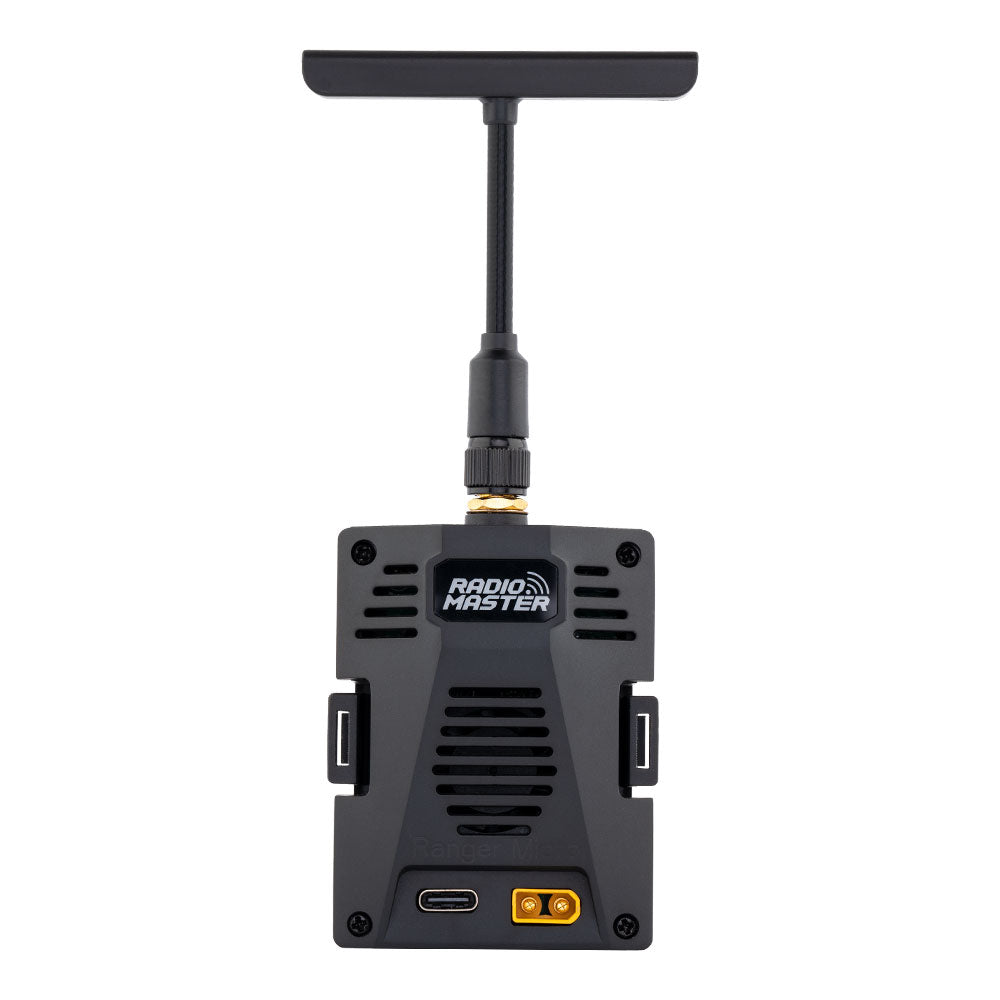

Ranger Micro 2.4GHZ ExpressLRS RF Module Combo (LBT)

The Ranger Micro 2.4GHz ELRS module with up to 1W power, F-1000Hz refresh rate and highly efficient cooling system represents the pinnacle of ELRS technology. Compatible radio TX16S, TX16S MkII, TX12, TX12 MkII and more.

The included T-shaped antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Comment:
- The Ranger Micro 2.4 GHz ELRS module fits into the JR style micro module slots.
- ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100mw output power)

Function:
- Highly efficient cooling system
- Output power up to 1W
- Wi-Fi and Bluetooth support
- Packet speed up to F-1000Hz
- T-antenna included
- Supports TX16S MKII and TX12 MKII radio with Micro connector

Specifications:

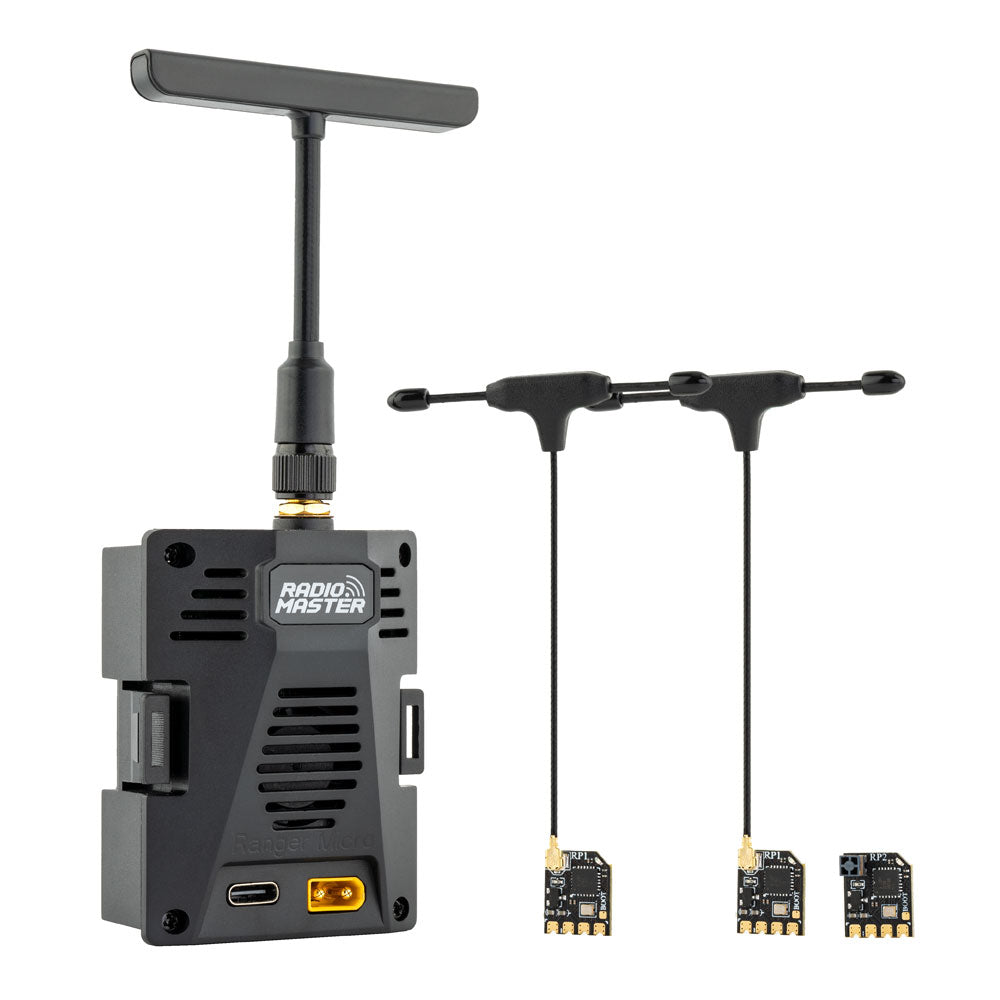

Item: Ranger Micro Module Combo (LBT)
Regulatory domain: ISM2400
MCU: ESP32 (main), ESP8285 (auxiliary, like ESP backpack)
RF chip: SX1281IMLTRT
Frequency range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25 Hz
RF output power: 30dBm for FCC, 20dBm for CE (adjustable via LUA)
Wifi support: Yes
Bluetooth support: Yes

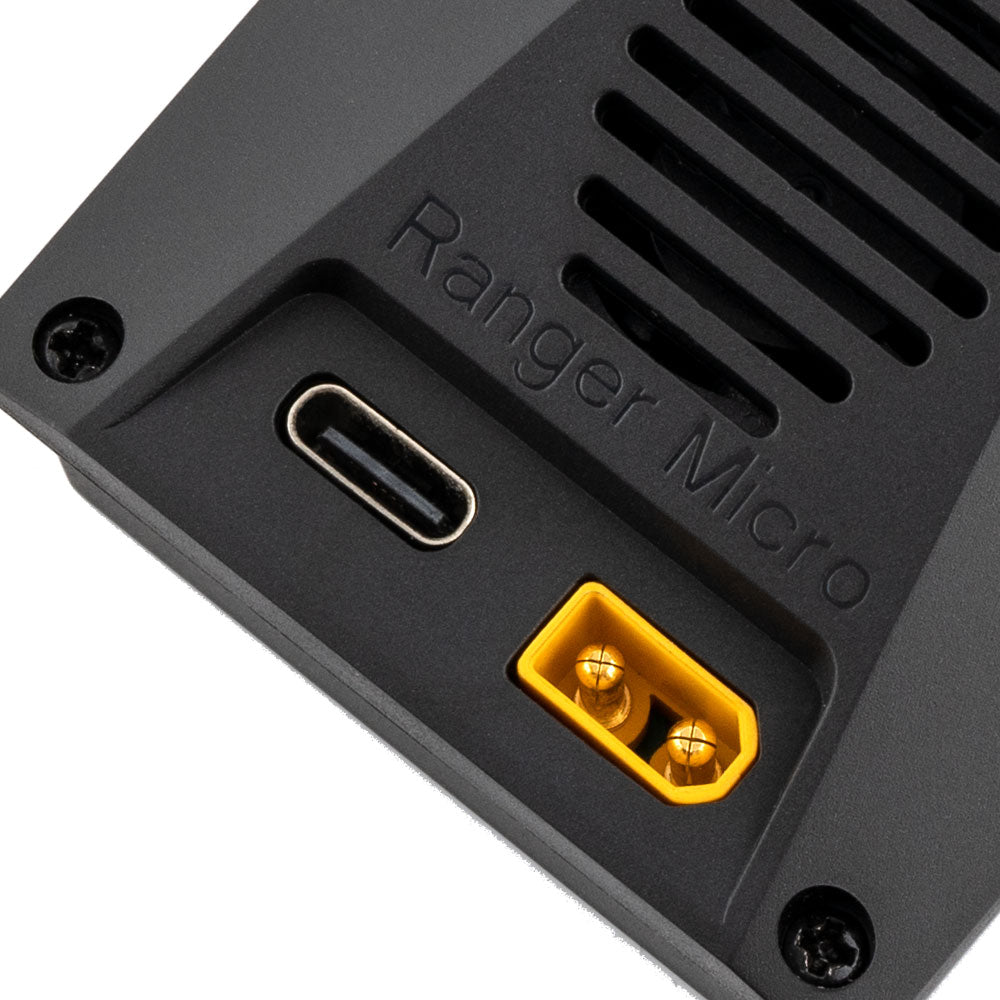

XT30 Supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)
Dimensions: 136x49x33mm (with T antenna) / 74x49x33mm (without antenna)
