Ranger 2.4GHz ExpressLRS RF Module (LBT)

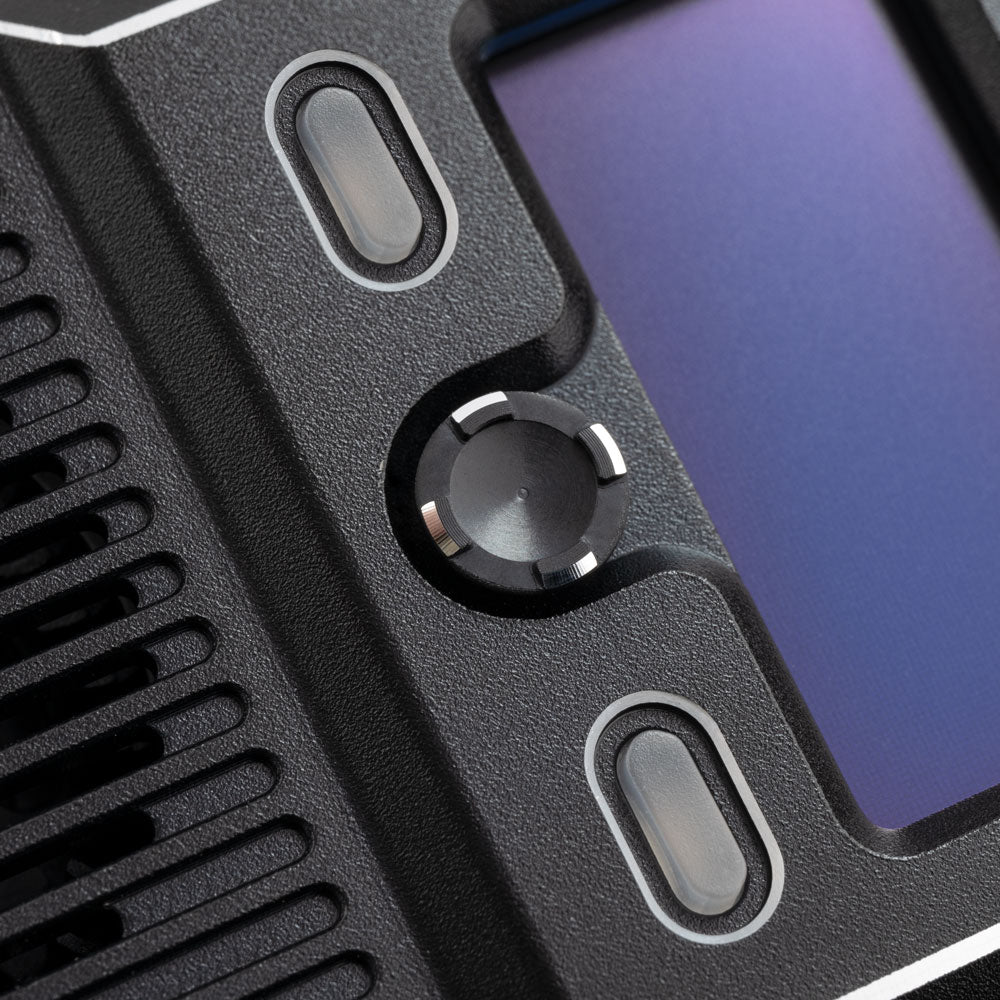

RadioMaster Ranger is equipped with an OLED display, a directional menu button and two programmable buttons for quick access. Ranger makes it easy to customize to your needs on the fly.

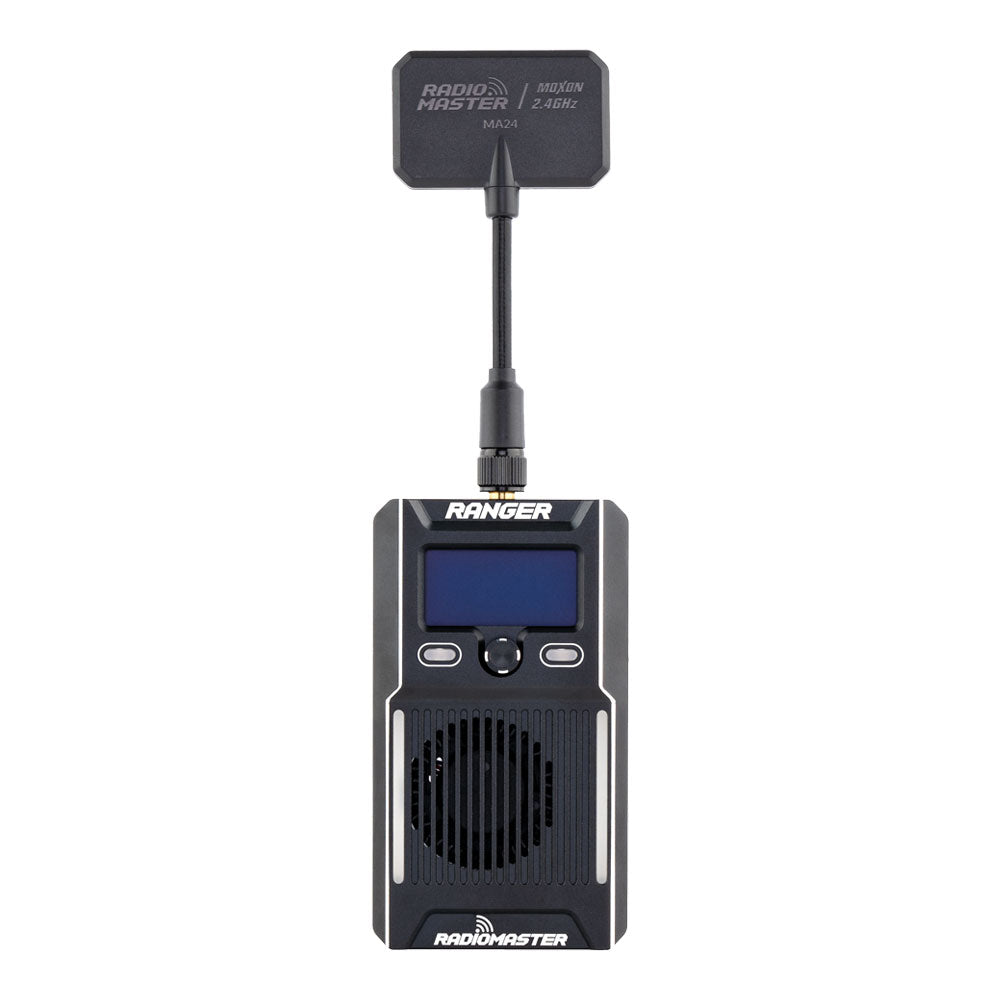

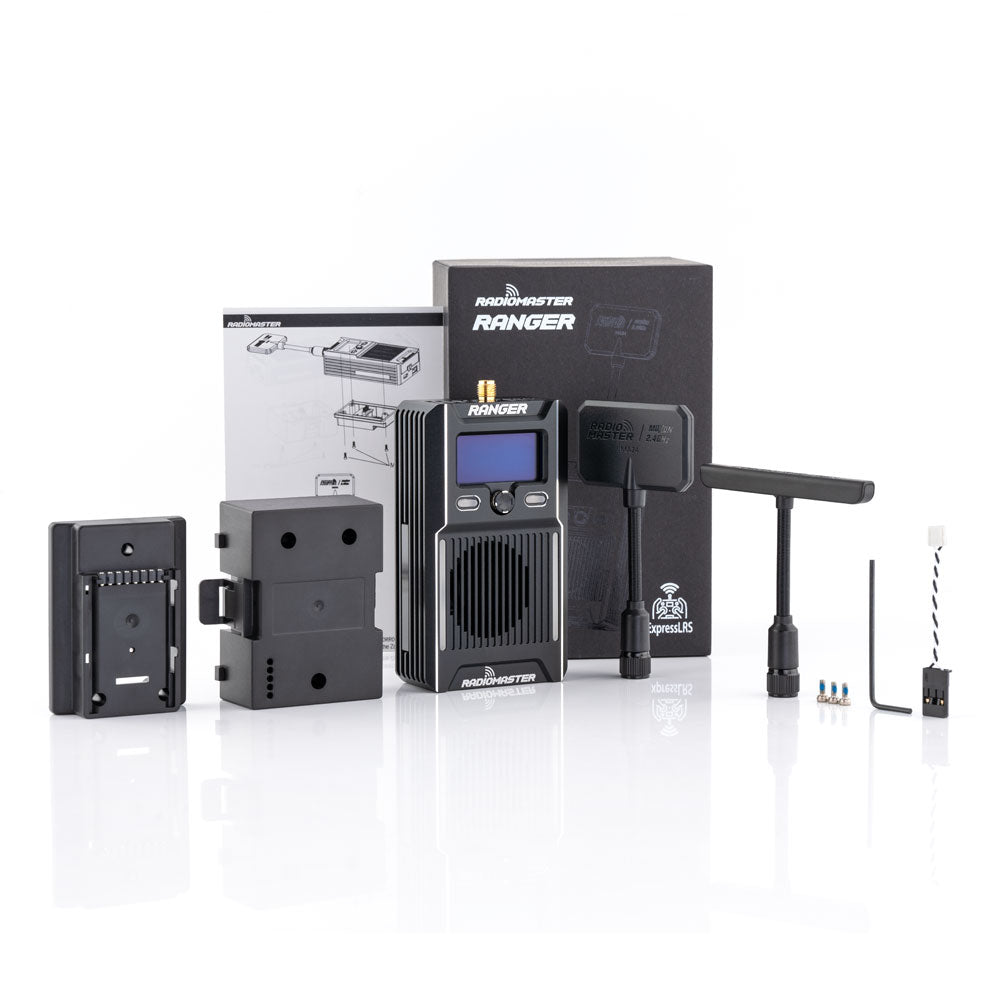

The Ranger includes a T antenna for general use and a Moxon RadioMaster antenna for long range directional applications. Also included in the package is an adapter for micro and nano modules to make the Ranger compatible with most radios on the market. A cable is included for Futaba radios with CRSF compatibility.
Specifications:
- Item: Ranger 2.4GHz ELRS Module
- Regulatory band: ISM2400
- MCU: ESP32 (main), ESP8285 (auxiliary, like ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency range: 2400 MHz - 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EdgeTX 2.7.1 or later)
- Minimum refresh rate of the receiver: 25Hz
- RF output power: Default 100mW
- Module adapters: JR standard 5-pin connector and nano standard 8-pin connector
- Cable for Futaba CRSF socket: Included in the package
- OLED display: 64x128px
- WiFi support: Yes
- Bluetooth Support: Yes
- 3-axis accelerometer: Yes (STK8BA58 MEMS accelerometer)
- Built-in RGB light strip

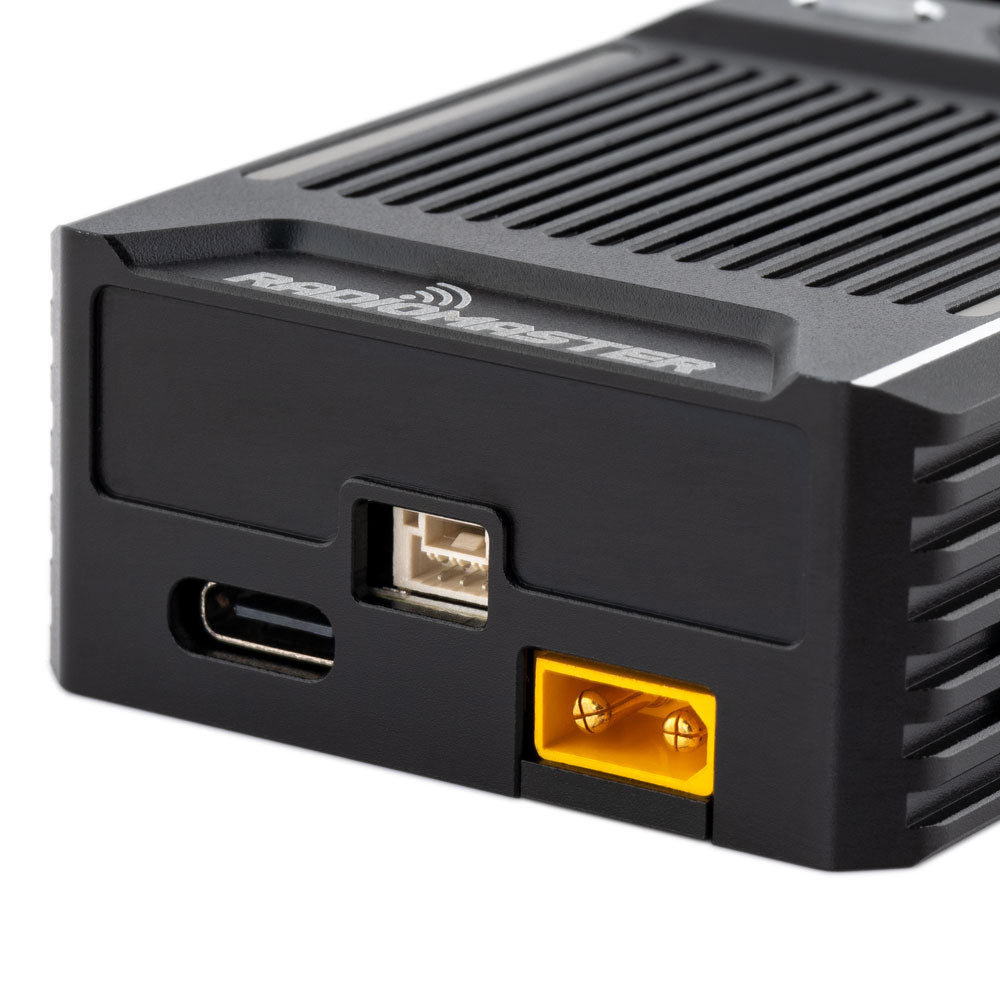

- XT30 Supply voltage: DC 6V - 16.8V
- Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
- Dimensions: 95×51×25 mm (without antenna)
Notes:
The ELRS LBT (Europe) version has ExpressLRS CE EU LBT firmware pre-installed (limited to 100mW output power).
