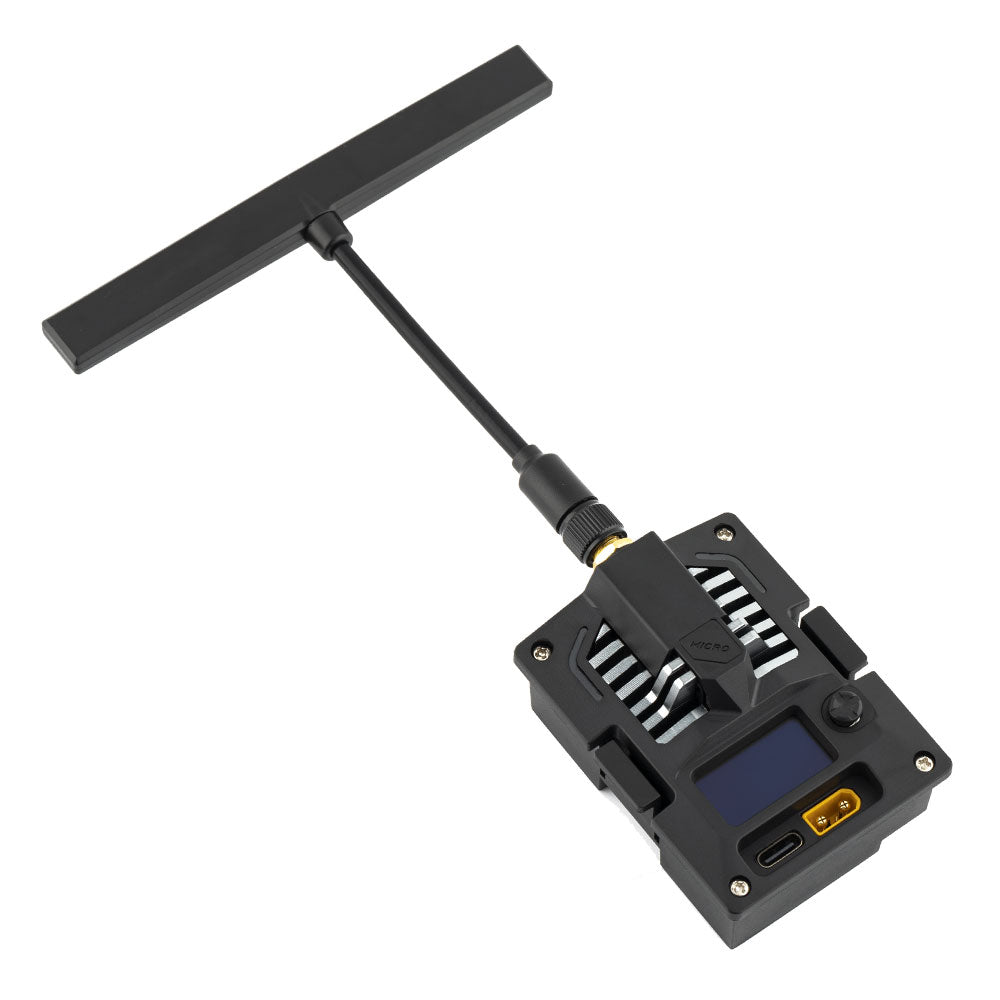

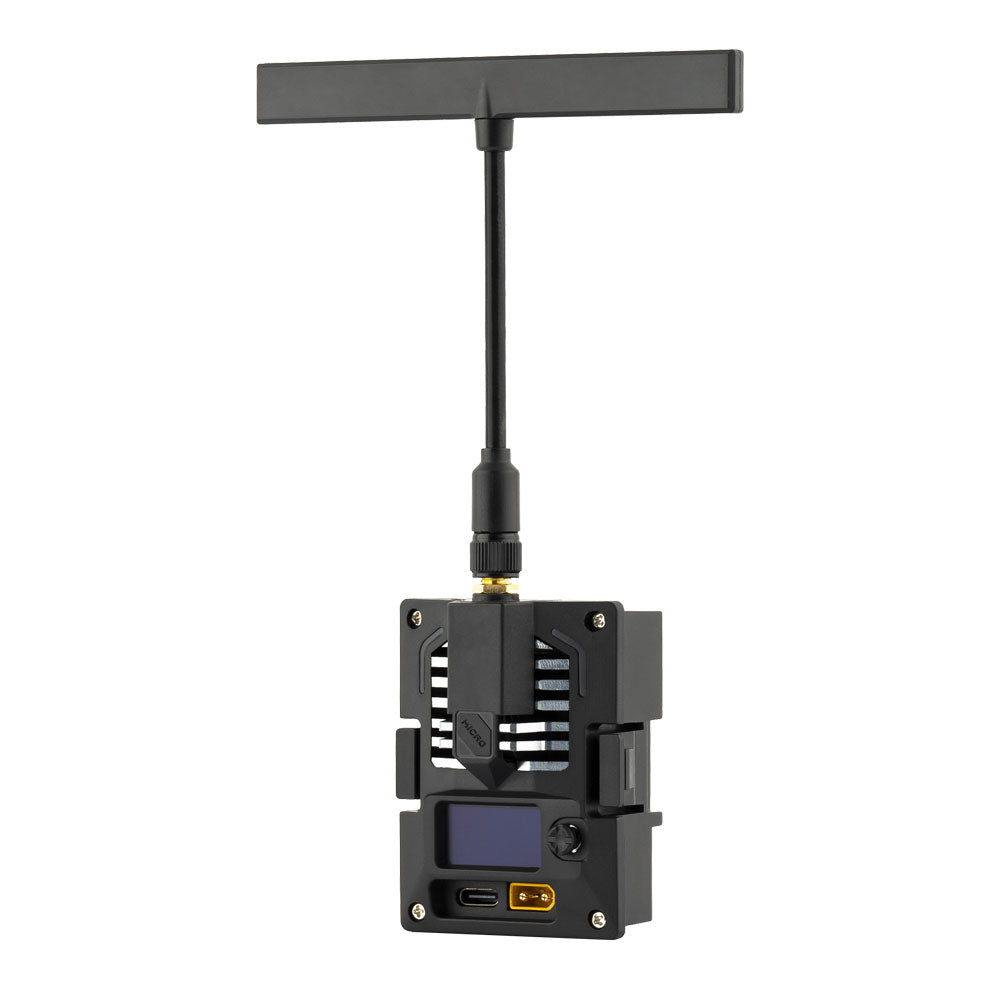

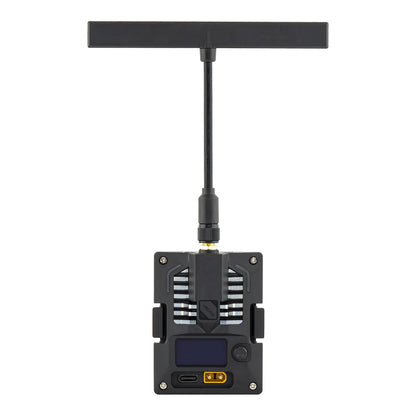

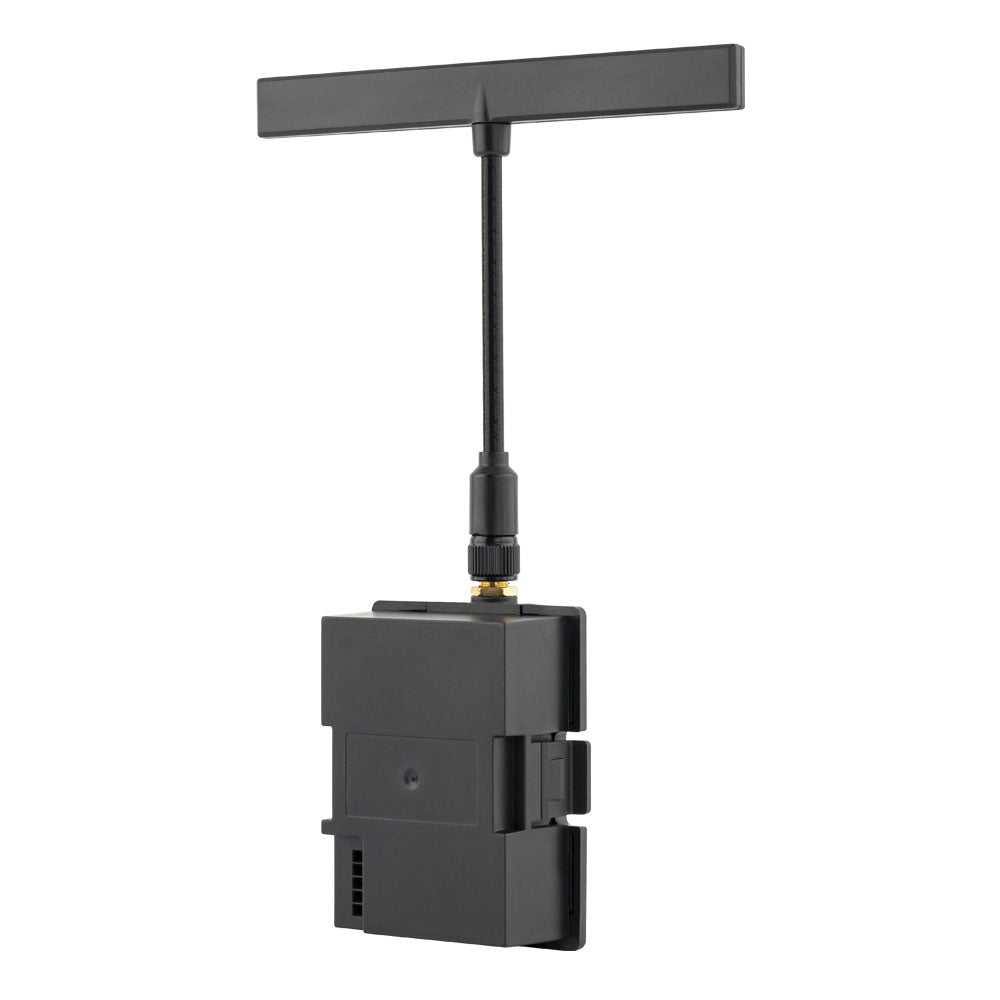

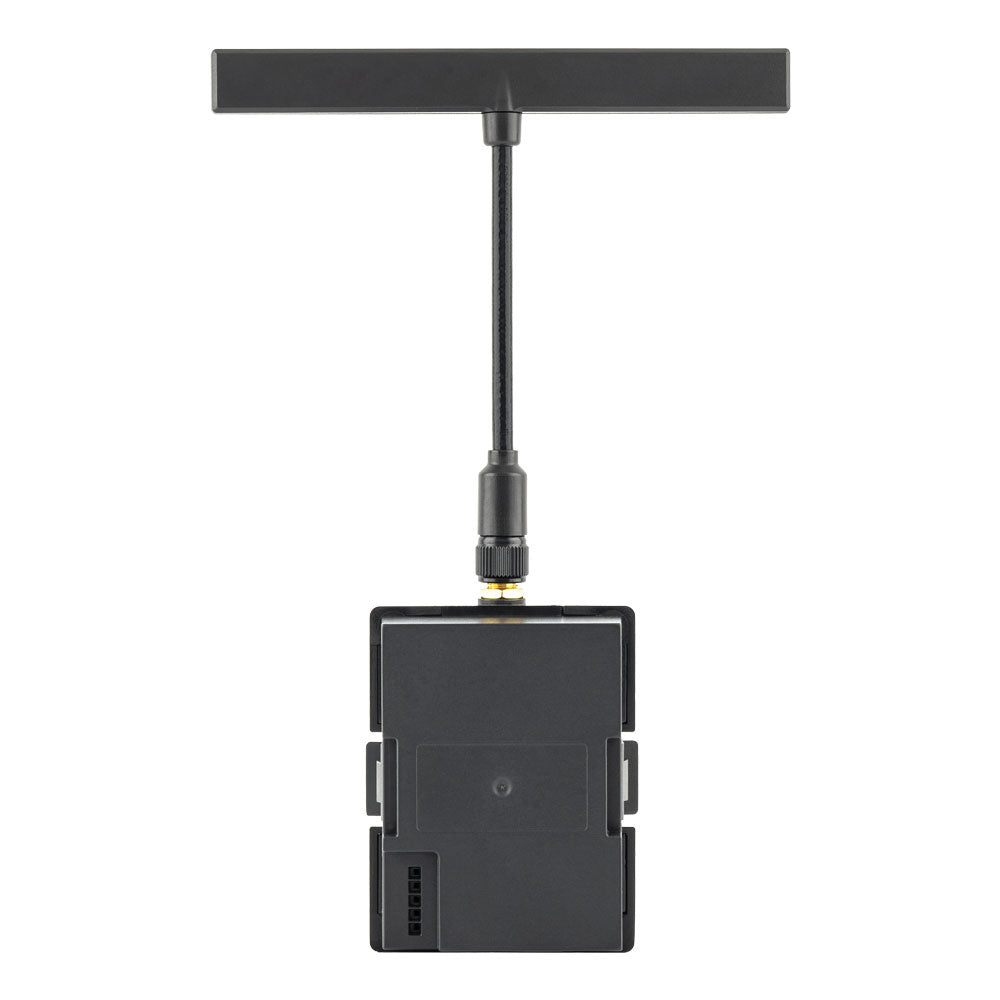

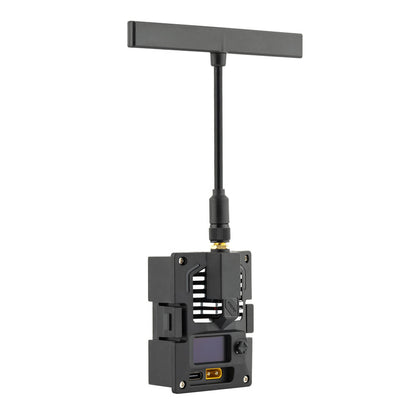

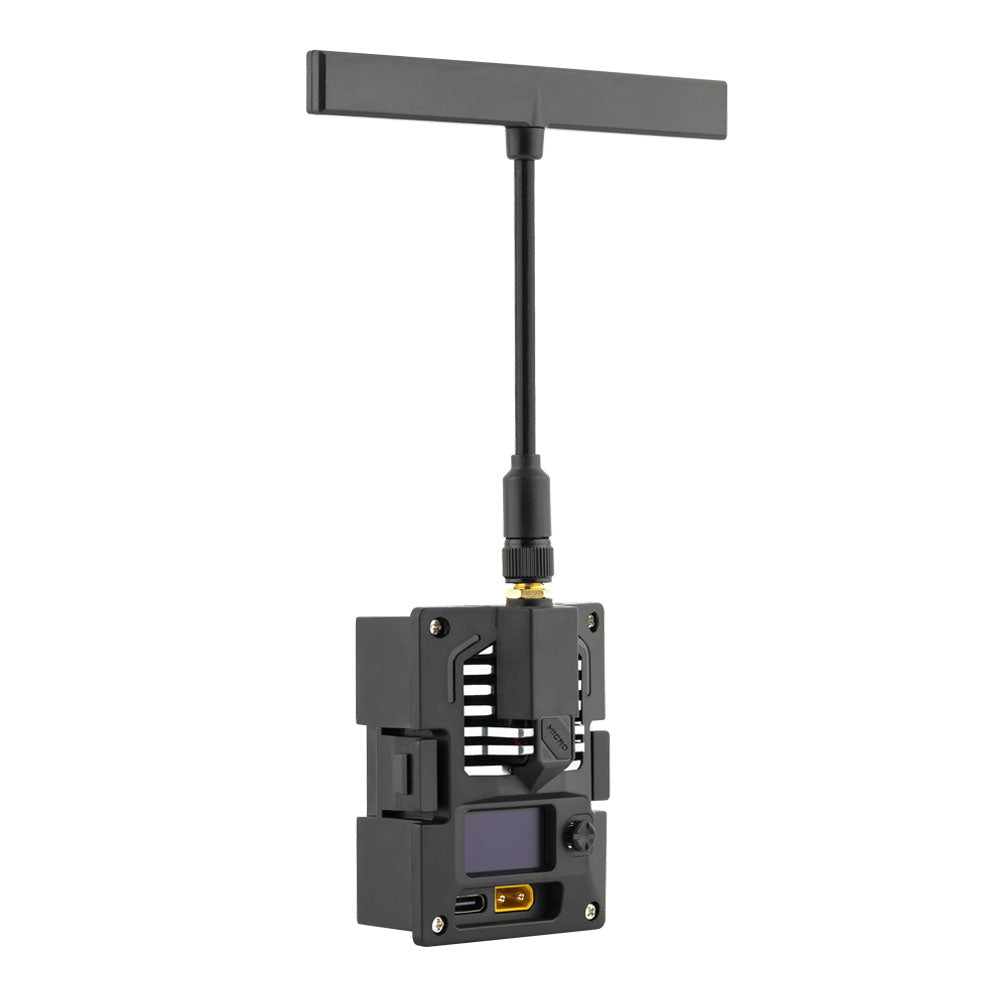

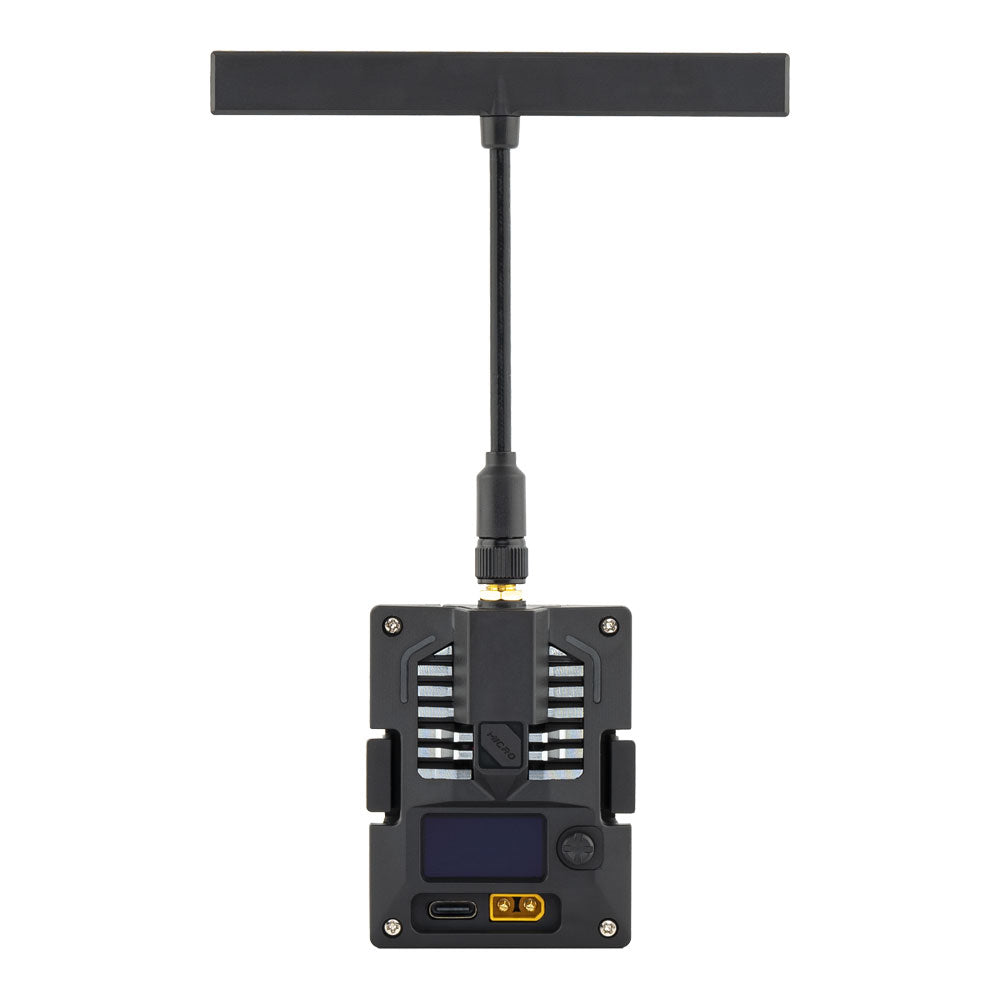

TX Module RadioMaster Bandit 915MHz Micro
The RadioMaster Bandit Micro is a high-end RF module designed for the ExpressLRS protocol, providing high-speed and low-latency performance for FPV drone pilots. Compact and efficient, it offers excellent range and reliability for hassle-free operation. Ideal for serious enthusiasts and professional pilots.
Features:
- Output power up to 1W
- Packet speed up to 200Hz
- Optimized circuits for extremely low power consumption
- Built-in TCXO oscillator
- Low noise, high comfort
- High contrast OLED display
- Innovative convection cooling
- Wi-fi and Bluetooth support
- Built-in ExpressLRS backpack
- 5-way navigation key
- 915/868MHz T antenna included
- Supports TX16S MKII, Boxer and TX12 MKII radio with Micro connector
Specifications:
Item: Bandit Micro ExpressLRS RF Module
Regulation area: FCC915
MCU: ESP32 (main), ESP8285 (auxiliary, like ESP backpack)
RF chip: SEMTECH SX1276
Refresh frequency Min/Max: 25Hz/200Hz
RF output power: 1000mW/30dBm
Micro standard 5pin connector
Built-in OLED display
XT30 supply voltage: DC 6V - 16.8V
Weight: 78.0 grams (with T antenna)
Dimensions: 64.1 x 49.6 x 34.1mm

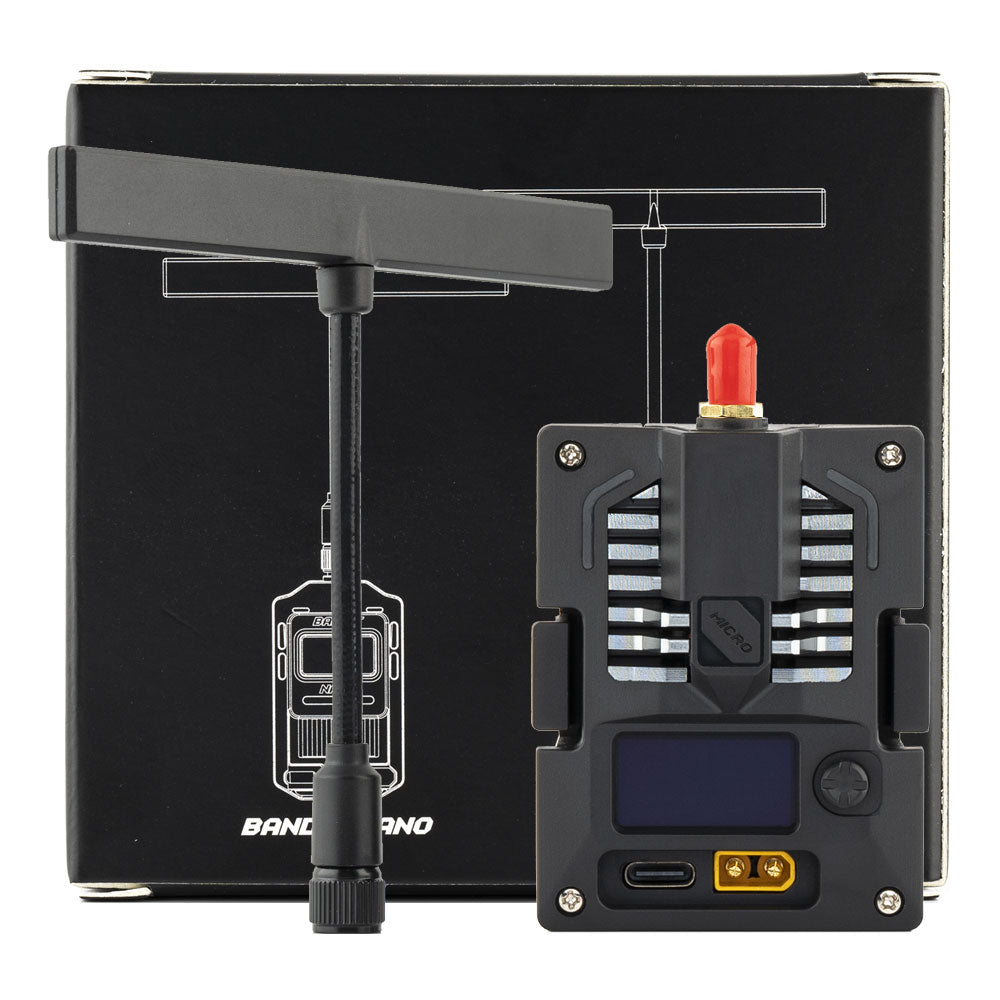

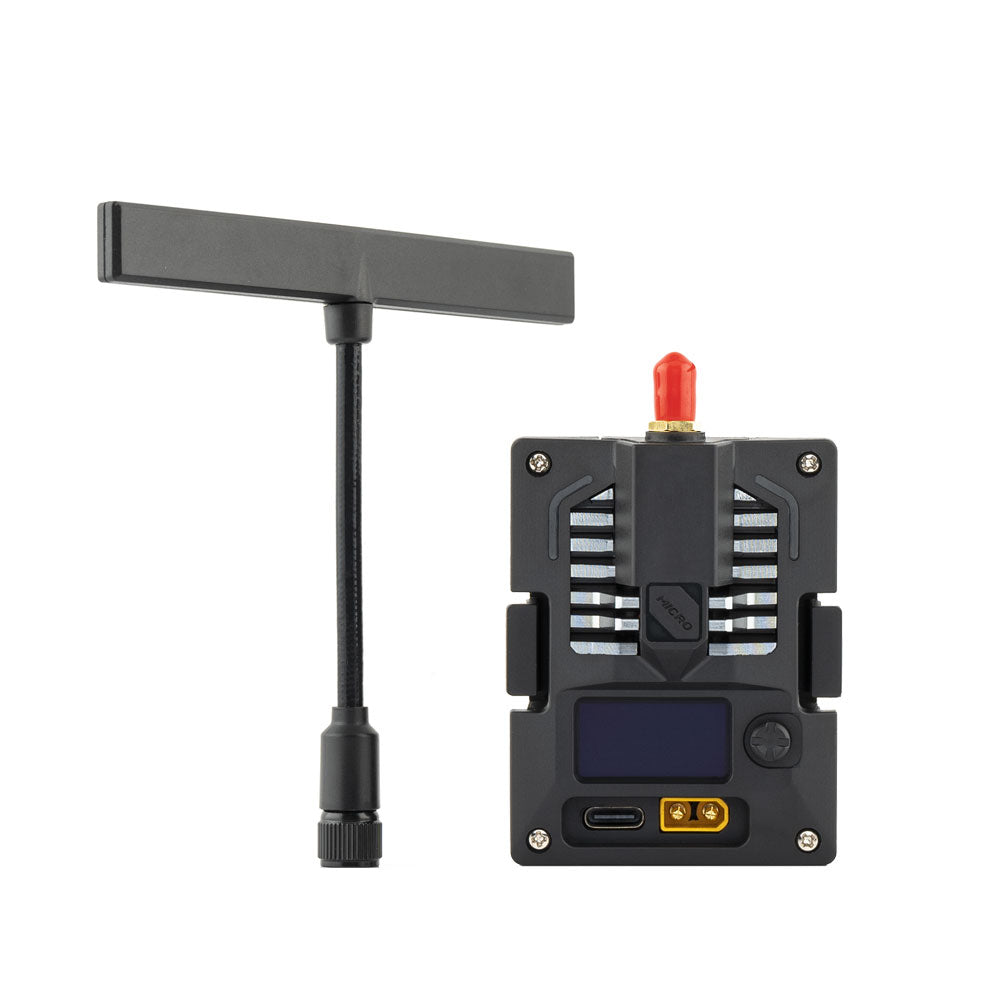

Package includes:
1x Bandit Micro ExpressLRS RF Module
1x 900Mhz T antenna
1x Manual
