TX Module Emax Aeris Link Full sized TX 868/915MHz

Name: TX Module Emax Aeris Link Full sized TX 868/915MHz
Brand: My Store
SKU: 0107003007
Price: 66.54 EUR
Availability: InStock

TX Module Emax Aeris Link Full sized TX 868/915MHz

Brand: Emax

€66,54

~~€66,54~~ €66,54

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

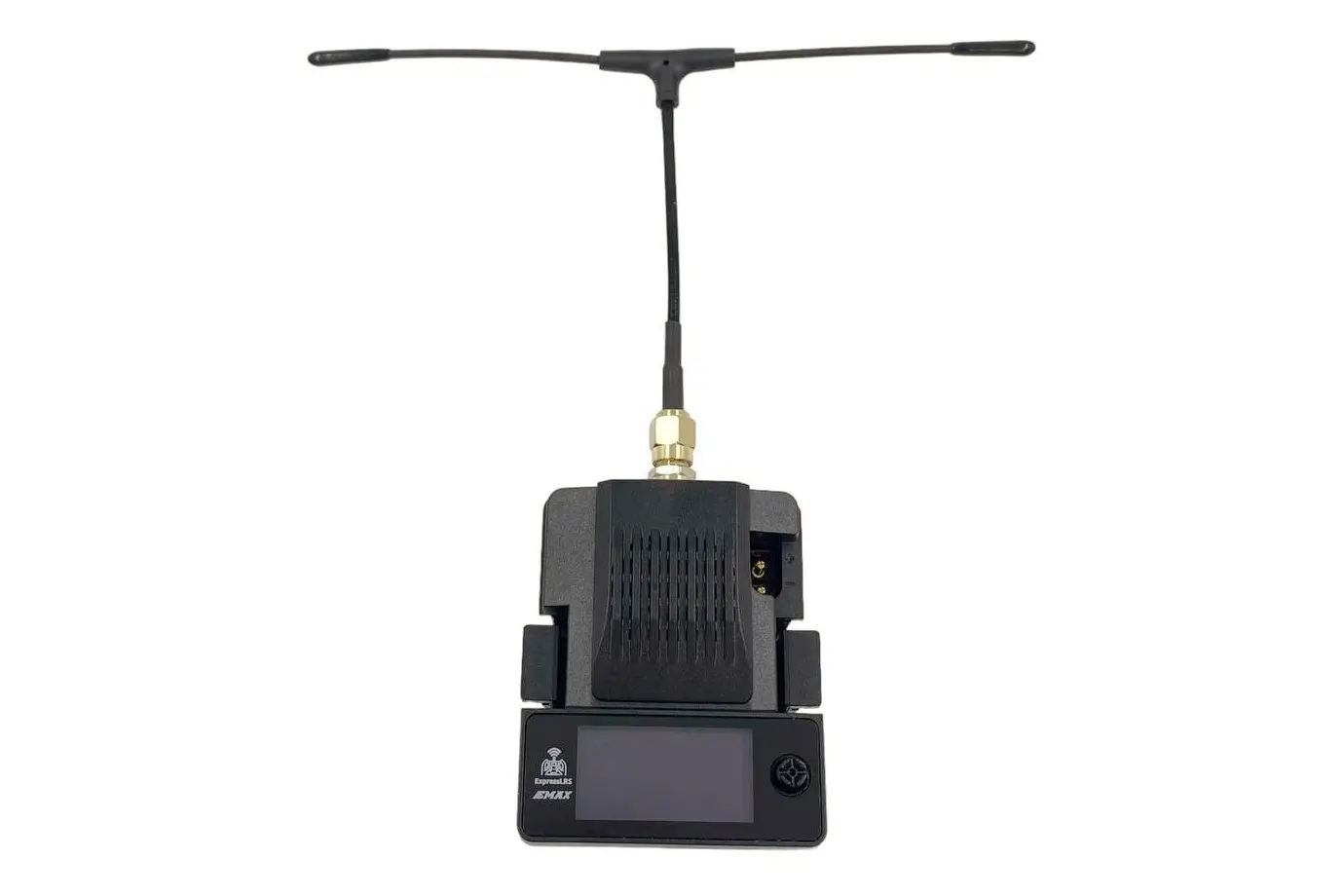

TX module Emax Aeris Link Full size TX 868/915 MHz

The Emax Aeris TX is an ELRS 868/915 GHz transmitter expansion module for large JR radio shafts. The module is compatible with radios with OpenTX or EdgeTX firmware. The ELRS is currently one of the most advanced RC transmissions. It offers reliable long-distance lines, high refresh rate, adjustable performance, Wi-Fi updates and more.

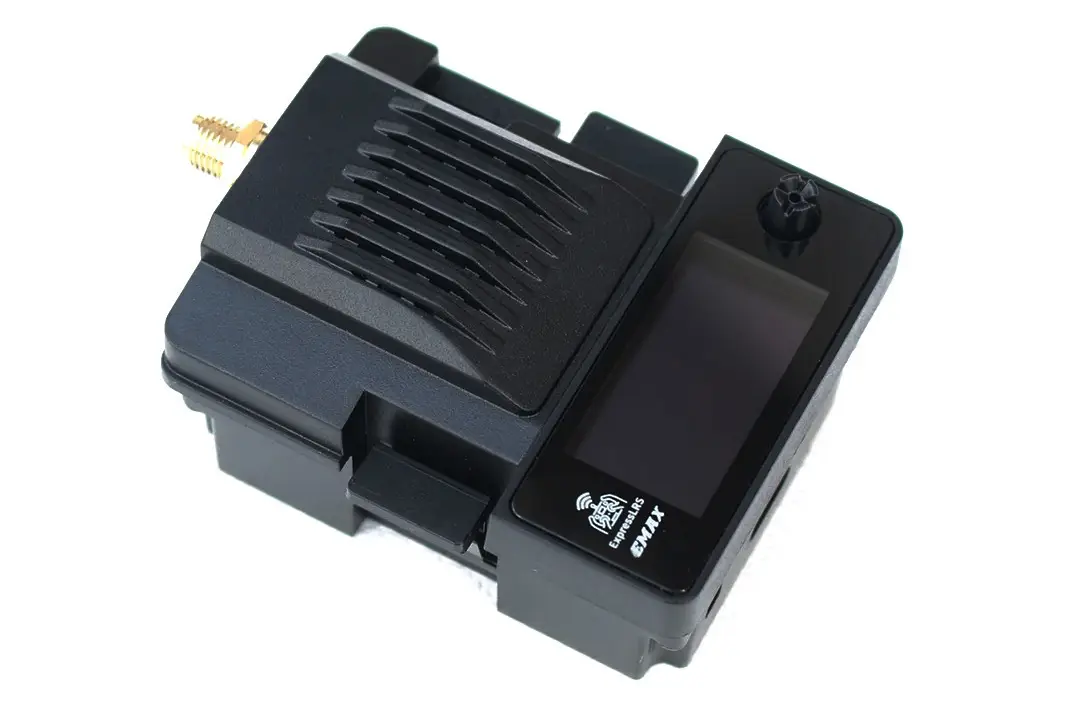

Emax Aeris has a 1.29" OLED display with a resolution of 64x128px. The ELRS module can be configured using a joystick, so there is no need to use LUA scripts. The Aeris TX also has an XT30 connector for powering an external 2-4S battery, extending the battery life of the radio. This is especially suitable for long flights and high transmission powers. Another advantage of the module is the USB-C connector, which is used for easy firmware updates or telemetry transfer to a PC Airport mode.

Specifications:
Frequency band: 868/915MHz
Maximum power: 2000mW
XT30 input voltage: 5-21V (2-4S Lipo)
Antenna connector: RP-SMA
Display: 1.29" OLED 64x128px
Dimensions: 72 x 63 x 35 mm
Weight: 59 g (without antenna)

The package includes:
1x JR transmitter module
1x T-shaped antenna 915 MHz
