TX Module BetaFPV Micro V2 915/868 MHz
TX Module BetaFPV Micro V2 915/868 MHz
Brand: BETAFPV
Couldn't load pickup availability
- Description
- Related Files
- Discussion
TX Module BetaFPV Micro V2 915/868 MHz
The BETAFPV Micro TX V2 Module is designed for long-haul pilots who require reliable performance and signal stability. With a maximum RF power of 2W and support for a transmission frequency of up to 200Hz, this module offers robust connectivity with minimal interference, even over long distances.

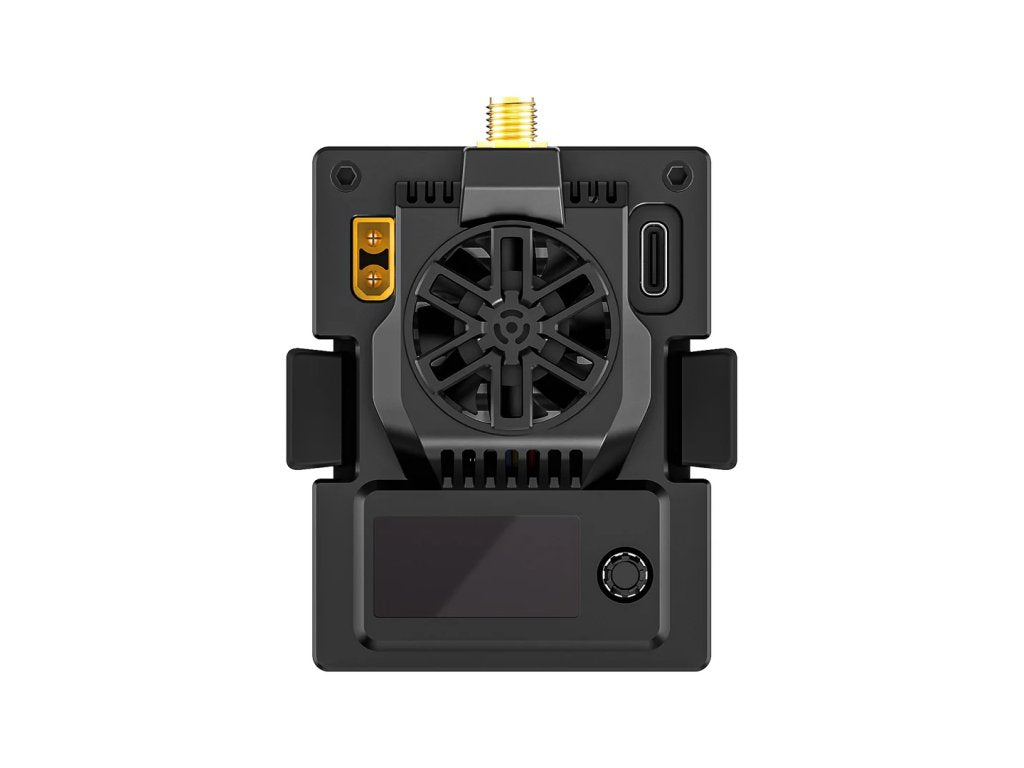

The module features an efficient cooling system, including an integrated TCXO for increased temperature stability, enlarged vents and a high-speed 2507 axial fan, allowing for efficient heat dissipation and consistent performance in a variety of conditions. Firmware updates are easy thanks to the 5D button and OLED display, which allows for quick and flexible adjustments. With multiple RF power levels to choose from, the module is adaptable to different flight requirements.
Specifications:
- Product: BETAFPV Micro TX V2 Module | ELRS 915/868MHz
- Weight: 54.8g
- Color: Black
- Antenna connector: SMA-KE
- RF Power options: 10mW / 25mW / 50mW / 100mW / 250mW / 500mW / 1000mW / 2000mW
- Transmission frequency: 25Hz / 50Hz / 100Hz / 100Hz Full / 200Hz / D50
- Frequency band: 915MHz (FCC) / 868MHz (EU)
- Backpack support: Yes
- Input voltage: 7V-13V DC
- Rated current: 10V, 1A @ 2000mW, 200Hz, 1:128
- USB port: Type-C
- Fan Voltage: 5V
- Default firmware version: ExpressLRS V3.4.3
- Target name: BETAFPV Micro 900MHz TX V2
