    Code: 01070010_1

    TX Module BETAFPV ELRS Nano V2(2.4GHz)

    TX Module BETAFPV ELRS Nano V2(2.4GHz)

    Brand: BETAFPV

    €44,99
    €44,99 €44,99
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

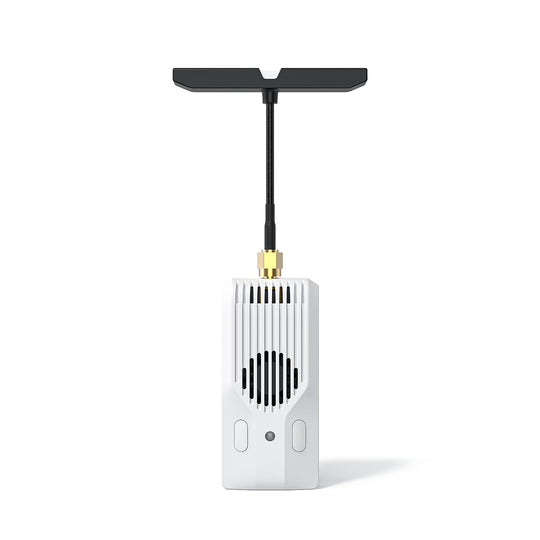

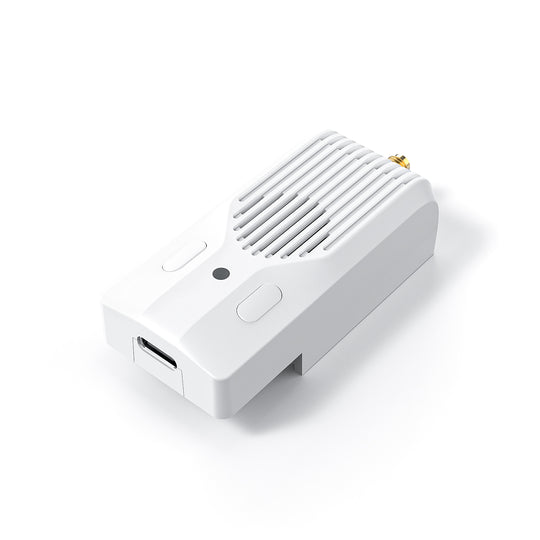

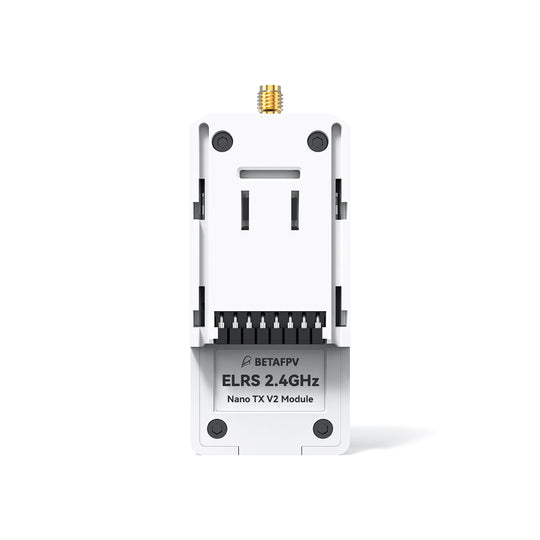

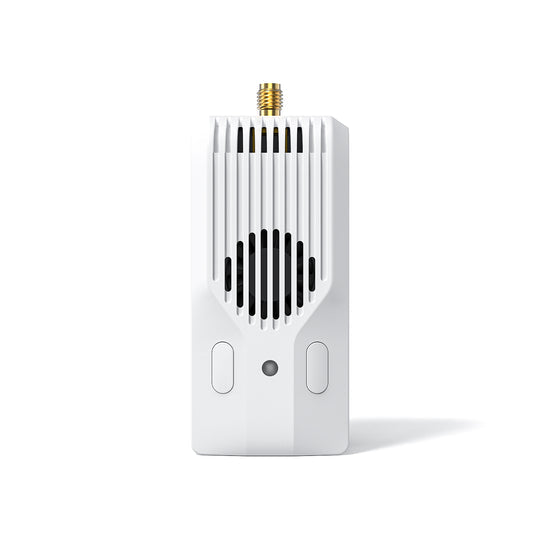

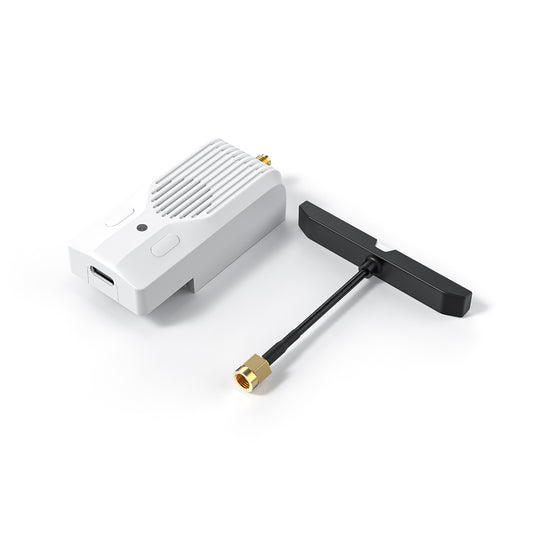

    ELRS Nano TX V2 Module (2.4GHz)

The Nano TX V2 module is packed with upgrades for an unrivaled piloting experience. It contains an innovative T-LED antenna with a flashing frequency indicating signal transmission and module connection status. With a power of up to 1W/2W, it enables a stable connection for FPV racing, long-distance flights and professional photography. Seamless backpack integration and button customization. Enjoy smooth flying with the 1804 cooling fan. Unleash your full potential with the Nano TX V2 module.

Function:

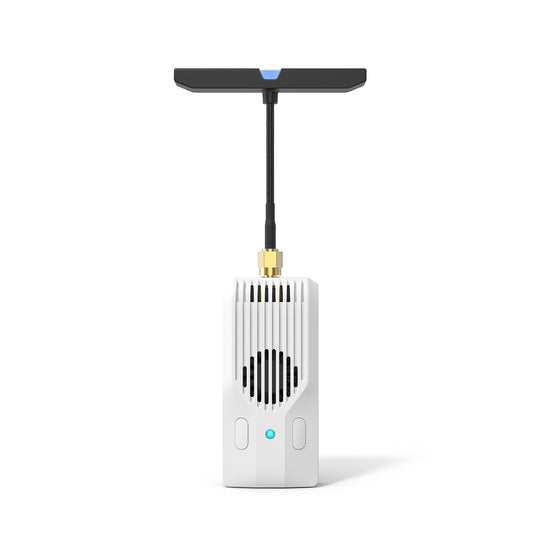

- The first T-LED antenna with a built-in LED display function, which allows pilots to effortlessly monitor the transmitted and received signal when using the radio transmitter.
- Offers 3 versions: 2.4GHz with a maximum output power of 1W and 915/868MHz with a maximum output power of 2W. The maximum packet rate is F1000/200Hz.
- Thanks to the integrated TCXO, it minimizes frequency deviation for stable performance and eliminates signal interference.
- With optimized internal airflow channel and heatsink, the 1804 high-speed cooling fan effectively dissipates heat even at high power and ensures stable line performance.
- Support for backpack functions and custom buttons based on ELRS V3.3, which allows pilots to connect external devices and set buttons according to personal usage habits.

Specifications:

Item: BETAFPV Nano TX V2 Module (2.4GHz)
Weight: 28g
Color white

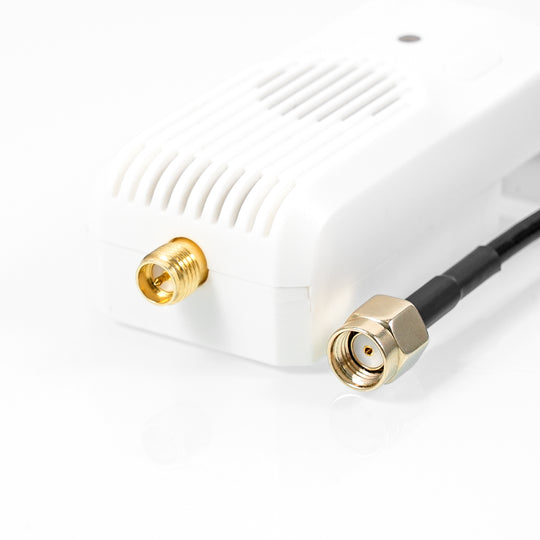

Antenna connector: RP-SMA
RF Power: 25mW/50mW/100mW/250mW/500mW/1000mW
Packet frequency: 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
Frequency band: 2.4 GHz
Backpack: Support
Input voltage: 7V~13V DC
Power consumption: 8V,1000mA@1000mW, 150Hz, 1:128
USB port: Type-C
Fan voltage: 5V
Default firmware version: ExpressLRS V3.3.0

The package includes:

1 * Nano TX V2 Module (2.4GHz)
1 * T-LED antenna
1 * USB to Type-C data cable
1 * Type C male to XT30U male power cable
1 * Instructions for use
1 * Service card
