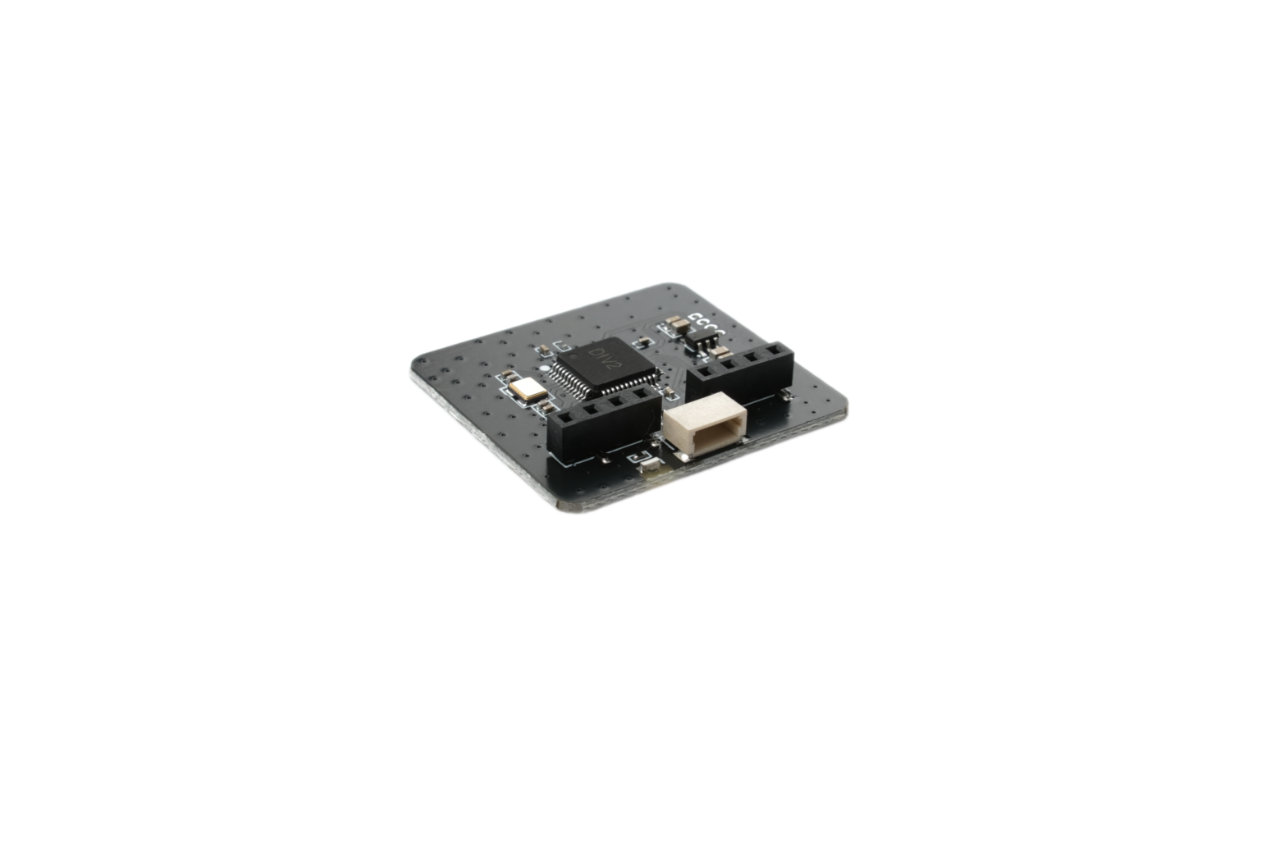

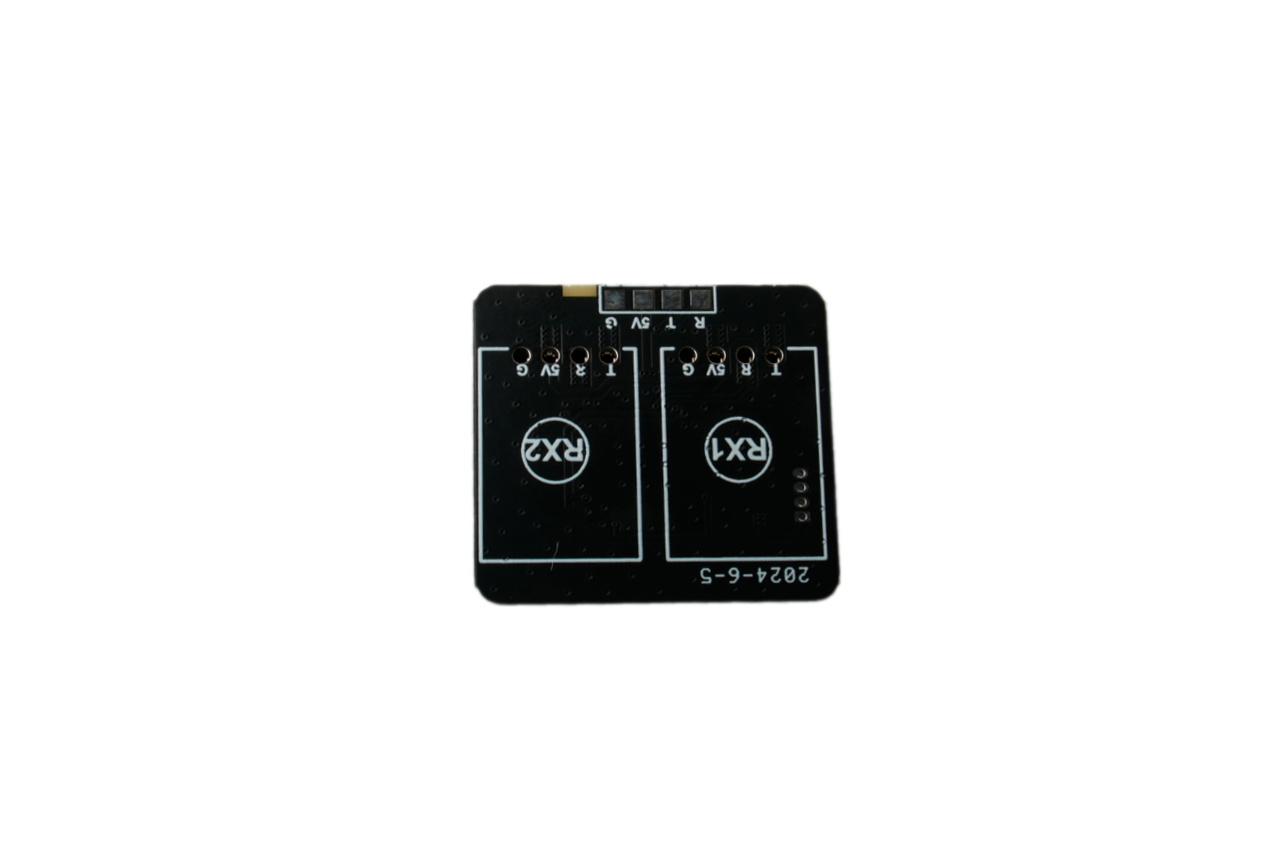

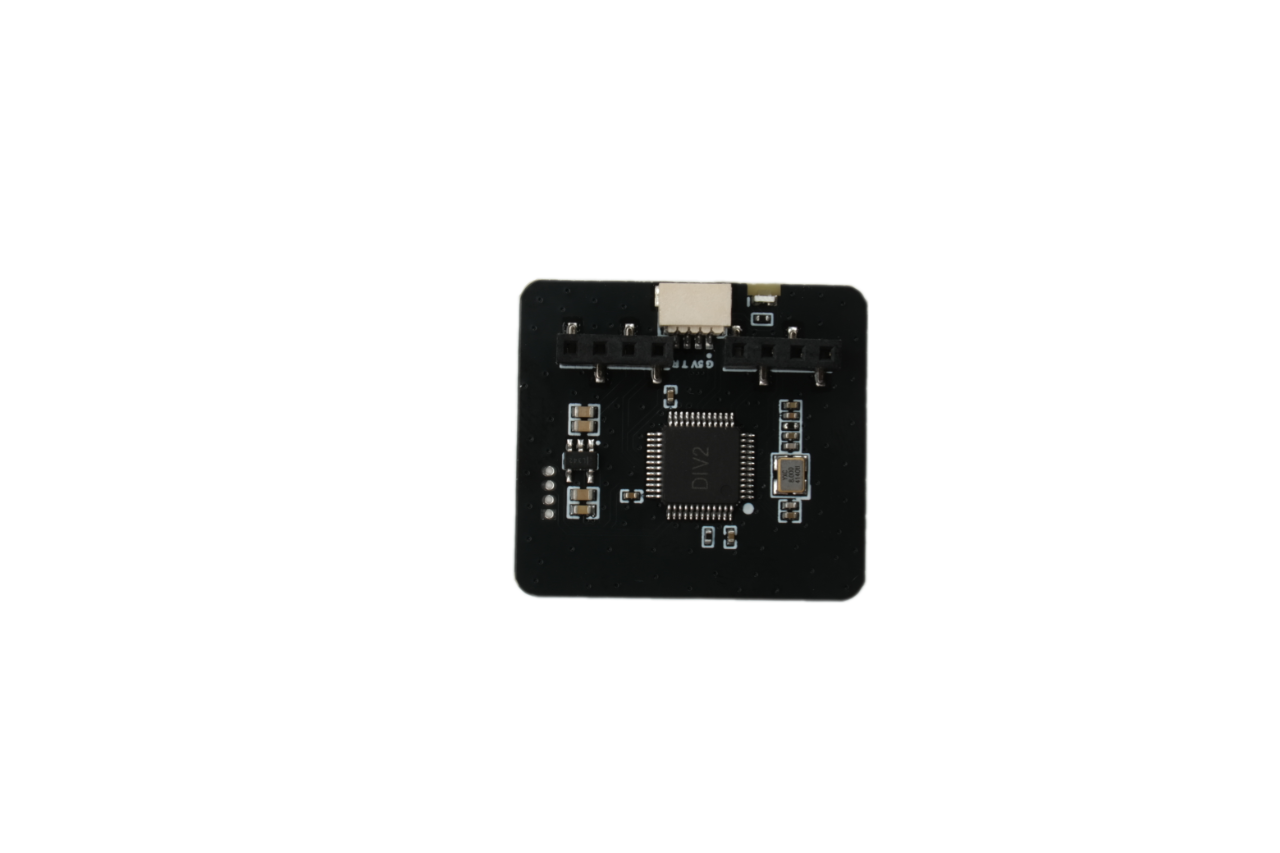

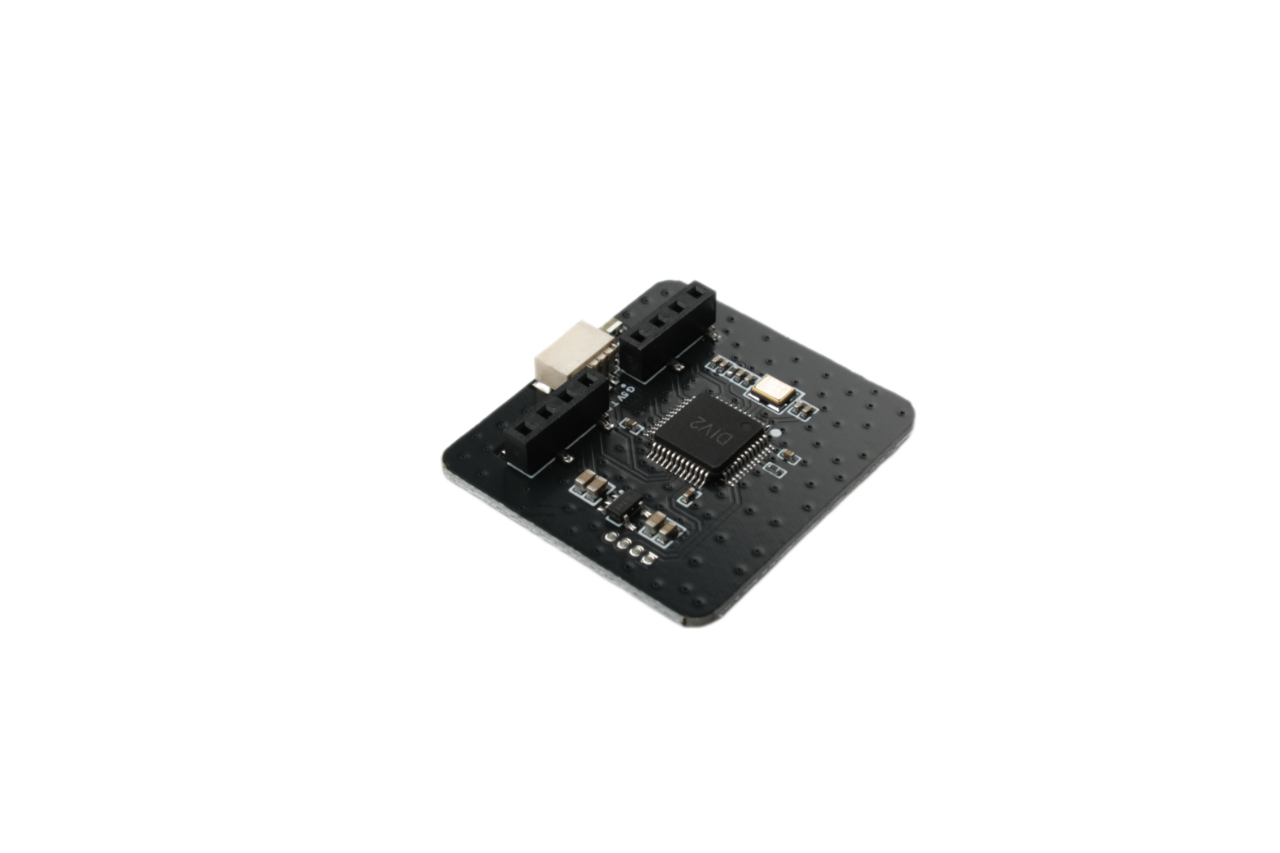

True Diversity RX Adapter Pilotix (1 pc)

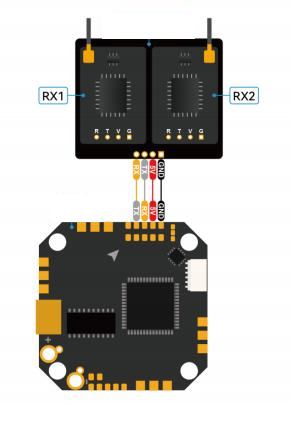

This adapter allows the installation of two different receivers to achieve a redundant function and the integration of two frequency combinations, for example ELRS 2.4 GHz and ELRS 868 MHz, into one diversity RX. This configuration provides improved communication capabilities and extends flight range. It is designed for easy installation and convenient soldering with Nano receivers.
Main features:
-
Redundant features:
- Connecting two separate receivers increases signal reliability and reduces the risk of signal loss.
-
Integration of frequencies:
- Supports two frequency combinations, which improves the clarity and stability of the signal.
-
Current transmission:
- Transmits signals from the remote control to each receiver simultaneously and integrates telemetry signals from different channels into the remote control.
Advantages:
-
Improved communication skills:
- The combination of two receivers and different frequencies maximizes communication reliability, making your drone more durable in different environments and conditions.
-
Flight range extension:
- Improved signal strength and reliability can lead to a longer operational range, allowing you to fly further while maintaining control and acquiring telemetry data.
-
Convenient installation:
- The adapter is designed for easy installation and soldering with Nano receivers, which is accessible even for less experienced users of drone electronics.
The package contains:
- 1x Receiver Diversity Adapter
Note:
- Receivers are not included in the package. Compatible receivers must be purchased and connected separately.
