Transmitter Diversity Adapter Pilotix (2pcs)
Transmitter Diversity Adapter Pilotix (2pcs)
Brand: Pilotix
Regular price
€42,00
Regular price
€42,00
Sale price
€42,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

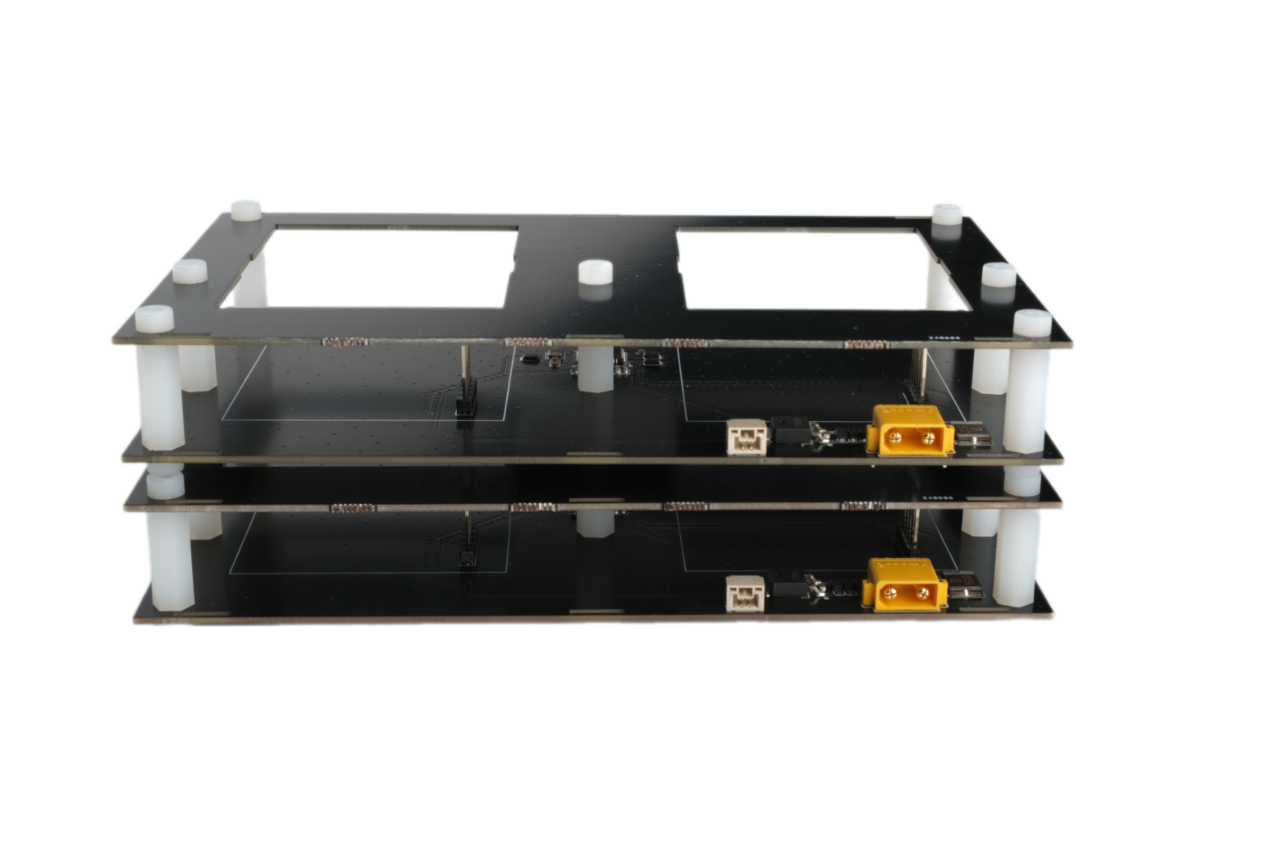

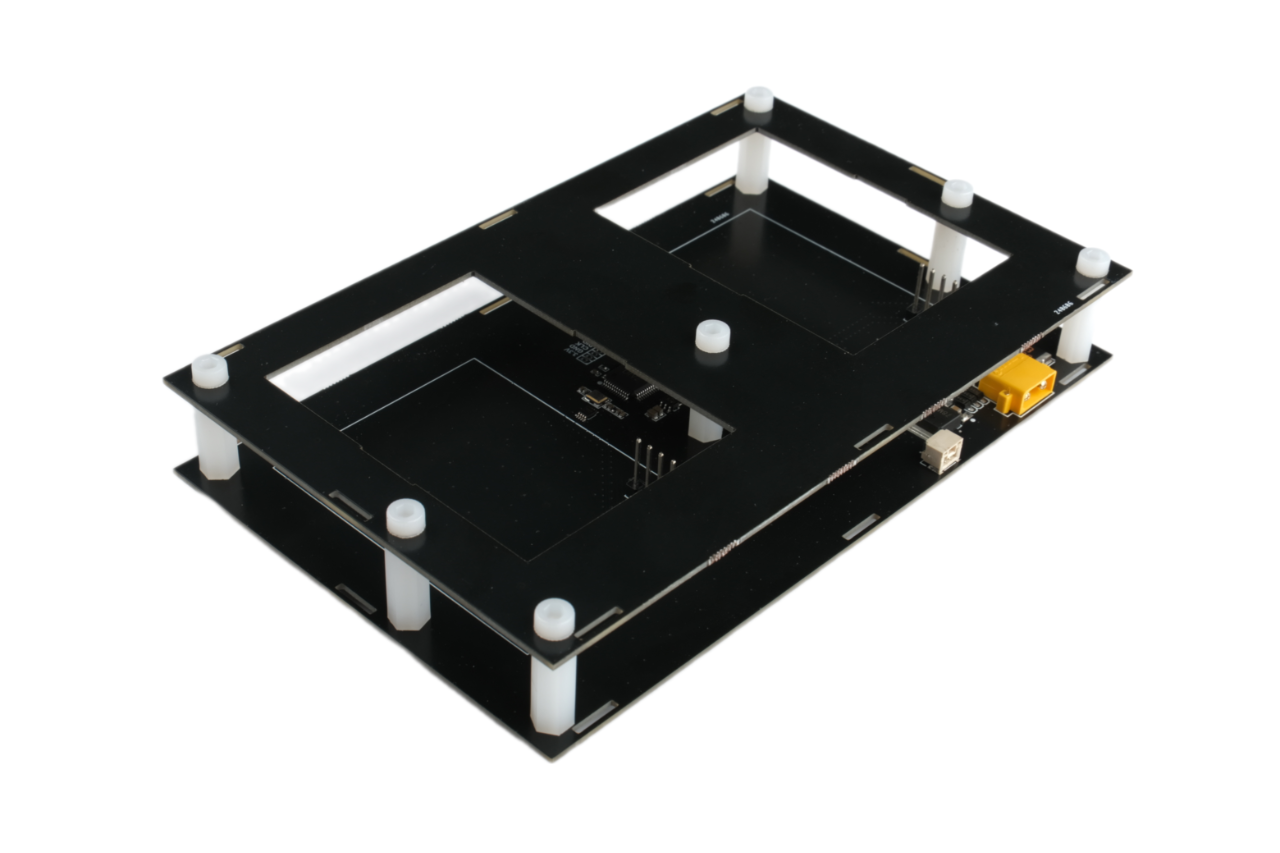

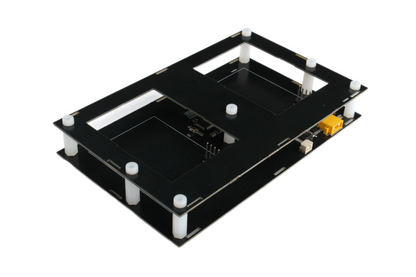

Transmitter Diversity Adapter Pilotix (2pcs)
The Pilotix Transmitter Diversity Adapter (2 pcs) is an advanced accessory designed to improve the reliability and range of your drone's communication system. It allows the installation of two different JR modules with different frequencies (eg ELRS 2.4 GHz and TBS or ELRS 868 MHz and FrSky), which provides a more robust control system and minimizes the risk of signal loss and interference.
Key features:
- Dual module support: Compatible with two JR modules of different frequencies, allowing adaptation to different receivers.
- Redundant operation: Provides a backup communication channel in case of problems with one frequency, ensuring continued stable control.
- Simultaneous signal transmission: Transmits control signals to both modules simultaneously, enabling real-time control and integration of telemetry data from multiple channels.
- Easy Integration: Designed for easy installation and compatibility with most remote controls that use JR modules.

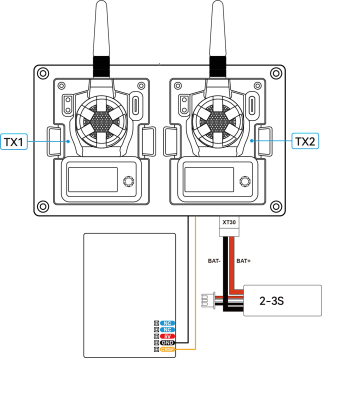

Tips for use:
- External RF Mode: Make sure your remote is configured in this mode.
- Baud Rate Adjustment: Set the baud rate of the CRSF serial port on the remote controller to 921K.
- Telemetry Scale: Configure both transmitters to have the same telemetry scale, 1:64 is recommended.
- Packet Rate: Keep the packet rate of both transmitters on the adapter below 250Hz.
Technical specifications:
- Input voltage range: 6-35V
- Recommended batteries: 2-3S
The package contains:

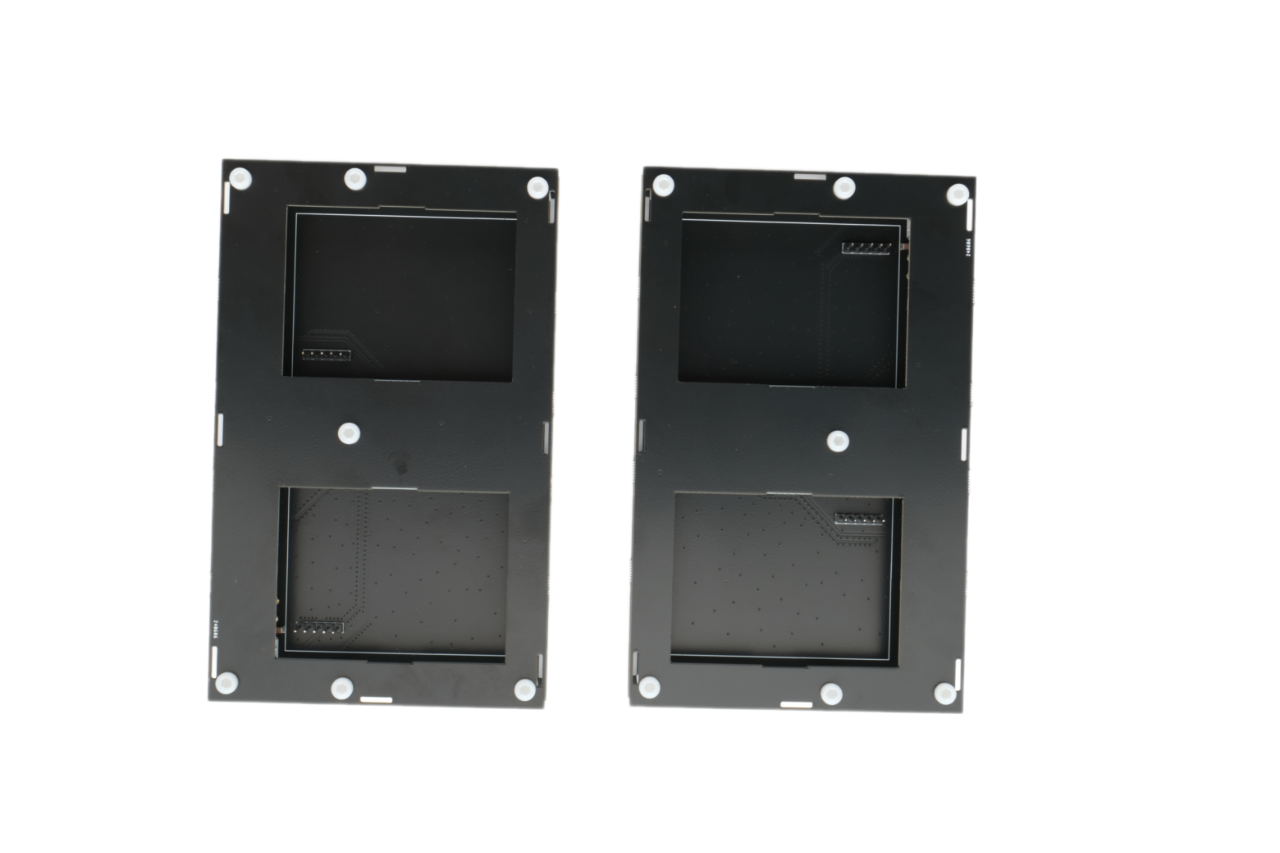

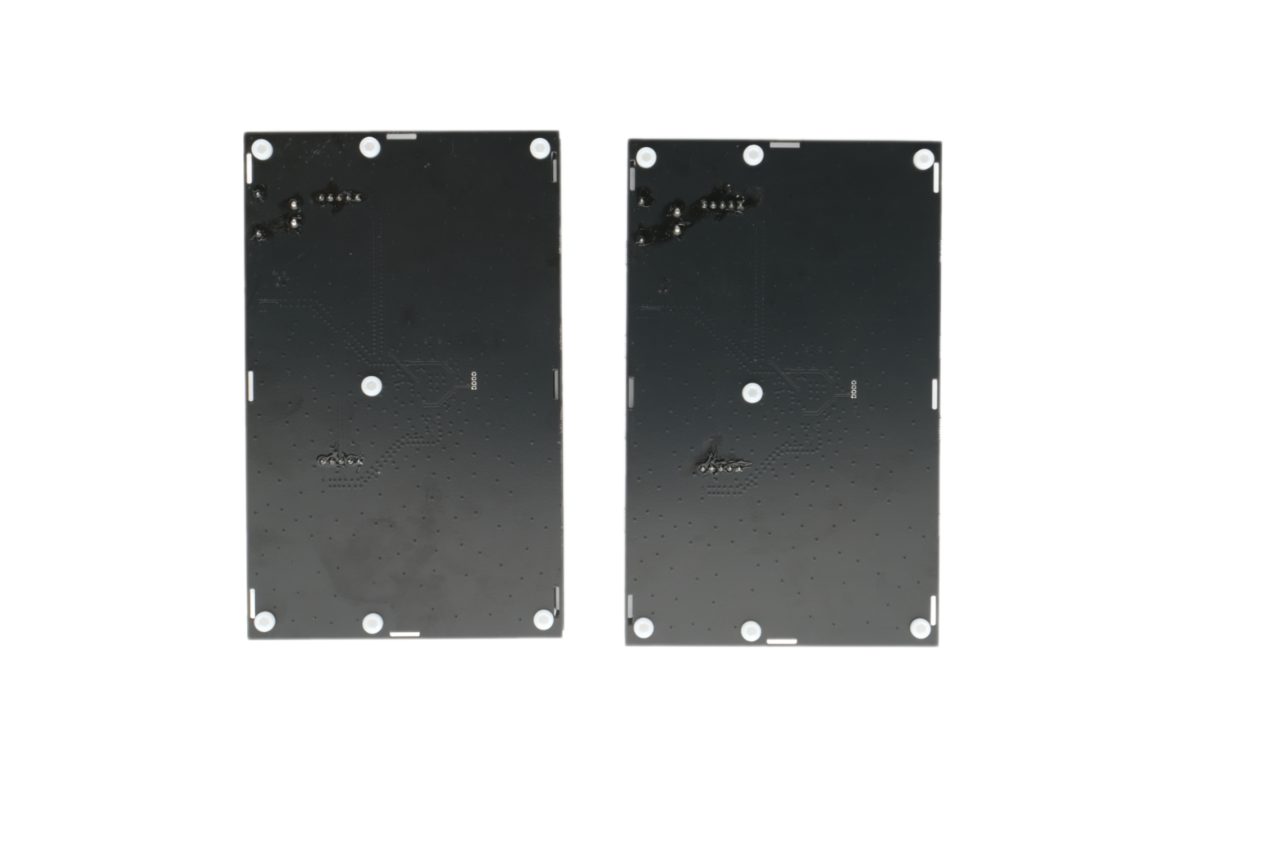

- 2x adapter for the diversity of transmitters (JR modules are not included in the package)
