Transceiver Pilotix For Optic Fiber Module SE 20km
Transceiver Pilotix For Optic Fiber Module SE 20km
Brand: Pilotix
Couldn't load pickup availability
- Description
- Related Files
- Discussion

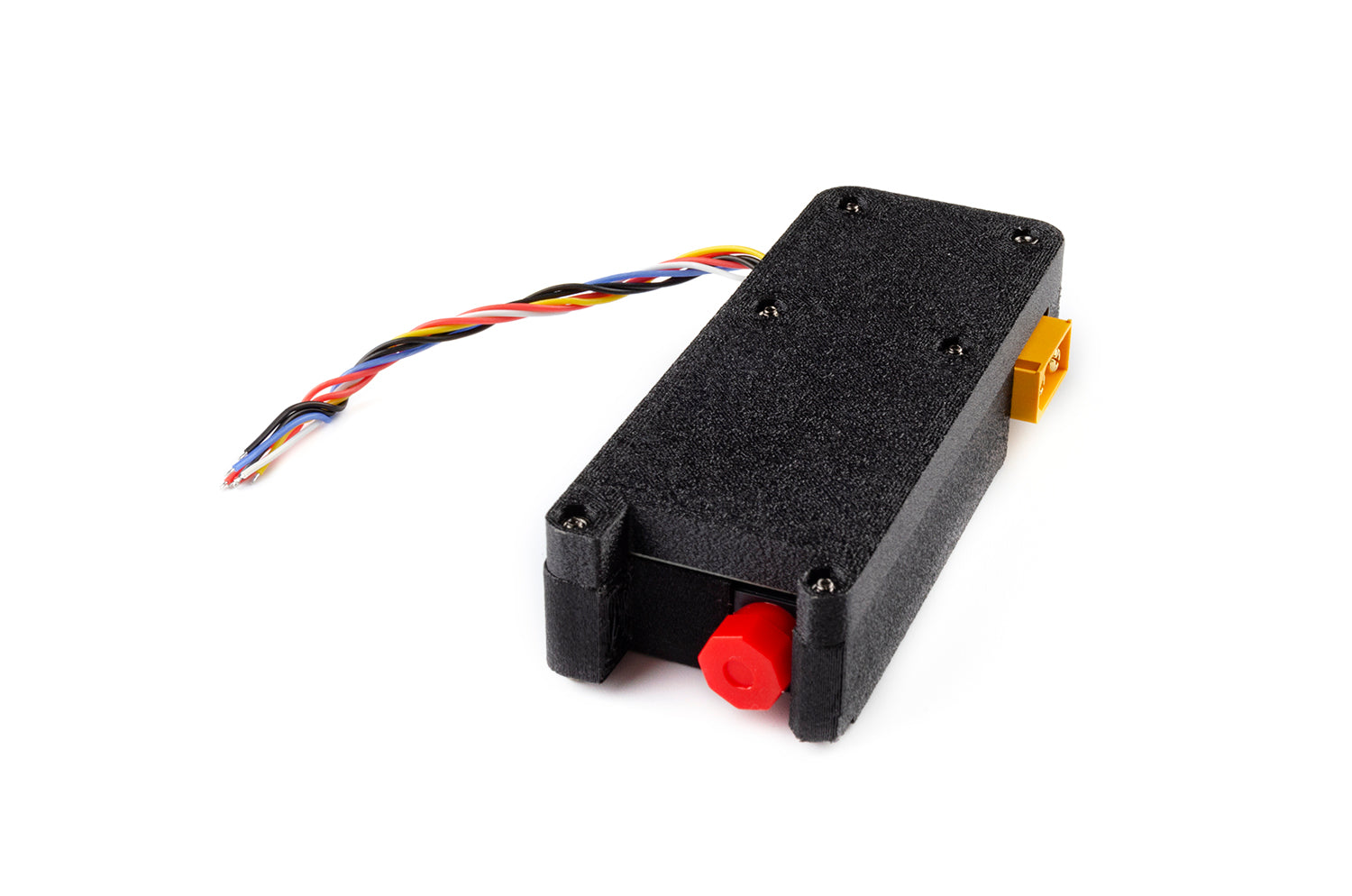

Pilotix Transceiver for SE Optical Module (20km)
The Pilotix SE transceiver is a ground station unit designed for seamless cooperation with the Pilotix optical communication system. It ensures stable, high-speed data transmission for drones, underwater ROVs and land-based robotic systems, even in the absence of radio communication.
This transceiver features a single-mode fiber optic interface and supports bidirectional data transmission, making it ideal for applications that require low latency, high security, and interference-free connectivity.
Features:
- Reliable connection without interference.
- High-speed data transfer. Supports TTL/SBUS formats with speeds up to 1 Mb/s.
- Works with NTSC, PAL and SECAM video formats.
- Compact and lightweight design. Ideal for mobile and fixed installations.
- Extended transmission distance up to 20 km.
Important notes:
- For reliable communication at a distance of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, a transceiver with a range of 40 km is recommended.
- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or assume responsibility for correct operation when using devices from other series.
Specifications:
Optical fiber module
Device name: SE ground end
Power mode: 5.5V~26V
Body size: 96x37x23mm
Body weight: 54±2g

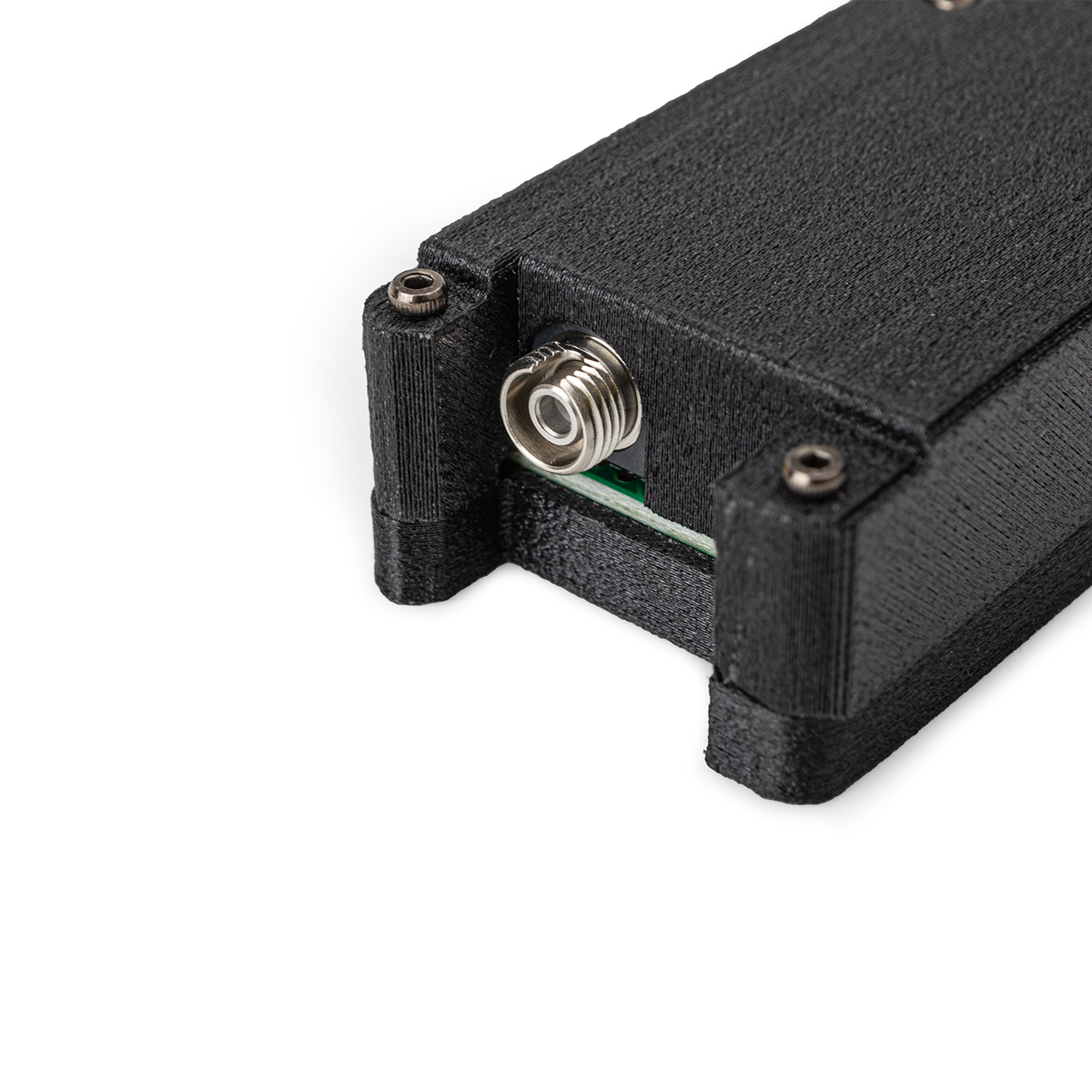

Optical Fiber Interface: FC Interface
Fiber Type: Single Mode Fiber

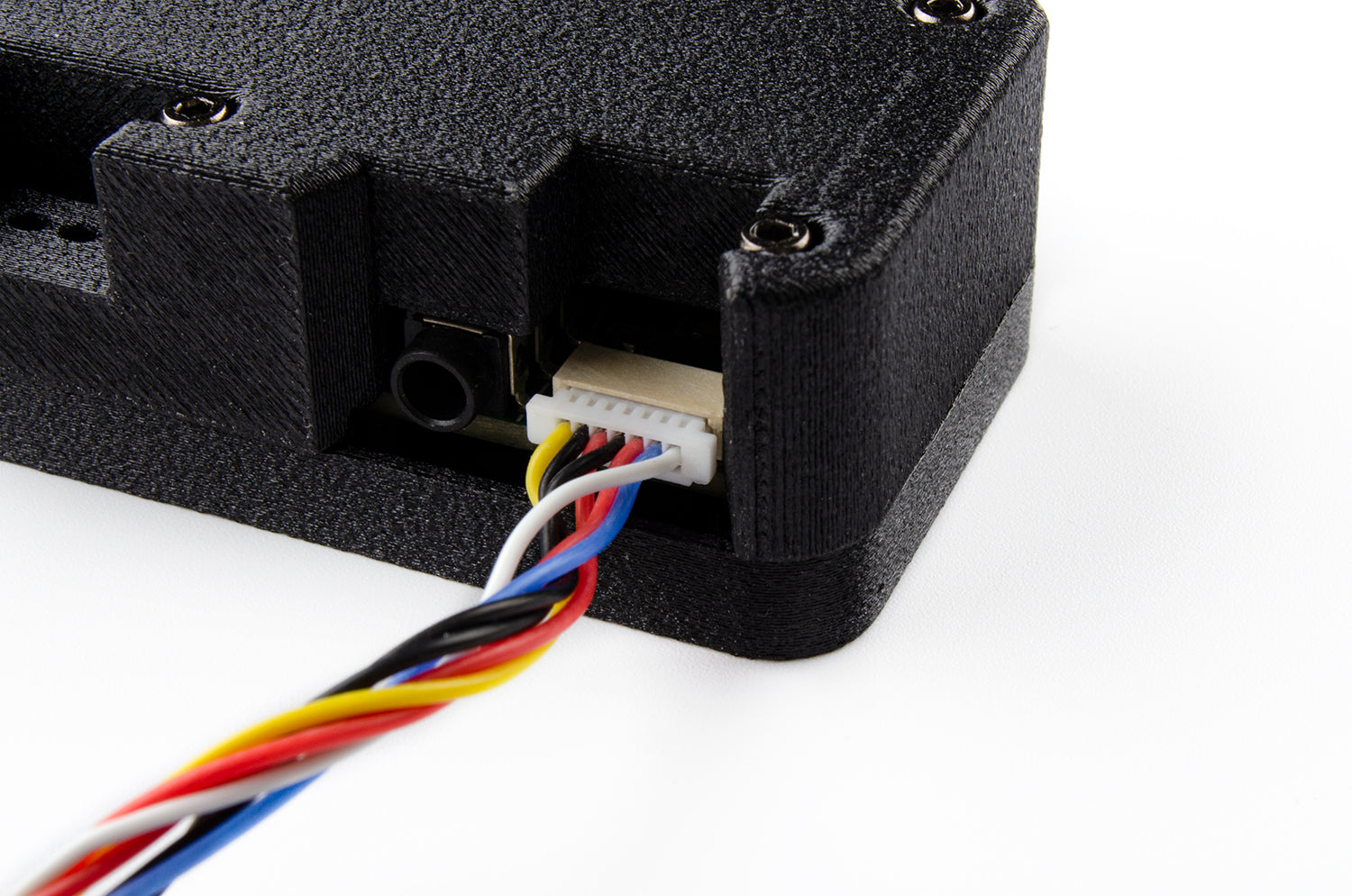

Data Interface: SH1.0
Video Format: NTSC/PAL/SECAM
Data Direction: Bidirectional
Data Format: Bidirectional: TTL/SBUS
Speed: 0~1Mbps
Single Mode Wavelength: 1310 (9/125μm) +1550
Transmission distance: single-mode fiber up to 20 km

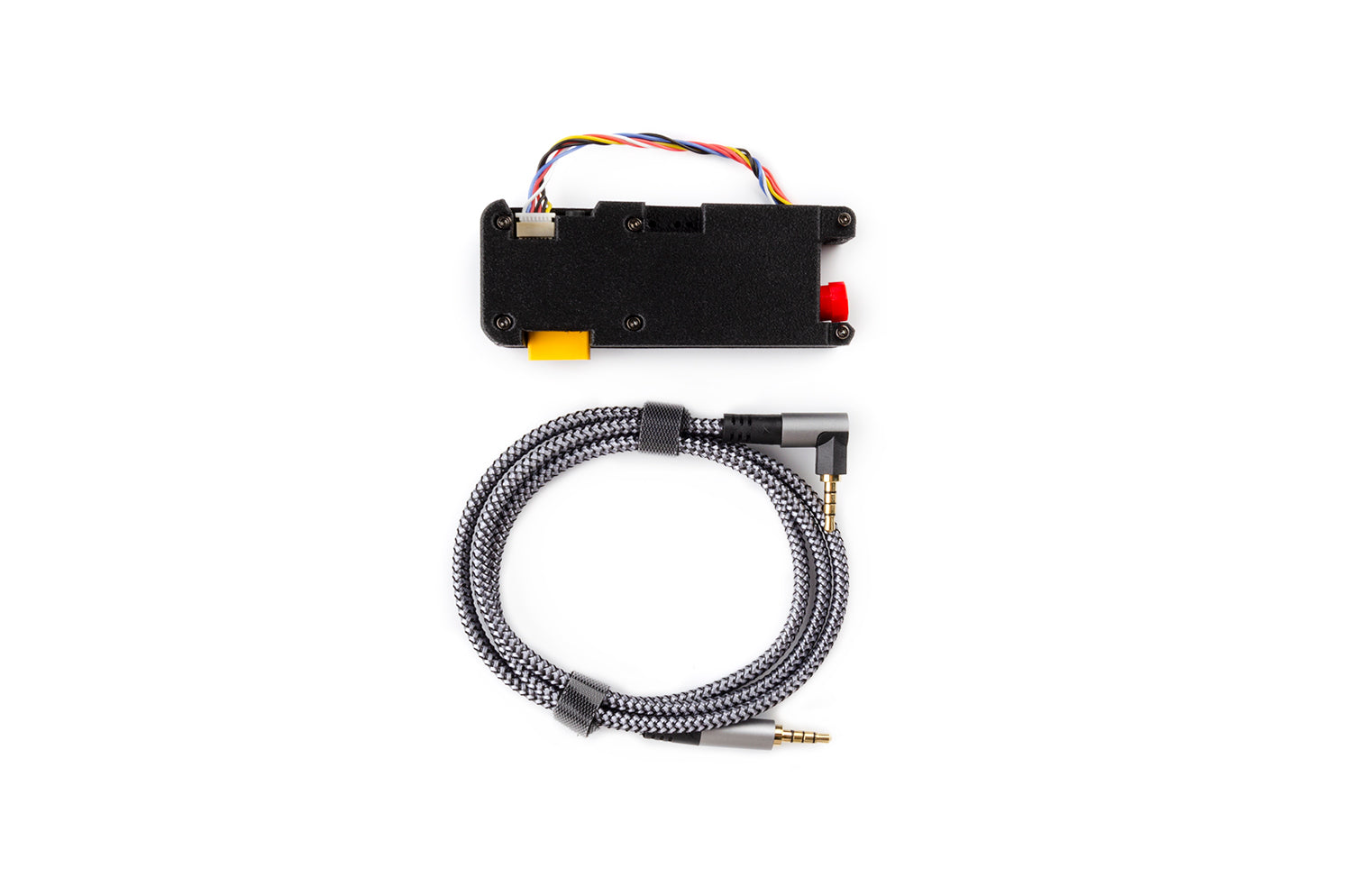

Package includes:
1x transceiver for optical fiber module SE (20 km)
