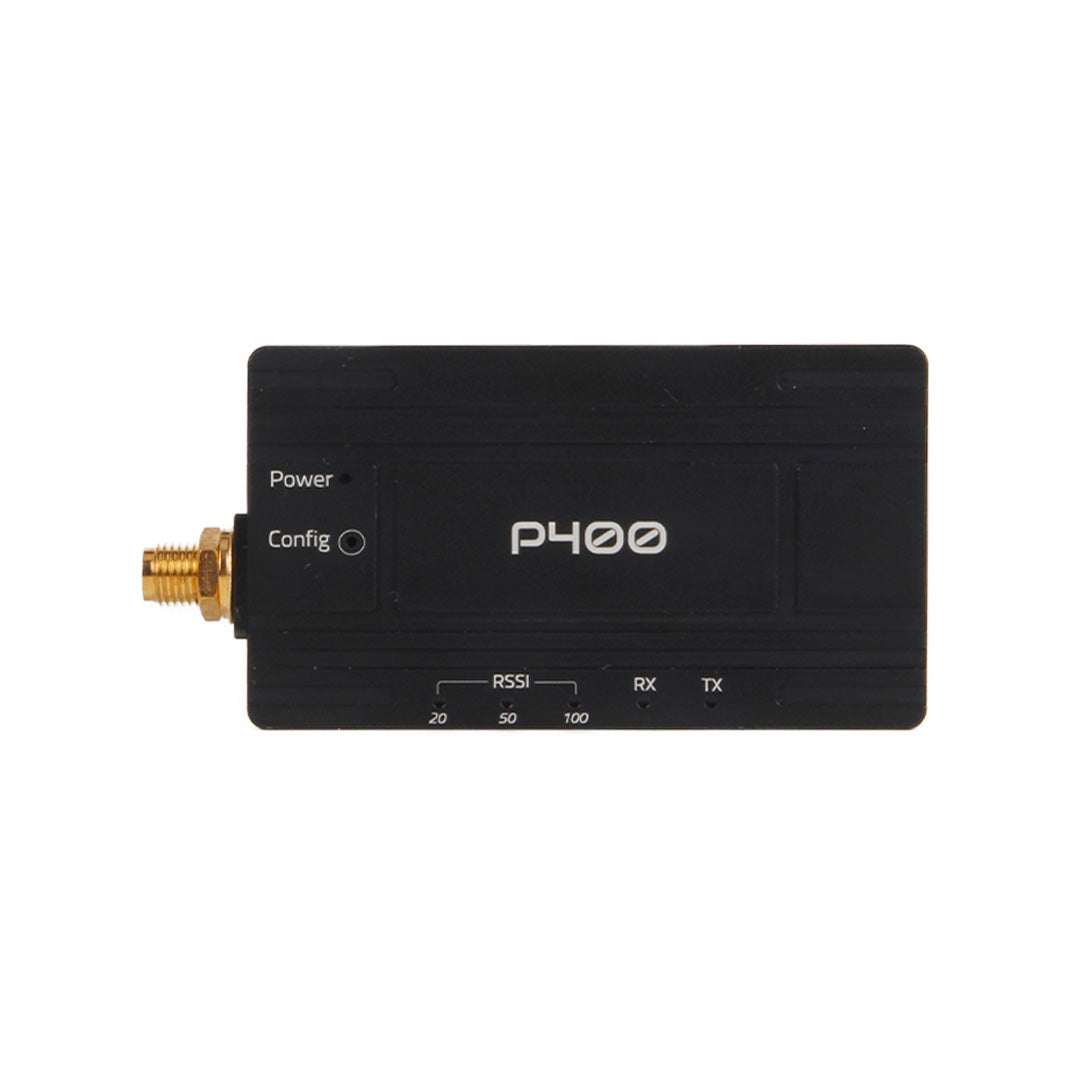

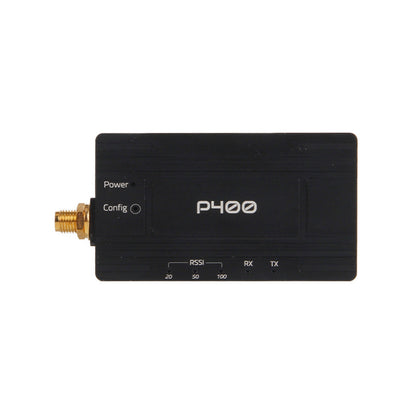

    Holybro MicroHard P400 telemetry radio

The Holybro Microhard Telemetry Radio integrates the Pico series microhard RF module, which is capable of providing high-performance wireless serial communication in robust topologies such as Point to Point, Point to Multipoint.

Features:

- USB Type-C port, integrated USB to UART converter.
- JST-GH 6-position connector, can be directly connected to the TELEM port on various flight control units.
- High voltage BEC on board, support DC7~35V power supply
- UART transfer LED indicator
- Three-stage RSSI LED indicator
- Broadcasting in the public, unlicensed band of the radio spectrum
- Transparent connection with low latency and speed up to 276 kb/s (P900) and 345 kb/s (P860 and P400).
- Support for robust true Mesh operation with automatic routing (P900 only)
- 32-bit CRC, optional retransmission and forward error correction
- Separate diagnostic port, transparent remote diagnostics and online network management

Specifications:

- Frequency range: 410 to 480 MHz
- Transmission power (software adjustable): 410 to 410 MHz: 100mW to 1W (20-30dBm)
- Connection speed: Up to 345 kb/s
- Serial transmission rate: 300 bps to 230 kbps
- Range: Up to 60 miles (100 km) at 19.2 kbps
- Propagation method: Frequency hopping, GMSK, 2GFSK, 4GFSK, QPSK.
- Operating modes: Point-to-point, point-to-multipoint, store-and-forward repeater, peer-to-peer
- Input voltage: DC7~35V (4-position JST-GH)
- Power Consumption: Sleep < 1mA / Idle 20mA / Rx: 45mA to 98mA / Tx Peak: 2A
- Error detection: 32 bits CRC, ARQ
- Weight: 44 g (without antenna), 67 g (with antenna)

The package contains:

- 1x Microhard P840/P900/P400 radio
- 1x antenna
- 1x XT30 power cable
- 1x GH 6P to 6P cable
- 1x metal pin
