Surface Radio Controller Radiomaster MT12 ELRS + ER3C-I
Surface Radio Controller Radiomaster MT12 ELRS + ER3C-I
Brand: Radiomaster
Regular price
€120,40
Regular price
€120,40
Sale price
€120,40
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

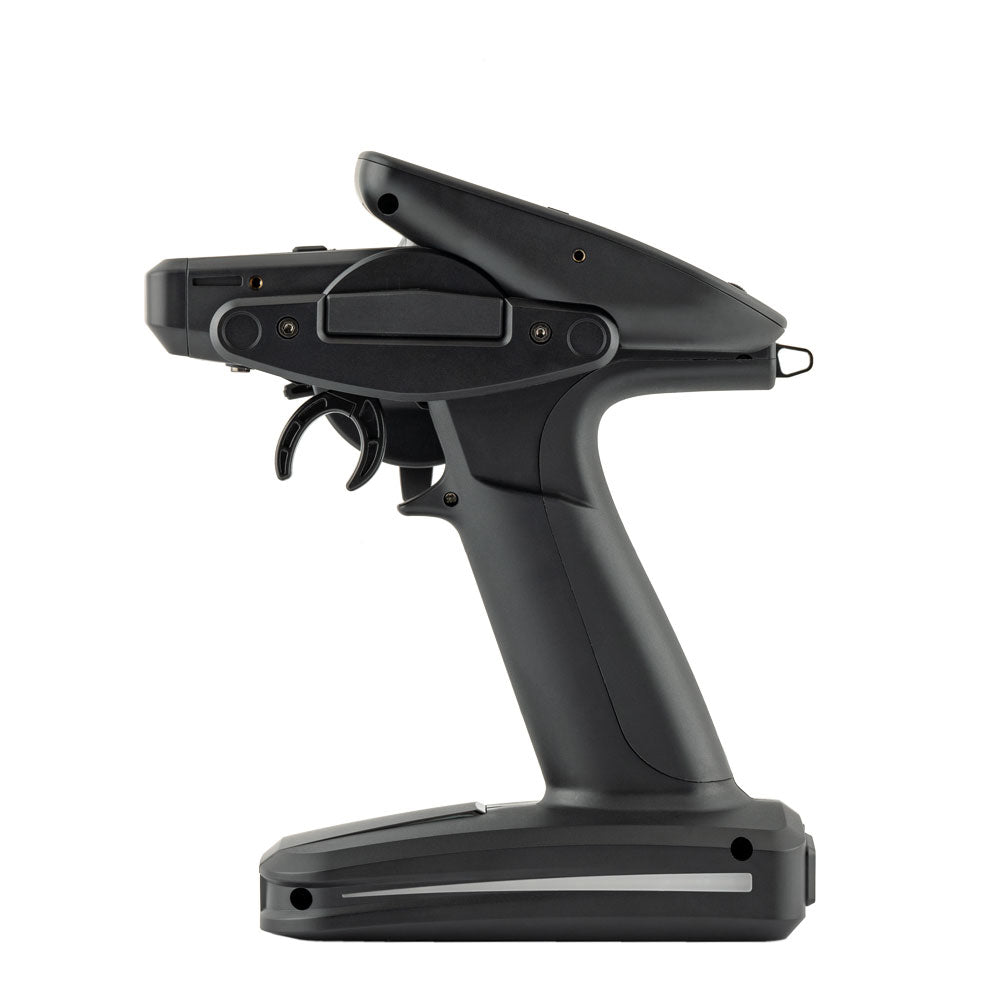

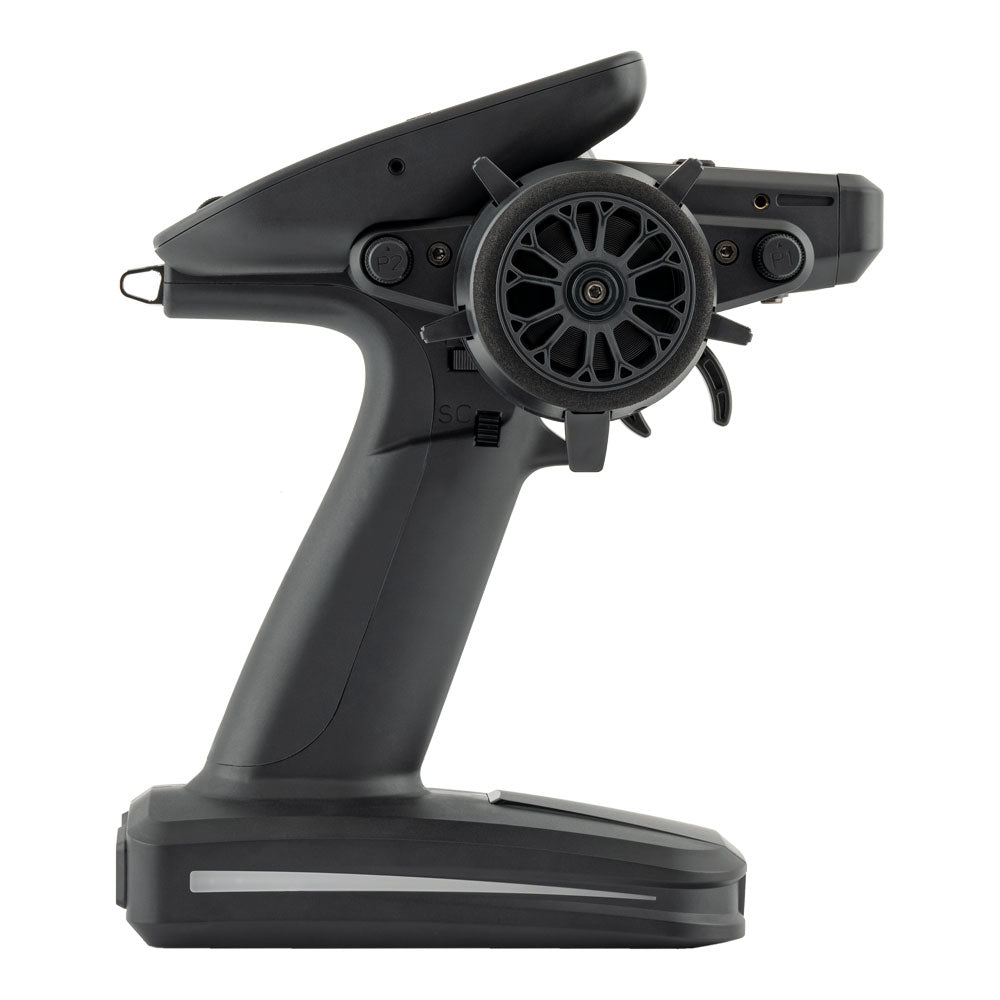

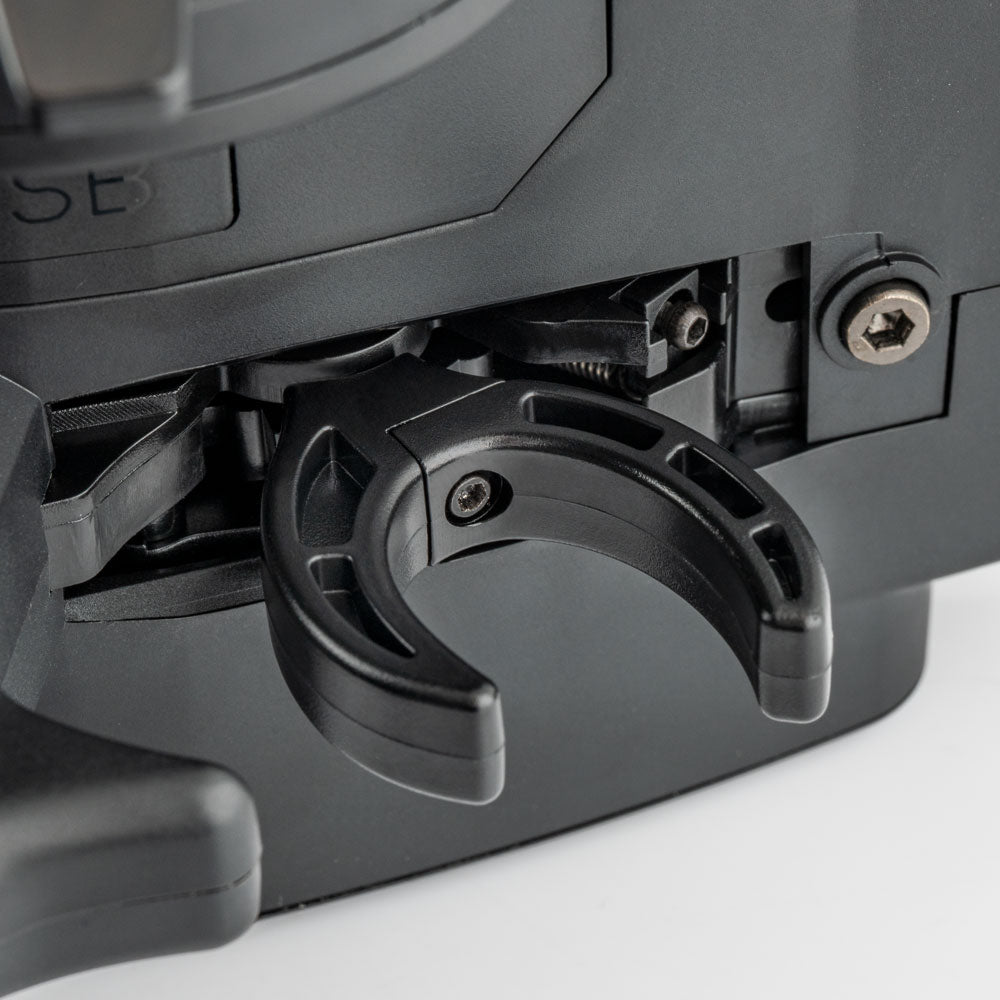

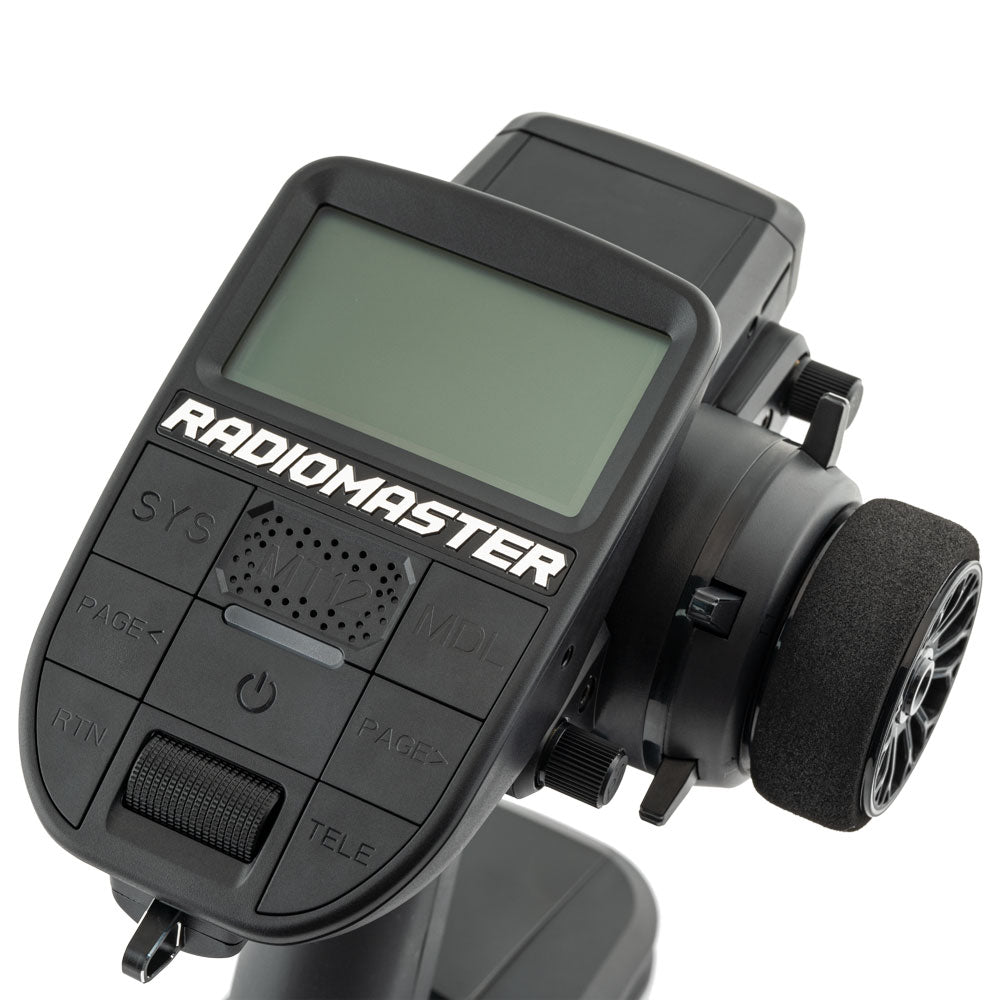

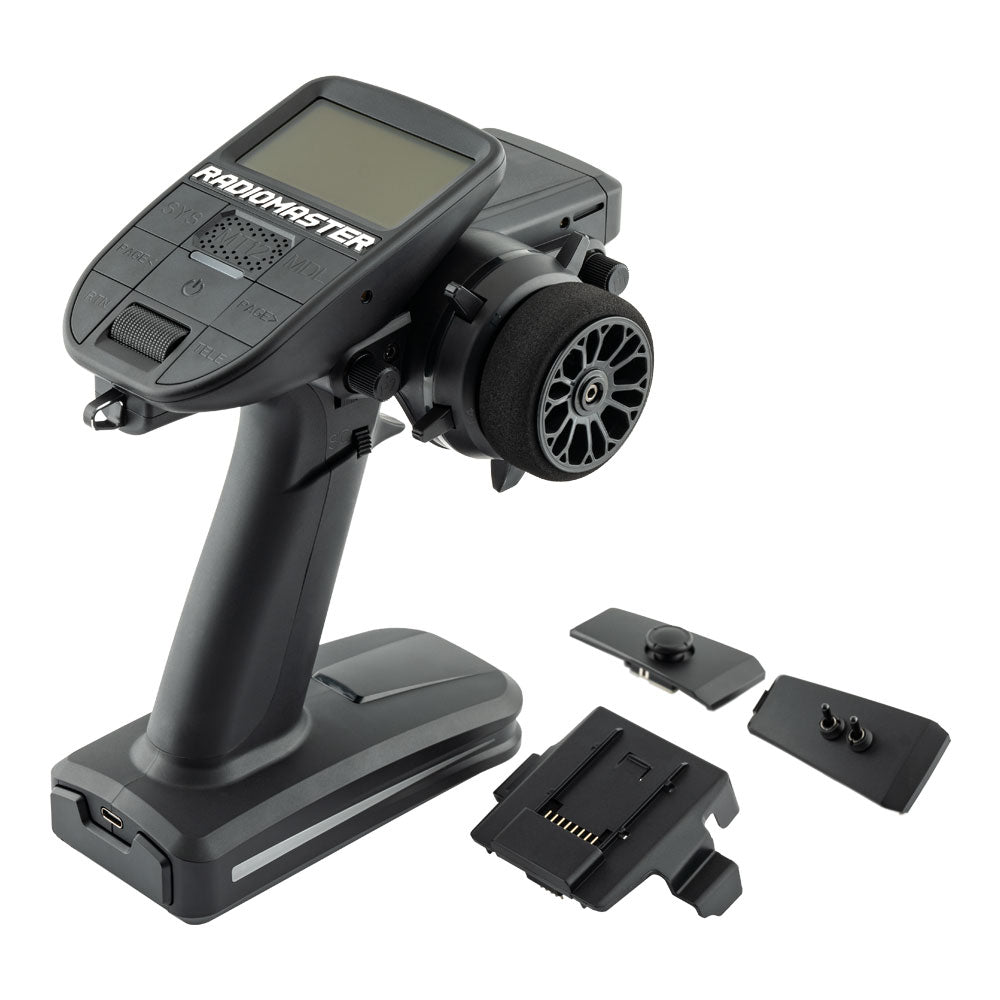

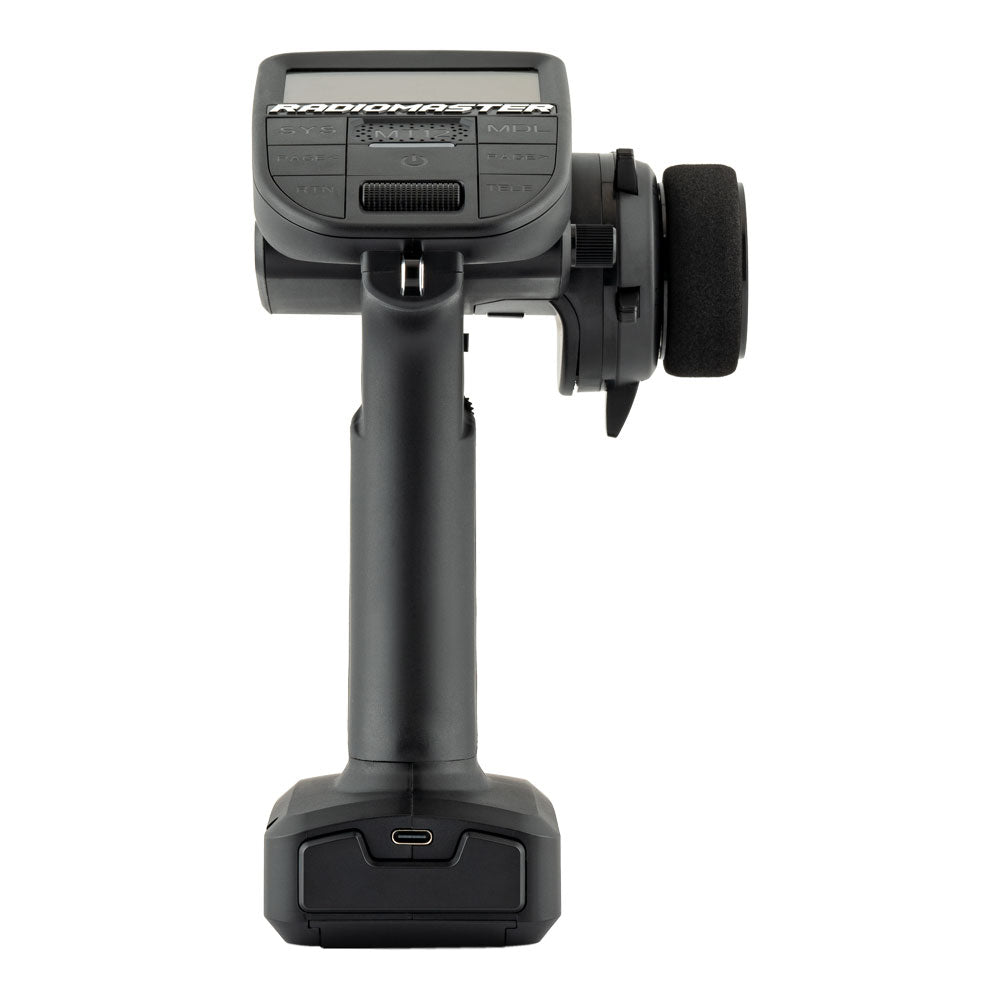

Radiomaster MT12 ELRS surface radio controller + ER3C-I The RadioMaster MT12 is a pioneering open source surface radio and the first surface radio officially supported by EdgeTX, ExpressLRS and the Multi-module project. Boasting 10 physical inputs and the ability to work with 16 or 32 channels*, the MT12 radio is ready for a wide range of surface models, from cars and trucks to boats and more. With extensive customization options and a versatile operating system, the MT12 stands out as a highly configurable surface radio, ready to excel in virtually any scenario. Features: - Available with built-in ExpressLRS backpack or 4in1 MPM RF modules. - With a powerful STM32F407VGT6 with 1MB of Flash memory - Pre-installed EdgeTX firmware - Quick charge QC3.0 with 2.0A MAX support - Compact design with excellent ergonomics - Oversized battery compartment - 2 x 18650 cells or 2s 7.4V 5000mah batteries (batteries not included) - Standard slot for Nano module - Standardized RadioMaster button layout - Rotating antenna - Customizable base switches or 4-way joystick included Specifications: - Dimensions: 177.8*118.4*207.8 mm - Weight: 480 grams - Operating frequency: 2.400 GHz-2.480 GHz - Internal RF options: Multi-protocol interface 4 in 1 / ELRS 2.4 GHz - Supported protocols: Depends on the module - Operating current: 160mA for 4in1 / 320mA for ELRS - Operating voltage: DC 6.6-8.4 V - Operating system: EdgeTX - Control channels: 16 as standard, expandable to 32 channels (4in1 only) - Display: Monochrome LCD display 128*64 - Battery: 2 x 18650 cells or 2s 7.4V 5000mah batteries (batteries not included). - Charging: Built-in charging via USB-C - Firmware update method: Via USB or SD card - Wheel and trigger sensor: Hall effect - Module tray: (RadioMaster Ranger Nano module / RadioMaster RM 4in1 module / TBS Crossfire Nano module). ER3C-i Specifications: - Power supply: DC 4.5 - 8.4 V - Antenna type: Built-in highly sensitive ceramic antenna - Wireless protocol: ExpressLRS 3.3.0 pre-installed - Output channel: 3CH PWM - Telemetry power: 10 mW - Battery voltage detection range: DC 4.0 - 35V - Weight: 4.2 g - Dimensions: 4.5mm: 26.1*18.5*13.0mm - Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i The package contains: - 1 x MT12 Surface Radio ExpressLRS version - 1 x ER3C-i 2.4GHz ELRS PWM receiver - 1 x Expansion module with two switches - 1 x expansion module for 4-way joystick - 1 x Nano adapter - 1 x USB-C cable - 1 x leather cord - 1 x Custom signed RadioMaster carrying case - 1 x 18650 battery tray - 1 x Screen Protector - 1 x stickers - 1 x manual
