Combo kit Sunnysky X4-series
The Sunnysky X4-series combo kit offers a solution for powering high-performance RC models. It features a powerful and efficient X4120 III-550KV motor, a reliable 100A ESC controller for optimal control, and two EOLO 15 x 8 propellers that are designed for smooth and stable flight. Ideal for those looking for a balanced combination of traction and durability.
Specifications:
Engine
- Model / KV: X4120-Ⅲ / KV550
- Number of stator/rotor poles: 12N14P
- Internal resistance: 18.5 mΩ

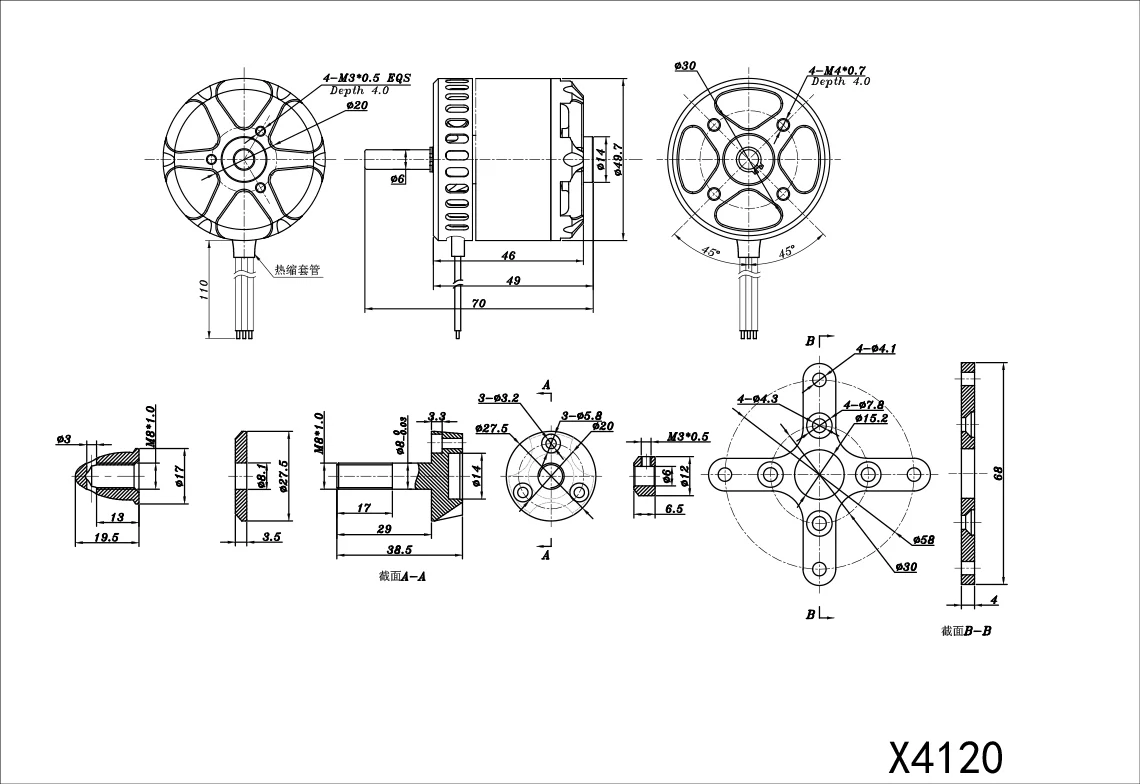

- Motor size: φ49.7*70.0mm
- Shaft diameter: 6.0 mm
- AWG: 20AWG 110mm
- Motor weight (including cables): 293 g
- Operating voltage: 6S
- No load current: 1.9A/10V
- Maximum continuous power: 2500W
- Maximum continuous current: 100A/30s

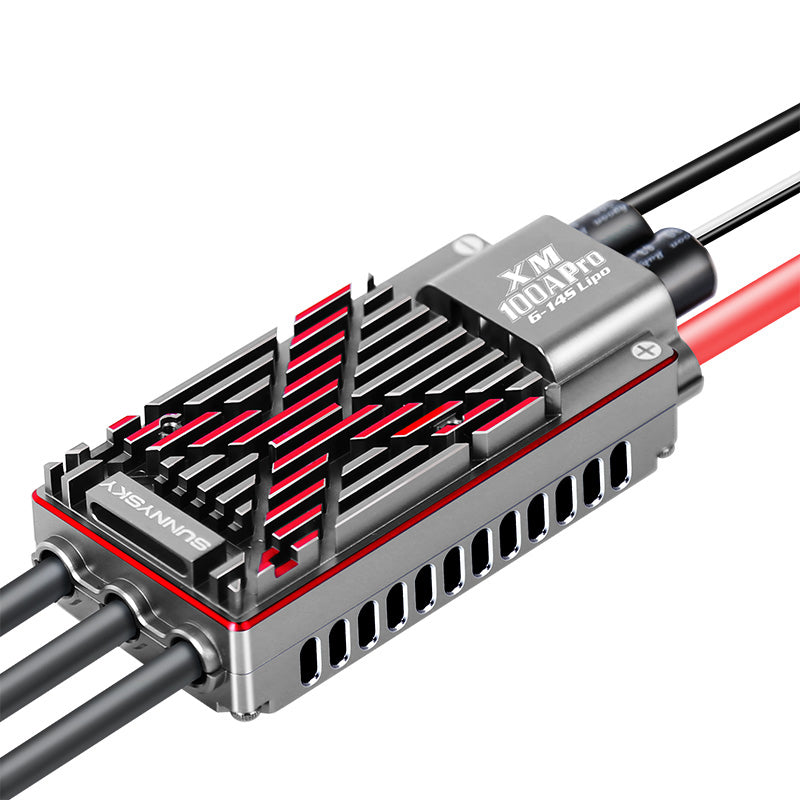

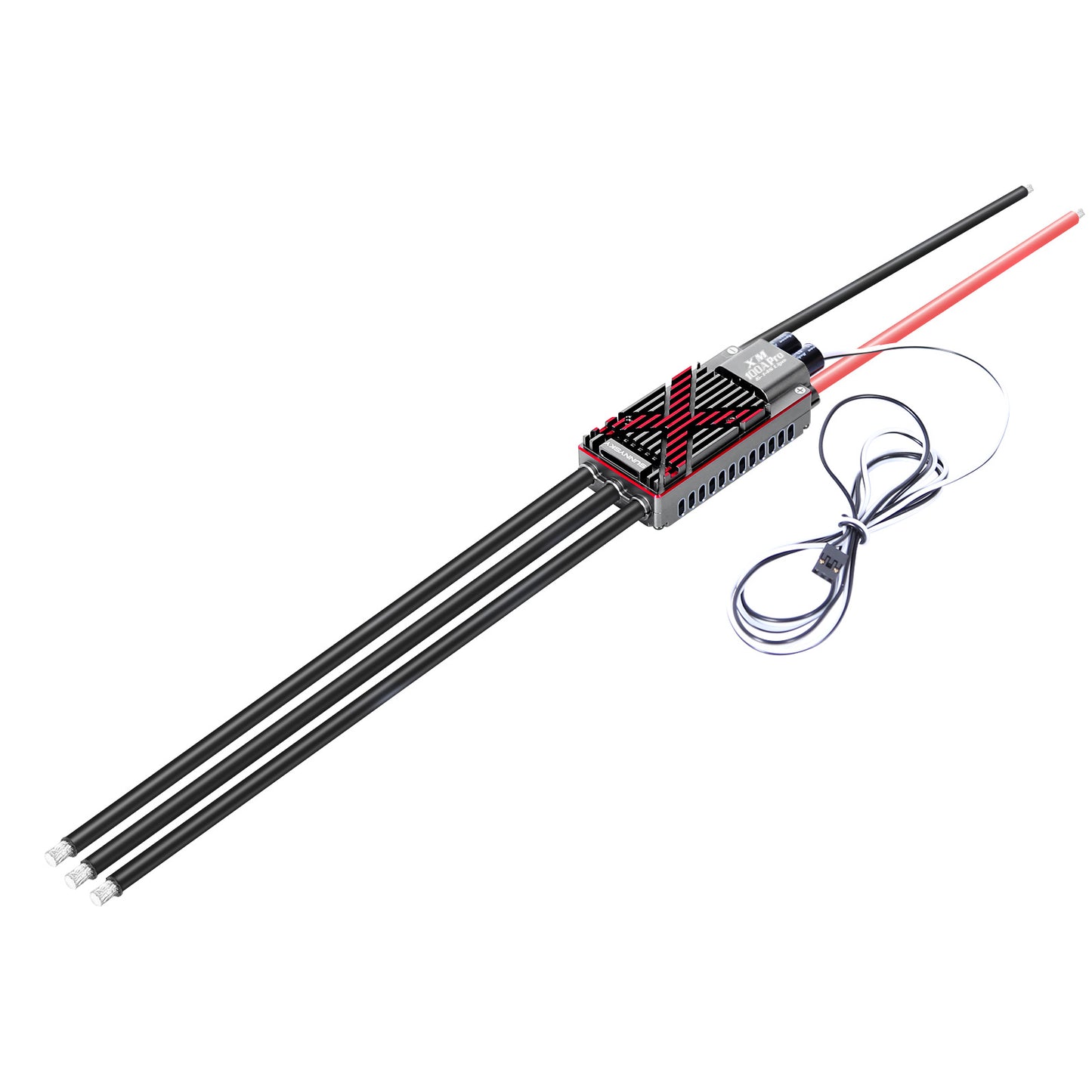

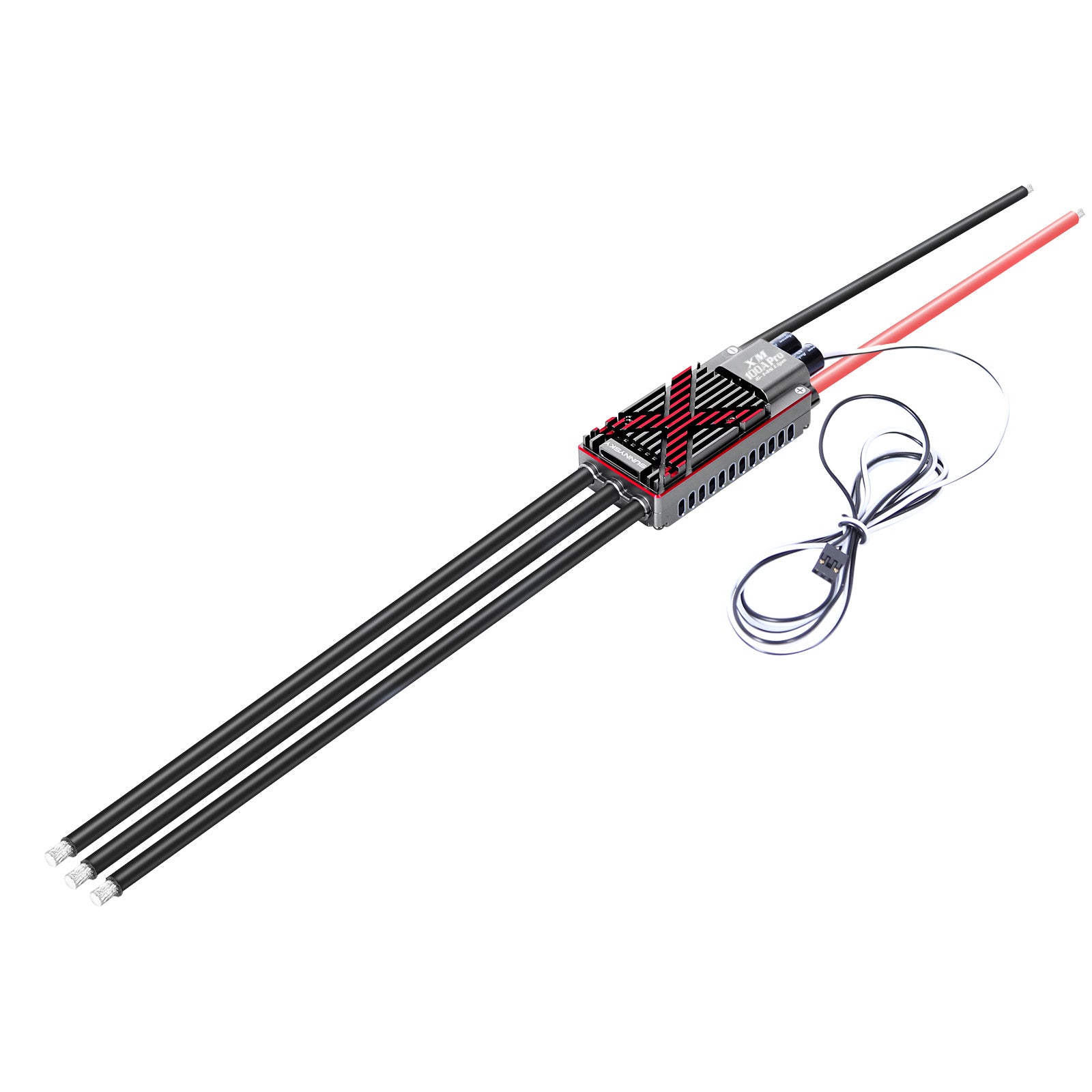

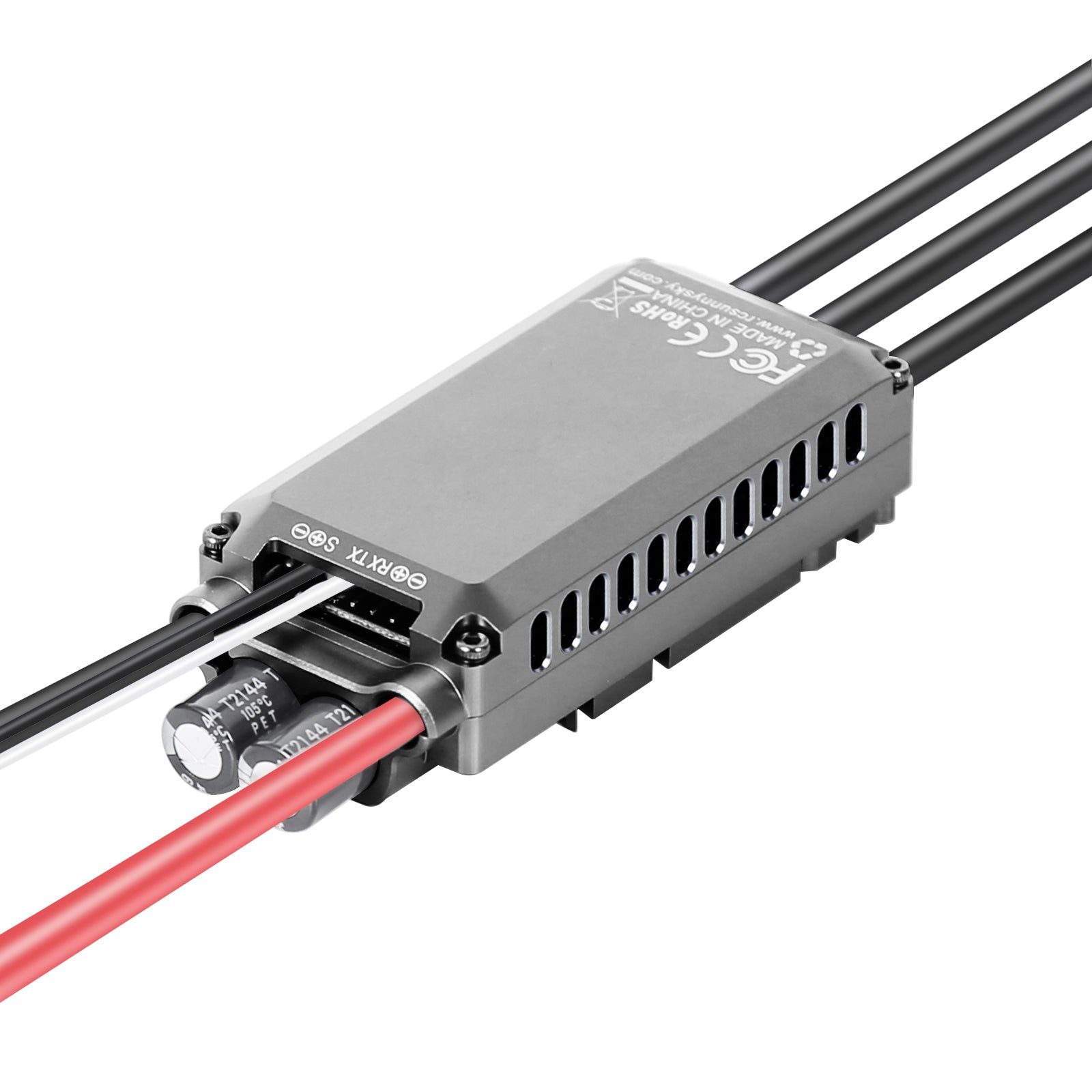

ESC
- Name: 100A HV OPTO
- Continuous output current: 100A
- Peak output current: 120A
- CPU frequency: 170MHz
- Power supply: 6-14S LiPo
- Dimensions: 81x37x22.8mm
- Weight: 144g
- Power Wire Specifications: 12#175mm (Red * 1/Black * 1)
- Motor wire specification: 12#195mm (black * 3)
- Software update option: supported
- Signal wire specification: 60C 1250mm black and white 2 pin JR connector
- Data wire specification (telemetry): 30C 400mm yellow 1-pin JR connector on both sides

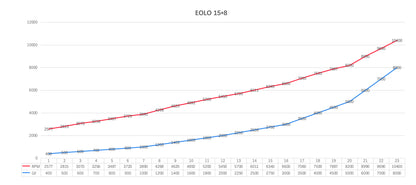

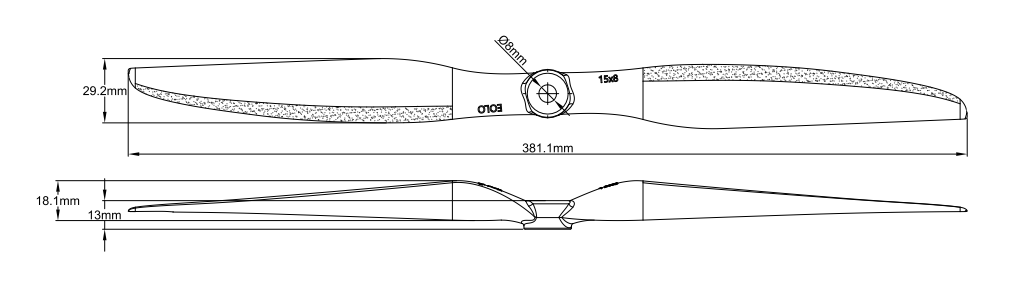

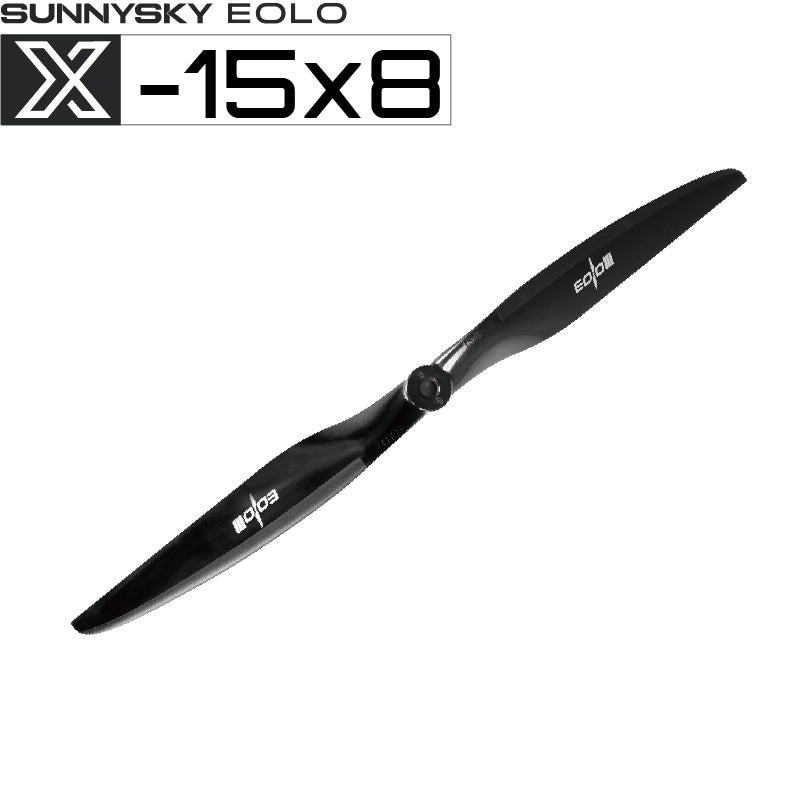

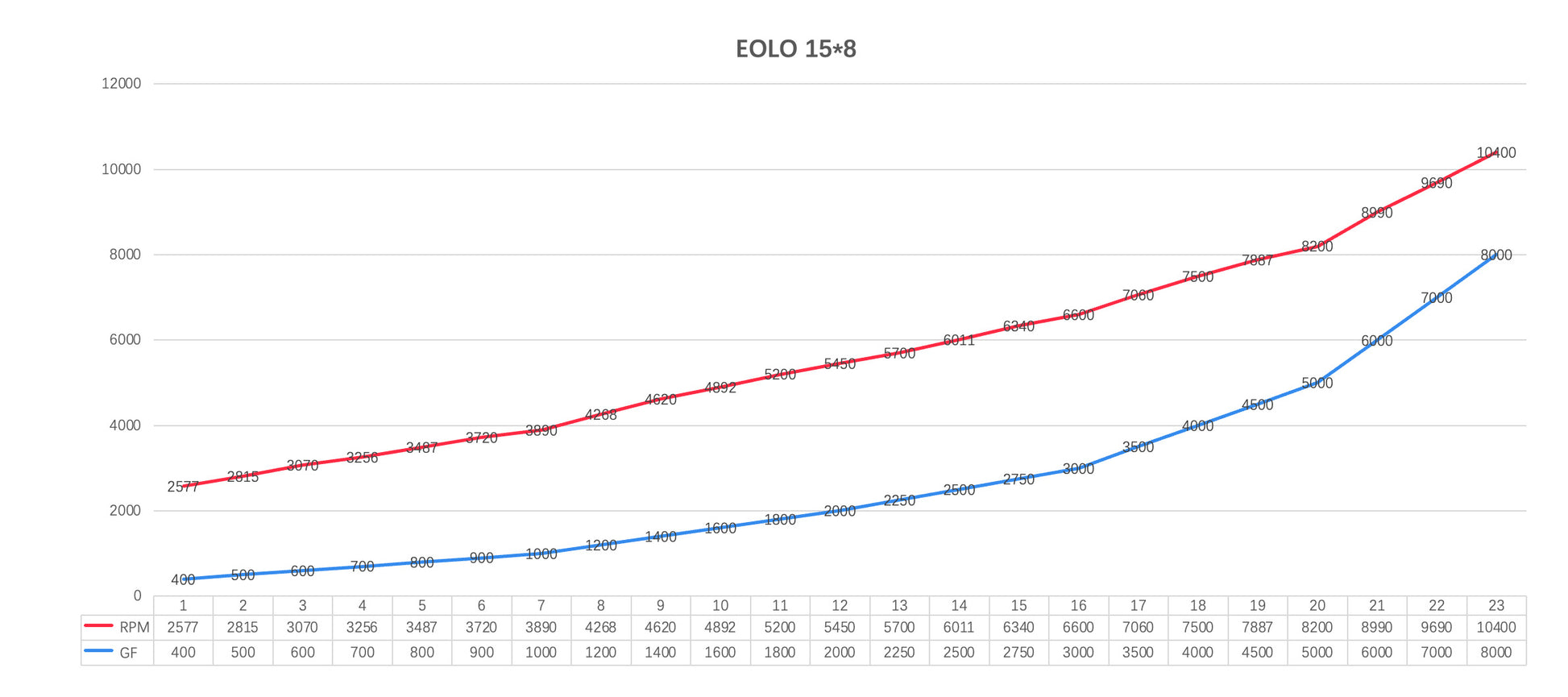

Propellers
- Brand: EOLO/15*8
- Propeller type: Integrated propeller
- Propeller material: Plastic
- Storage temperature: -10℃~50℃
- Storage humidity: <85%
- Propeller specification: 15*8
- Dynamic balance: 4000 rpm ≤15mg
- Weight of one propeller: 40g
- Maximum working speed: 10400 rpm
- Working temperature: -20℃~60℃

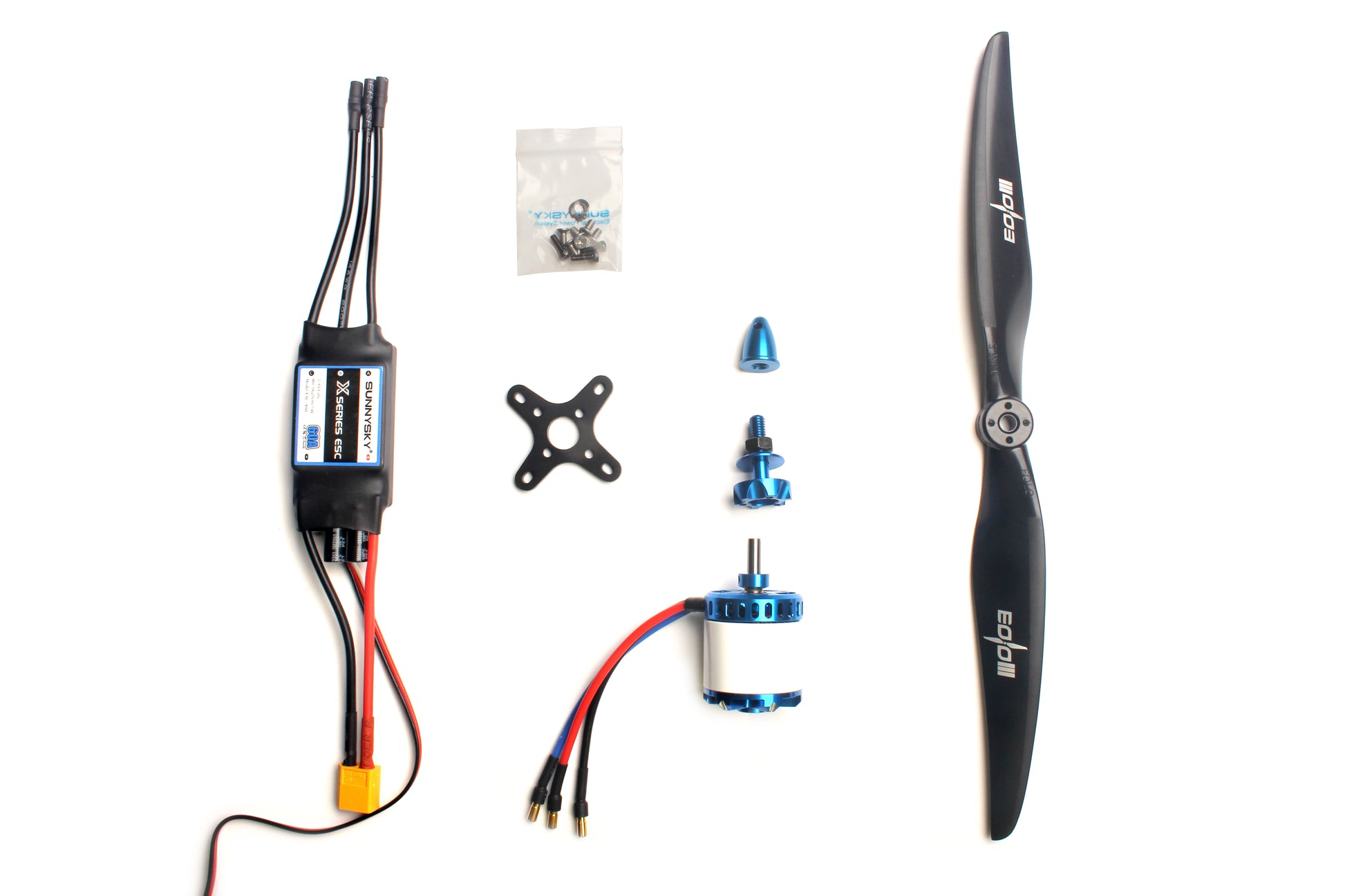

The package contains:
- 1x Motor X4120 III-550KV
- 1x ESC 100A
- 2x EOLO 15 x 8 propellers
