Sunnysky X2-series Combo 3
The Sunnysky X2-series Combo 3 offers an exceptional performance package for RC models. This kit includes the X2820 III-KV860 engine, which with its 12N14P configuration provides strong thrust and reliability. Combined with the 60A ESC controller, it ensures smooth and efficient power control. The set is completed by two EOLO 13 x 7 propellers, designed to improve lift and stability under optimal flight conditions.
Specifications:

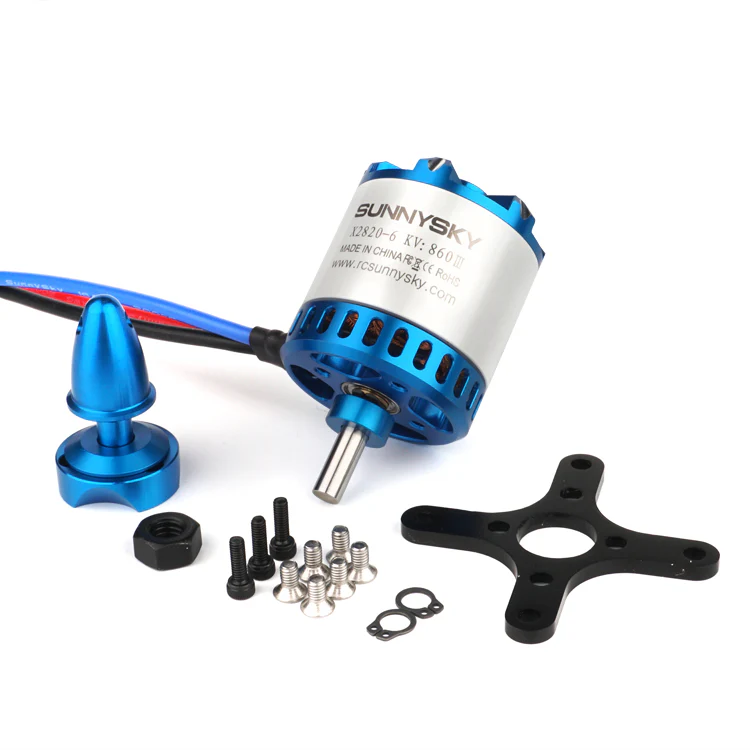

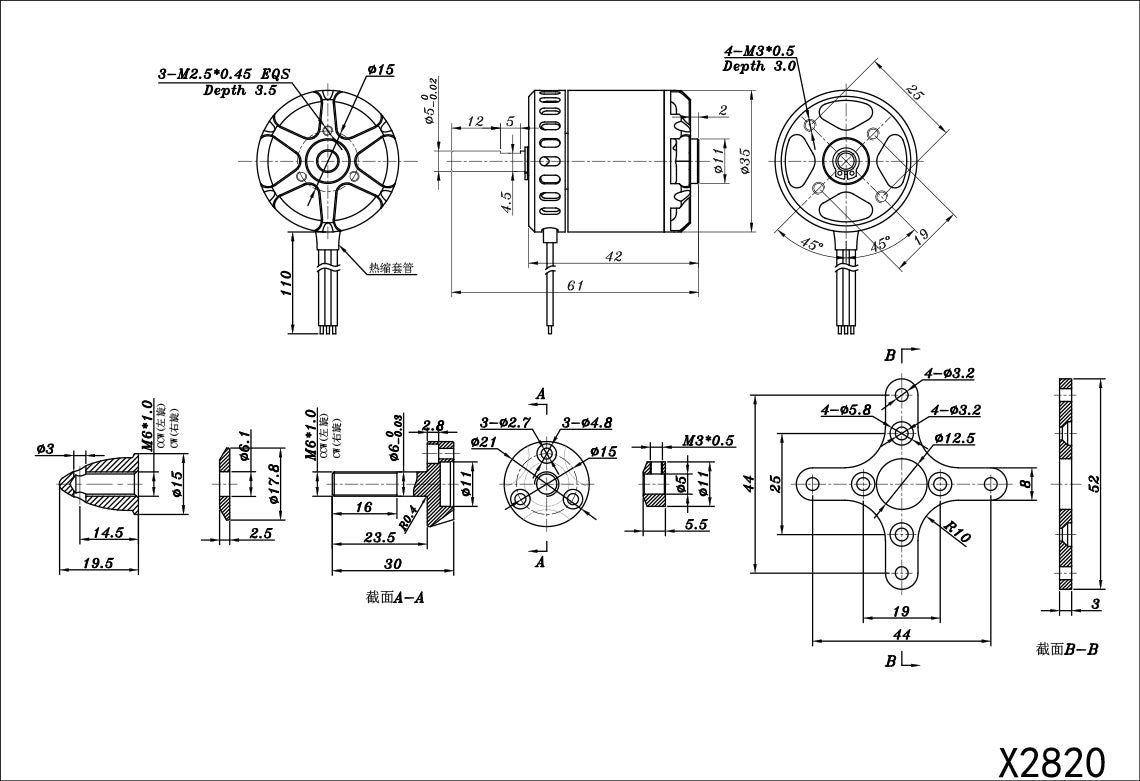

Engine
- Model / KV: X2820-III / KV860
- Number of stator/rotor poles: 12N14P
- Internal resistance: 25.8 mΩ
- Motor length: 42 mm
- Shaft diameter: 5.0 mm
- Cable: 20AWG 110mm
- Motor weight (including cable): 143 g
- Operating voltage: 3-4S
- No load current: 1.3A/10V
- Maximum continuous power: 960W
- Maximum continuous current: 65A/30s
- Recommended regulator: 50-60A
- Recommended propeller sizes: EOLO 12x6, EOLO 13x7, APC 13x6.5, APC 12x6, APC 12x8

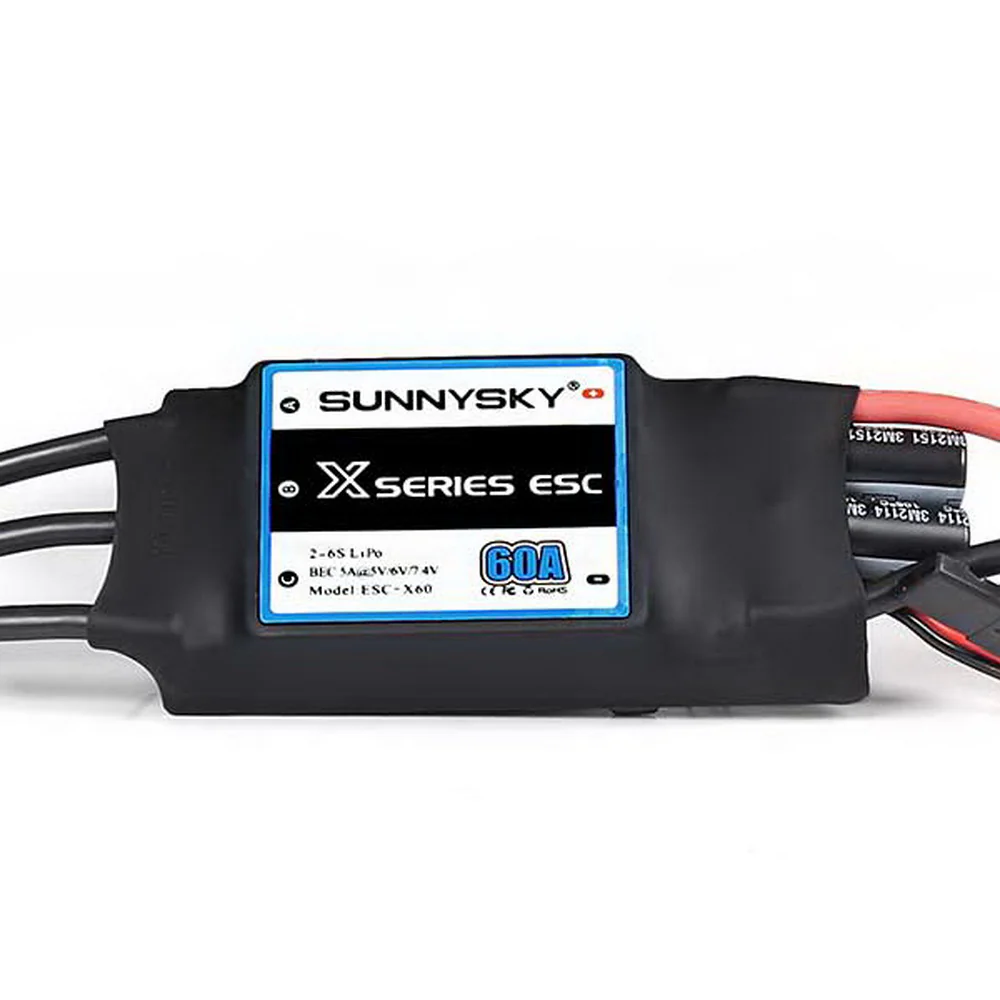

Controller (ESC)
- Continuous current: 60A
- Peak current: 80A (≤ 10s)
- Input voltage: 2-6S LiPo
- BEC output: 5V/6V/7.4V @ 5A
- Motor connector: 3.5mm banana plug
- Connector for battery: XT60
- Dimensions: 82×36×18mm (without wires)
- Weight: 94g

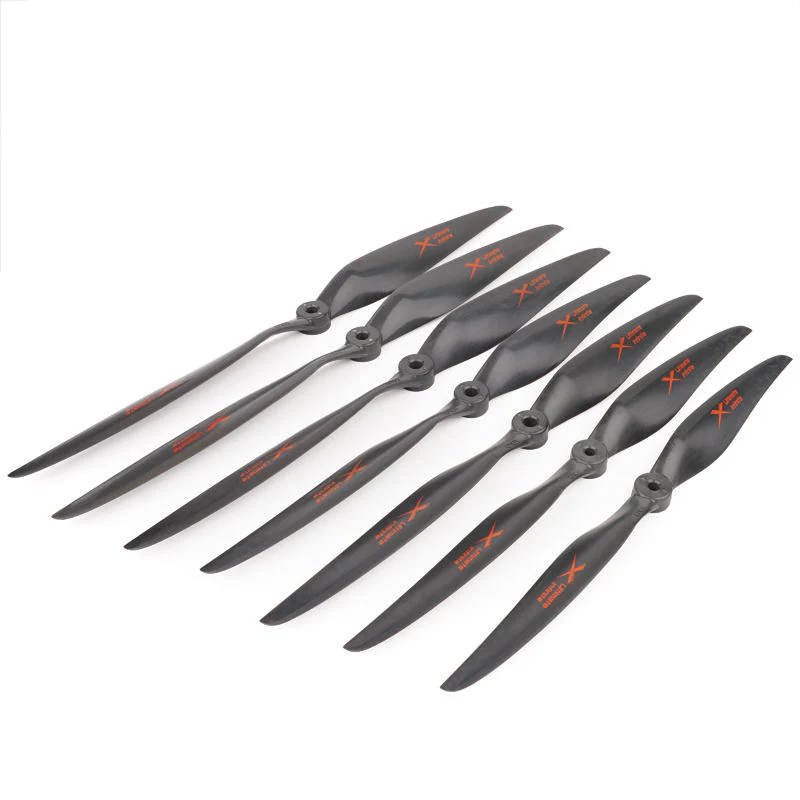

Propellers
- Brand: EOLO/13*7
- Propeller type: Integrated propeller
- Material: Plastic
- Storage temperature: -10℃ - 50℃
- Storage humidity: <85%
- Propeller specification: 13x7 CW
- Dynamic balance: 4000 rpm ≤15mg
- Weight of one propeller: 26g
- Maximum working speed: 11370 rpm
- Working temperature: -20℃~60℃

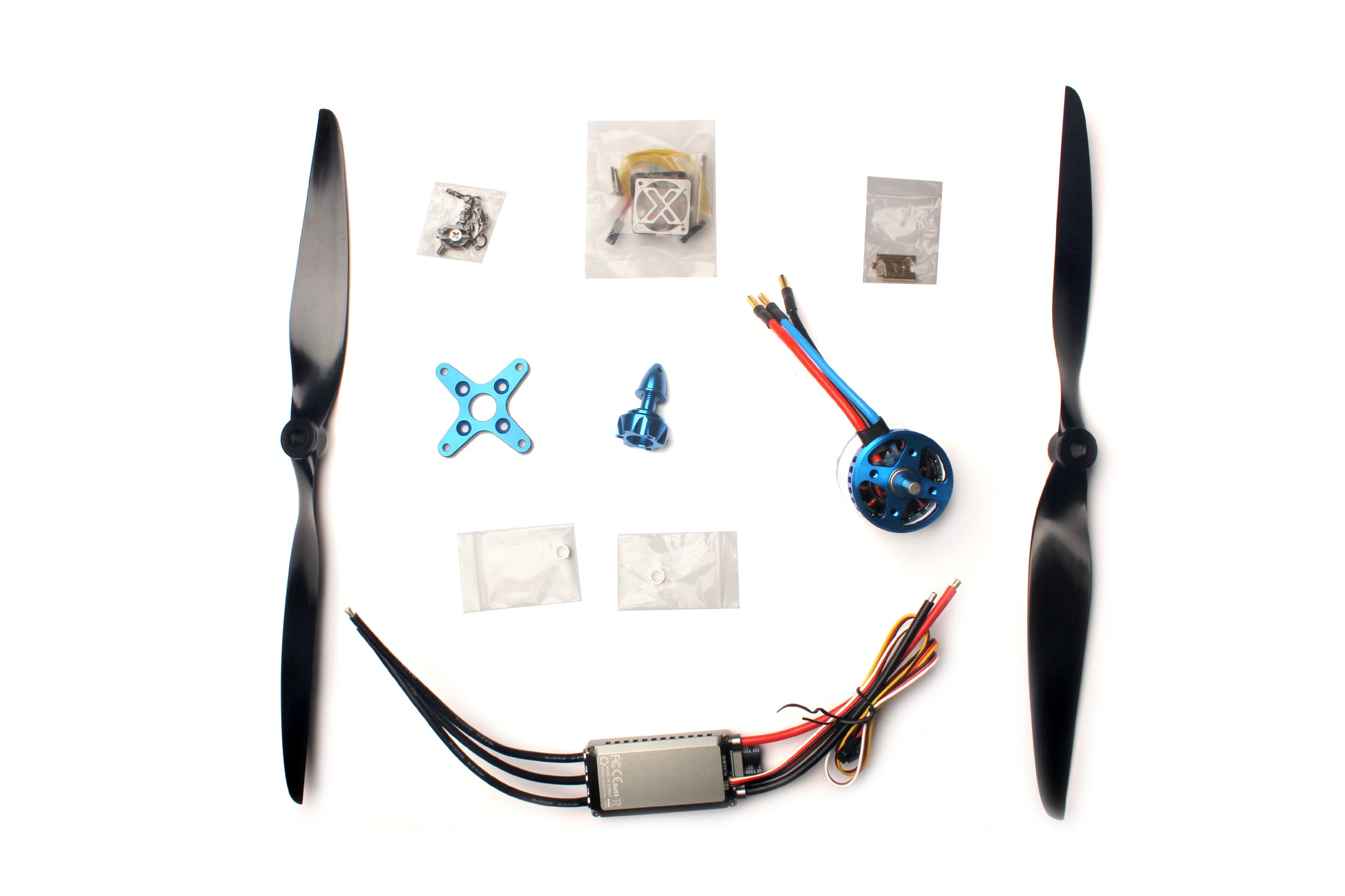

The package contains:
- 1x Motor X2820 III-KV860
- 1x ESC 60A
- 2x EOLO 13 x 7 propellers
