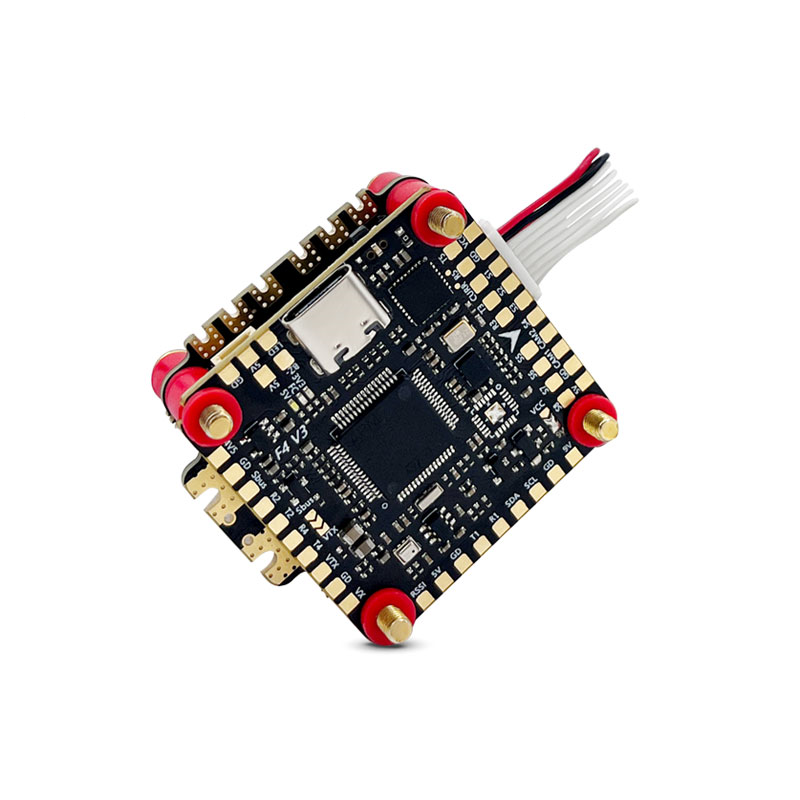

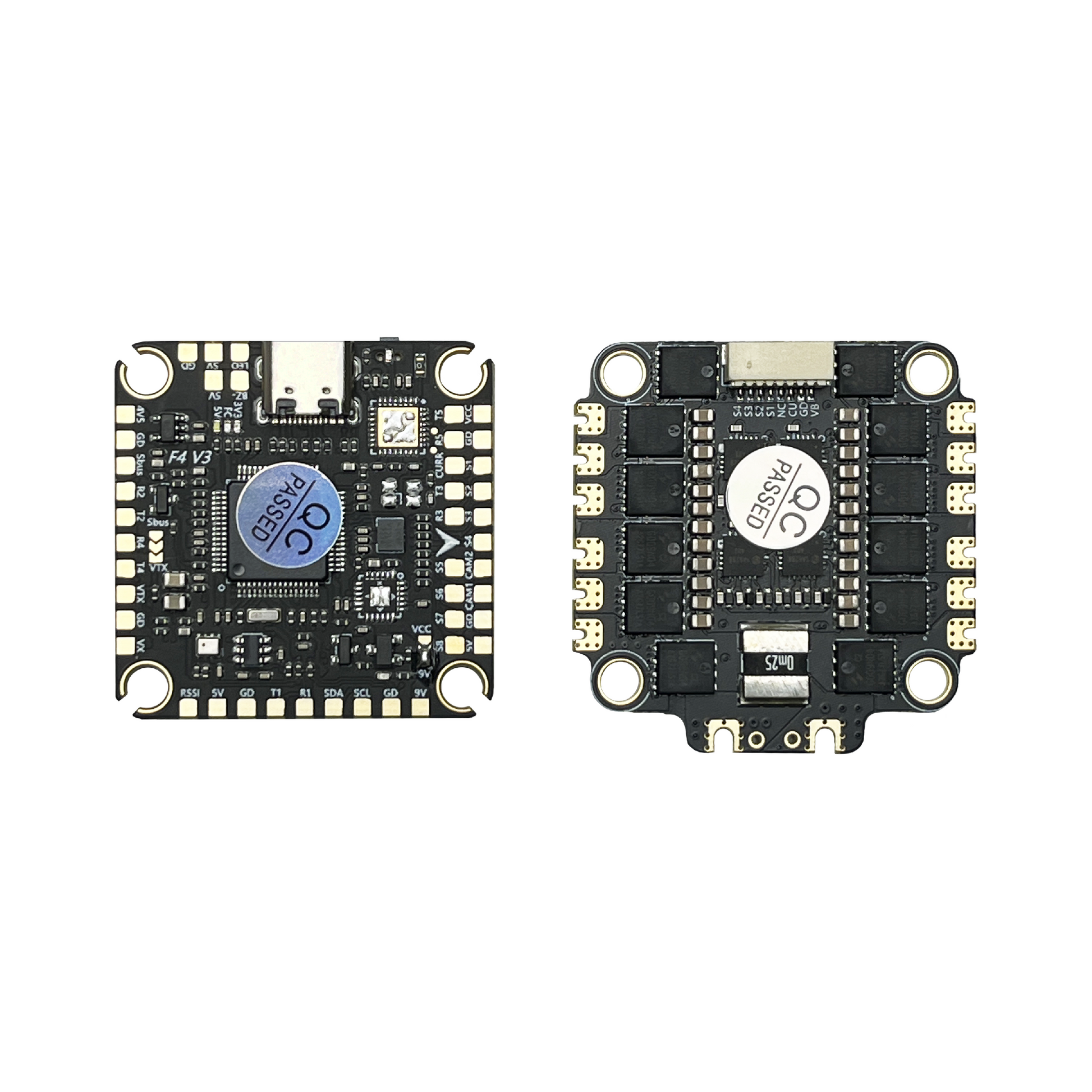

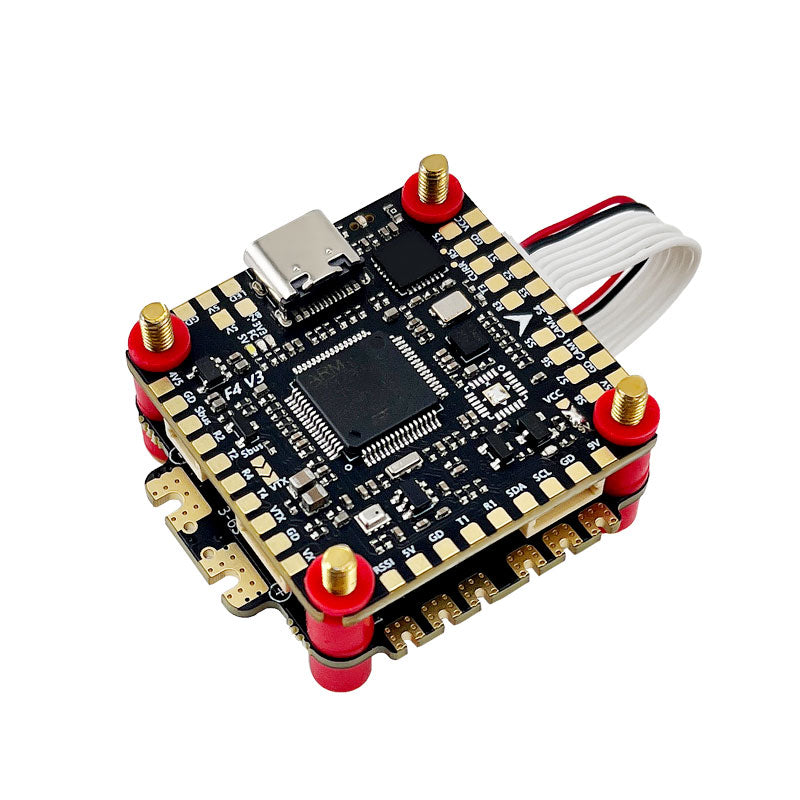

Stack Pilotix F405 V3 ICM42688 60A BLS ESC
Stack Pilotix F405 V3 ICM42688 60A BLS ESC
Brand: Pilotix
Regular price
€62,00
Regular price
€62,00
Sale price
€62,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

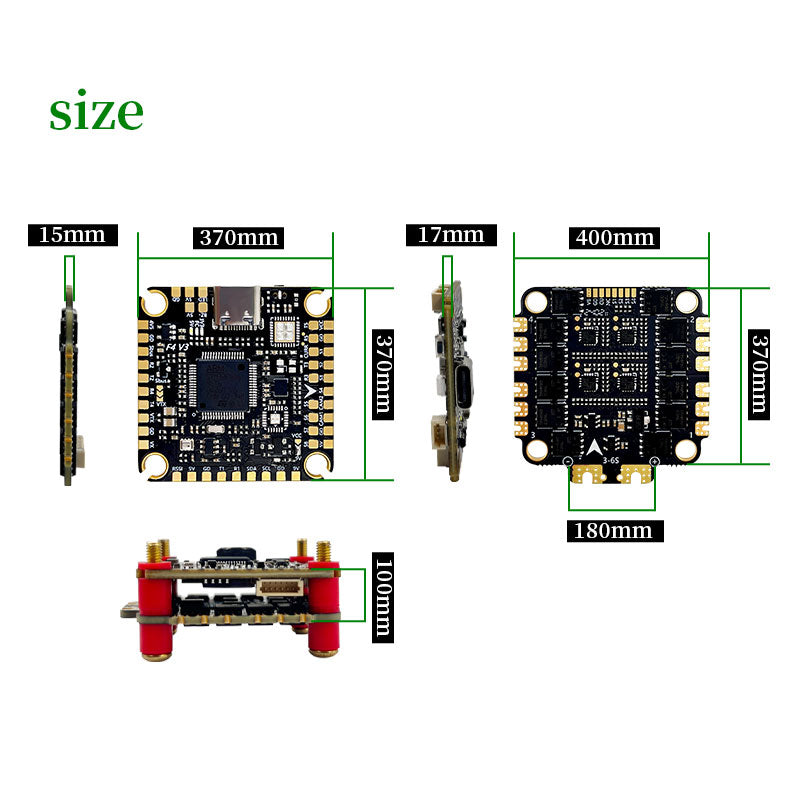

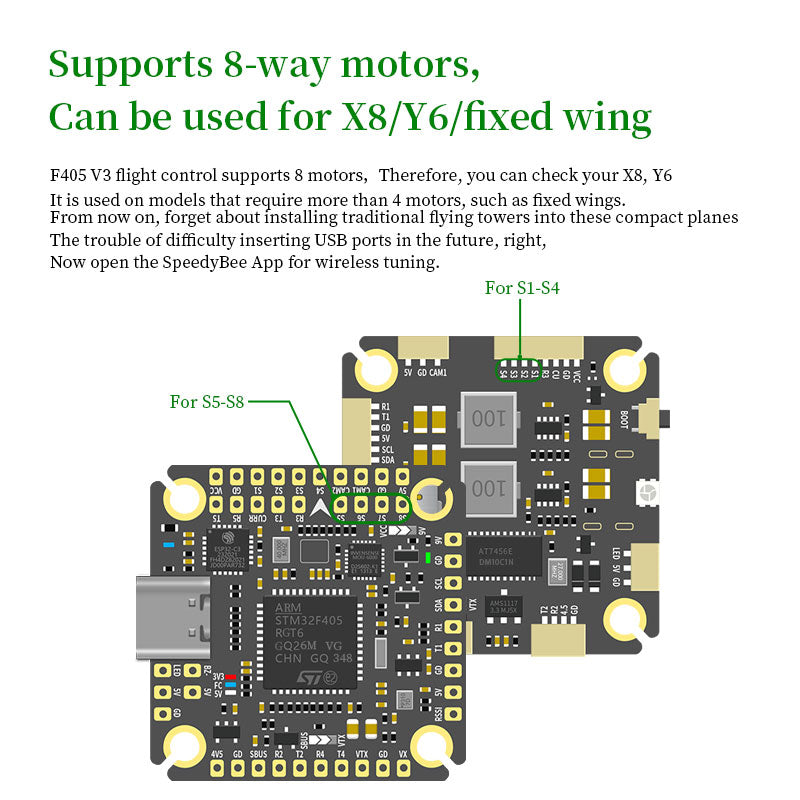

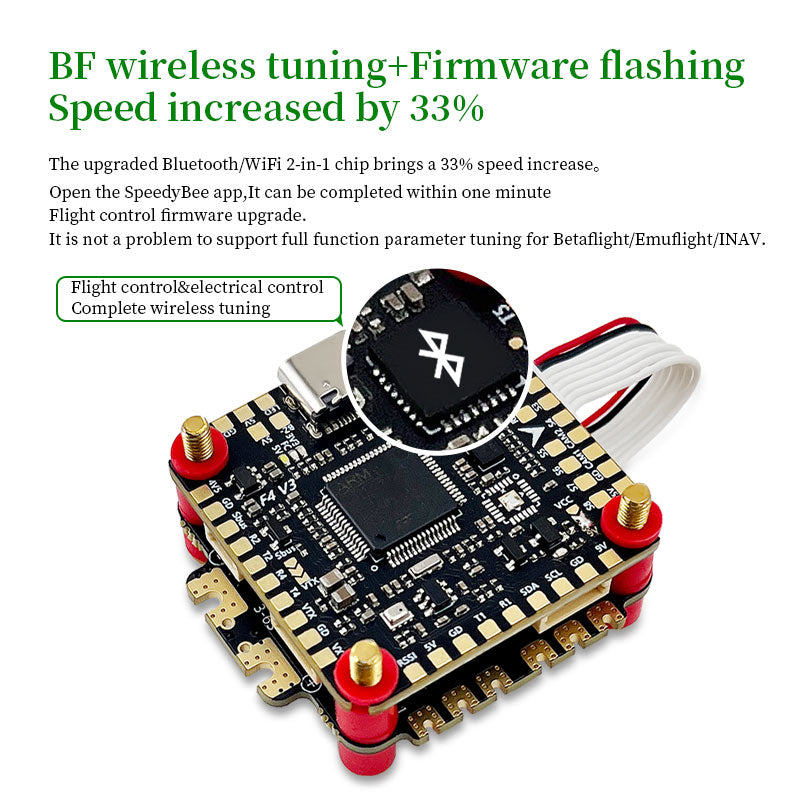

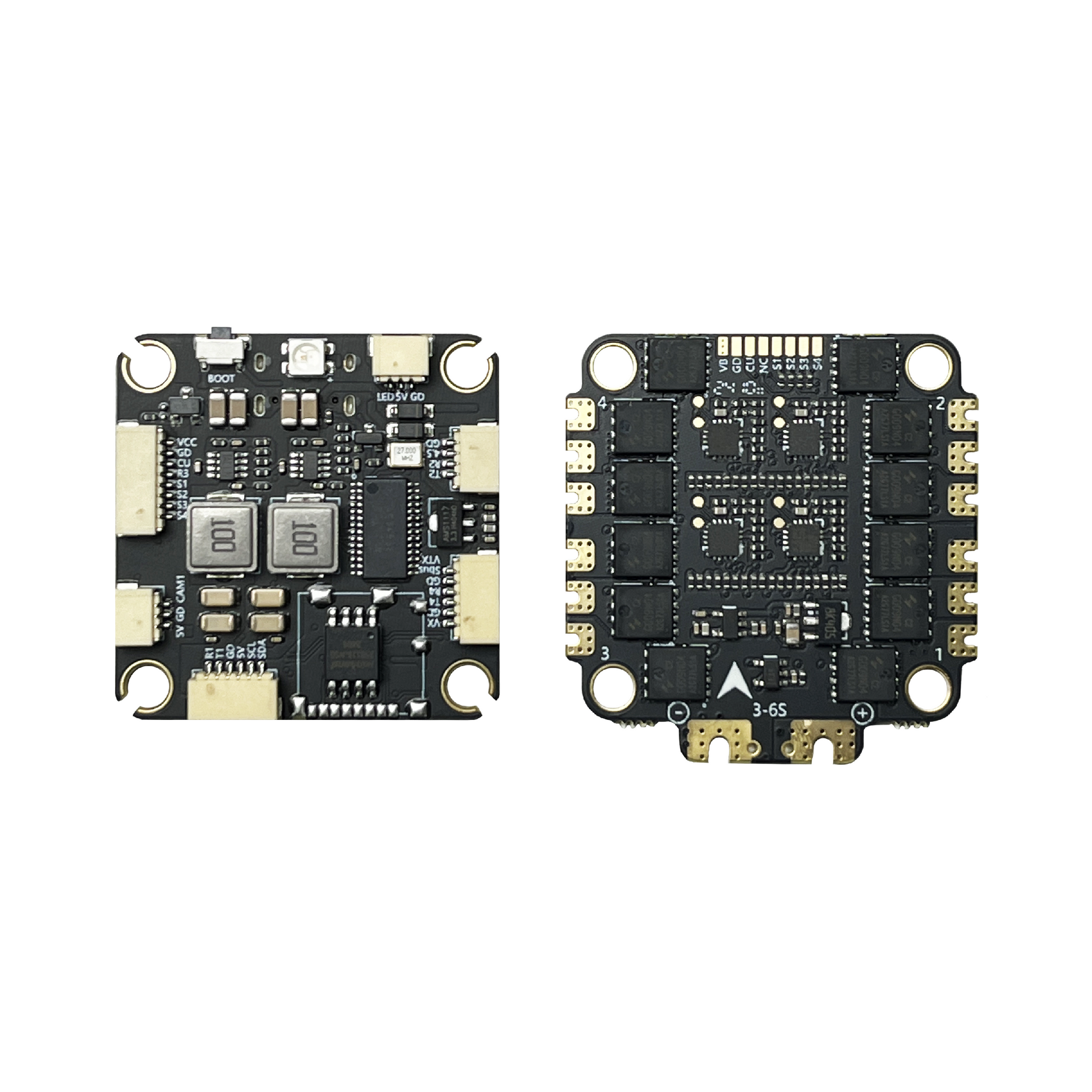

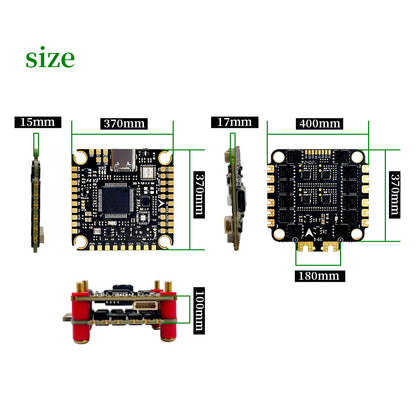

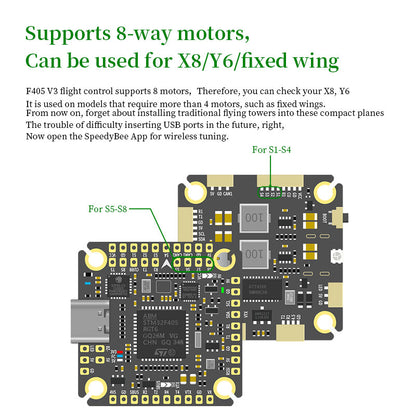

Pilotix Stack F405 V3 ICM42688 60A BLS ESC The Pilotix F405 V3 60A Stack is an advanced flight controller and electronic speed controller (ESC) combination designed for high performance drone applications. The F405 processor offers fast and precise flight control for smooth and stable flight maneuvers. The 60A ESC provides enough power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance. FC specification CPU: STM32F405RGT6 Gyroscope: ICM42688 Baro: BMP280 OSD: Support BlackBox: 16MB Motor output: 8-way selectable LED light strip: support Buzzer: support Receiver protocol: ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX Universal serial port: 5-way optional Output power: 5V/2.5A 9V/2A USB connector: Type-C DJl/Vista Digital Sky End: support Camera switching: support Sbus and VTX jumper switching: support 9V and VCC bridge switching: support Bluetooth: support Weight: 9.6g Mounting hole: 30.5 x 30.5 mm, M3 Size: 36x36 mm FC firmware: AOCODARCF405V3/AOCODARCF405V3SD ESC specification Continuous current: 60A X4 Explosive current: 70A X4 Power supply: 3-6S Lipo Default Protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc. ESC telemetry: No output Current sensor: support ESC firmware: Bluejay H-H50 Weight: 10.4g Size: 40 x 40.7 mm Mounting hole: M3 30.5×30.5 mm The package includes: 1x Pilotix F405 V3 ICM42688 60A BLS ESC stack
