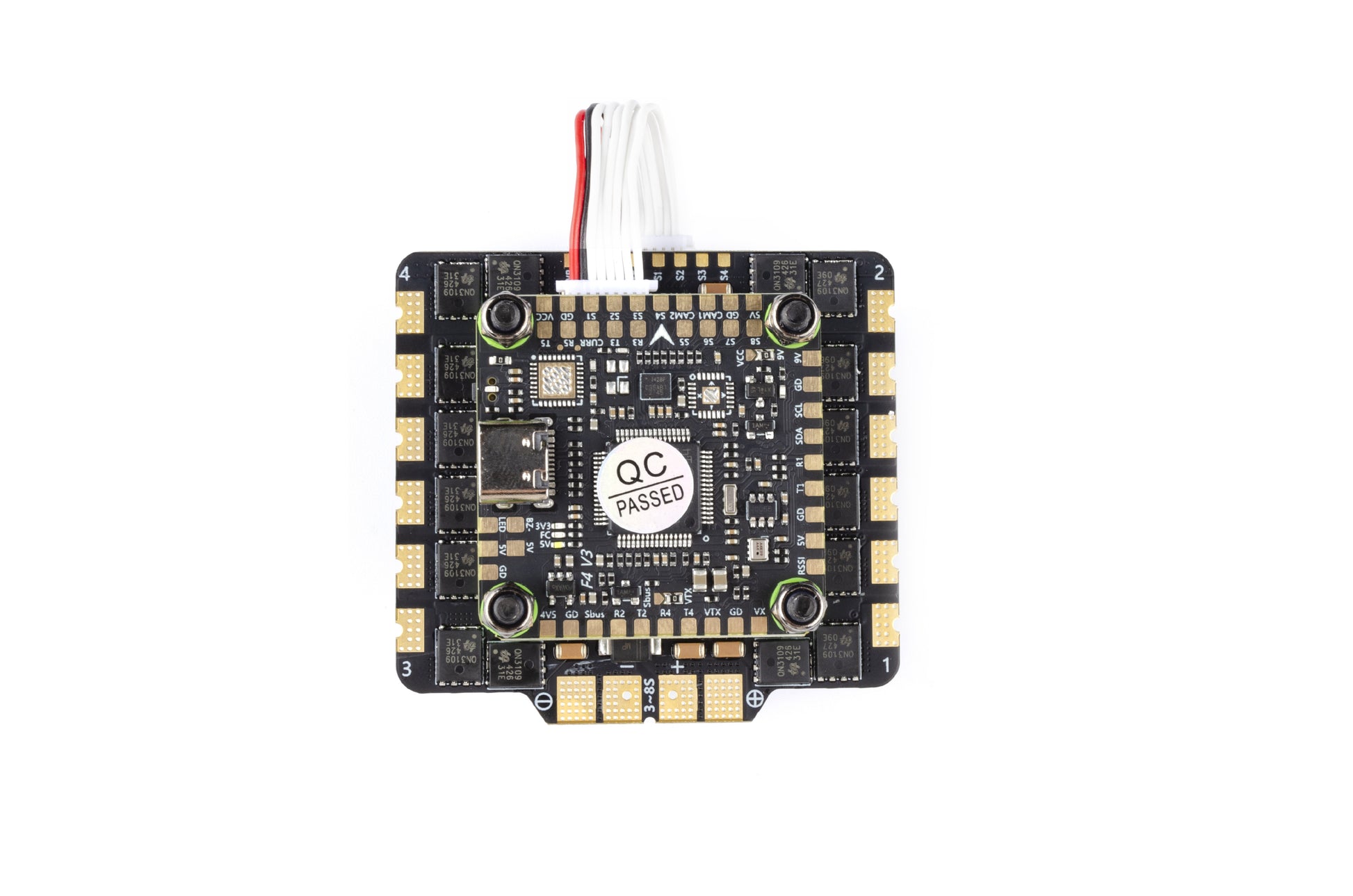

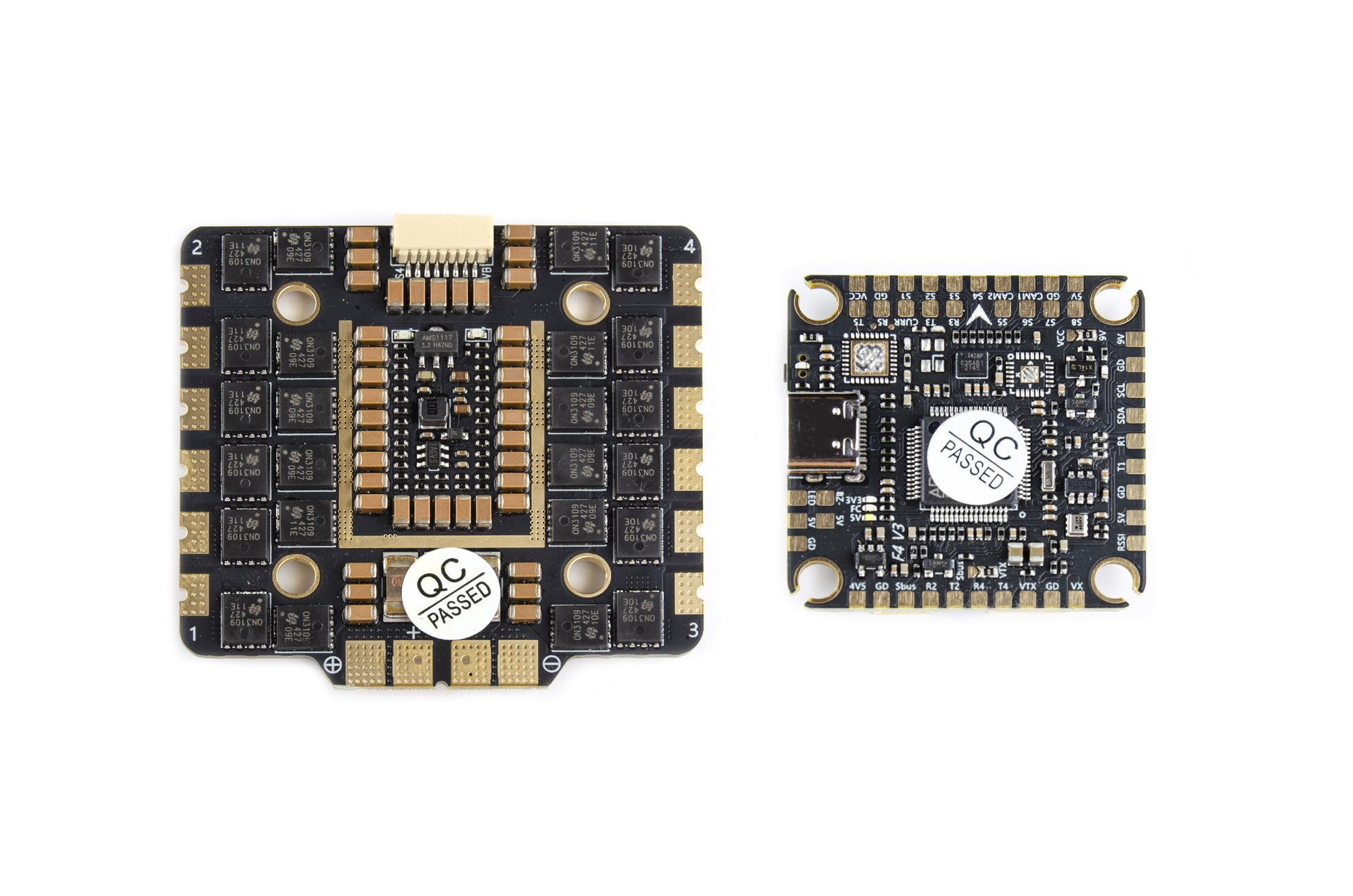

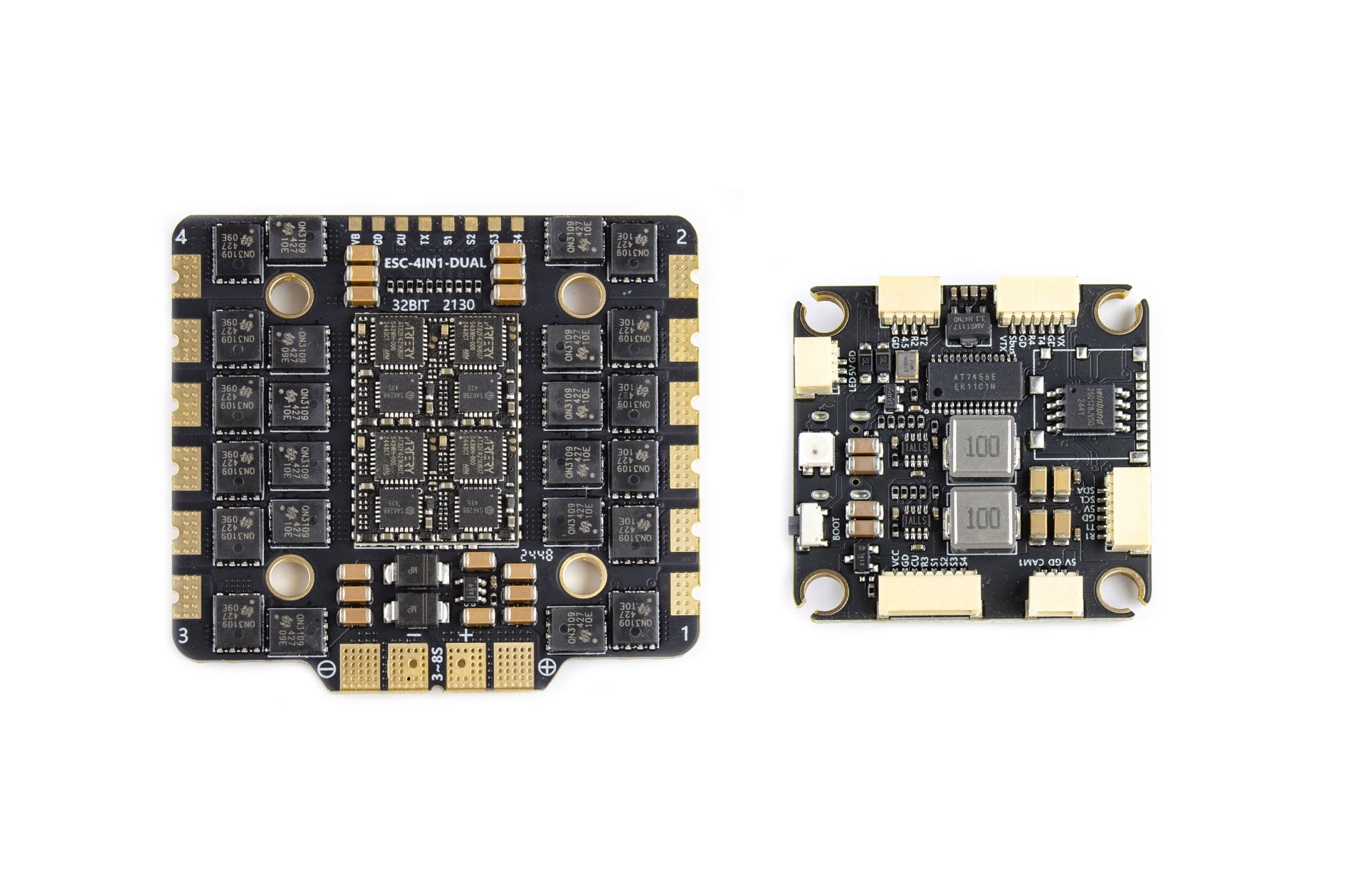

    Stack Pilotix F405 V3 3080 80A AM32

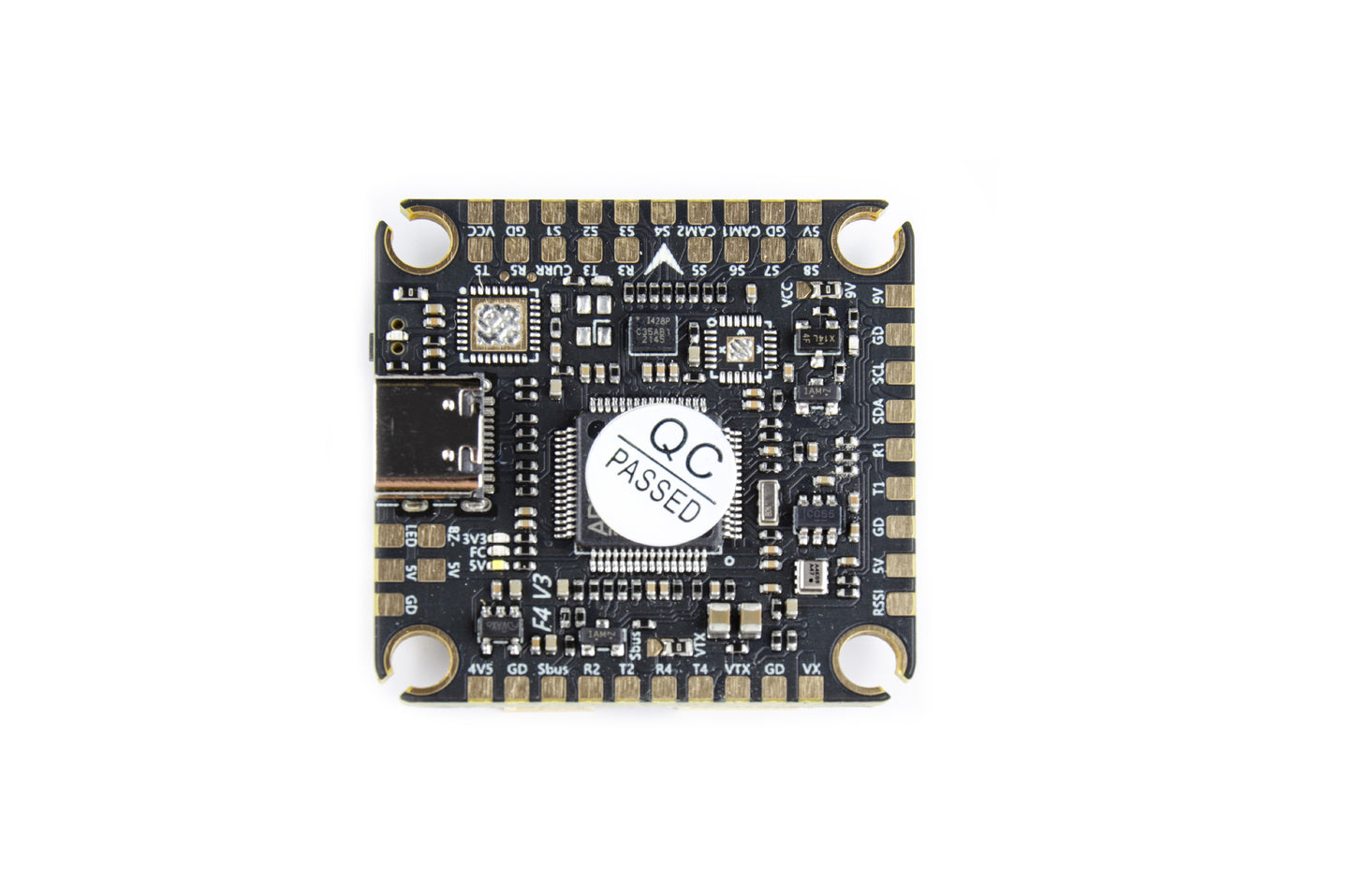

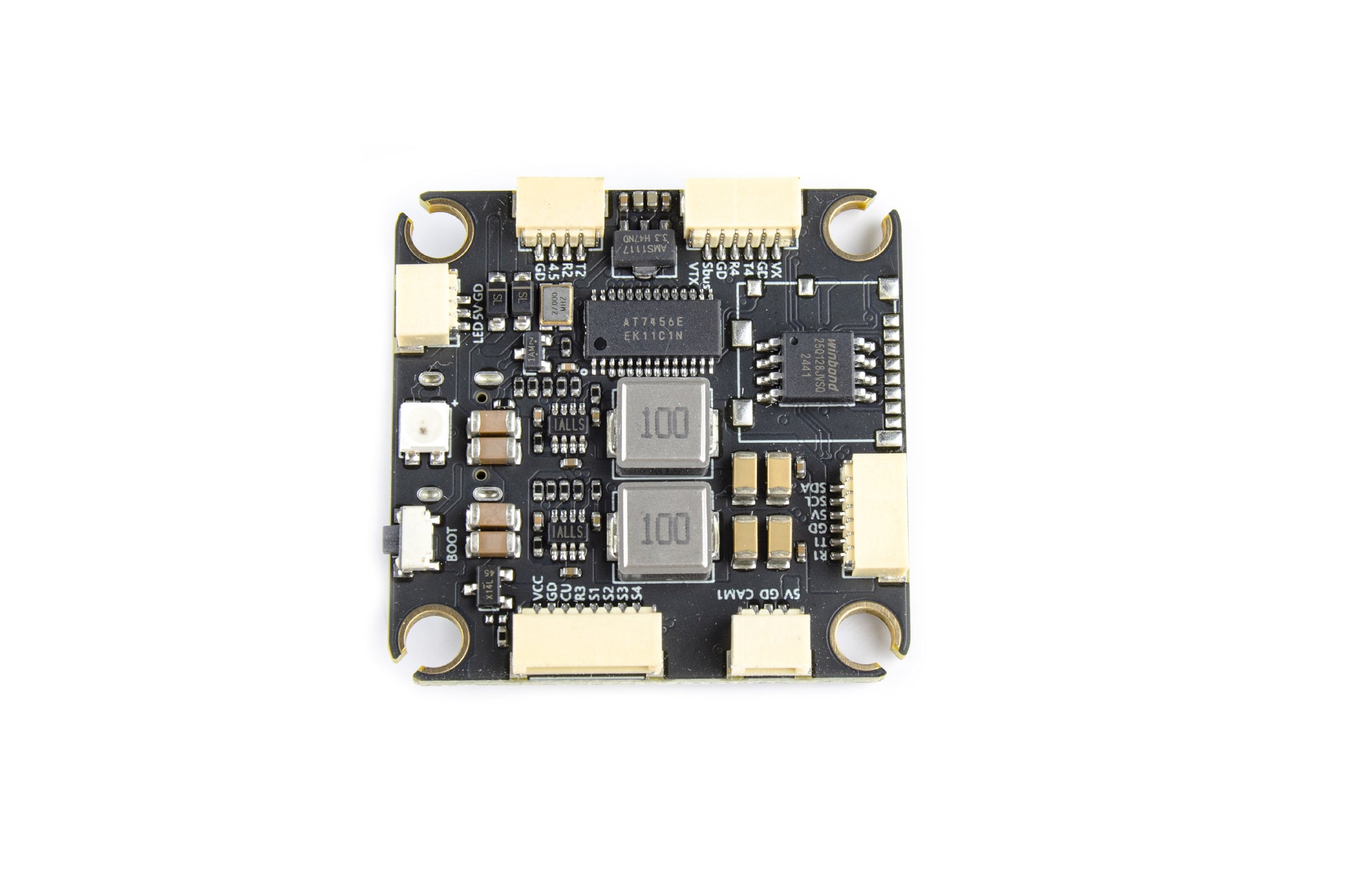

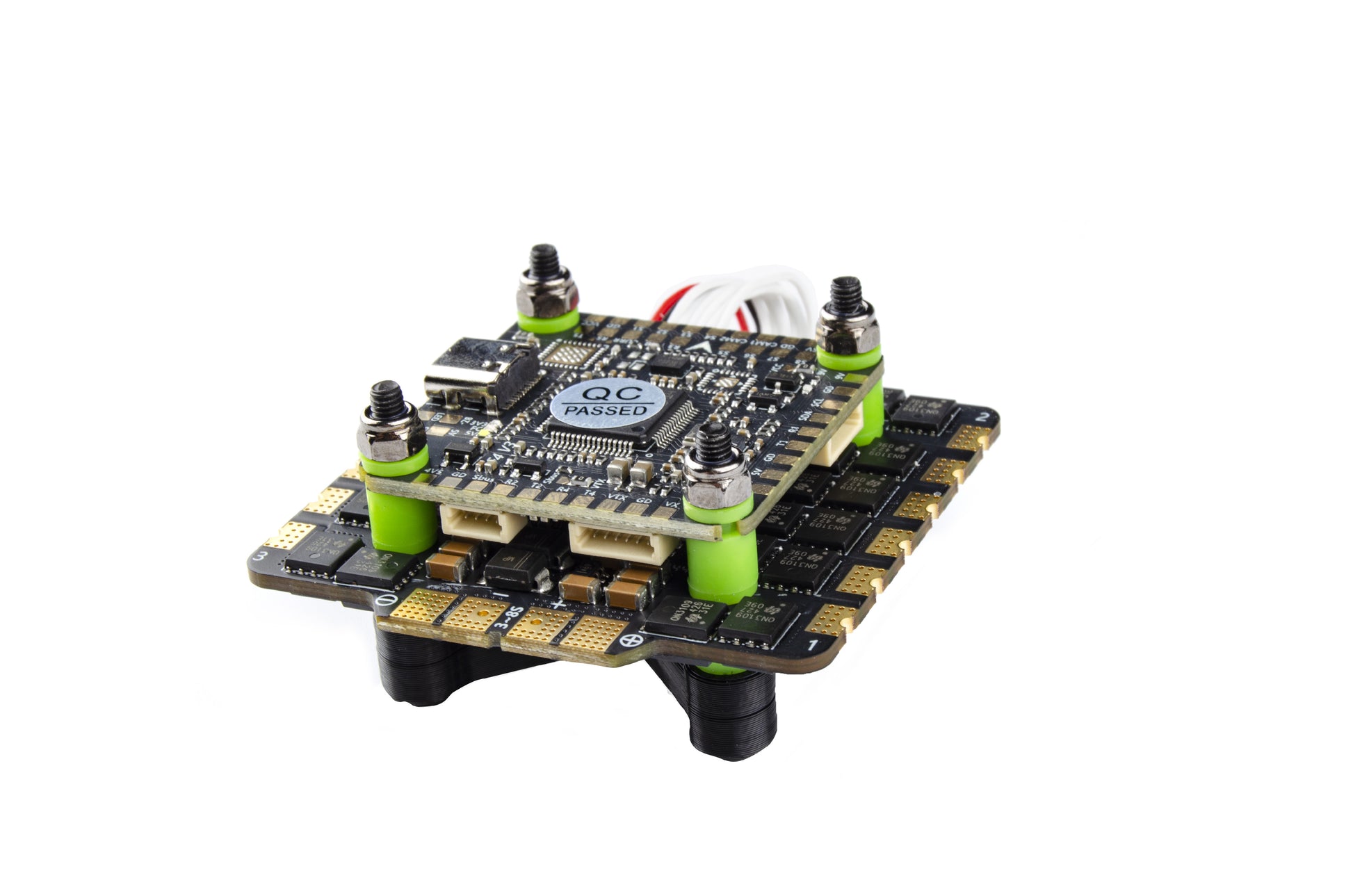

The Pilotix 6288 Stack (F405 V3 Flight Controller + 80A ESC) is a high-performance flight control and power management system designed for demanding drone applications. This STM32F405 processor and ICM42688 gyroscope stack provides precise control, fast response and advanced stabilization.

Specifications:

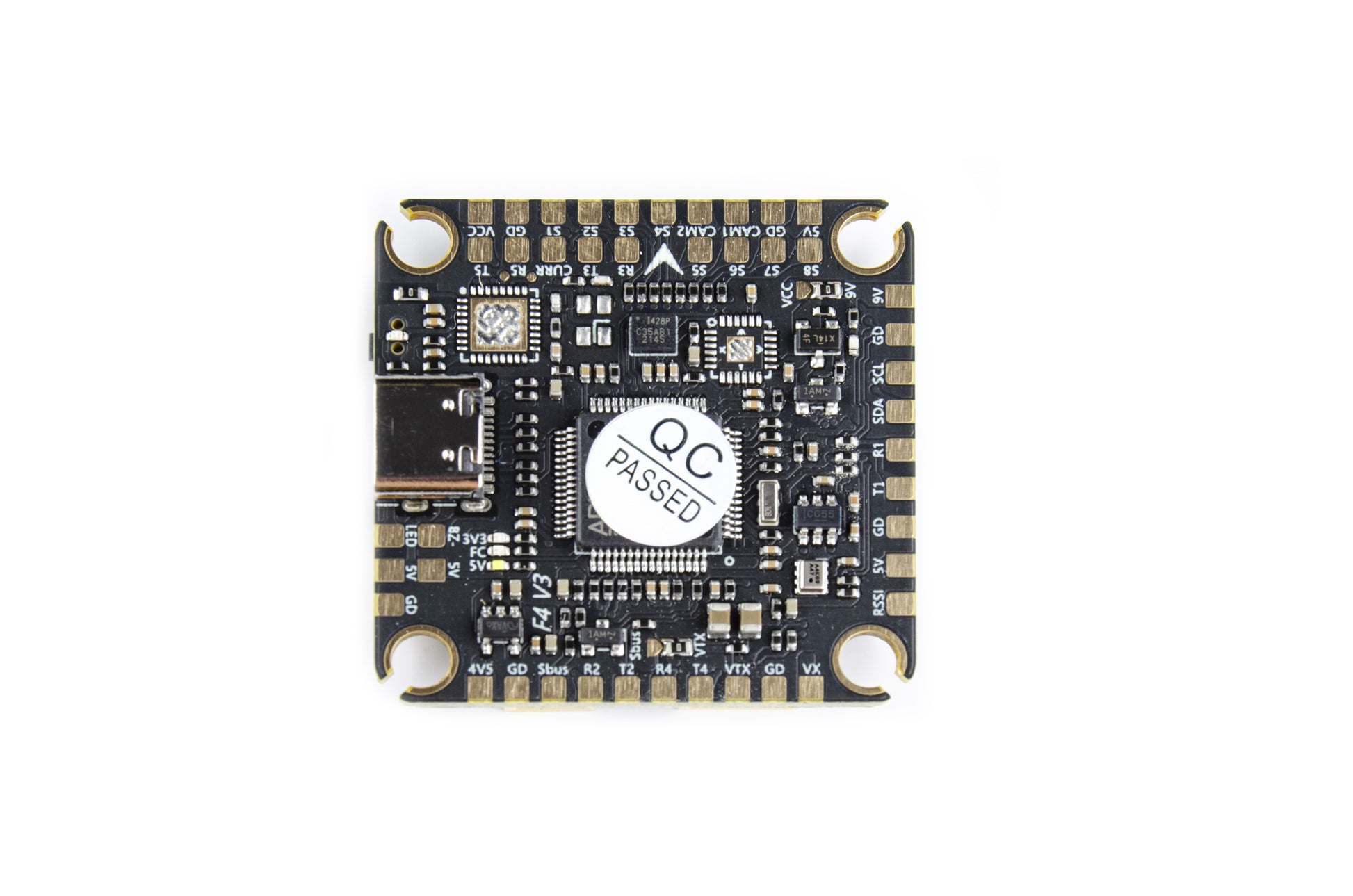

- Processor: STM32F405RGT6
- Gyroscope: ICM42688
- Barometer: SPL06B
- Black box: 16MB
- Motor output: 8 channels
- Universal serial ports: 5 channels
- Output power: 5V/2.5A, 9V/2A
- OSD: Supported
- Weight: 9.6 g
- External dimensions: Dimensions: 36 mm x 36 mm
- Spacing of mounting holes: 30.5 mm x 30.5 mm
- Firmware: PILOTIX F405V3

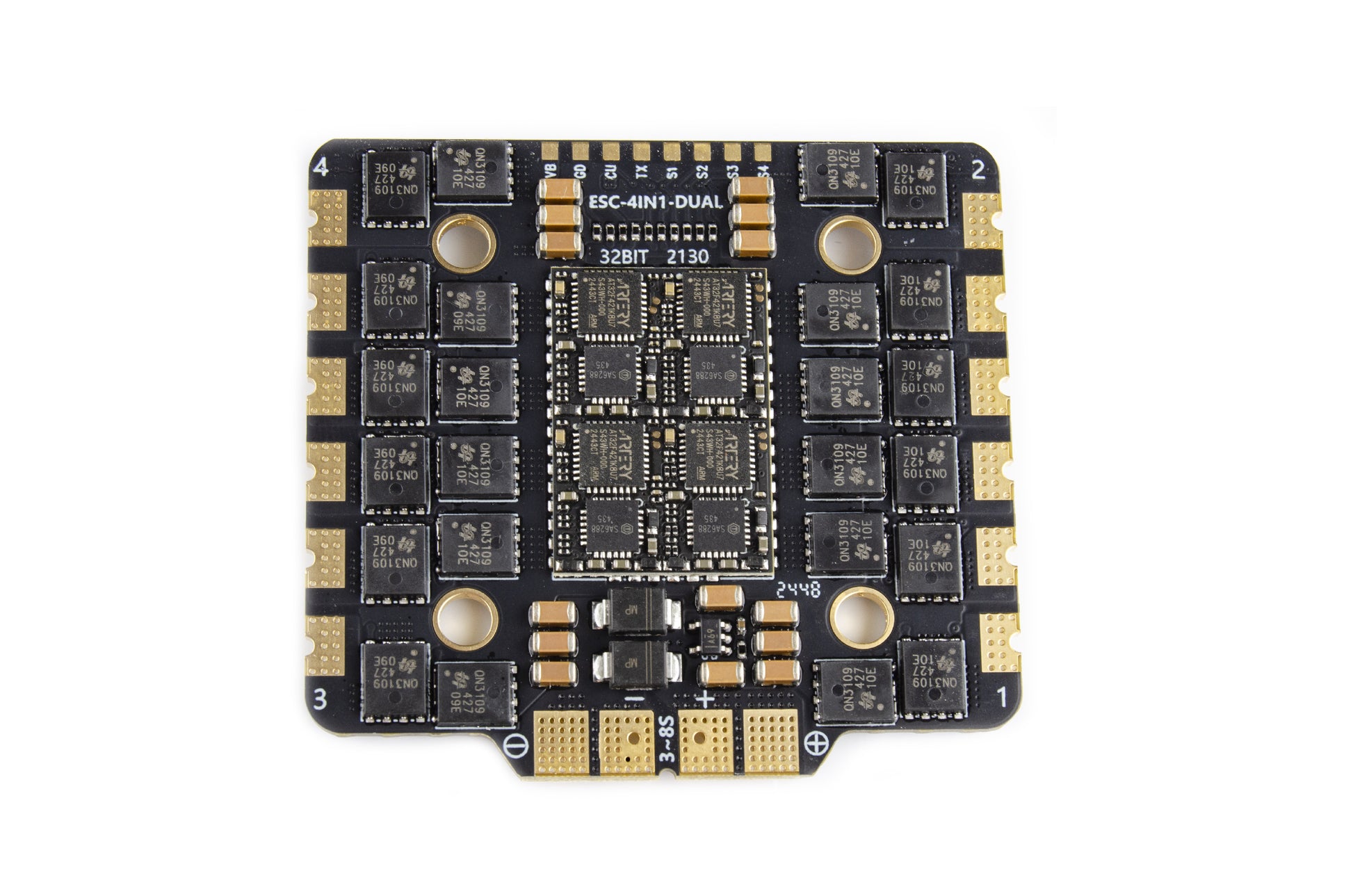

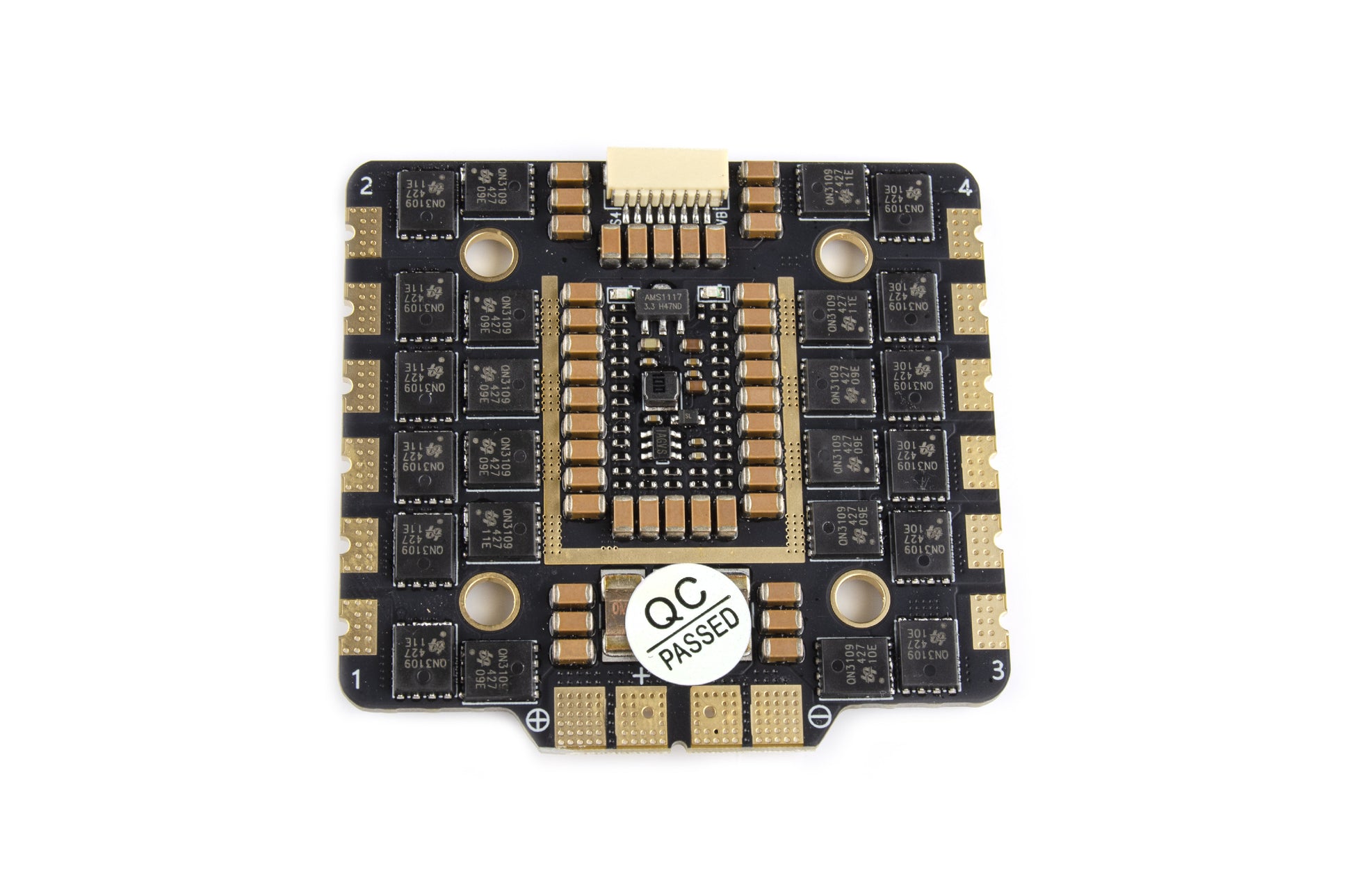

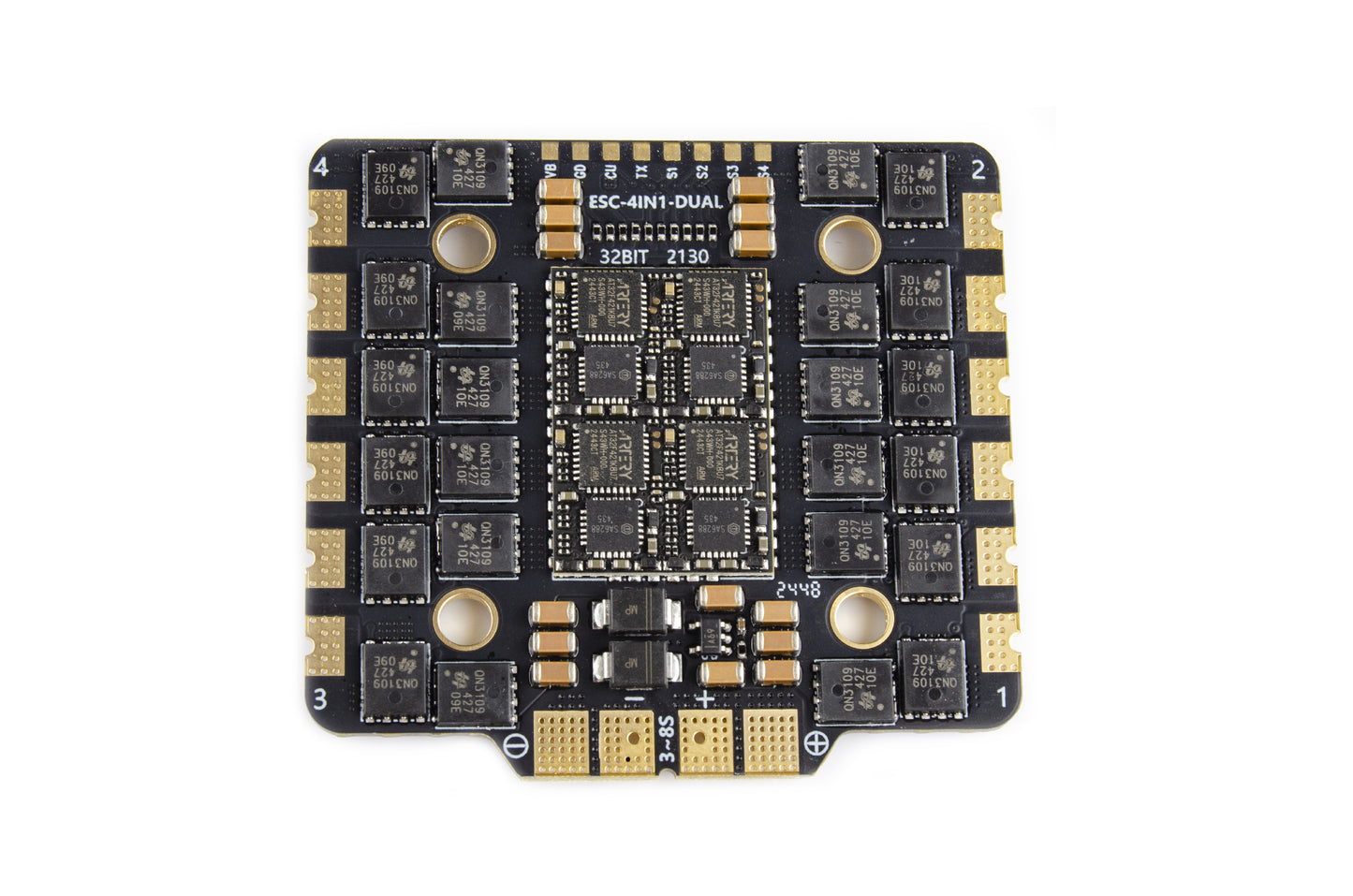

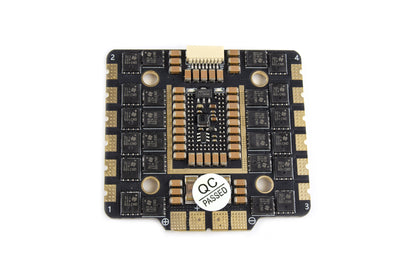

- Continuous current: 80 A
- Peak current: 100 A
- Input signal: Dshot300, Dshot600, PWM, bi-directional Dshot
- Telemetry: Supported
- Current Meter: Supported
- Input voltage: 3-8S LiPo
- Firmware: AM32_AT32PB4_540_F421_2.12.hex
- Operating temperature: -20°C to +55°C
- Operating humidity: 20% - 95%
- Storage temperature: -20°C to +70°C
- Mounting hole: M3, 30.5mm x 30.5mm
- Weight: 33 g
- Dimensions: 30 x 30 mm: 55 mm x 52 mm

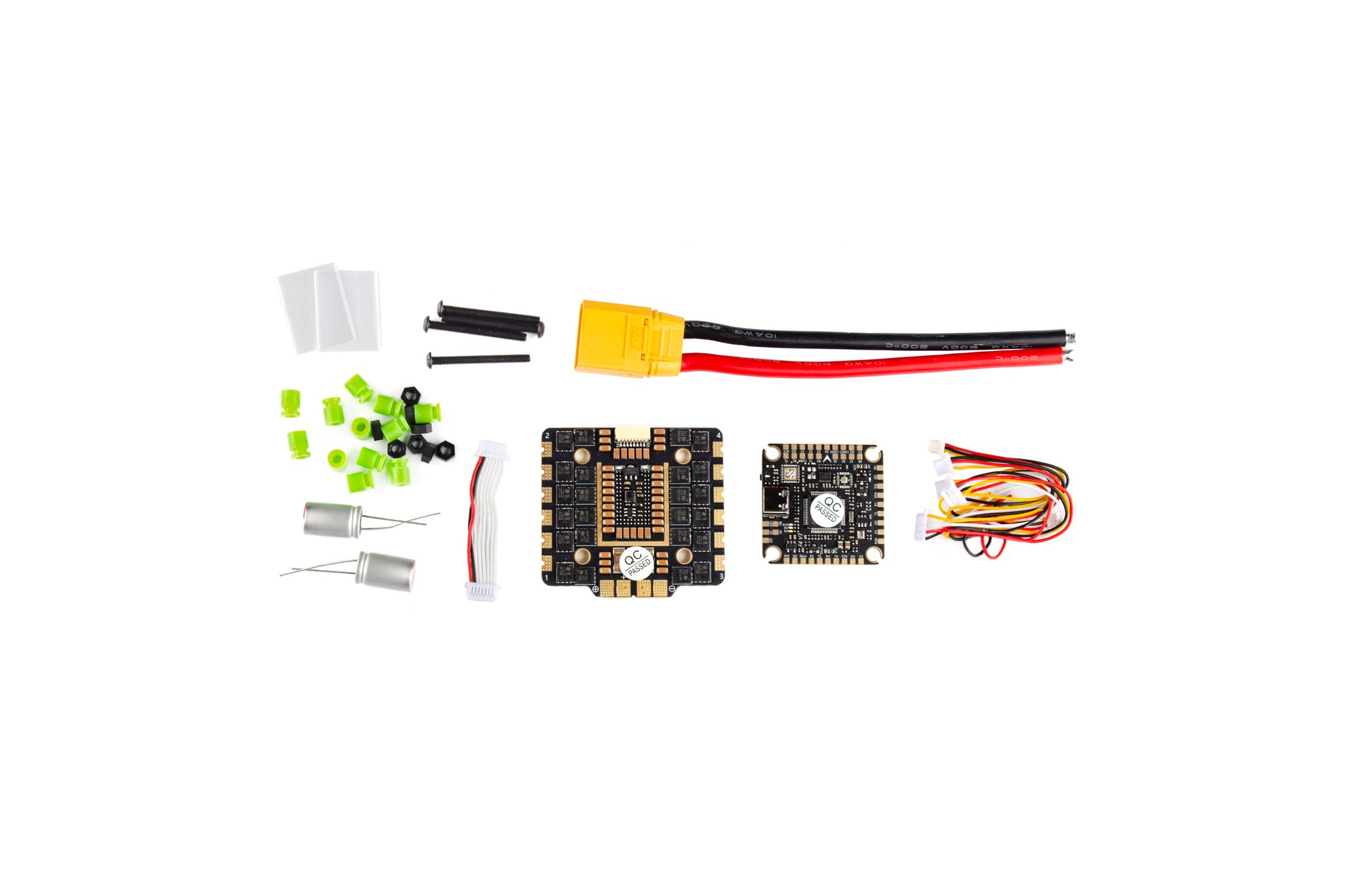

The package contains:

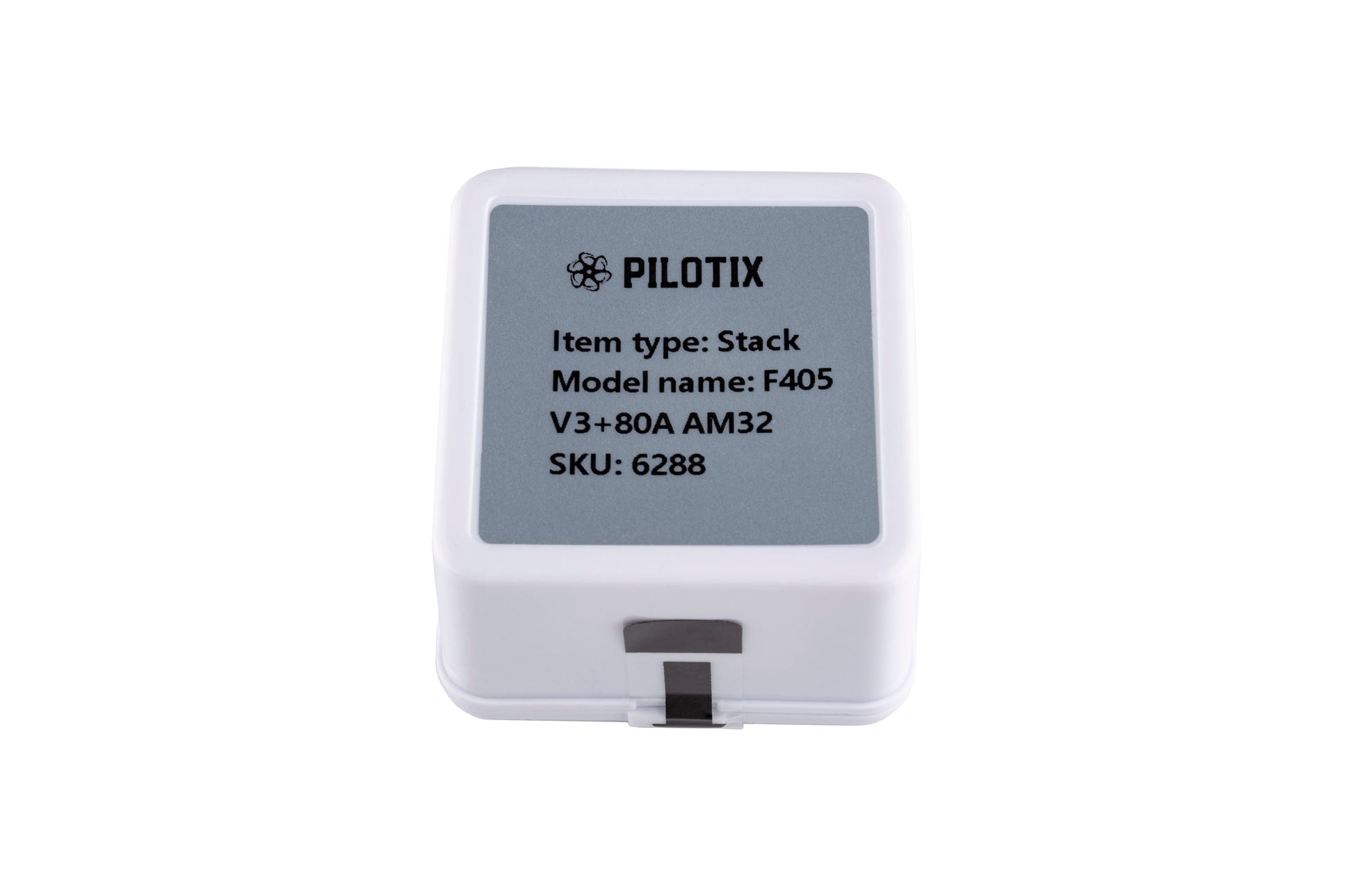

1 x Stack Pilotix F405 V3 3080 80A AM32
