Stack Pilotix DIY Stack ELRS915 Kit (F405 FC + 60A ESC)
Pilotix DIY F460 Stack
1: Pilotix DIY F460 (F405 V3 + 3060 AM32) Stack
-

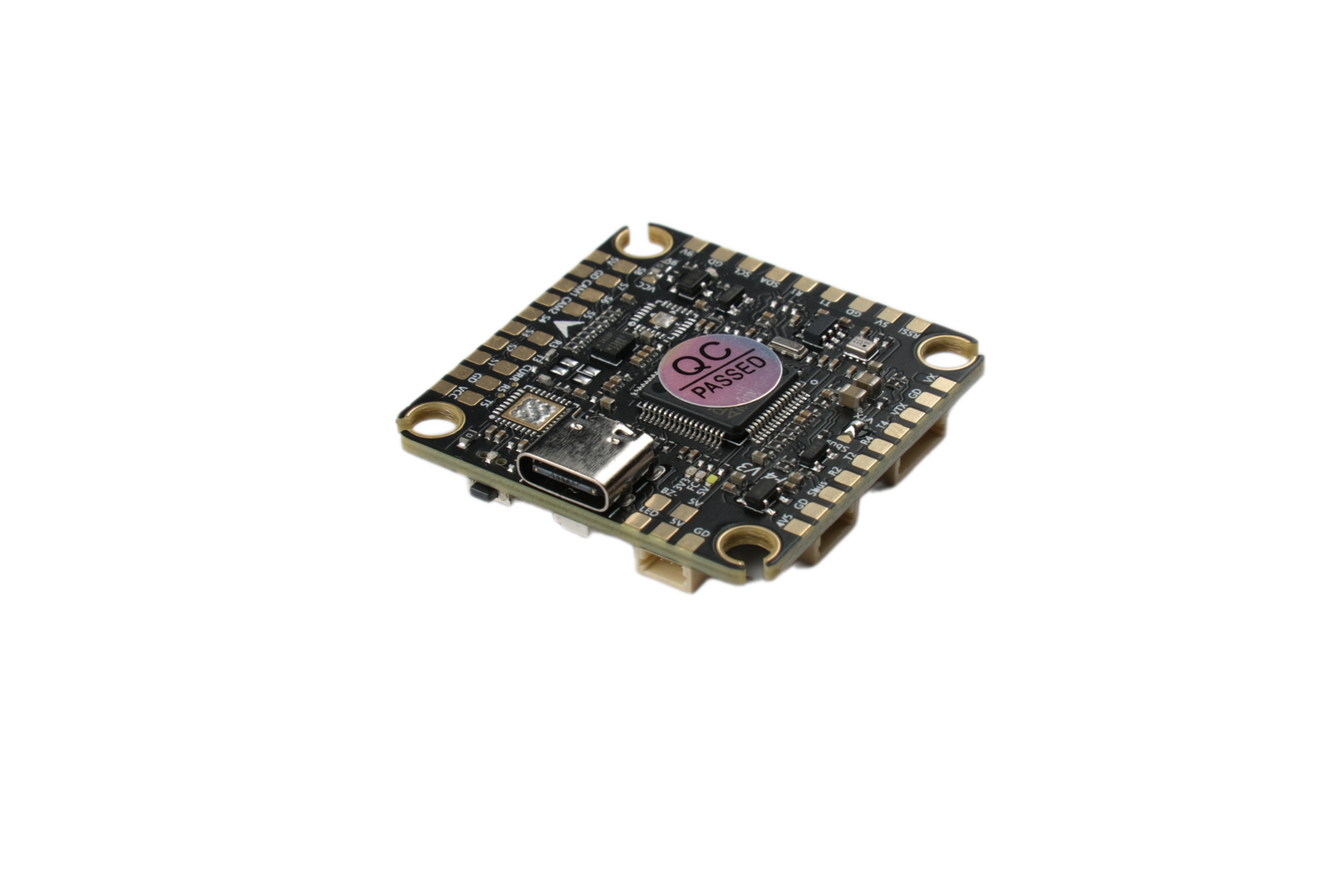

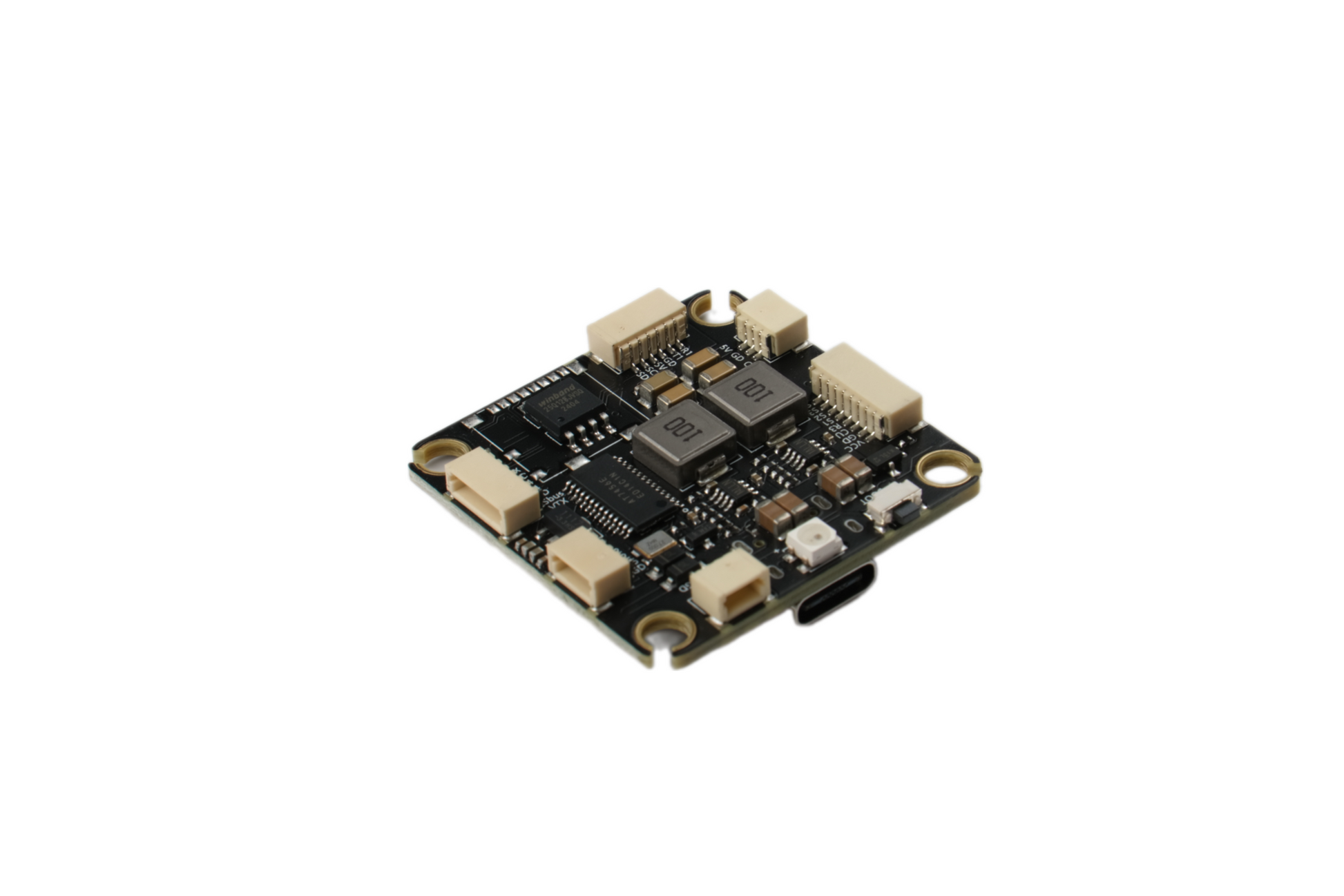

F405 V3 Flight Control:
- Main chip: STM32F405RGT6
- Gyroscope: ICM42688
- Barometer: SPL06
- OSD: Supported
- Black Box: 16MB/microSD
- Motor output: 8 channels
- LED Light Strip: Supported
- Buzzer: Supported
- Receiver Protocol: ELRS/CRSF/SBUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX
- Universal serial port: 5-channel optional
- Output power: 5V/2.5A, 9V/3A
- USB connector: Type-C
- DJI/Vista Digital Sky End: Supported
- Camera switching: Supported
- Sbus and VTX jumper switching: Supported
- 9V and VCC jumper switching: Supported
- Weight: 9.6g
- External dimensions: 36mm x 36mm
- Position of mounting holes: 30.5mm x 30.5mm
- Firmware name: AOCODARCF405V3 / AOCODARCF405V3SD
-

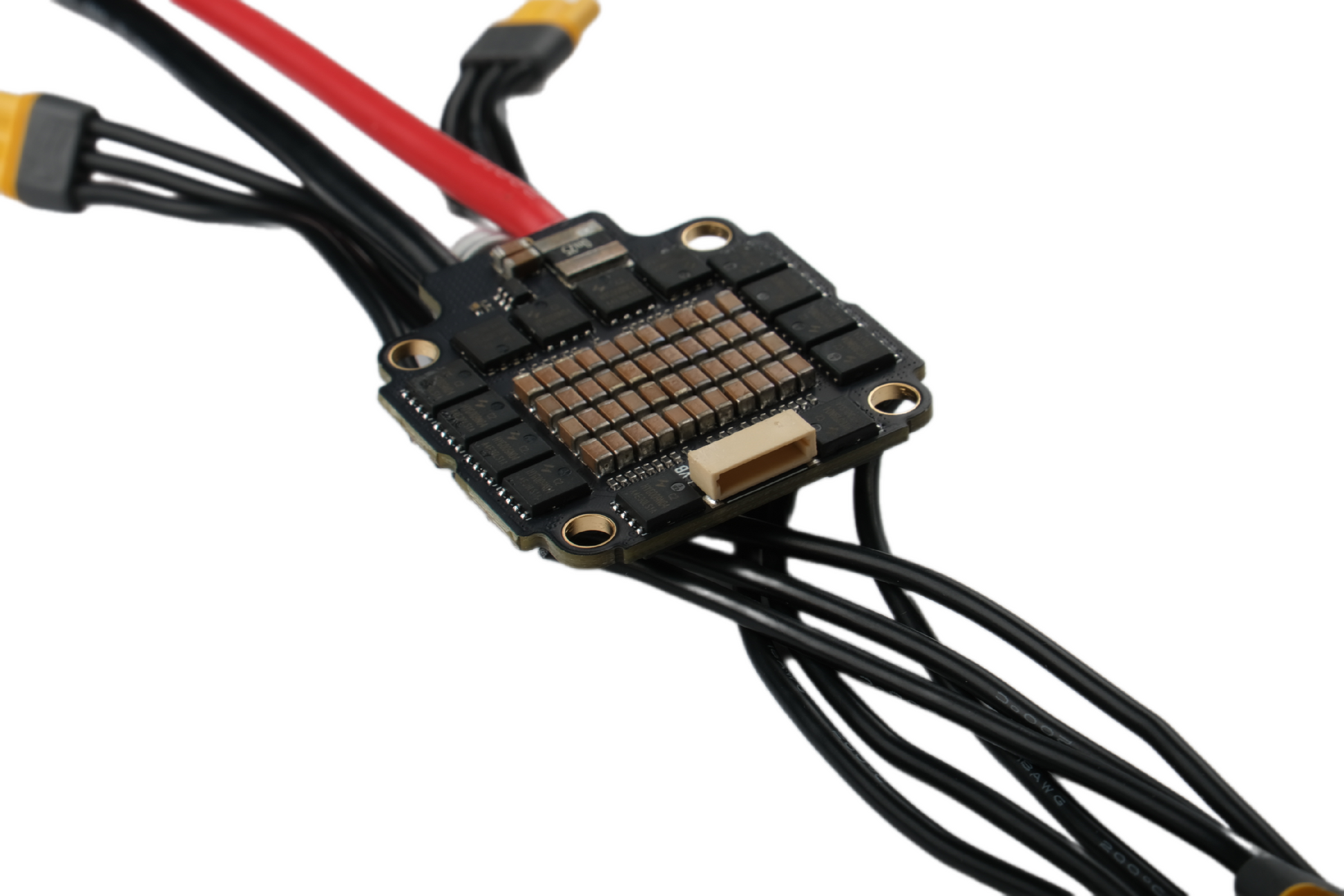

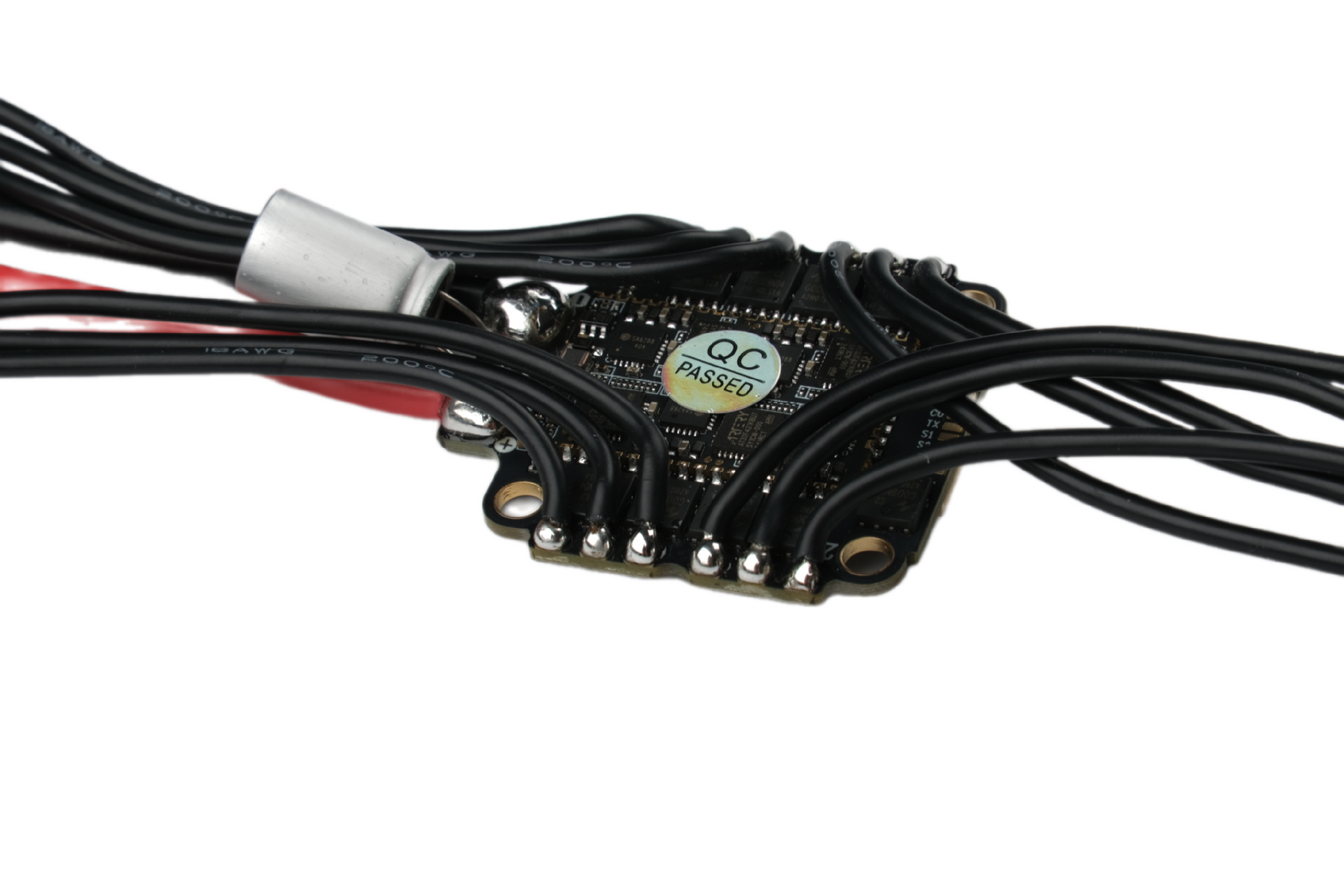

3060 Electronic Controller (ESC):
- Continuous maximum current: 60A x4
- Instantaneous maximum current: 70A x4
- Input Voltage: 3-6S Lipo
- Electrical distribution protocol: Dshot300/Dshot600/PWM/Bi-directional Dshot
- MCU: AT32F421K8U7
- Built-in current meter: Supported
- ESC telemetry: Supported
- Firmware: AM32_AT32PB4_540_F421_2.12.hex
- Weight: 13.9g
- External dimensions: 40mm x 40.7mm
- Position of mounting holes: M3 30.5mm x 30.5mm
2: Pilotix DIY ELRS915 Receiver with 915 Antenna
-

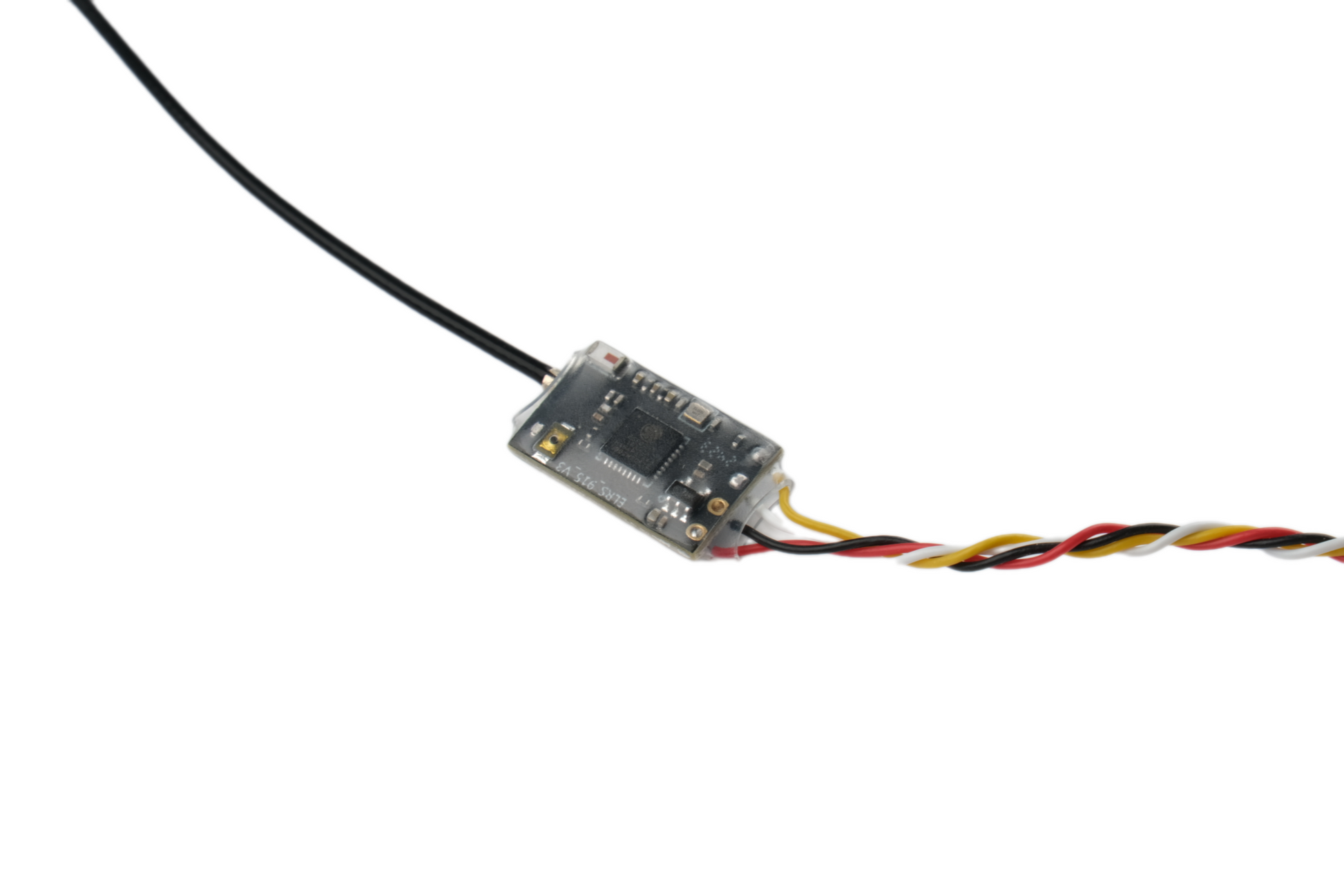

ELRS915 Receiver:
- Frequency band: 915MHz
- Telemetry output power: 17dbm
- Receiver protocol: CRSF/SBUS etc
- Input voltage: +5V DC
- PCB dimensions: 22mm x 14mm
- Weight: 1.3g (without antenna)
- Firmware: BATAFPV SuperD 900MHz RX
- Connection: 4Pin Cable
- Suitable for: Pairing with ELRS915M frequency
- Dual antenna: Ensures more stable reception and better resistance to interference, suitable for long flights
-
Antenna T-Shaped 915:
- Size: 148mm x 70mm

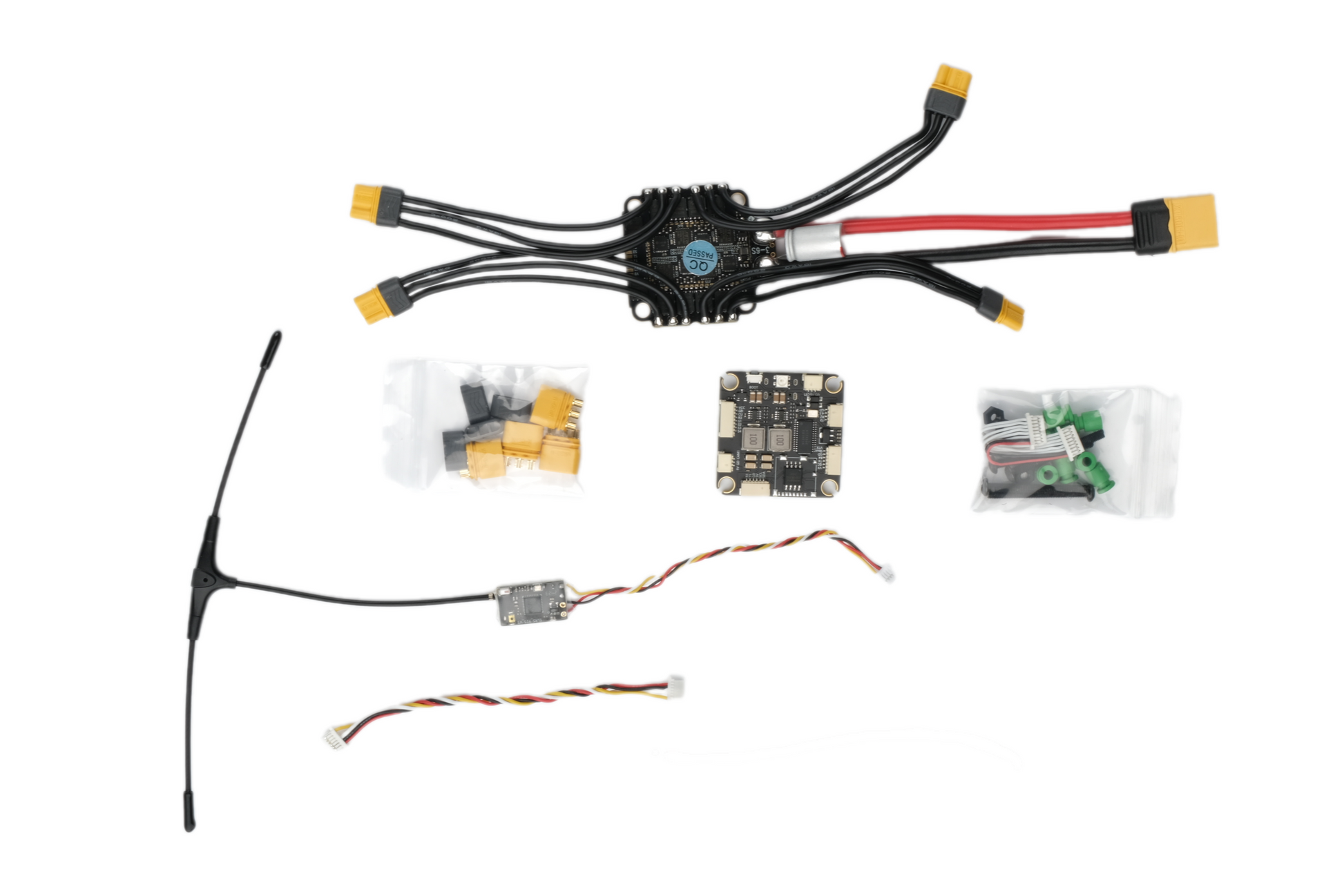

3: Package Contents:

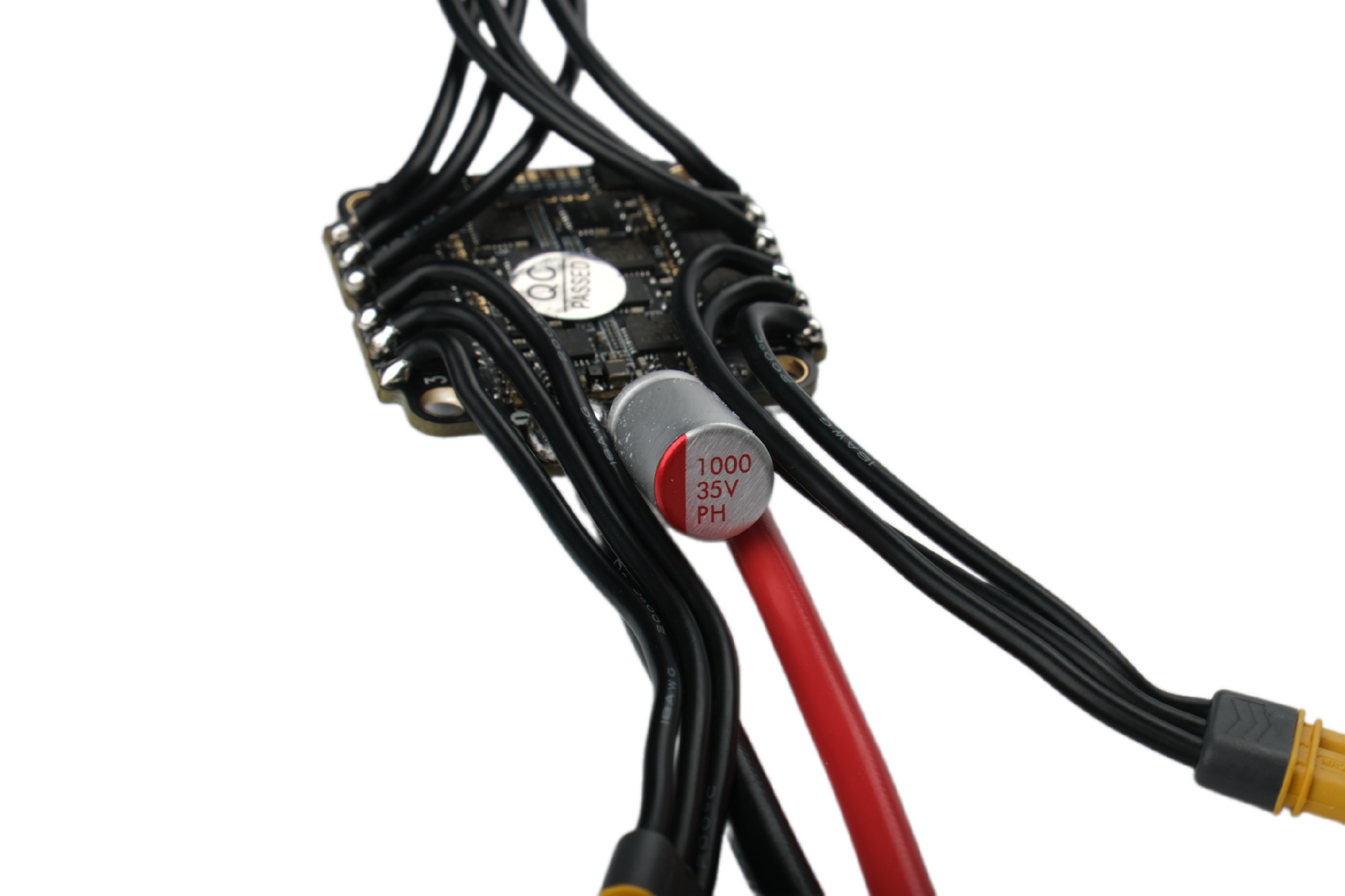

- F405 V3 Control Unit (with welded 4 pieces MR300 Male for motor / power cable / 1000uF solid electrolytic capacitor *1)
- 3060 AM32 60A Electronic Controller (ESC)
- 8PIN SH1.0 Connection Cable X1
- ELRS915 Receiver (with welded 4Pin Cable)
- T-Shaped 915 antenna
- Motor Connector with MR30 Female X4
- 3Pin Camera Cable X1
- 6Pin Cable for VTX X1
- M3 Metal Studs X4
- Matrix X8
- M3 Shock absorbers X8
