Code: SKU:3844
Stack Partizan F405 V2 60A
Stack Partizan F405 V2 60A
Brand: Partizan
Regular price
€62,00
Regular price
€62,00
Sale price
€62,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

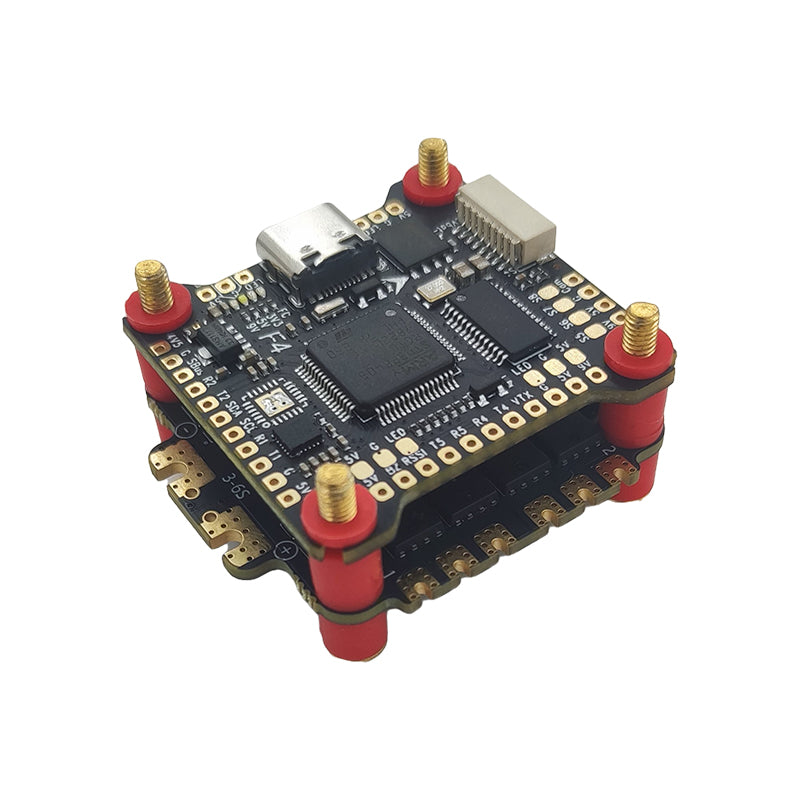

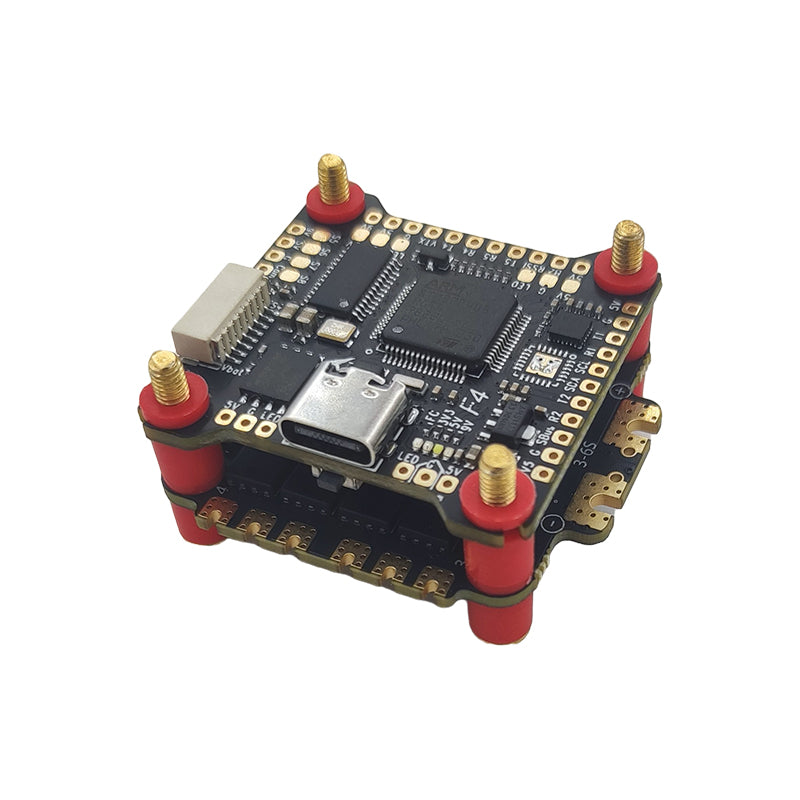

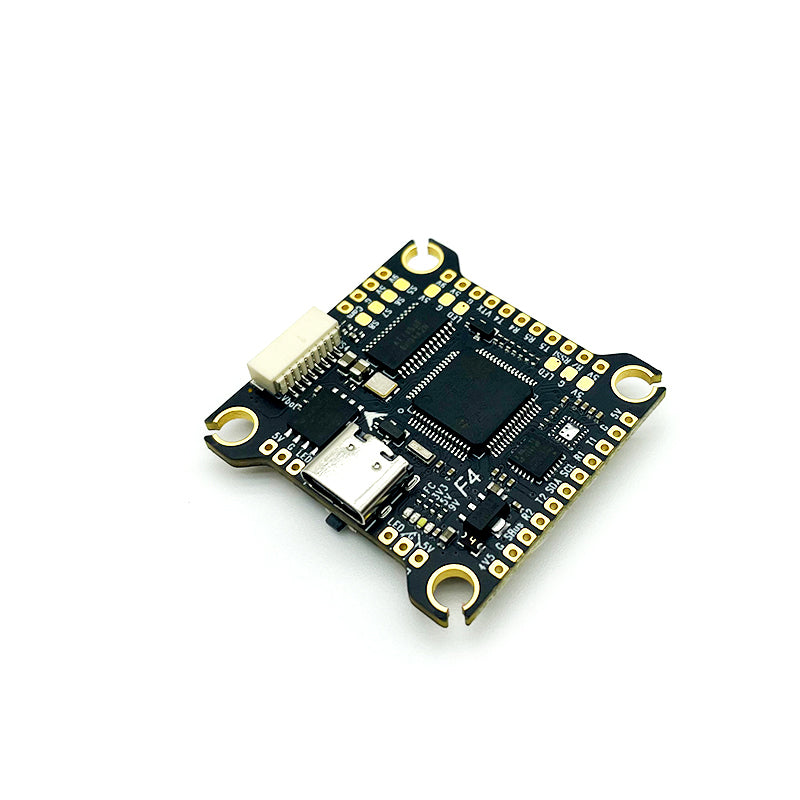

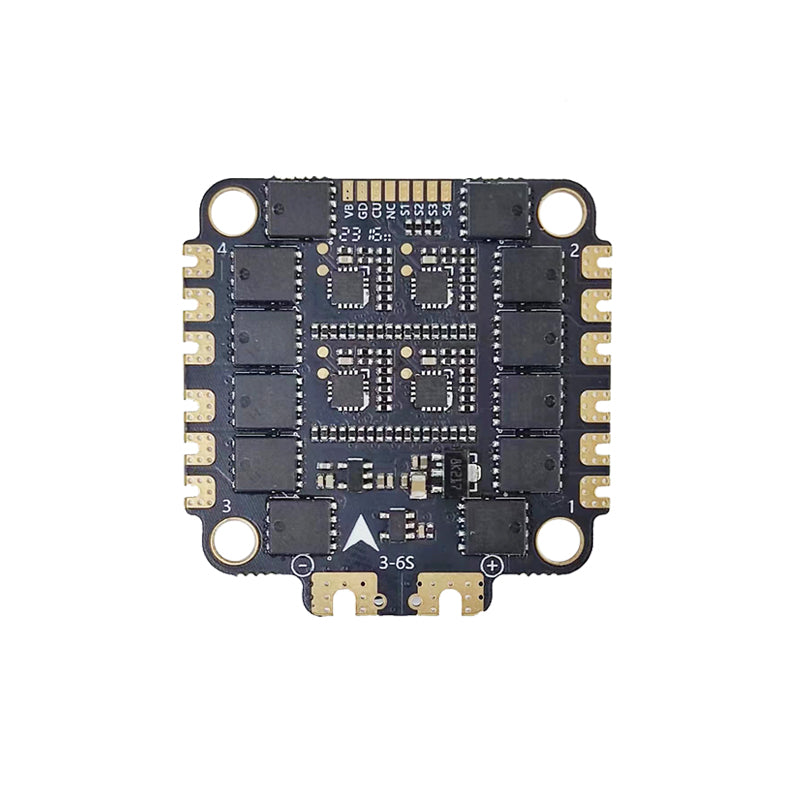

Stack Partizan F405 V2 60A The Partizan F405 V2 60A Stack is an advanced flight controller and electronic speed controller (ESC) combination designed for high performance drone applications. The F405 processor offers fast and precise flight control for smooth and stable flight maneuvers. The 60A ESC provides enough power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance. Specifications FC specification CPU: STM32F405RGT6 Gyroscope: MPU 6500 Baro: BMP280/DPS310 OSD: Support BEC Output: 5V/2.5A 9V/2A BlackBox: 16MB Uart: 5 channels Light strip buzzer: support Receiver protocol: ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX USB connector: Type-C DJl/Vista Digital Sky End: support Weight: 8.2g Mounting hole: 30.5 x 30.5 mm, M3 Size: 36X36 mm FC firmware: AOCODARCF405V2MPU6500 ESC specification Continuous current: 60A X4 Explosive current: 70A X4 Power supply: 3-6S Lipo Default Protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc. ESC telemetry: No output Current sensor: support ESC firmware: Bluejay H-H50 Weight: 10.4g Size: 40 x 40.7 mm Mounting hole: M3 30.5×30.5 mm Packing list 1x F405 V2 1x 3060S 2x SH1.0 8P cable 1x Electrolytic capacitor 1000uF 35V 1x XT60 AWG12 power cable 130MM
