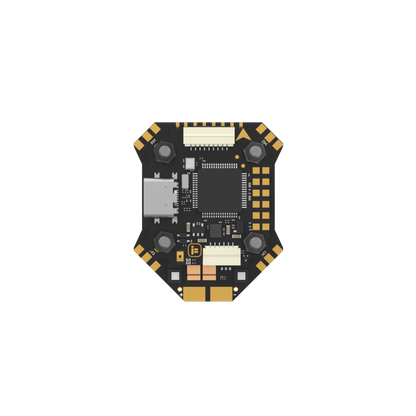

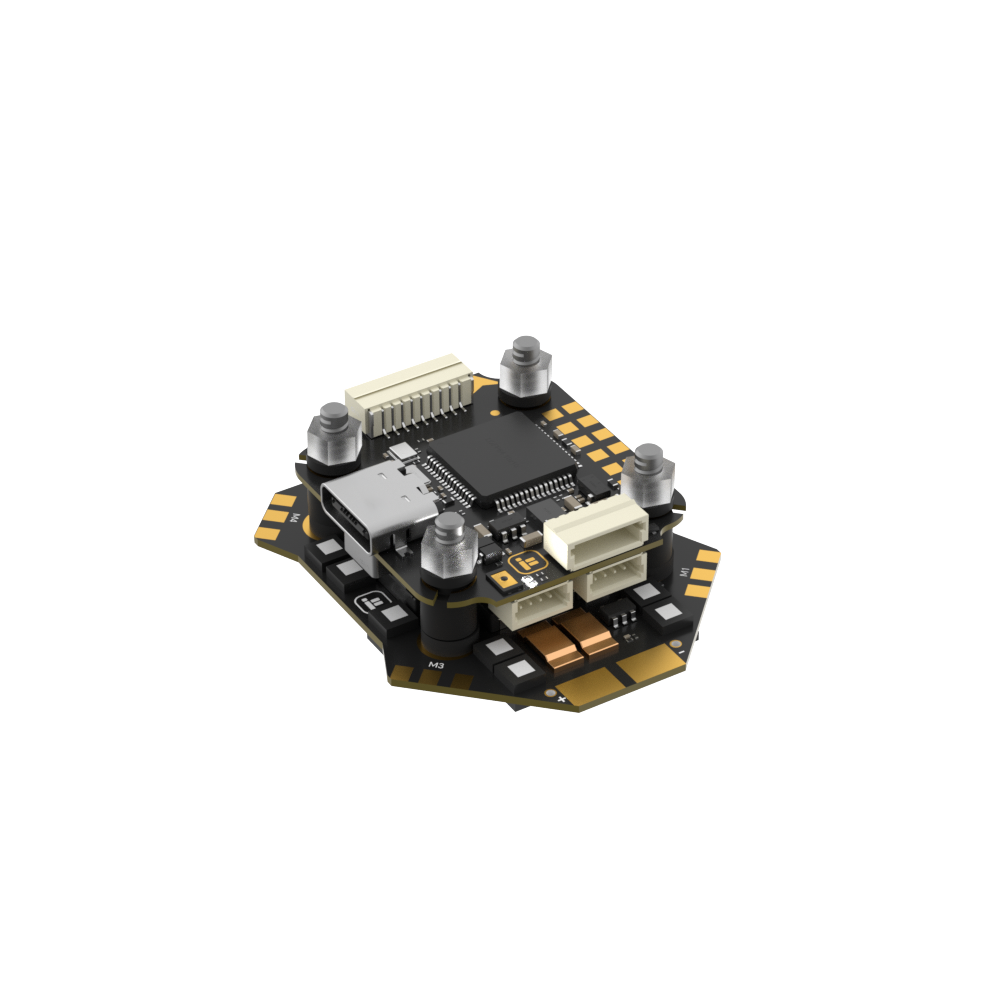

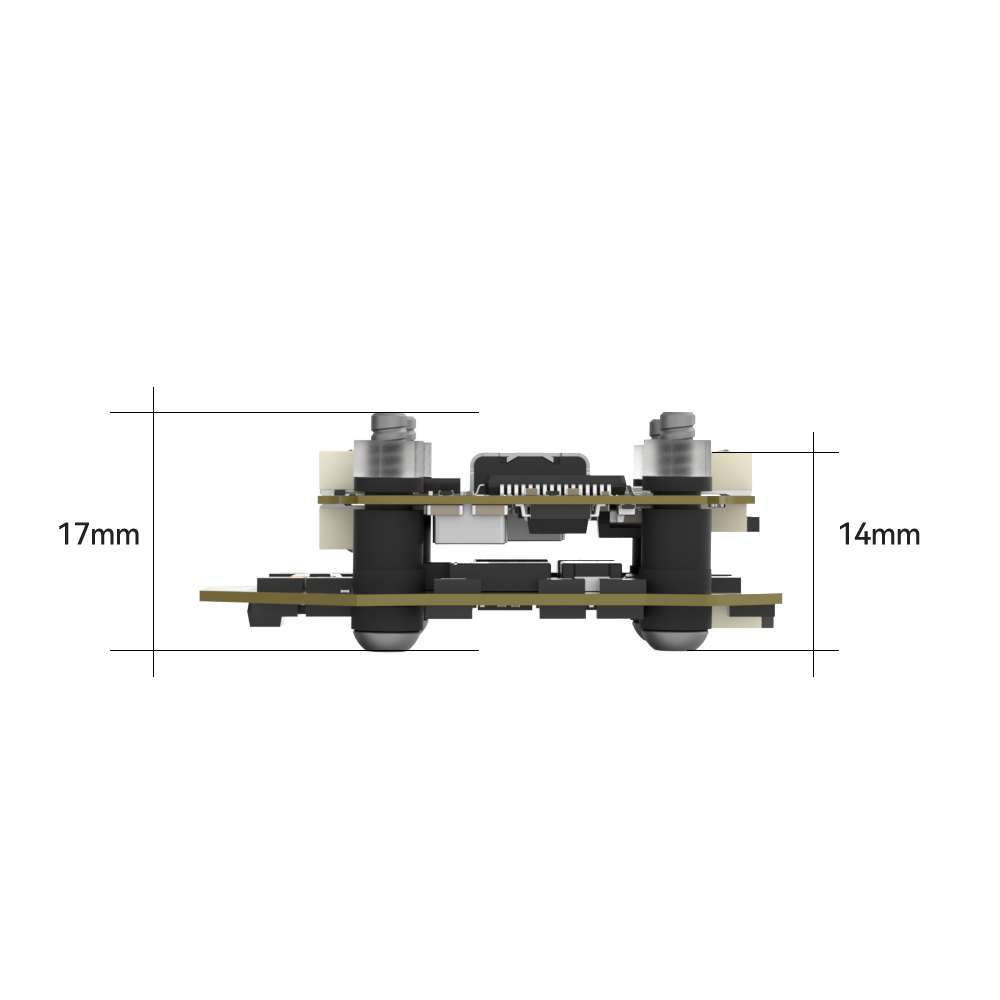

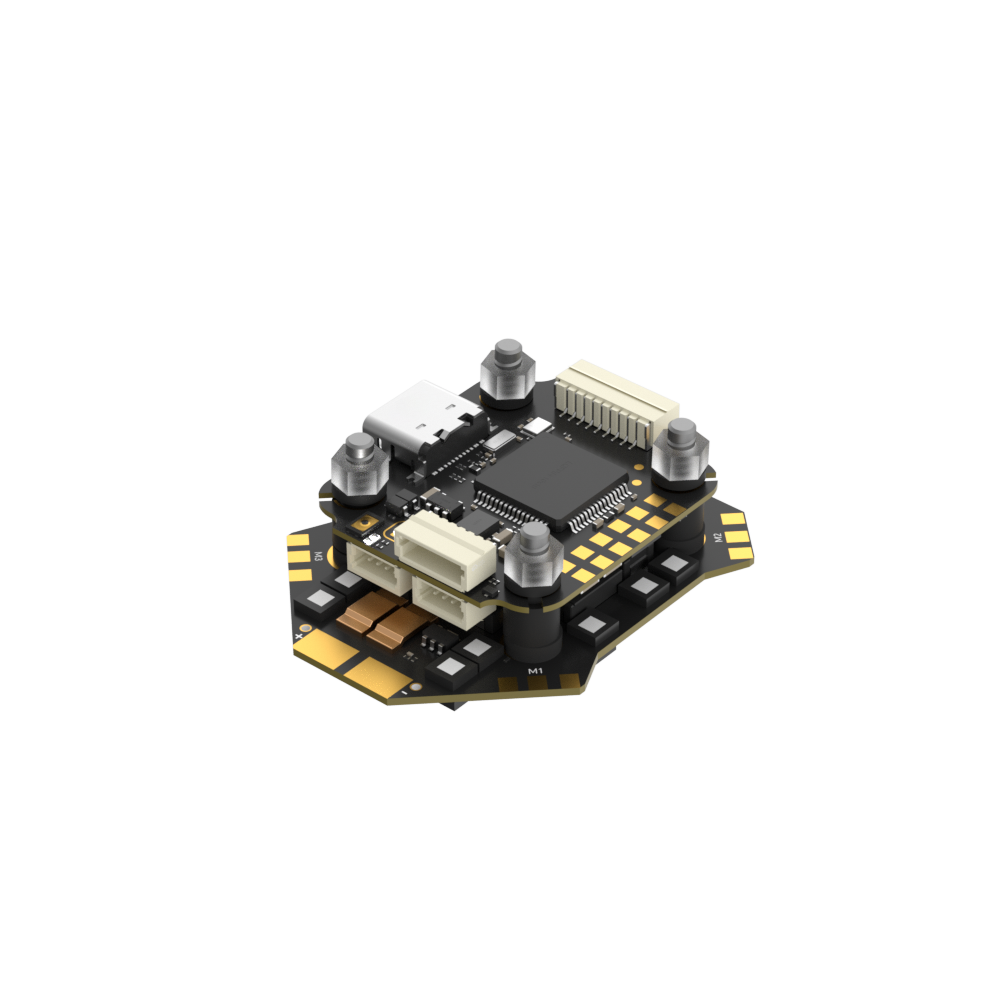

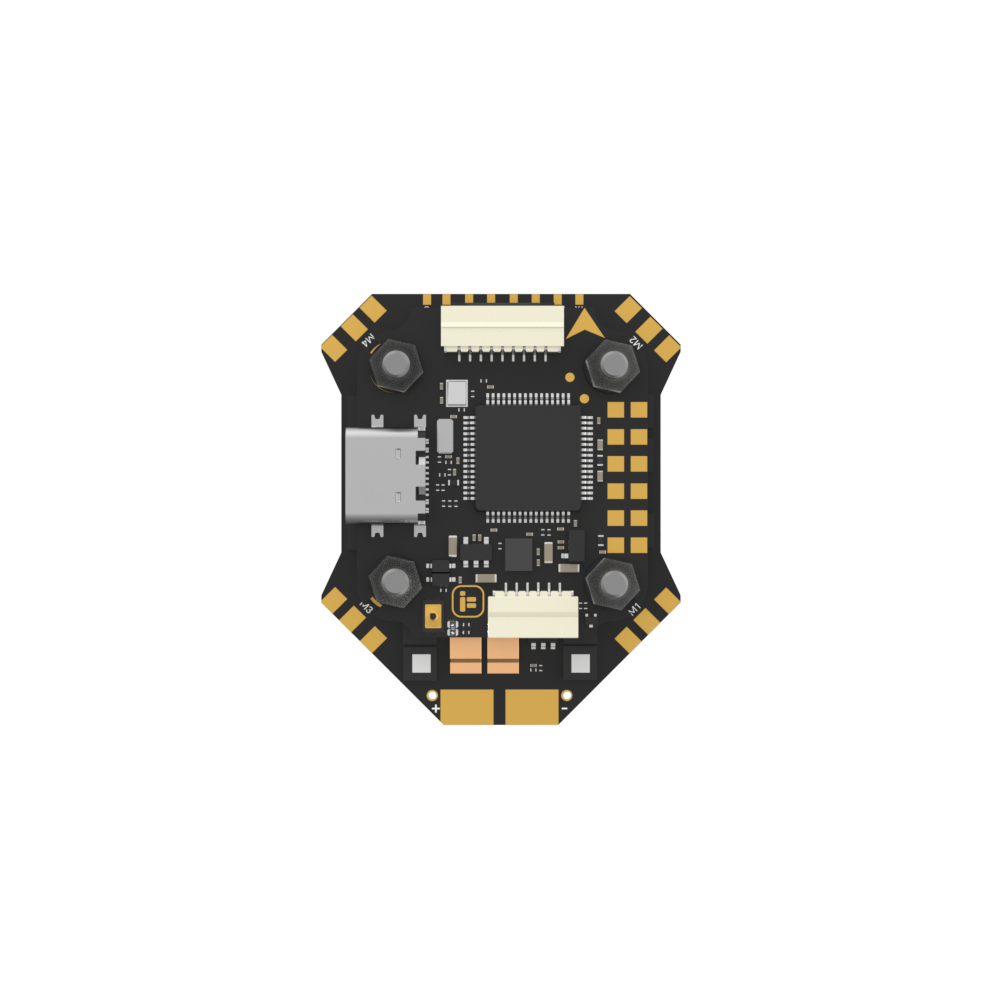

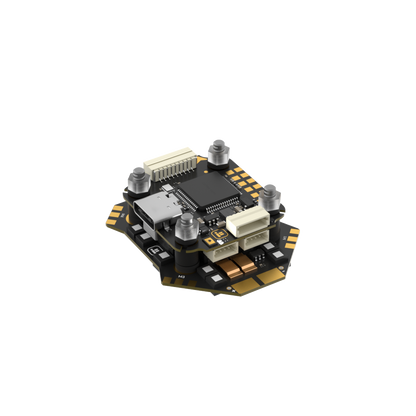

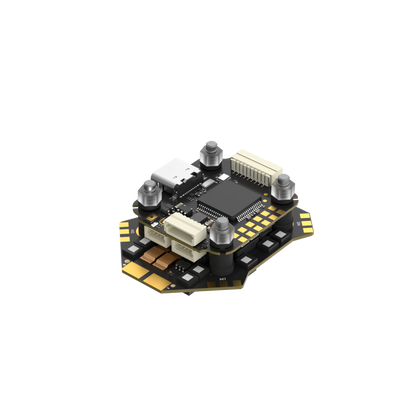

    iFlight Borg F7 Mini Stack (Borg 60 Mini ESC)

The iFlight Borg F7 Mini Stack combines top performance with a compact design, making it a top choice for FPV racing pilots. This stack includes the powerful Borg F7 Mini flight controller and the high-performance Borg Mini 60A ESC. Supporting 4S to 8S input voltages, the FC features integrated 5V/12V BECs and switchable VTX power, while the STM32F722 MCU and ICM42688 gyro sensor ensure precise control. The 60A ESC supports DShot, Multishot, and OneShot protocols with telemetry and bidirectional DShot. Designed for speed, reliability, and adaptability, this stack delivers ultra-fast response times and maximum stability for your racing build.

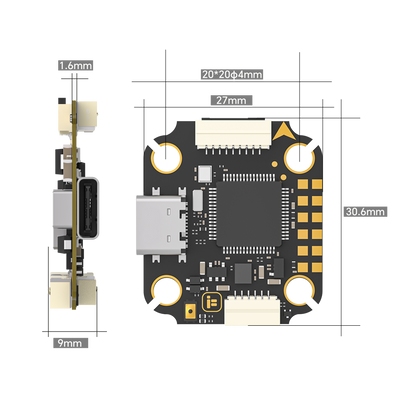

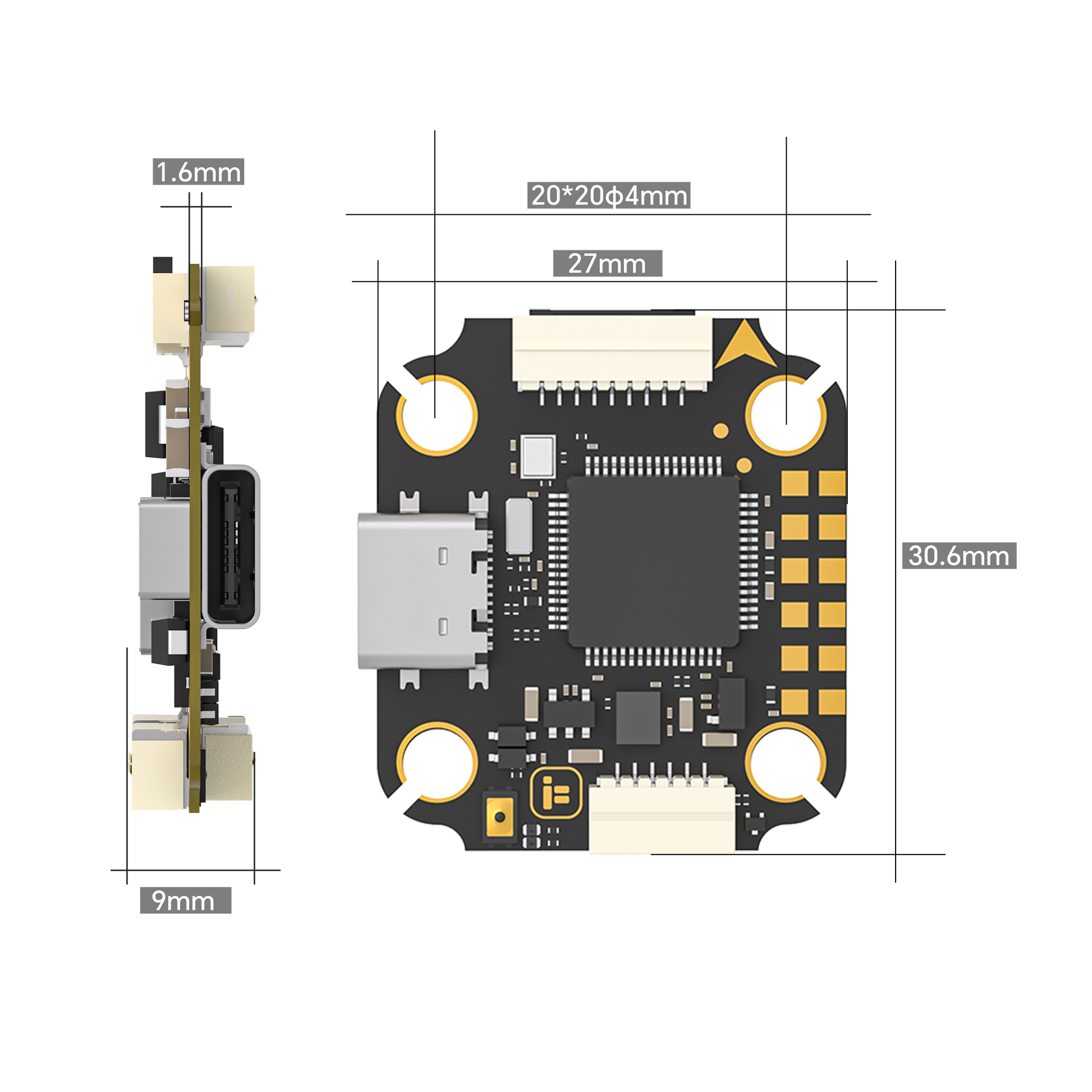

FC Specifications:

Input Voltage: 4-8S; Supports LIHV battery
MCU: STM32F722RET6
Gyro: ICM42688
Barometer: SPA06-003
OSD Chip: AT7456E (LGA)
Flash: 32MB (Blackbox Flash)
UARTs: 6
Motor Outputs: 4
I2C Serial: Not supported
VTX Protocol: Supports DJI MSP/Smartaudio/IRCTramp/HDZero
LED Controller: Yes
Beeper Pad: Yes
Betaflight Firmware Target: IFLIGHT_BLITZ_F722
INAV Firmware Target: IFLIGHT_BLITZ_F722
Mounting Pattern: 20×20 mm, Φ4 mm
Dimensions: 27×30.6 mm ±1
Weight: 6.8 g ±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

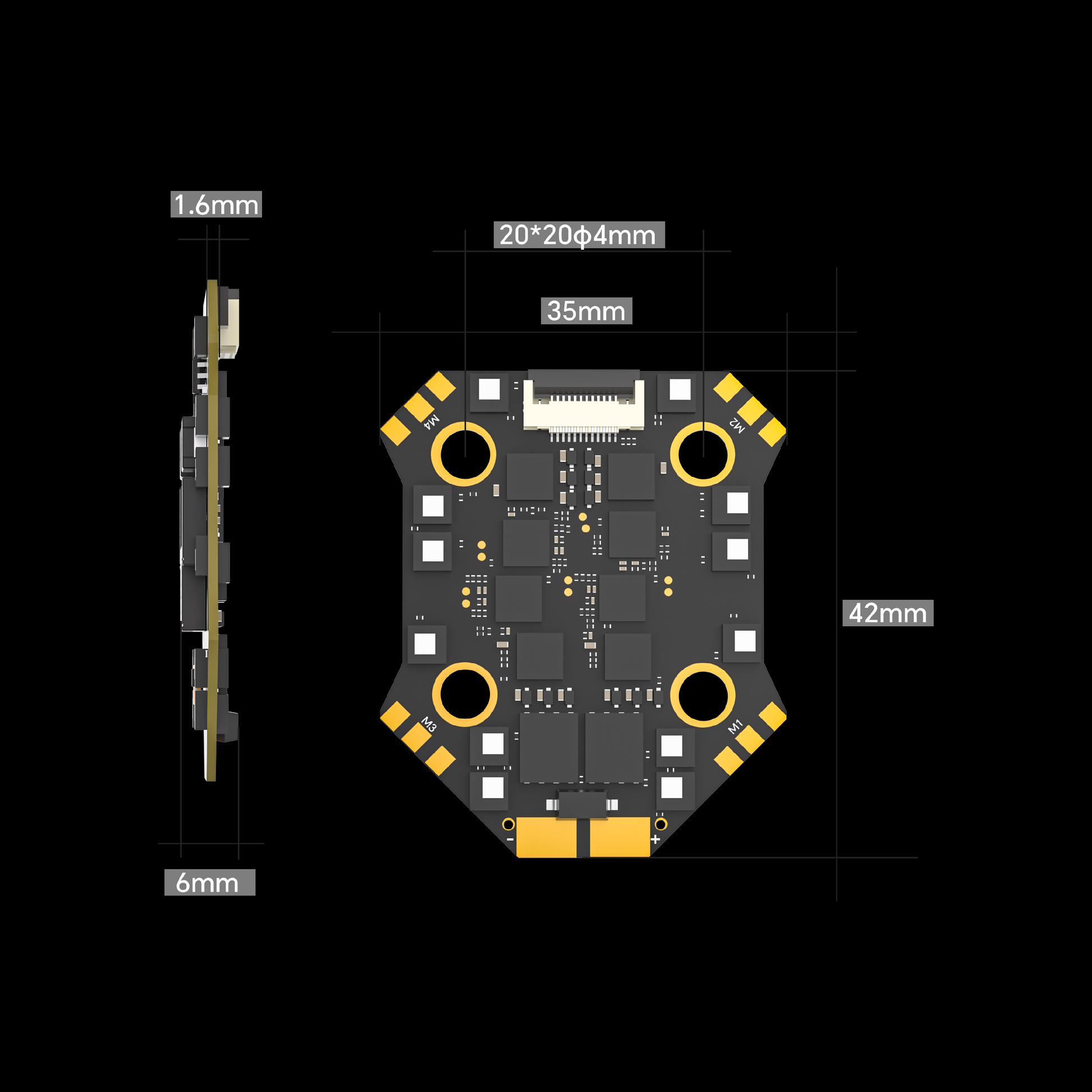

ESC Specifications:

Product Name: Borg Mini 60 ESC
Input Voltage: 2-6S; Supports LIHV batteries
Max. continuous current: 60A
Max. peak current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32-bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current sensor: Yes
BEC: None
Telemetry: Supported
Bidirectional DSHOT: Supported
Dimensions: 42×35 mm ±1
Mounting holes: 20×20 mm / Φ4 mm
Weight: 9.8 g ±1
Protocol: Supports DShot150/300/600, MultiShot, OneShot, etc.

Package includes:

1 × Borg F7 Mini Flight Controller
1 × Borg 60 Mini ESC
1 × Cable set
5 × Silicone grommets
