Code: SKU:B017533

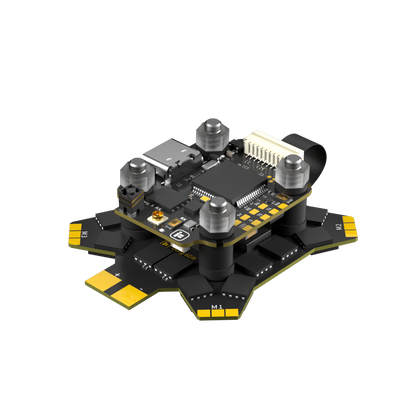

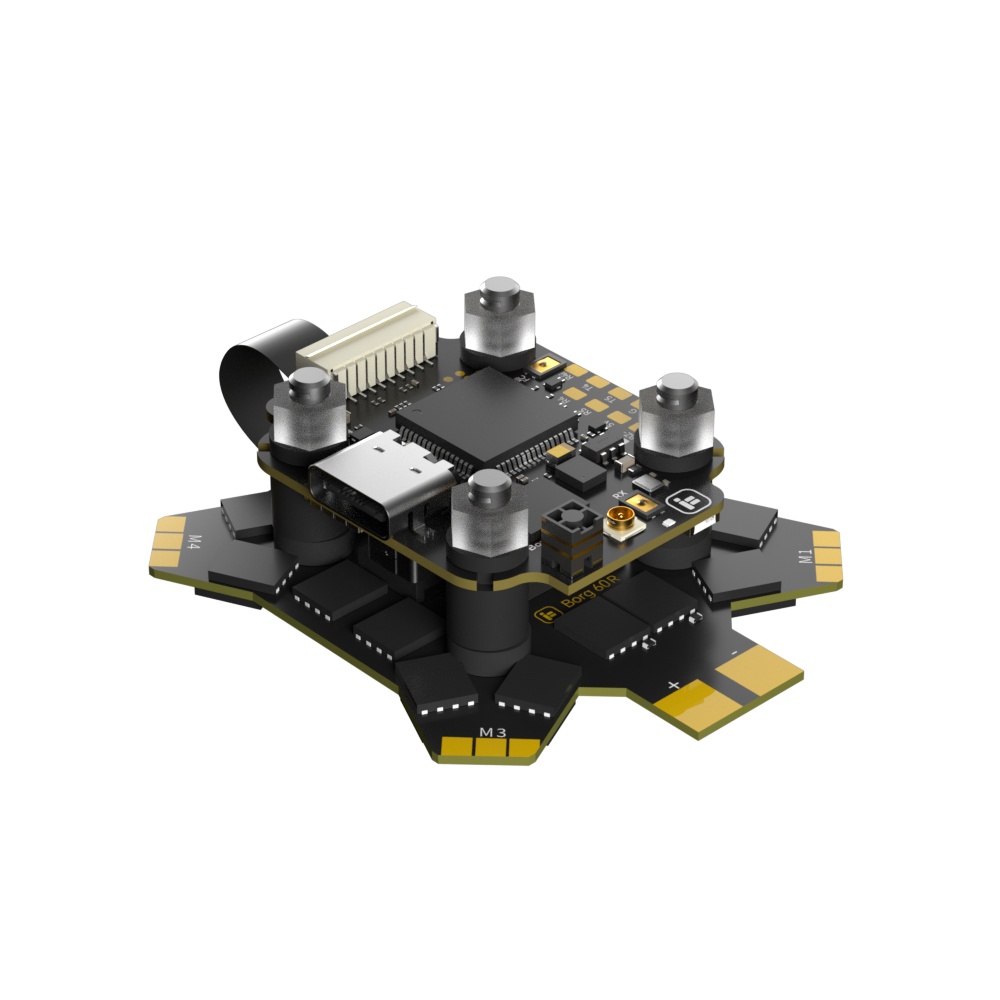

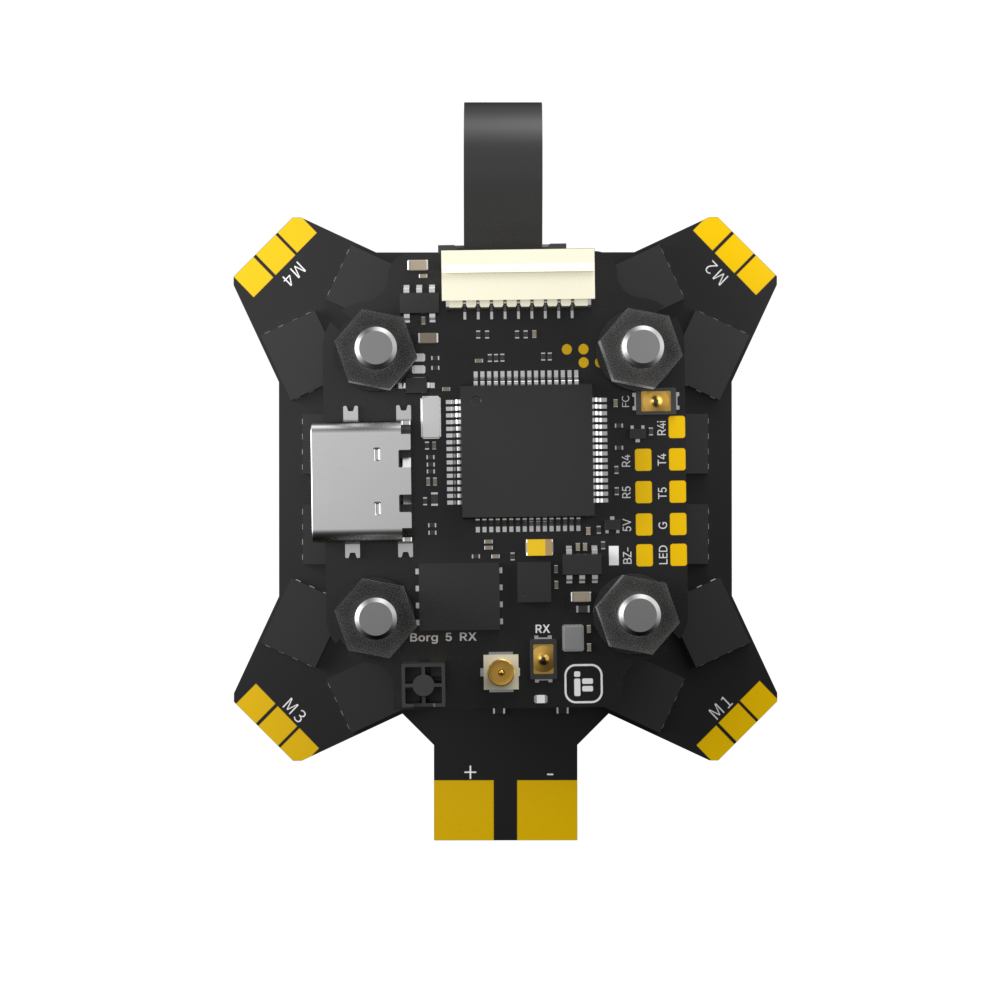

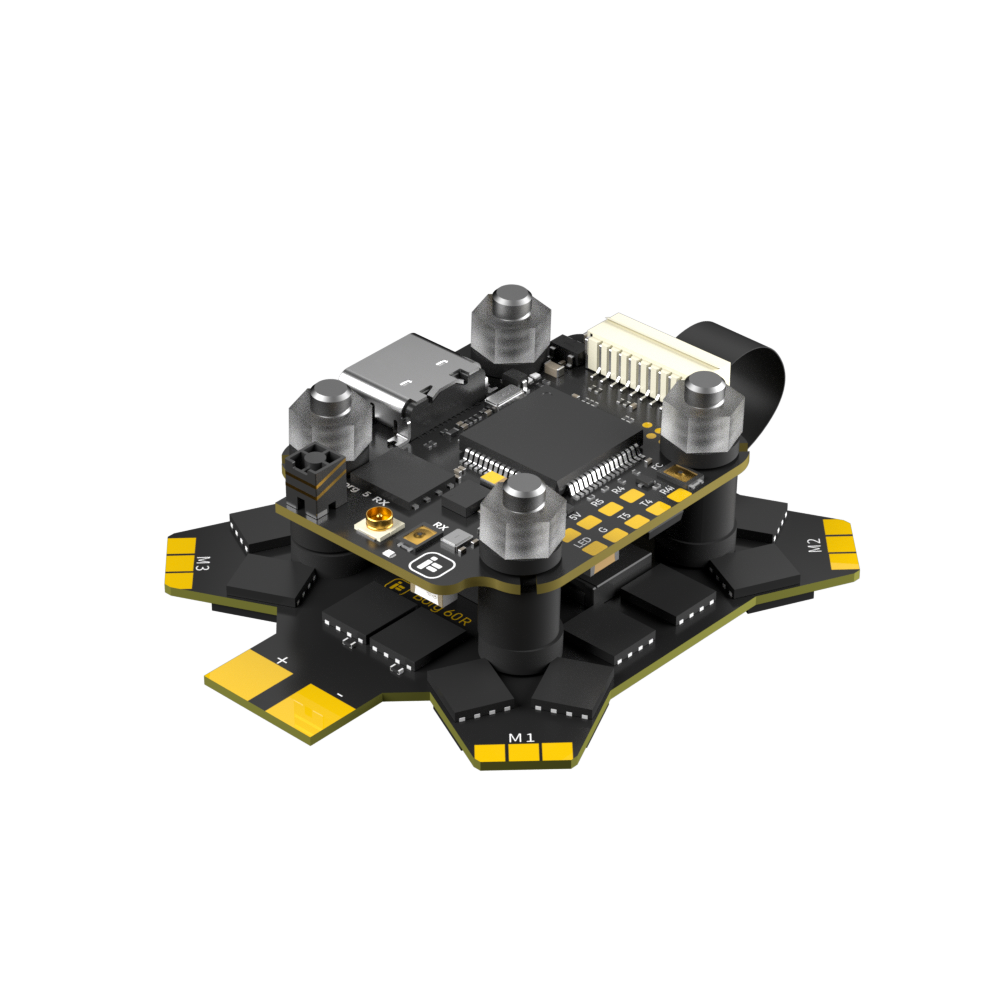

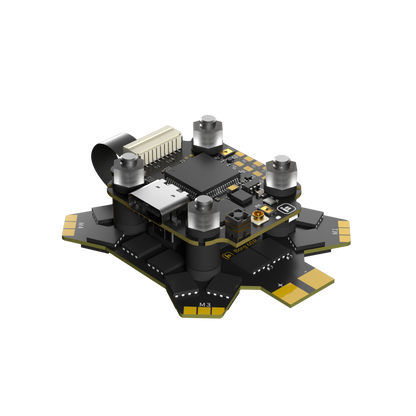

Stack iFlight Borg 5S RX Stack (Borg 60R ESC)
Stack iFlight Borg 5S RX Stack (Borg 60R ESC)
Brand: iFlight
Regular price
€74,32
Regular price
€74,32
Sale price
€74,32
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

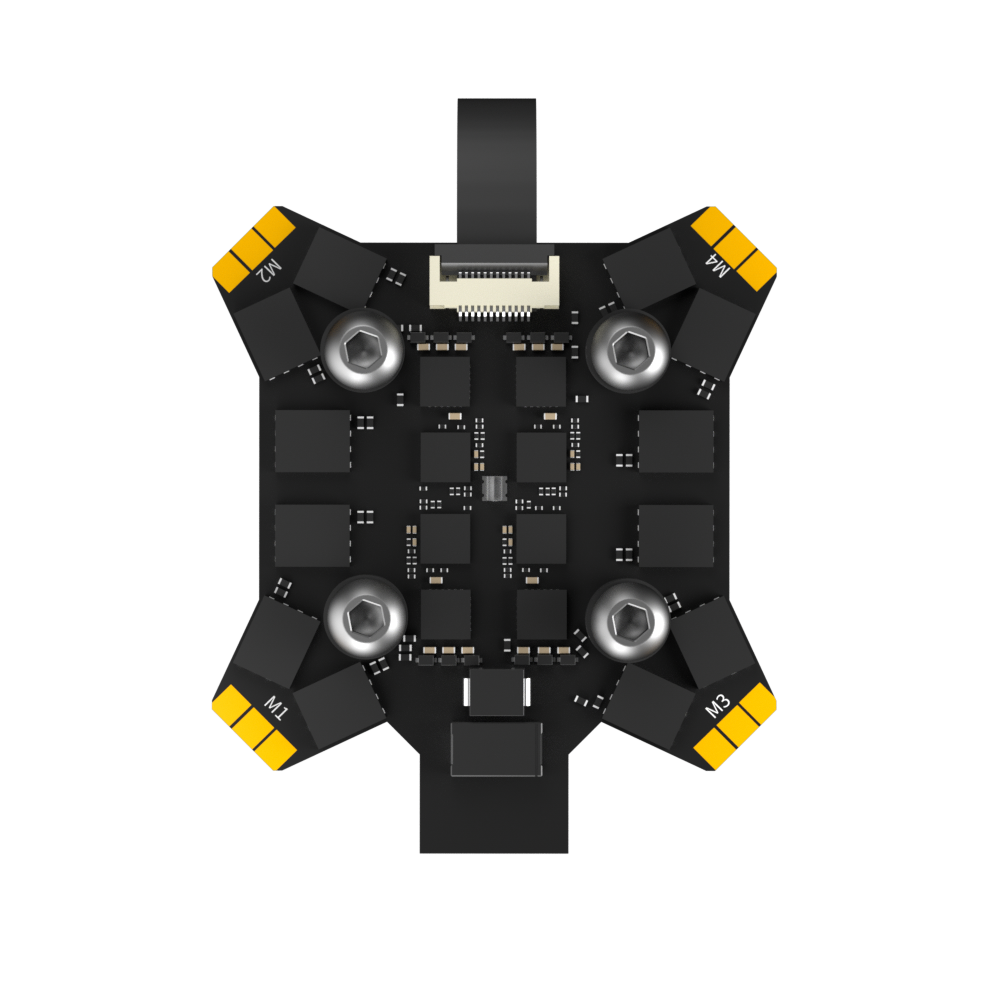

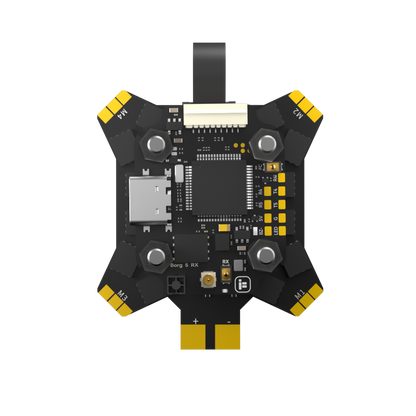

Stack iFlight Borg 5S RX Stack (Borg 60R ESC) The iFlight Borg 5S RX Stack is a powerful all-in-one racing stack designed for high-speed FPV performance. This system features a flight controller with an integrated 2.4 GHz ExpressLRS (ELRS) receiver and integrated antenna, ensuring ultra-reliable signal quality. The Borg 5S RX FC supports 4-8S input voltage and allows external receivers for custom setups. The included Borg 60R ESC delivers up to 60A continuous current and supports DShot and telemetry. Equipped with modern components such as the AT32F435 MCU, ICM42688 gyro, and robust 12V/5V BECs, this stack is optimized for low latency, minimal noise, and serious racing requirements. FC Specifications: Input Voltage: 4-8S; Supports LIHV battery MCU: AT32F435RGT7 Gyro: ICM42688 Barometer: Not included OSD chip: AT7456E Flash: 16MB (Blackbox Flash) UARTs: 4 Motor outputs: 4 I2C serial: Not supported VTX protocol: Supports DJI MSP/Smartaudio/IRCTramp/HDZero LED controller: Yes Beeper pad: Yes Firmware target: IFLIGHT_BLITZ_ATF435 (Betaflight) Mounting pattern: 20×20 mm, Φ4 mm Dimensions: 34×27 mm ±1 Weight: 6.8 g ±1 BEC: 5V 2.5A, 12V 2A (12V with VTX switch) ESC Specifications: Product Name: Borg 60R ESC Input Voltage: 3-8S; Supports LIHV batteries Max. continuous current: 60A Max. peak current: 65A (10s) MCU: STM32G071N Driver: FD6288 Firmware: BL32 (32-bit ESC) Target: IFLIGHT_BLITZ_G3 32.9 Current sensor: Not available BEC: Not available Telemetry: Supported Bidirectional DSHOT: Supported Dimensions: 45×52 mm ±1 Mounting holes: 20×20 mm / Φ4 mm Weight: 14.5 g ±1 Protocol: Supports DShot150/300/600, MultiShot, OneShot, etc. Package includes: 1 × Borg 60R ESC 1 × Borg 5S RX Flight Controller 1 × Cable set 5 × silicone grommets
