Code: SKU:BF15682

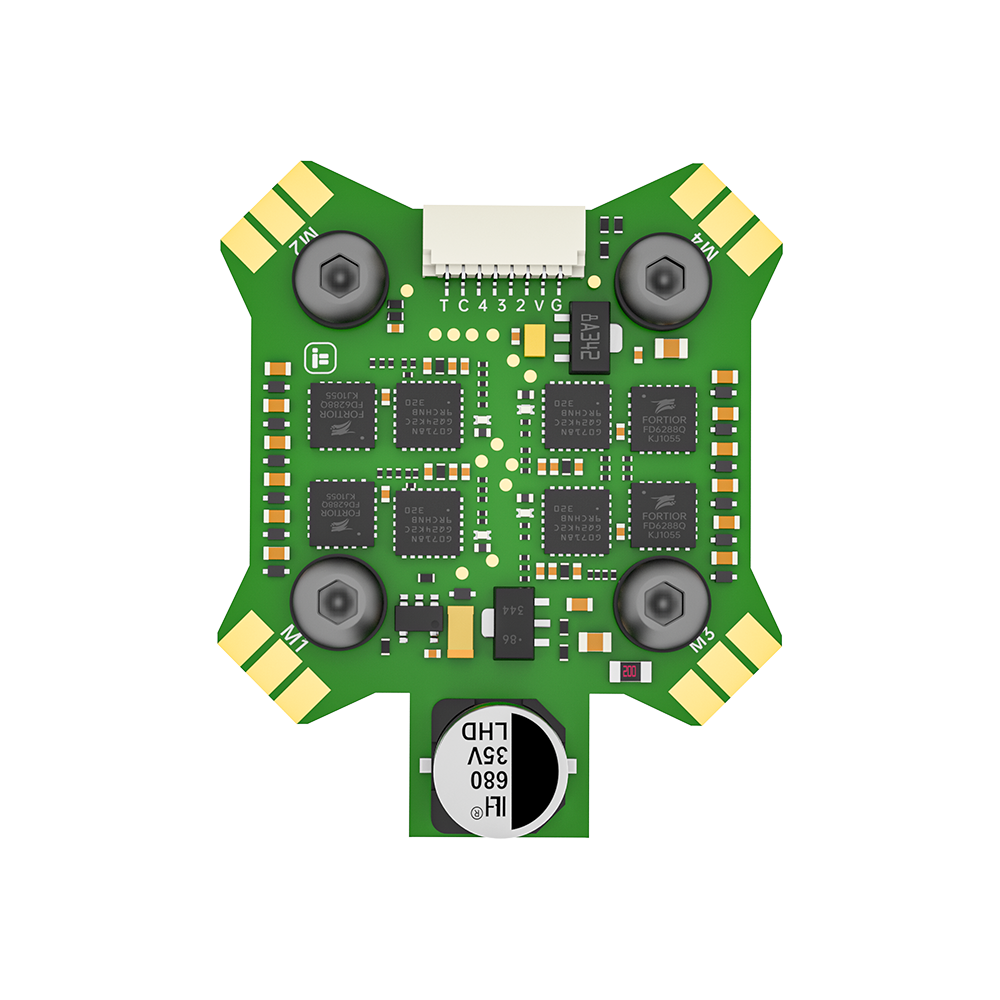

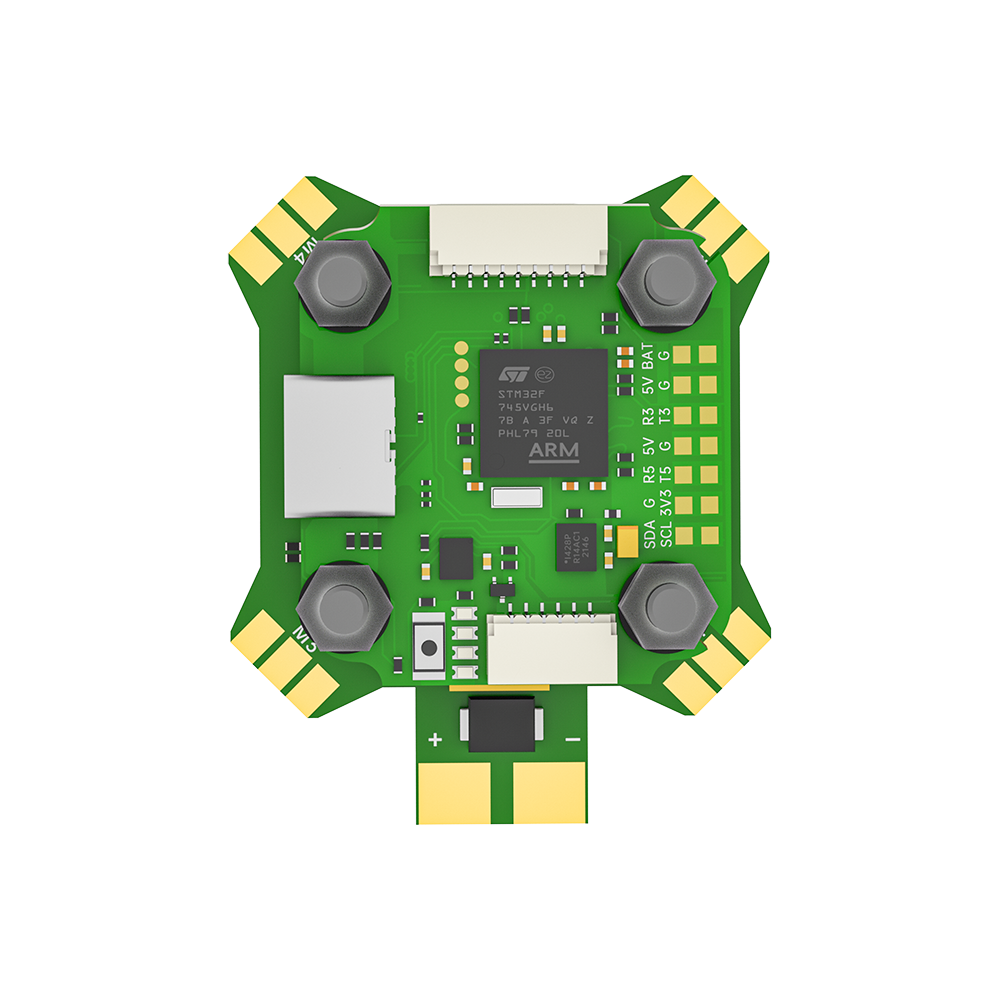

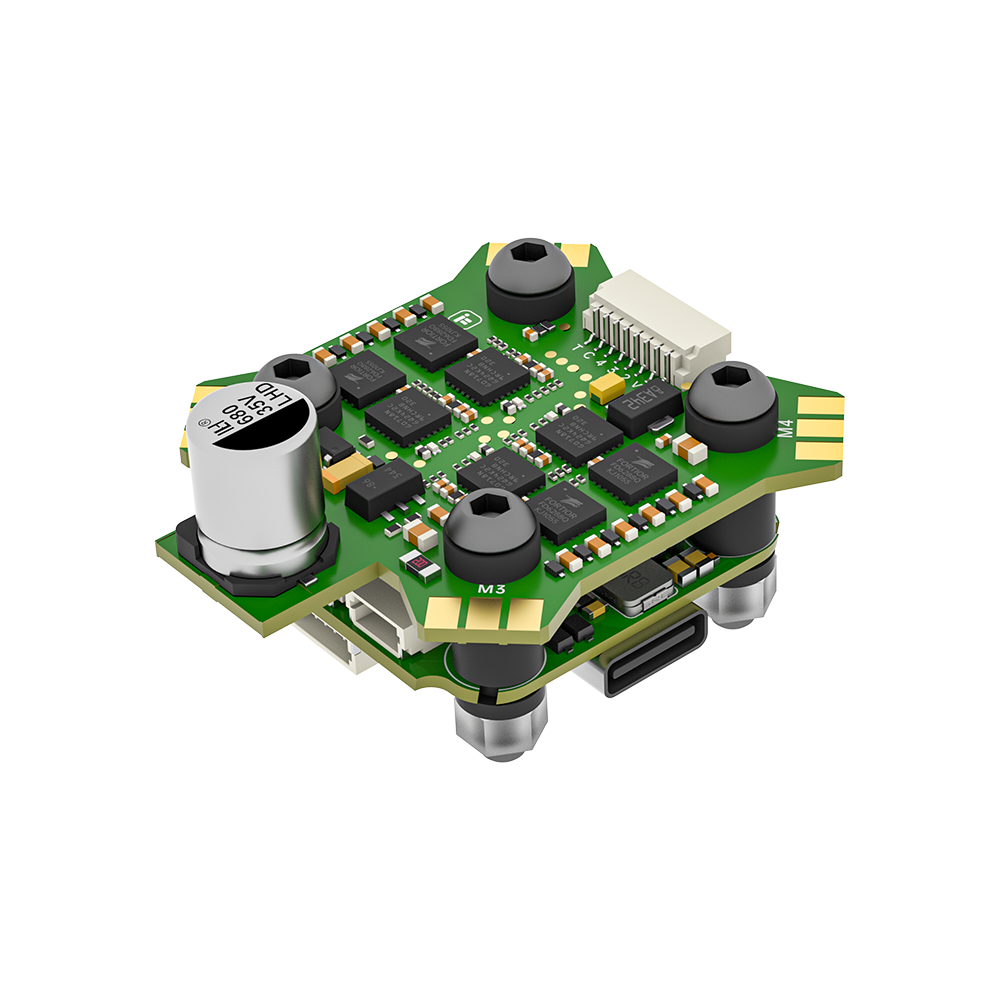

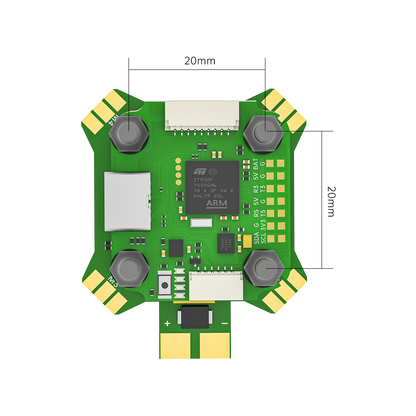

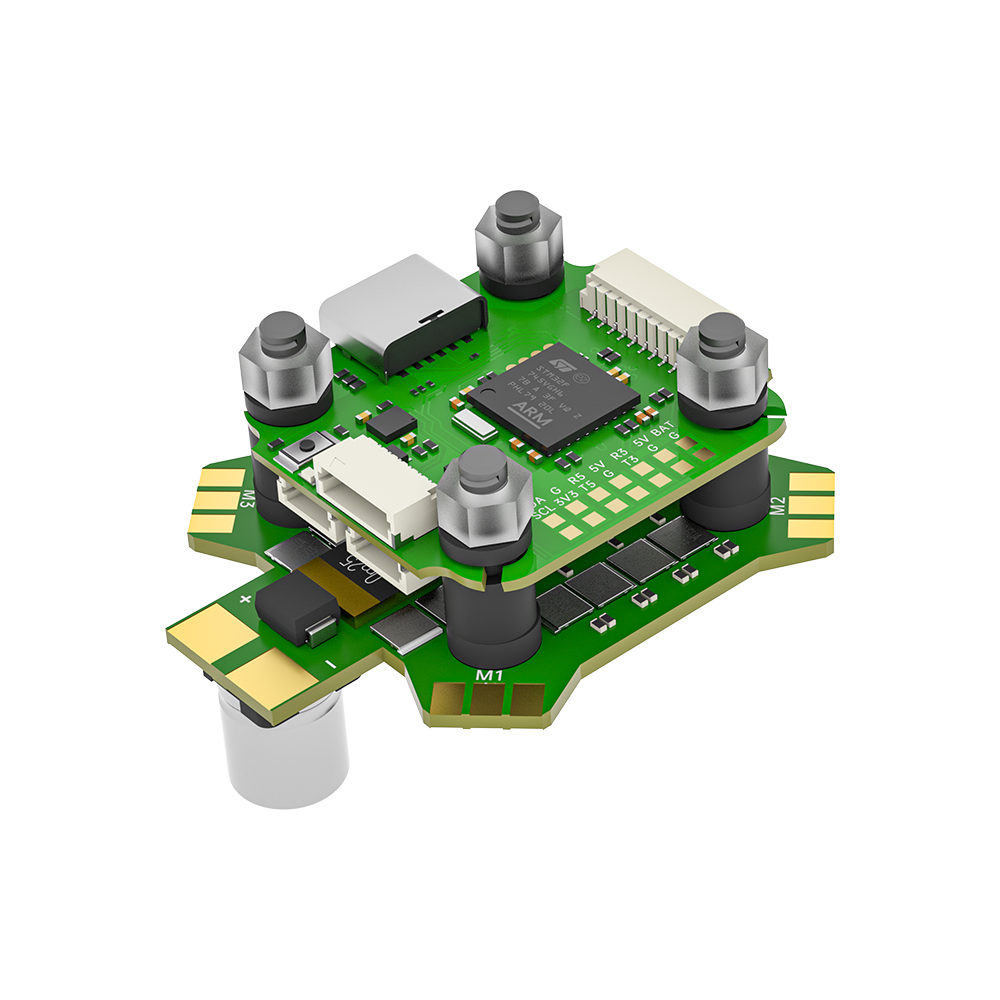

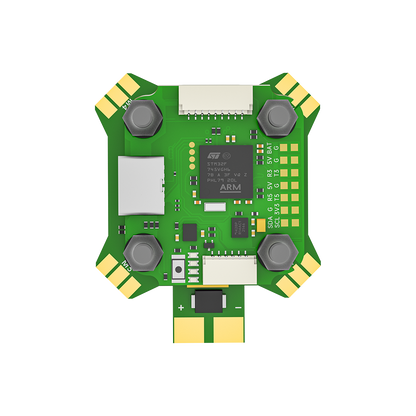

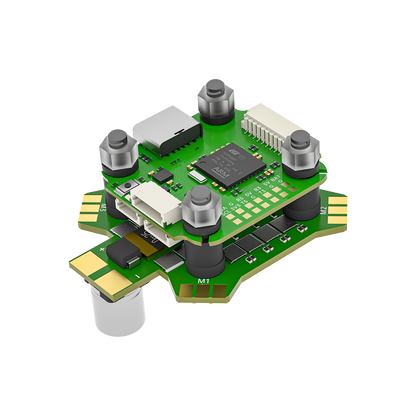

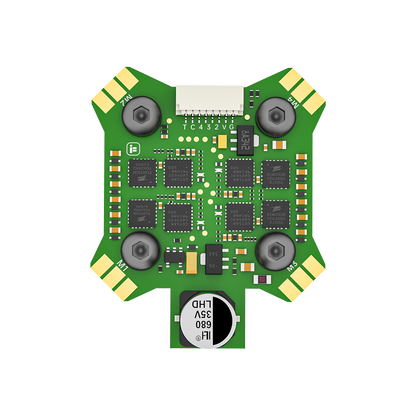

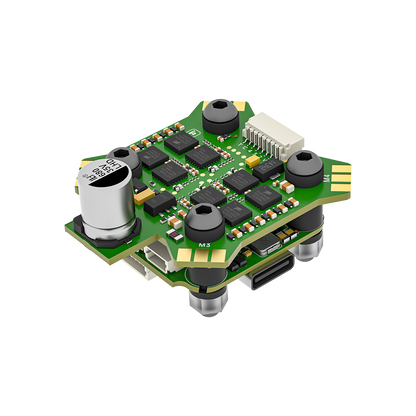

Stack iFlight BLITZ Mini F745 (E55 Mini 4-IN-1ESC)
Stack iFlight BLITZ Mini F745 (E55 Mini 4-IN-1ESC)
Brand: iFlight
Regular price
€117,60
Regular price
€117,60
Sale price
€117,60
Unit price
/
per
In stock
Limited stock available. Order soon!
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
BLITZ Mini F745 Stack (E55 Mini 4-IN-1ESC) Function: - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning - Betaflight, INAV, Ardupilot firmware support FC specification MCU: STM32F745 Gyroscope: ICM42688 Barometer: DPS310 OSD chip: AT7456E Flash: 16 MB (Blackbox flash) UARTS: 6 Smartaudio / IRC Tramp VTX protocol supported LED driver: Yes Buzzer: Yes Mounting pattern: 20*20mm/φ4 Dimensions: 30.5*27 mm Weight: 4.8g BEC: 5V 2.5A / 9V 2A BF Target Firmware: IFLIGHT_BLITZ_F7_AIO Ardupilot firmware: arduplane_with_bl Wiring design UART 1 for VTX HD / Analog UART 2 for receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC Telemet ESC specification Mounting holes: 20*20mm/Φ4mm Weight: 11.3g Supports 2-6S Lipo input MCU: G071 Constant: 55 Amps Discharge: 60 amps Current sensor: Yes BEC: No Current rate: 200 Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. Firmware: BLHeli 32 Target: IFLIGHT_BLITZ_G071_01 32.9/ IFLIGHT BILTZ G2 32.9 The package includes: 1 x BLITZ Mini F745 Flight Controller 1 x BLITZ Mini E55 4-IN-1 2-6S ESC
