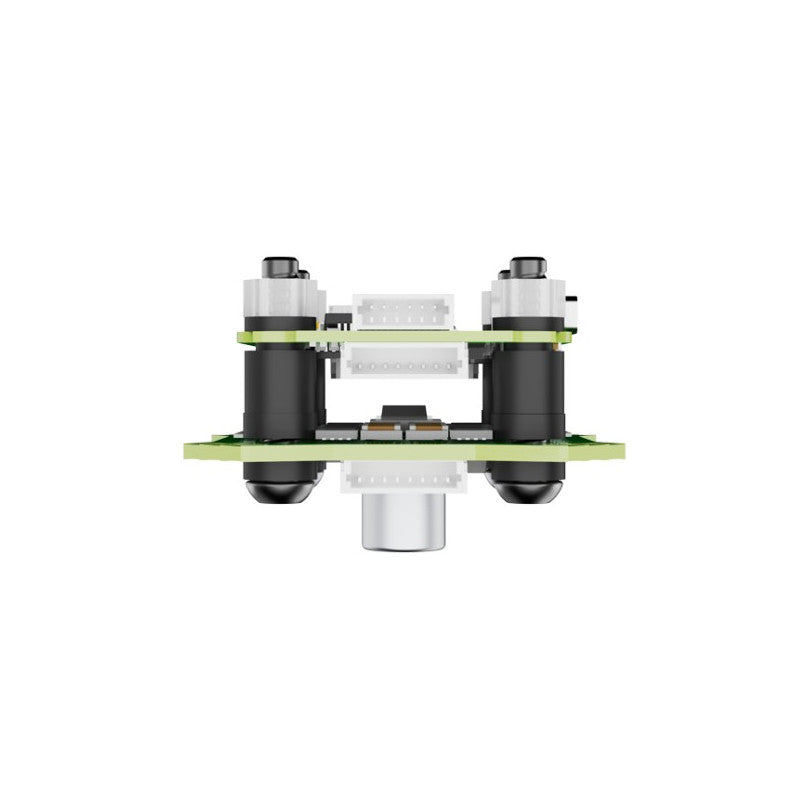

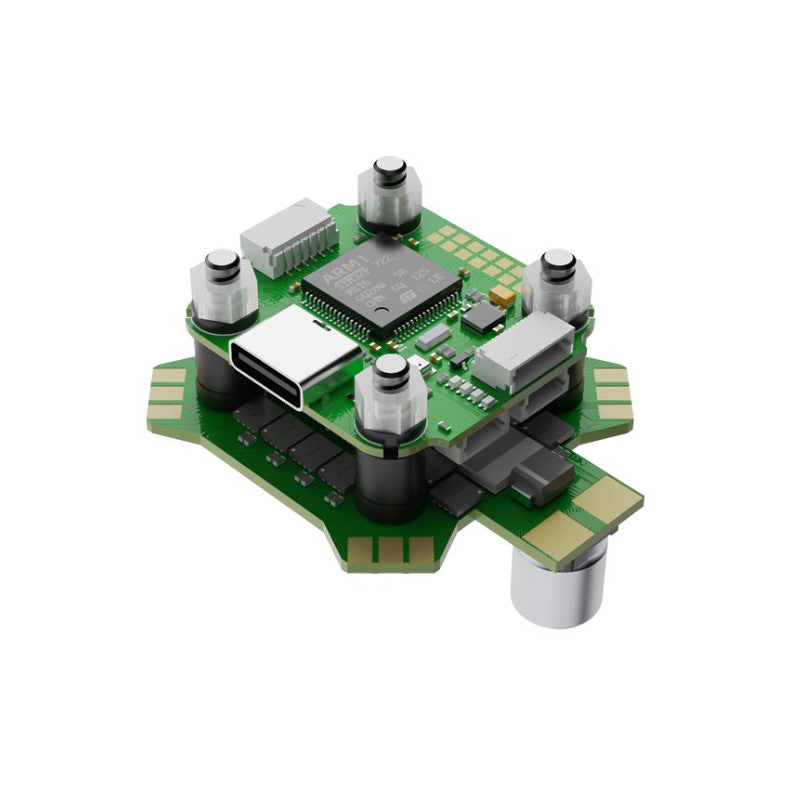

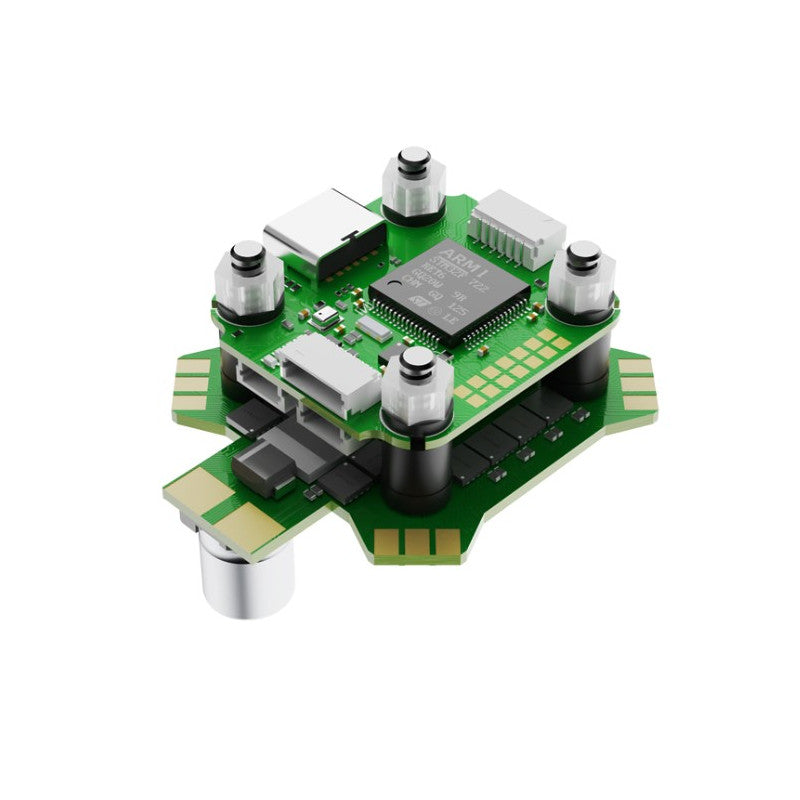

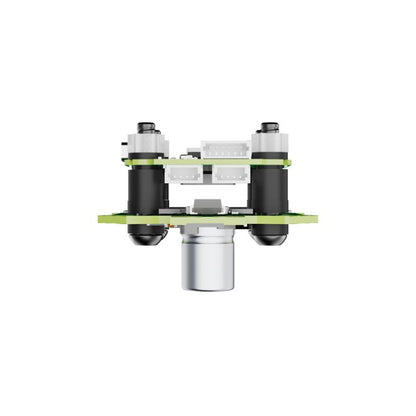

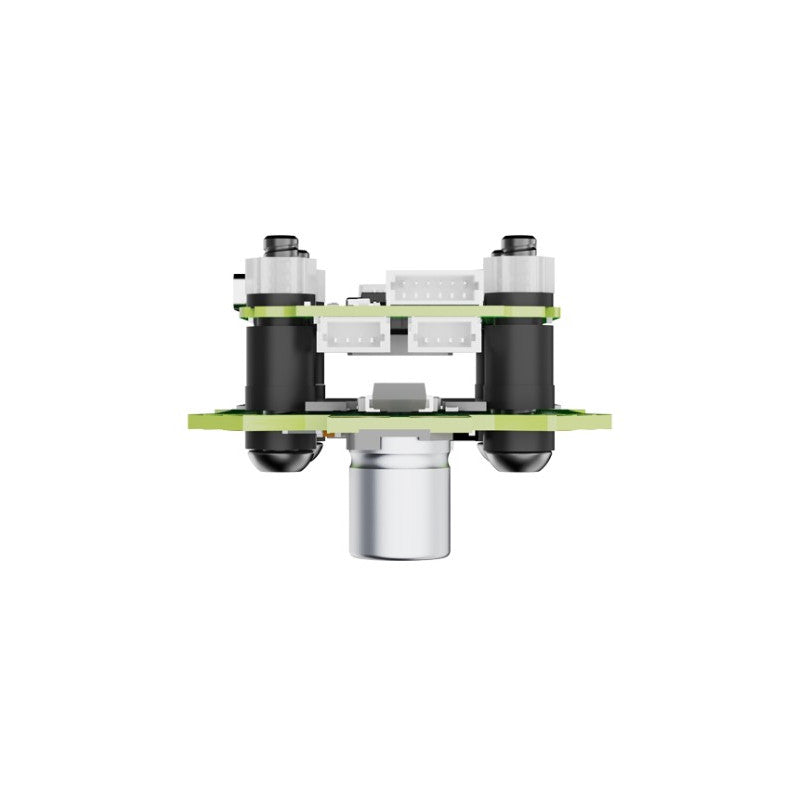

    Flight Tower BLITZ Mini F7 E55 4-IN-1 System

Function

- Improved circuit design, better components and lower electrical noise
- DJI HD VTX connector (Plug-and-Play / no soldering required)
- FC indicator LED for visual tuning

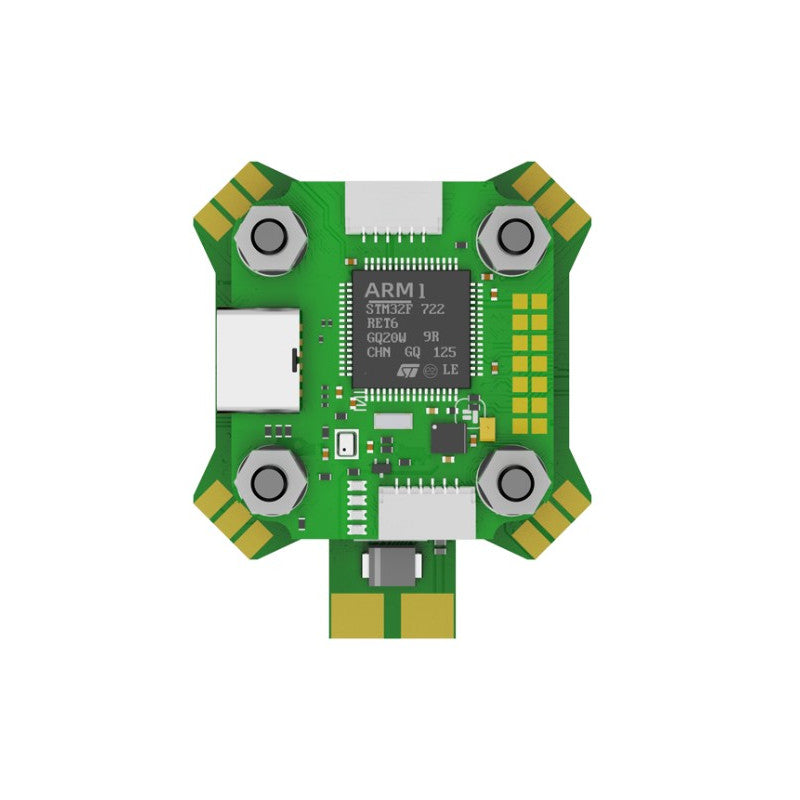

FC specification

MCU: STM32 F722
Gyroscope: ICM42688
Barometer: DPS310
OSD chip: AT7456
Flash: 8 MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED driver: Yes
Buzzer: Yes
Target firmware: IFRC-IFLIGHT_BLITZ_F722
Mounting pattern: 20x20mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5x27 mm
Weight: 5g

Wiring design:
UART 1 for VTX HD / Analog
UART 2 for receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC telemetry

ESC specification

Mounting holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU: G071
Constant: 55 Amps
Discharge: 60 amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9

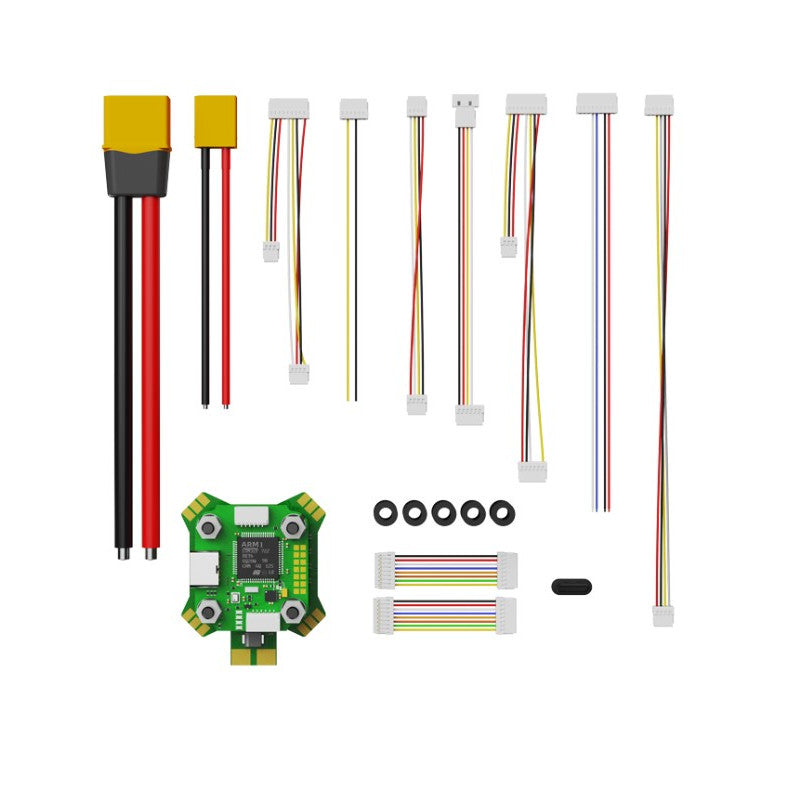

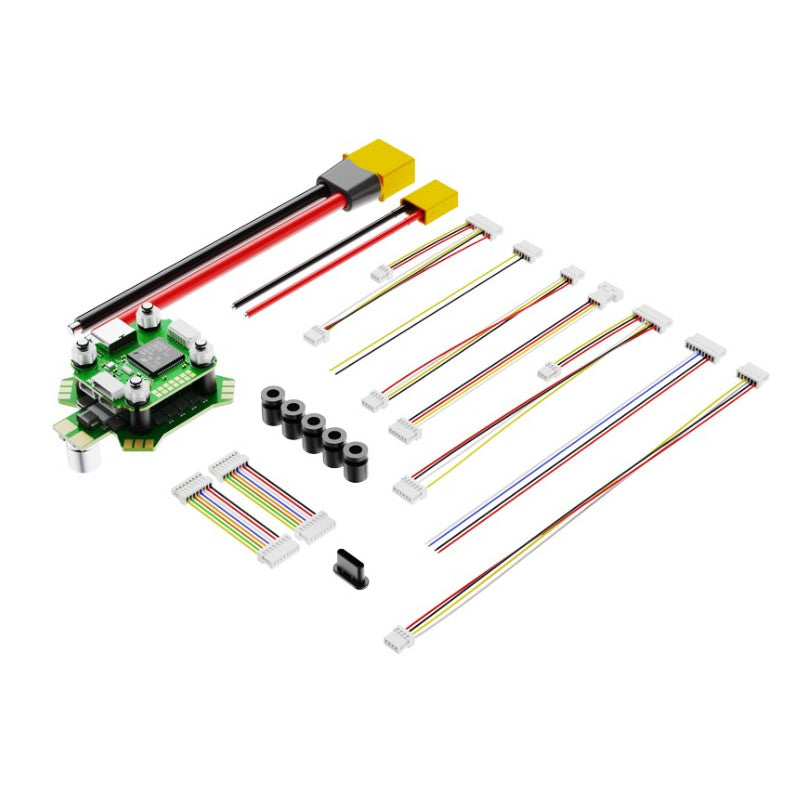

The package includes:
1 x BLITZ Mini F7 V1.2 Flight Controller
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1x silicone grommets
1 x cable harness for F7 Flight controller

Note:
If you need to use the ESC in the iH3 O3 Frame kit, please remove the capacitor after receiving the ESC and then install the ESC.
