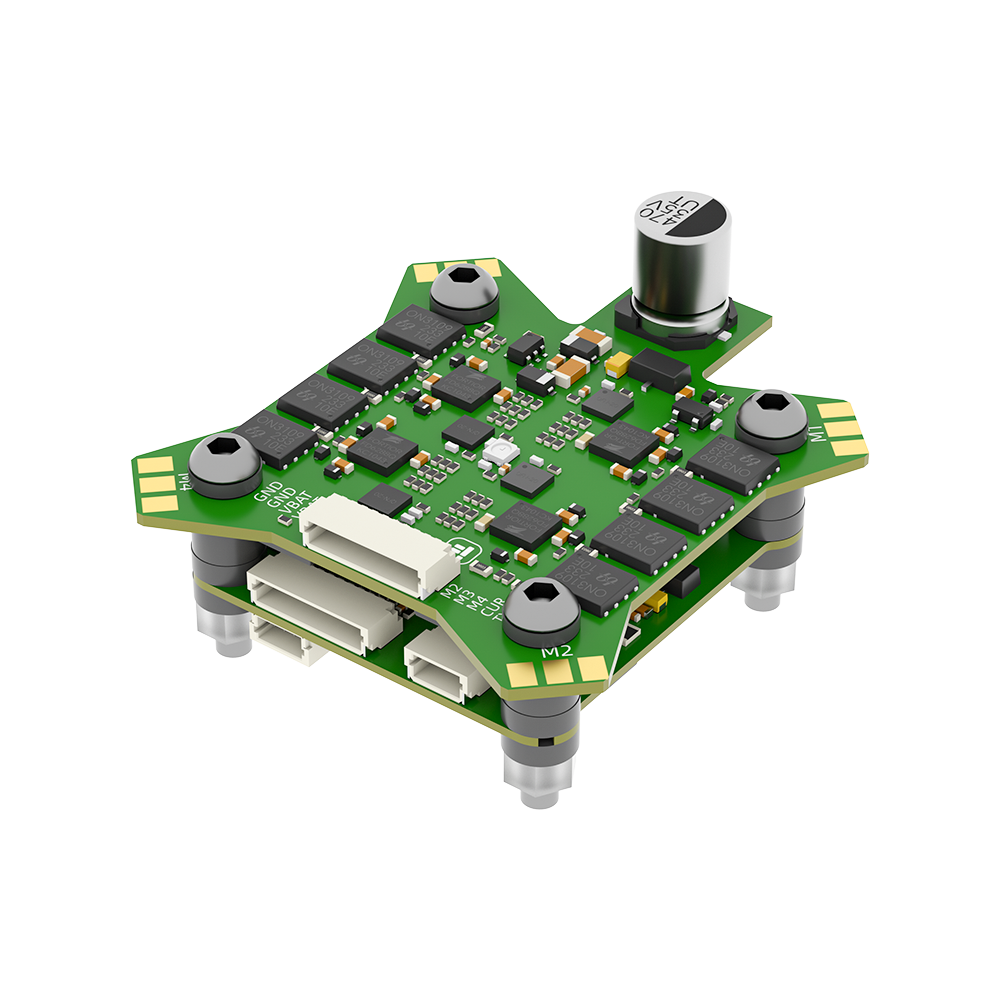

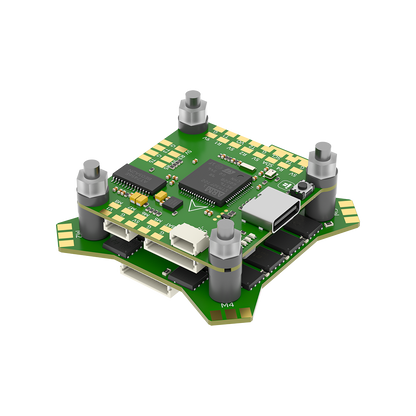

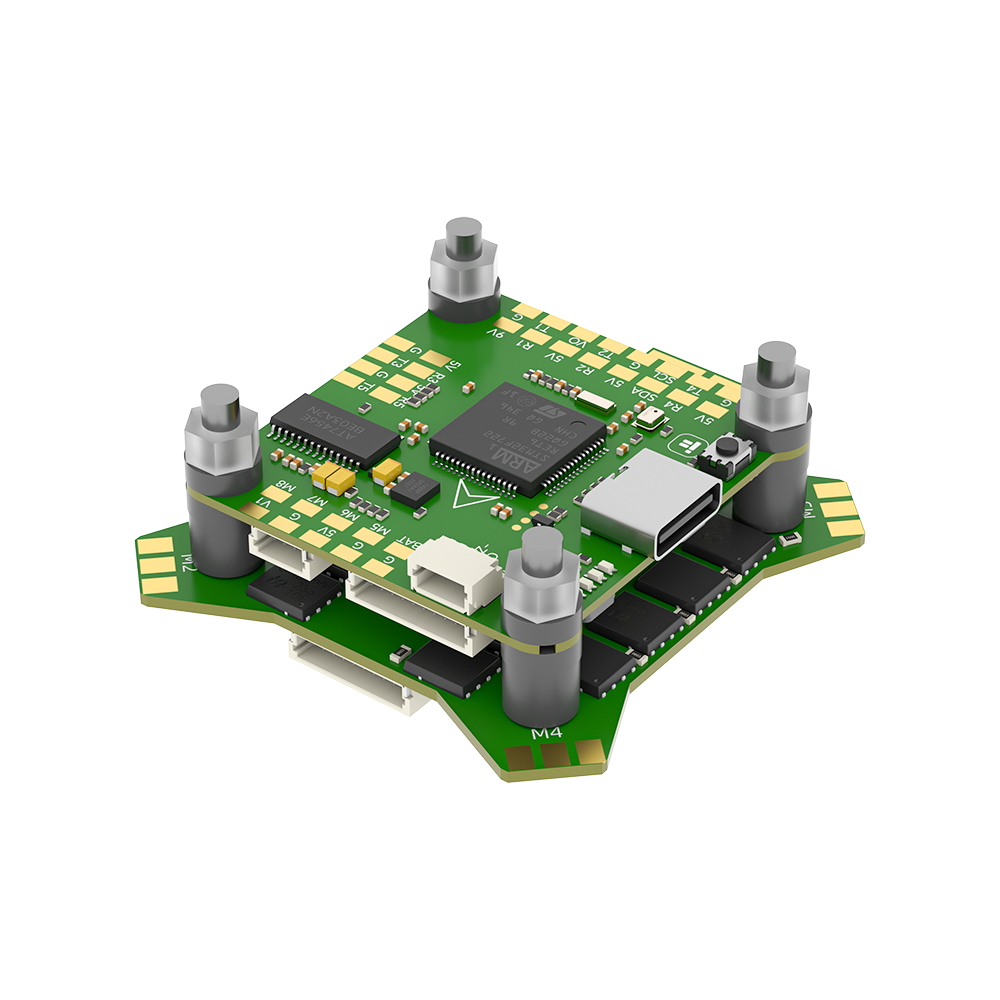

Stack iFlight BLITZ F7 E55S 4-IN-1 Flight Tower System

Name: Stack iFlight BLITZ F7 E55S 4-IN-1 Flight Tower System
Brand: Baltic Drones
SKU: BF15192
Price: 138.04 EUR
Availability: InStock

Stack iFlight BLITZ F7 E55S 4-IN-1 Flight Tower System

Brand: iFlight

€138,04

~~€117,39~~ €138,04

--18% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

BLITZ F7 E55S 4-IN-1 Air Turret System

Function

-Improved circuit design, better components and lower electrical noise
- DJI HD VTX connector (Plug-and-Play / no soldering required)
- FC indicator LED for visual tuning
- With LC filter

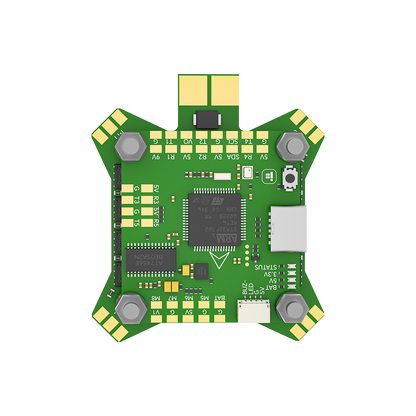

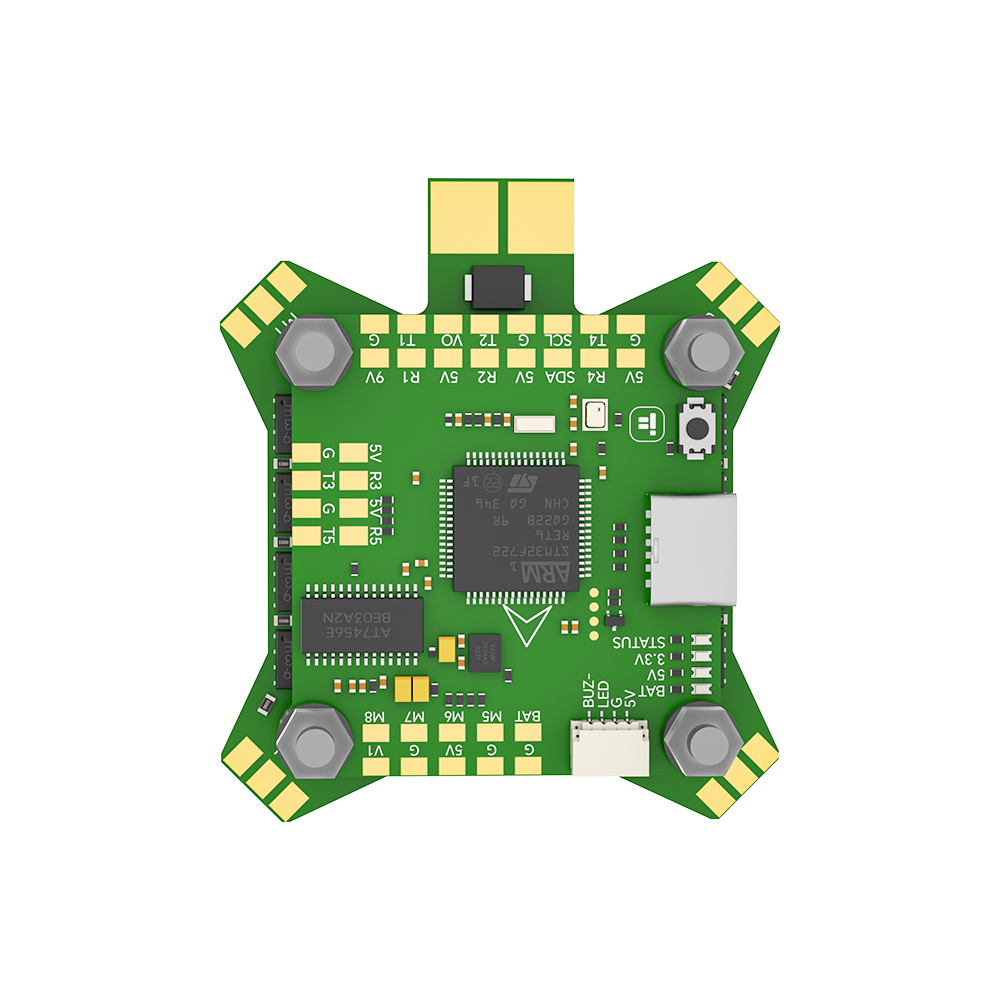

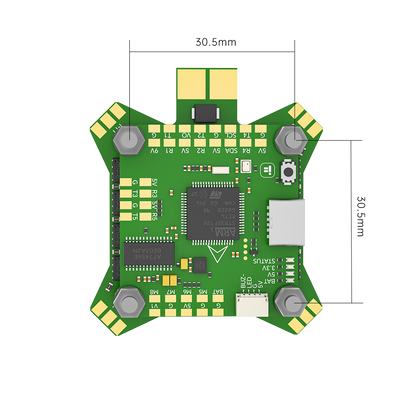

FC specification

MCU: STM32F722
Gyroscope: ICM42688
Barometer: DPS310
OSD chip: AT7456E
Flash: 32 MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED driver: Yes
Buzzer: Yes
Target firmware: IFRC-IFLIGHT_BLITZ_F722
Mounting pattern: 30.5 * 30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A

Wiring design:
UART 1 for VTX HD / Analog
UART 2 for receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC telemetry

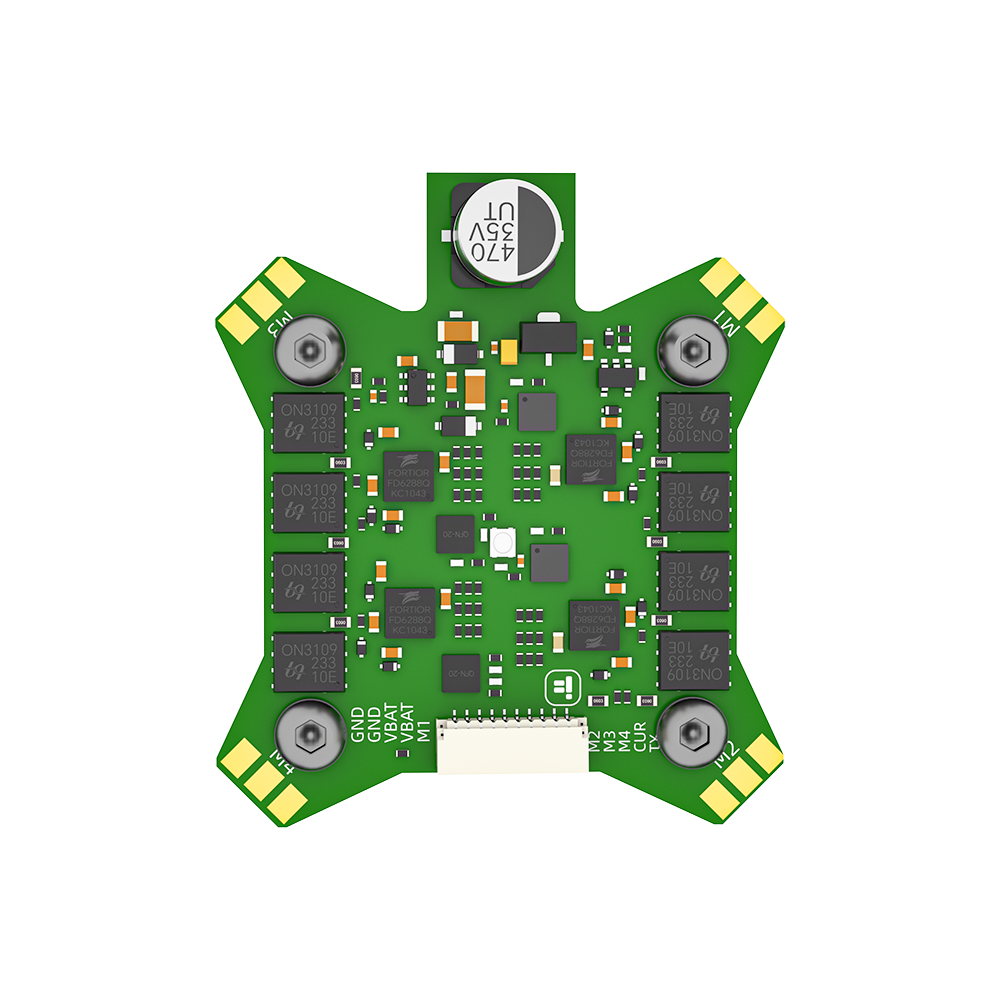

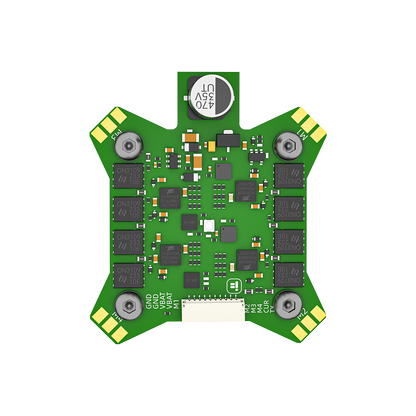

ESC specification

Mounting holes: 30.5*30.5mm/Φ4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Discharge: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7 (BlheliS) / Bluejay Q-H-25 (Bluejay)

The package includes:
1 x BLITZ F7 V1.2 Flight Controller
1 x BLITZ E55S 4-IN-1 45A 2-6S ESC
1 x bag of screws
