    Code: BF15190

    Stack iFlight BLITZ F7 E55S 4-IN-1 +BLITZ 1.6W VTX Flight Tower System

    Stack iFlight BLITZ F7 E55S 4-IN-1 +BLITZ 1.6W VTX Flight Tower System

    Brand: iFlight

    €113,40
    €113,40 €113,40
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

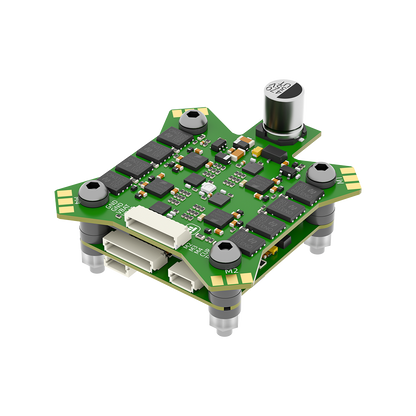

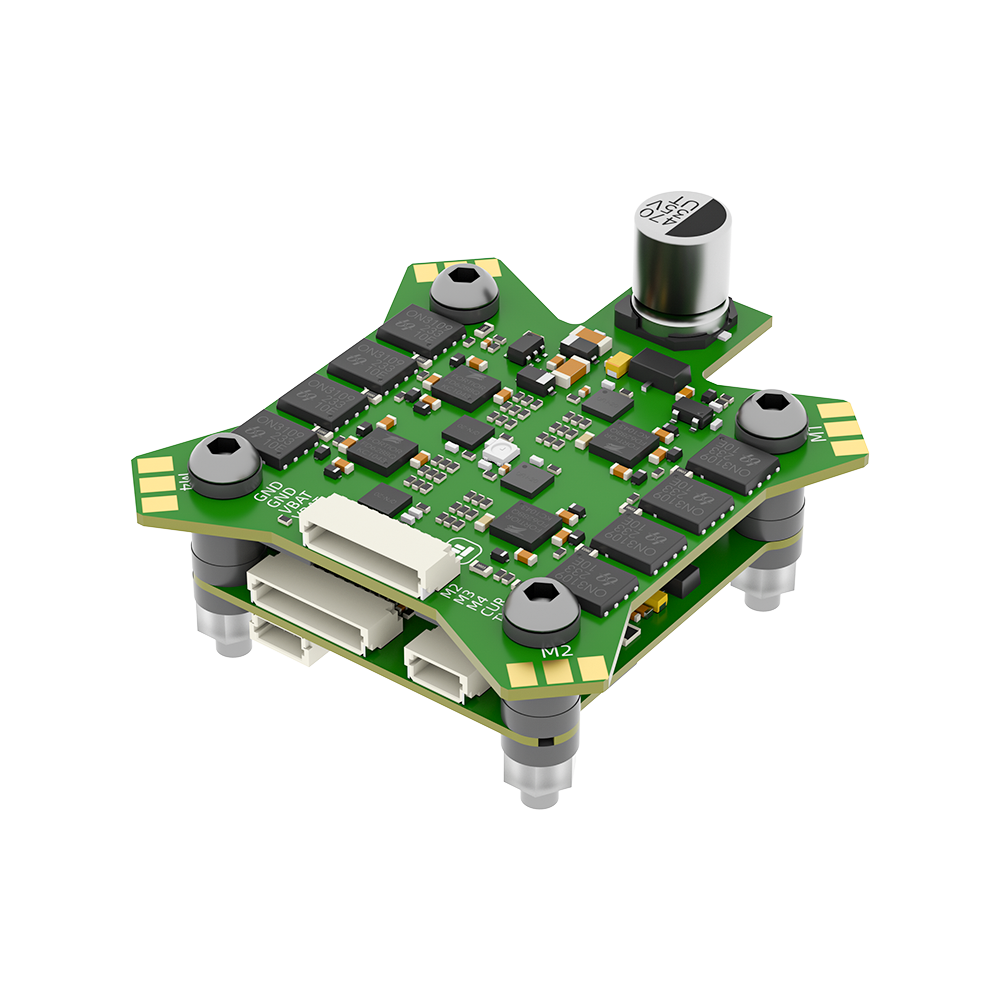

    BLITZ F7 E55S 4-IN-1 + BLITZ 1.6W VTX Flight Tower System

This kit includes BLITZ F7 V1.2 Flight controller with ICM42688, BLITZ E55S 4-IN-1 ESC and BLITZ 1.6W VTX.

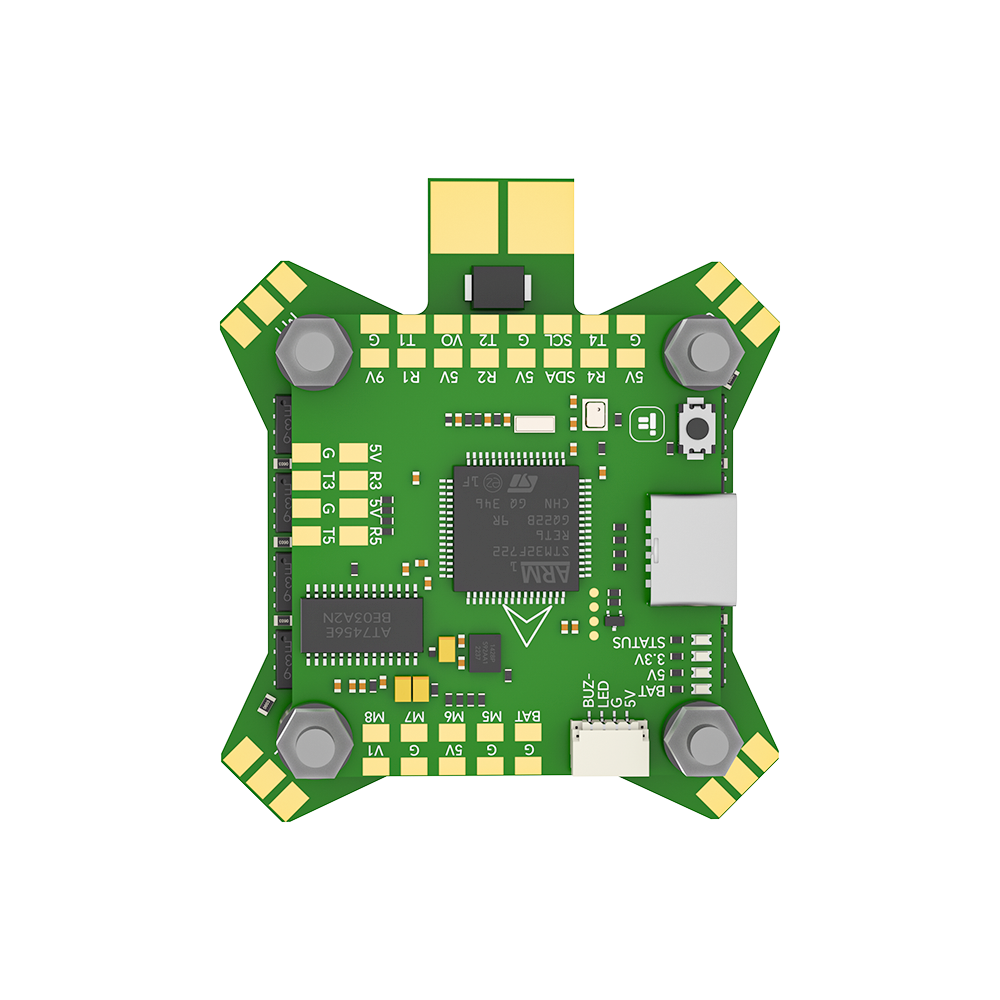

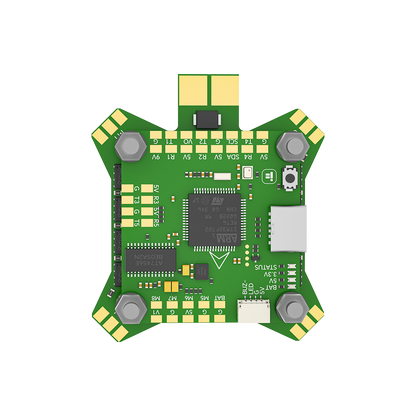

FC Specifications:
Mounting pattern: 30.5 * 30.5mm / 4mm PCB hole diameter
Model: BLITZ F722 V1.2 FLIGHT CONTROLLER
Tramp VTX SmartAudio / IRC protocol supported
Target firmware: IFRC-IFLIGHT_BLITZ_F722
Motor outputs: 4x (SH1.0 connector)
Flash: 32 MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 36.5*35 mm
OSD chip: AT7456E
Barometer: DPS310
MCU: STM32 F722
LED driver: Yes
Buzzer: Yes
Gyroscope: ICM42688
Weight: 7.8g
UARTS: 6
BEC: 5V 2.5A / 9V 2A

Wiring design:
UART 1 for VTX HD / Analog
UART 2 for receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

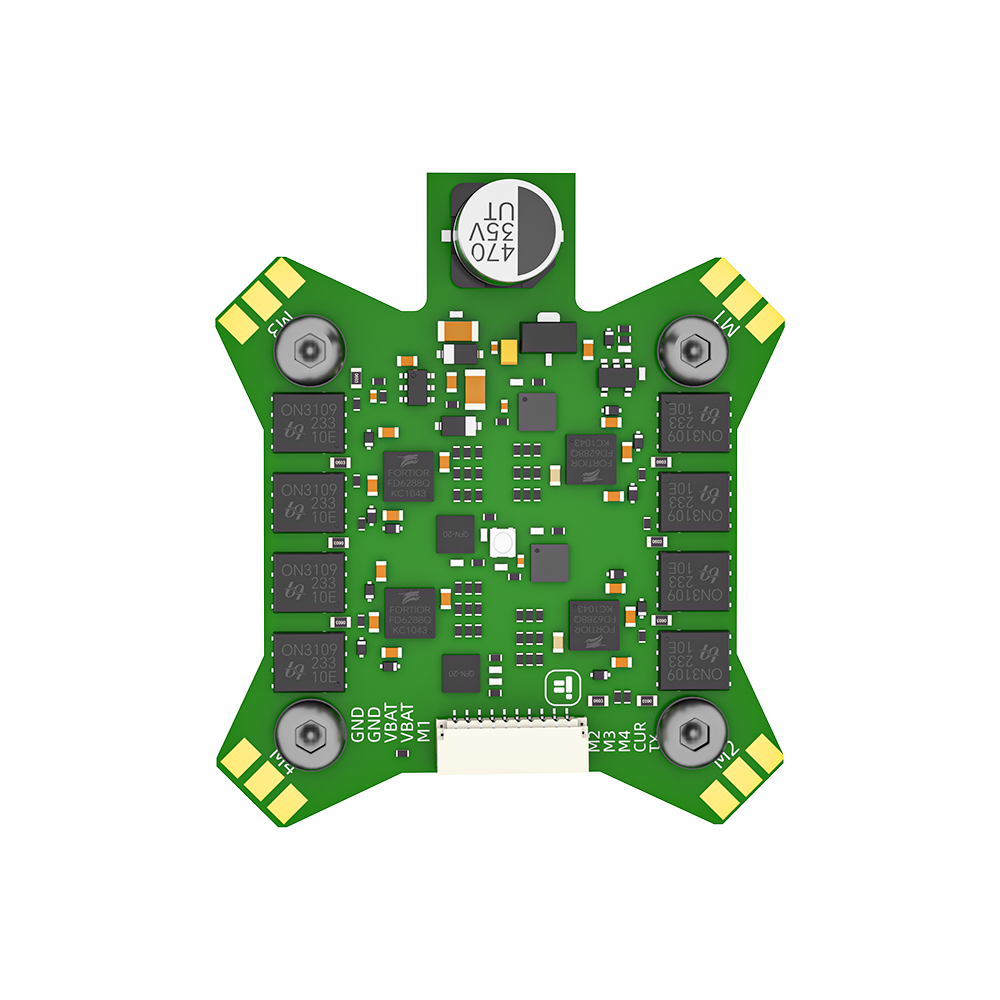

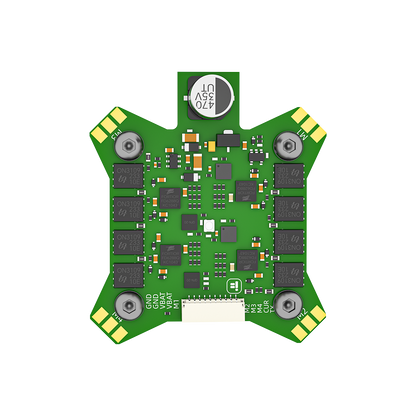

ESC Specifications:
Mounting holes: 30.5*30.5mm/Φ4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Discharge: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7 (BlheliS) / Bluejay Q-H-25 (Bluejay)

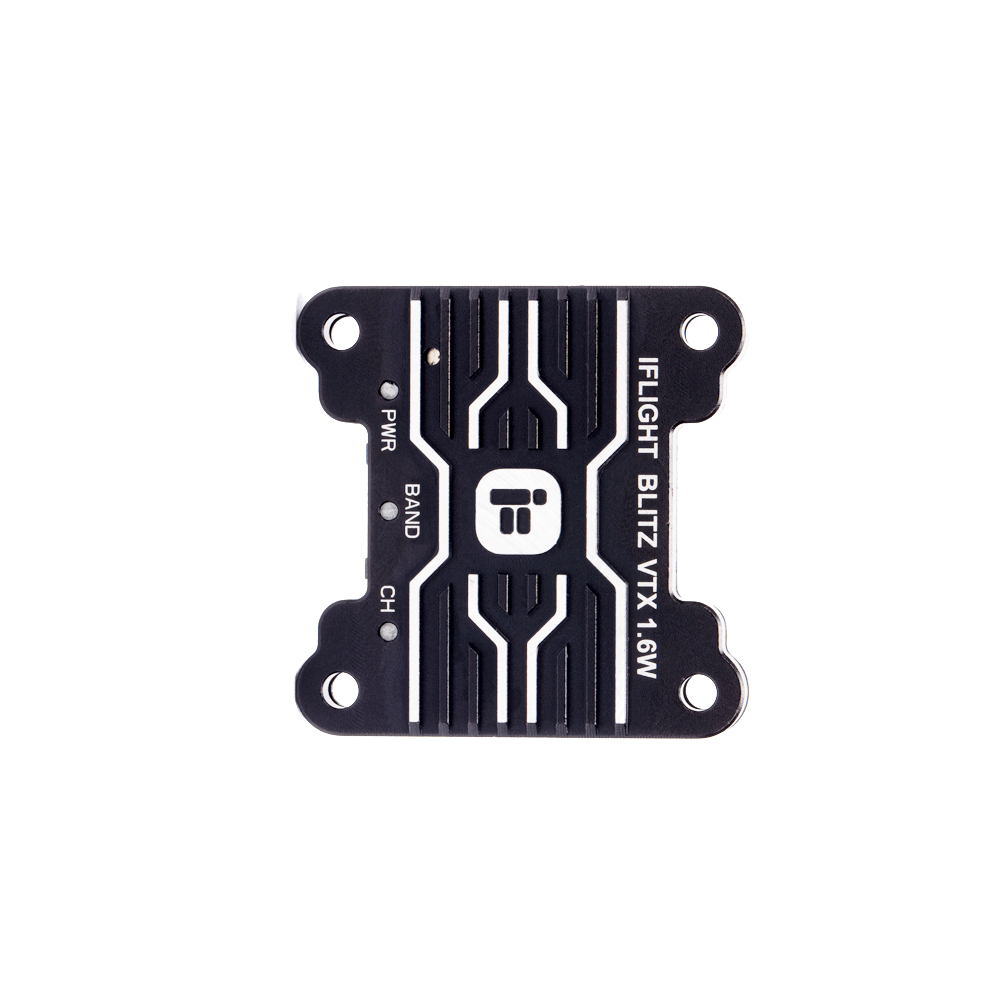

VTX Specifications:
Input voltage: 7V-34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Light weight: 18.9 g (without antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
Table values ​​RC Tramp VTX: 25mW/400mW/800mW/1600mW

The package includes:
1 x BLITZ F7 V1.2 Flight Controller
1 x BLITZ E55S 4-IN-1 2-6S ESC
1 x ESC power cables and signal wires
1 x BLITZ 1.6W VTX
