Code: SKU:F013180

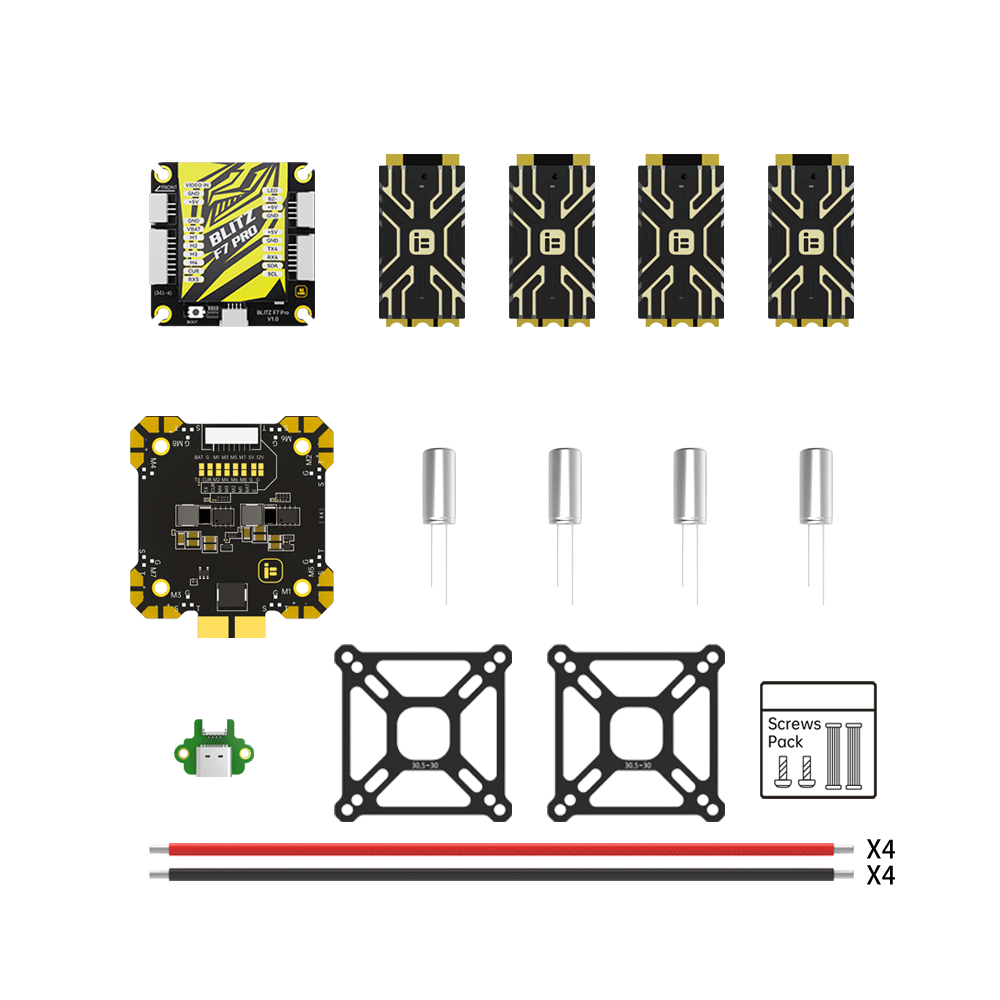

Stack iFlight BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4)
Stack iFlight BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4)
Brand: iFlight
Regular price
€320,79
Regular price
€320,79
Sale price
€320,79
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4) Function - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning - The BLITZ E80 BLHeli Dshot600 Single ESC has been designed to give your motors smooth performance with great stability and durability. 32-bit 48mHz G071 MCU and 11 pieces of TDK MLCC total 240UF Low ESR capacitors bring faster response and smoother flying experience. FC specification Product name: BLITZ F7 Pro Flight Controller Mounting pattern: 35 * 35mm / 4mm PCB hole diameter Smartaudio / IRC Tramp VTX protocol supported Target firmware: IFLIGHT_BLITZ_F7_PRO Input voltage: 14.8V-34V (4S-8S LIPO) Motor outputs: 4x (SH1.25 connector) Flash: 512 MB (Blackbox flash) I2C serial: SDA / SLA pads Dimensions: 41*41.5mm Barometer: DPS310 OSD chip: AT7456E LED driver: Yes MCU: STM32 F722 Weight: 17g (±2) Buzzer: Yes Gyroscope: BMI270 UARTS: 4 ESC specification Product name: BLITZ E80 Single ESC Input voltage: 2-8S Max. Continuous current: 80A Max. Explosive current: 100A MCU: G071 BEC: No Firmware: BLHeli32 Current sensor: Yes Telemetry: Supported Target: IFLIGHT_BLITZ_G2 Dimensions: L40 x W17 x W10 mm Weight: 14.5g (±2) Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive Packing list 1 x BLITZ F7 Pro Flight Controller 4 x BLITZ E80 Single ESC with CNC Alum Cover (Combo2) 4 x 50V 470UF capacitor (Combo2) 4 x ESC power cables and signal wires (Combo2) 1 x BLITZ For PDB 1 x pack of screws 1 x USB adapter board
