Code: SKU:F013178

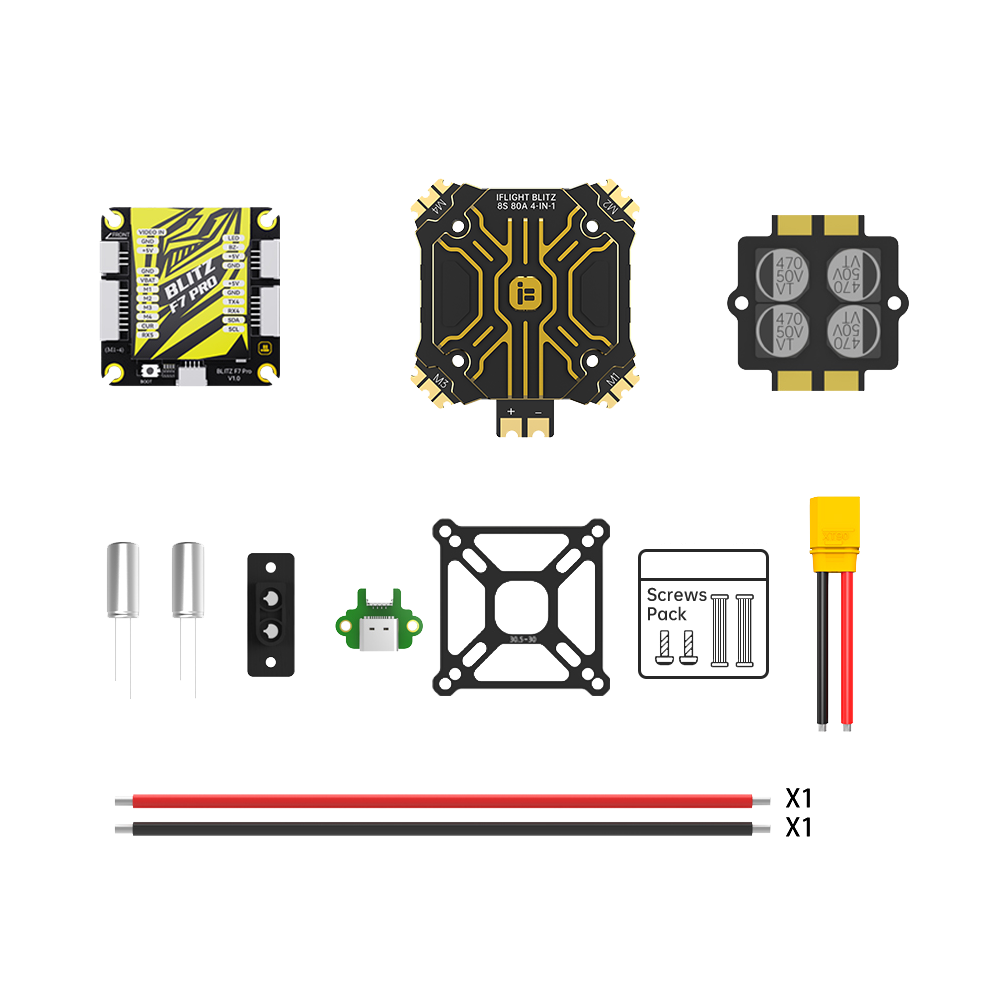

Stack iFlight BLITZ E80 4-IN-1 Pro+BLITZ F7 Pro V1.1
Stack iFlight BLITZ E80 4-IN-1 Pro+BLITZ F7 Pro V1.1
Brand: iFlight
Regular price
€290,99
Regular price
€290,99
Sale price
€290,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
BLITZ E80 4-IN-1 Pro + BLITZ F7 Pro V1.1 Function - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning - 512 MB BlackBox - With LC filter - The MOSFET used by the BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C with a maximum power dissipation of 198W. The BEC power supply uses a dedicated TI automotive grade synchronous rectifier chip that supports up to 100V. - 1-4 layer power PCB circuit board is 4OZ ultra thick copper to ensure continuous performance at high power. The STM32F051 main control processor with an operating frequency of up to 48MHz combined with a three-in-one driver IC achieves a higher operating speed! FC specification Product name: BLITZ F7 Pro Flight Controller Mounting pattern: 35 * 35mm / 4mm PCB hole diameter Smartaudio / IRC Tramp VTX protocol supported Target firmware: IFLIGHT_BLITZ_F7_PRO Input voltage: 14.8V-34V (4S-8S LIPO) Motor outputs: 4x (SH1.25 connector) Flash: 512 MB (Blackbox flash) I2C serial: SDA / SLA pads Dimensions: 41*41.5mm Barometer: DPS310 OSD chip: AT7456E LED driver: Yes MCU: STM32 F722 Weight: 17g (±2) Buzzer: Yes Gyroscope: BMI270 UARTS: 4 ESC specification Product name: BLITZ E80 4-IN-1 ESC Input voltage: 2-8S Max. Continuous current: 80A Max. Explosive current: 100A MCU: G071 BEC: No Firmware: BLHeli32 Current sensor: Yes Telemetry: Supported Target: IFLIGHT_BLITZ_G2 Mounting dimensions: 35x35mm/Φ3mm Dimensions: 35 x 42 mm Weight: 65g (±10) Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc. Packing list 1 x BLITZ F7 Pro Flight Controller 1 x BLITZ E80 4-IN-1 ESC (Combo1) 1 x 50V 470UF capacitor plate 2 x 50V 470UF capacitor 1 x Wiring Kit 1 x USB adapter board
