BLITZ E80 4-IN-1 Pro*2+BLITZ F7 Pro V1.1

Function

- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX connector (Plug-and-Play / no soldering required)
- FC indicator LED for visual tuning
- 512 MB BlackBox
- With LC filter
- The MOSFET used by the BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C with a maximum power dissipation of 198W. The BEC power supply uses a dedicated TI automotive grade synchronous rectifier chip that supports up to 100V.
- 1-4 layer power PCB circuit board is 4OZ ultra thick copper to ensure continuous performance at high power. The STM32F051 main control processor with an operating frequency of up to 48MHz combined with a three-in-one driver IC achieves a higher operating speed!

FC specification

Product name: BLITZ F7 Pro Flight Controller
Mounting pattern: 35 * 35mm / 4mm PCB hole diameter
Smartaudio / IRC Tramp VTX protocol supported
Target firmware: IFLIGHT_BLITZ_F7_PRO
Input voltage: 14.8V-34V (4S-8S LIPO)
Motor outputs: 4x (SH1.25 connector)
Flash: 512 MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 41*41.5mm
Barometer: DPS310
OSD chip: AT7456E
LED driver: Yes
MCU: STM32 F722
Weight: 17g (±2)
Buzzer: Yes
Gyroscope: BMI270
UARTS: 4

ESC specification

Product name: BLITZ E80 4-IN-1 ESC
Input voltage: 2-8S
Max. Continuous current: 80A
Max. Explosive current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Mounting dimensions: 35x35mm/Φ3mm
Dimensions: 35 x 42 mm
Weight: 65g (±10)
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

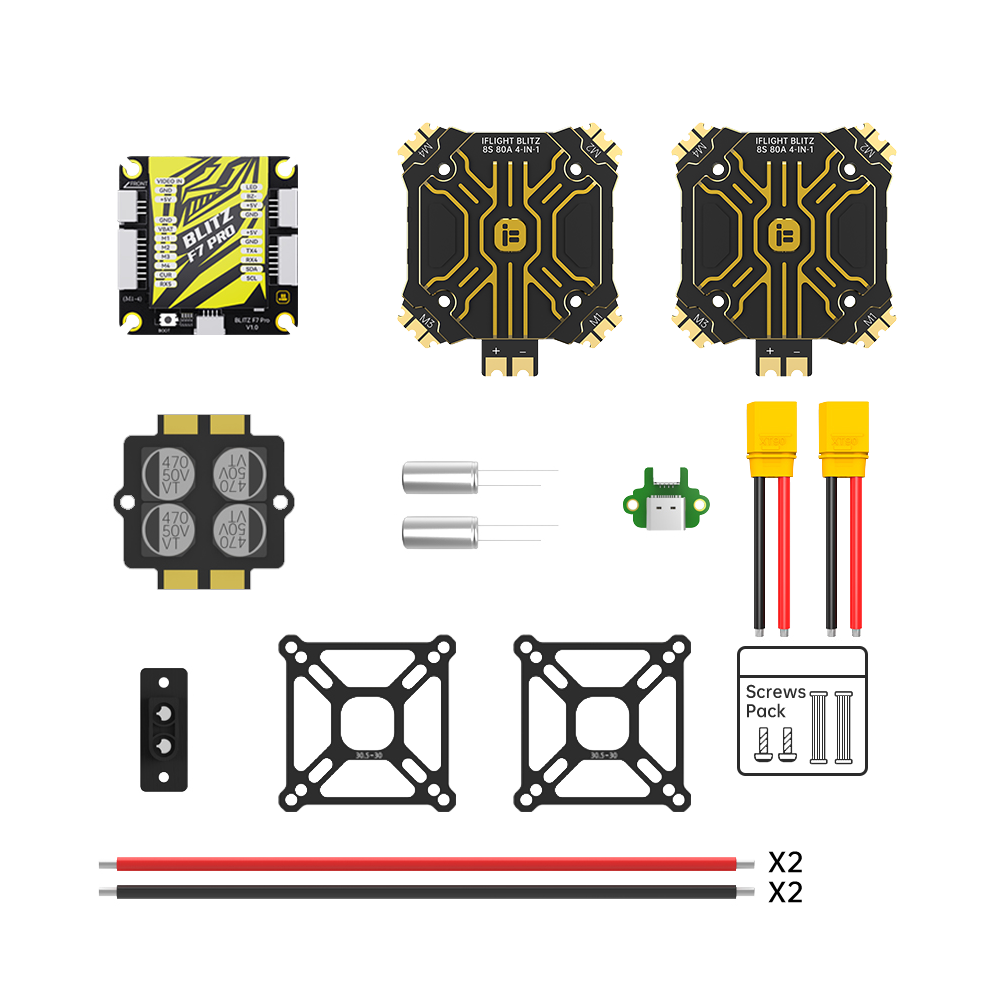

Packing list
1 x BLITZ F7 Pro Flight Controller
2 x BLITZ E80 4-IN-1 ESC (Combo2)
1 x 50V 470UF capacitor plate
2 x 50V 470UF capacitor
1 x Wiring Kit
1 x USB adapter board
